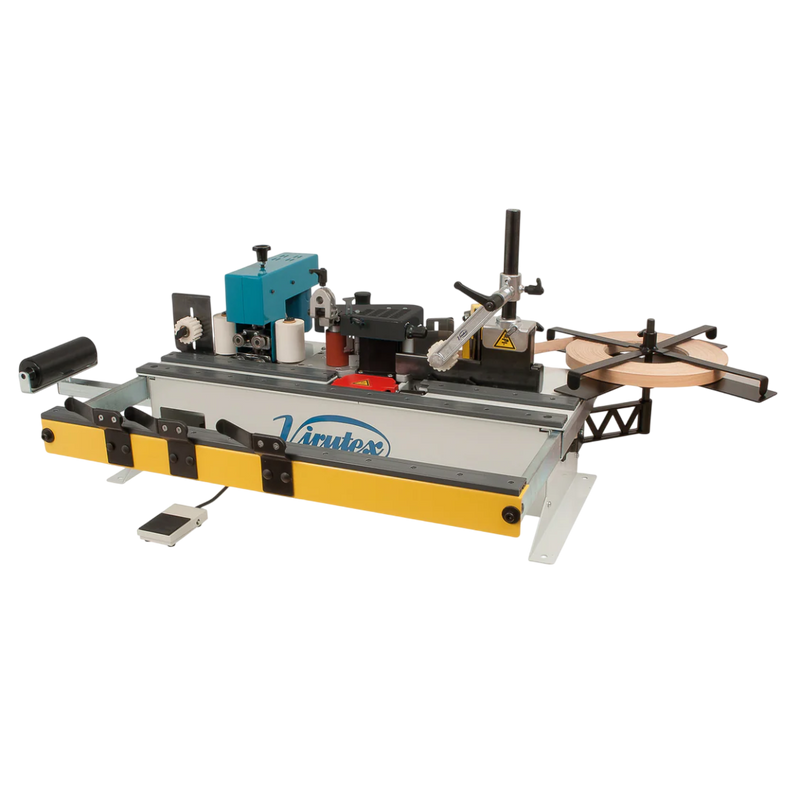

Virutex PEB250TRM Glue Pot Edge Bander (120V) 5050595

Applications

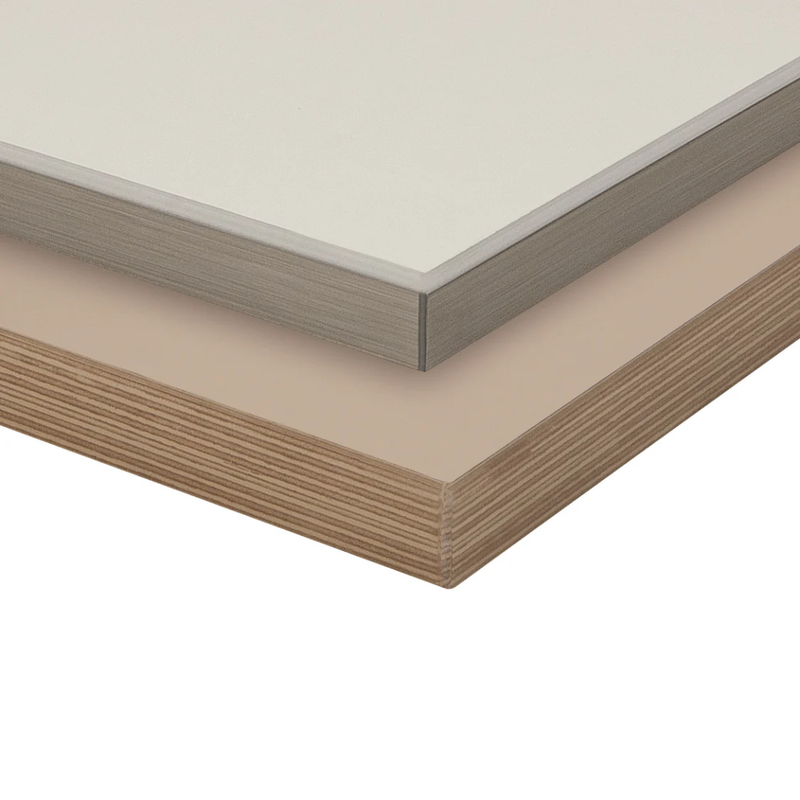

• Edge banding and trimming of PVC, ABS, melamine, laminate, and veneer tapes
• Straight, curved, and shaped panel processing
• Small batch manufacturing and custom woodworking
• Cabinetmaking, furniture fabrication, and panel finishing
• Workshops requiring banding and trimming in a single pass

Specifications

Construction & Performance

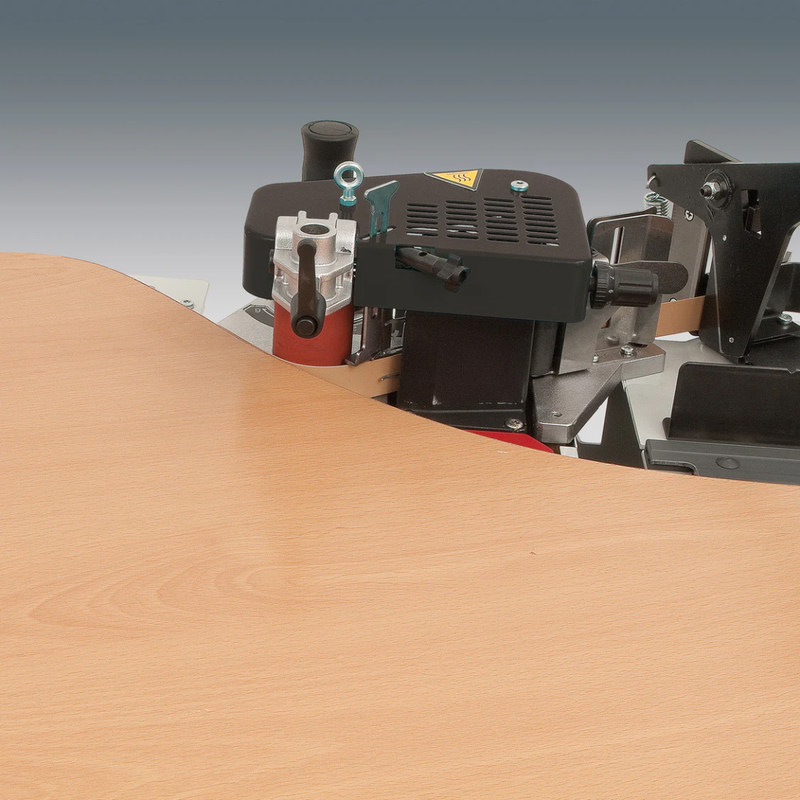

• Motorized trimming station with circular blades finishes tape edges in the same pass as banding, eliminating a separate trimming operation on compatible tape thicknesses.

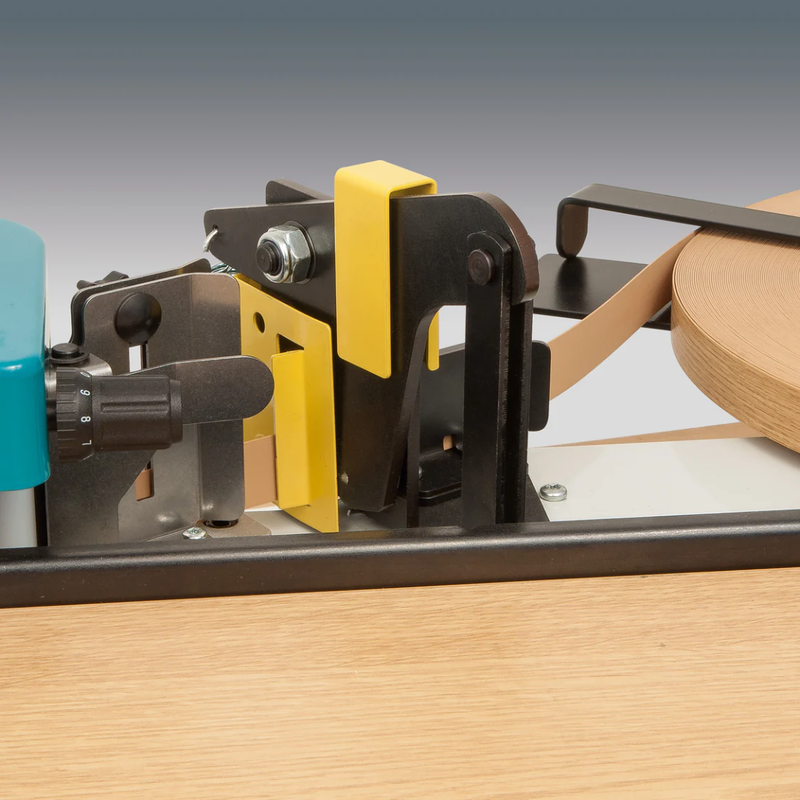

• Automatic rear tape cutting trims the trailing edge cleanly at the end of each panel without manual intervention.
• Upper presser system maintains consistent bonding pressure across the full panel length for uniform adhesion.
• Extending frontal guide supports larger panels through the banding pass and keeps alignment consistent on longer workpieces.

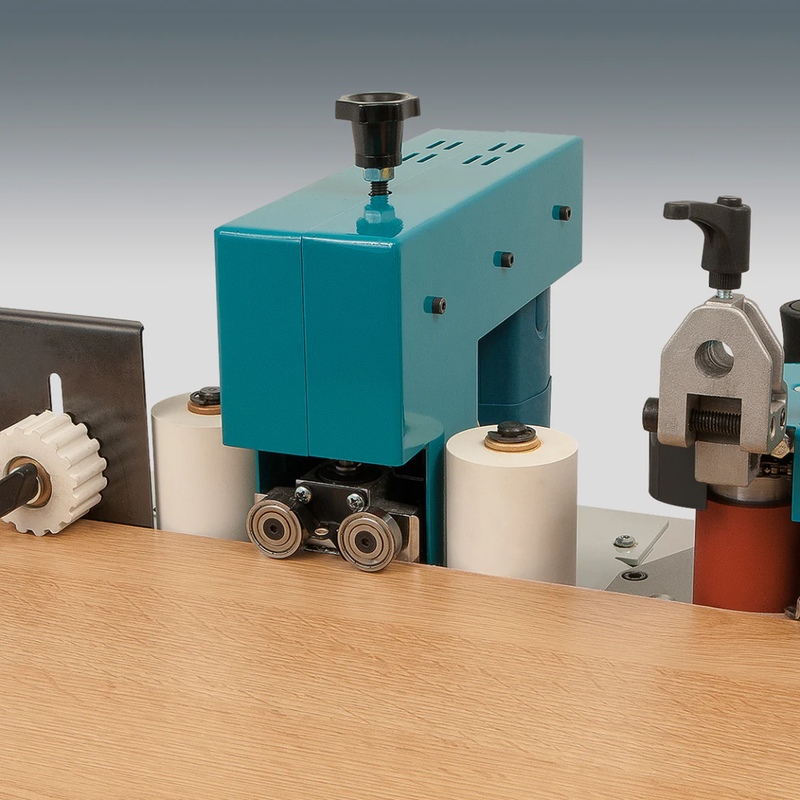

• Electronic temperature control holds glue pot temperature precisely between 120 and 200°C for consistent adhesive viscosity.
• Precision glue dosing control distributes adhesive evenly across tape width without voids or overload.
• Teflon-coated glue pot and sliding base reduce adhesive buildup and simplify cleaning between sessions.
• Included 5031113 scraper removes excess glue residue for a clean, refined edge finish after banding.

Why the PEB250TRM

• Integrated motorized trimmer combines banding and edge finishing into one pass, cutting total processing time per panel versus machines that require a separate trimming step.
• Upper presser system ensures consistent bond pressure that operator hand pressure alone cannot maintain on longer panels.
• 10 to 62mm panel thickness range is the widest in the PEB250 lineup, covering thicker substrates the TA+ cannot handle at full tape width.
• Included scraper ships with the machine, covering glue cleanup without an additional accessory purchase.
