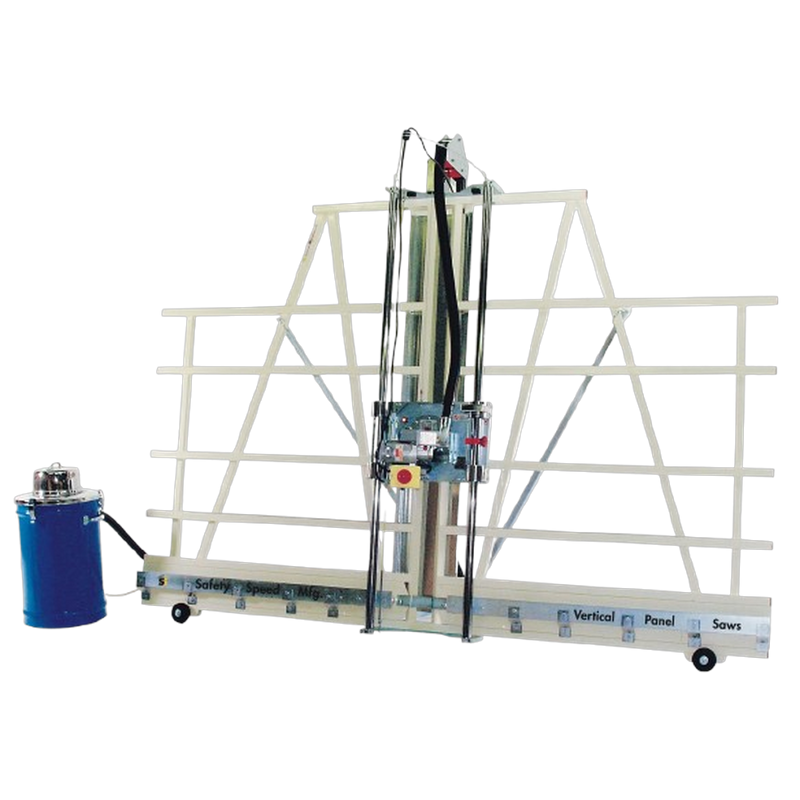

Safety Speed 6800 Vertical Panel Saw

Featuring an upgraded worm-drive motor and a 74″ maximum crosscut, the 6800 occupies only 30 square feet of floor space while easily processing 6′ × 9′ panels up to 1.75″ thick.

This machine utilizes a heavy-duty worm-drive saw motor designed for production shop service. Additional steel supports in the frame, double guide tube bearings, and machined aluminum material rollers result in a heavier-duty machine with a guaranteed cutting accuracy of 1/64″ straight and square.

Standard Equipment

• Low maintenance bearing and guide system for precise straight, square, and accurate cuts.
• Positioned saw blade design prevents casual operator contact and improves operator safety.
• Vertical panel positioning allows one person to handle full-size sheets accurately and safely.
• Simple controls allow easy operation in a wide range of environments.
• Industrial-duty motors powerful enough for demanding cutting applications.
• Material rollers utilizing 3/4″ diameter bearings for consistent accuracy and easier loading and unloading.
• Built-in rulers for quick and precise cuts without pencil marks.
• Rugged one-piece welded steel frame construction.
• 3 HP worm-drive heavy-duty saw motor.
• 10′ welded steel frame.
• Chrome-plated 1¾″ guide tubes.
• 8 Nylatron roller bearing systems.
• Adjustable vertical and horizontal rulers.
• Quick change from vertical to horizontal cutting.
• Thin material pressure guard.
• Solid aluminum material rollers.
• Enclosed counterweight system.

Technical Data + Specifications
