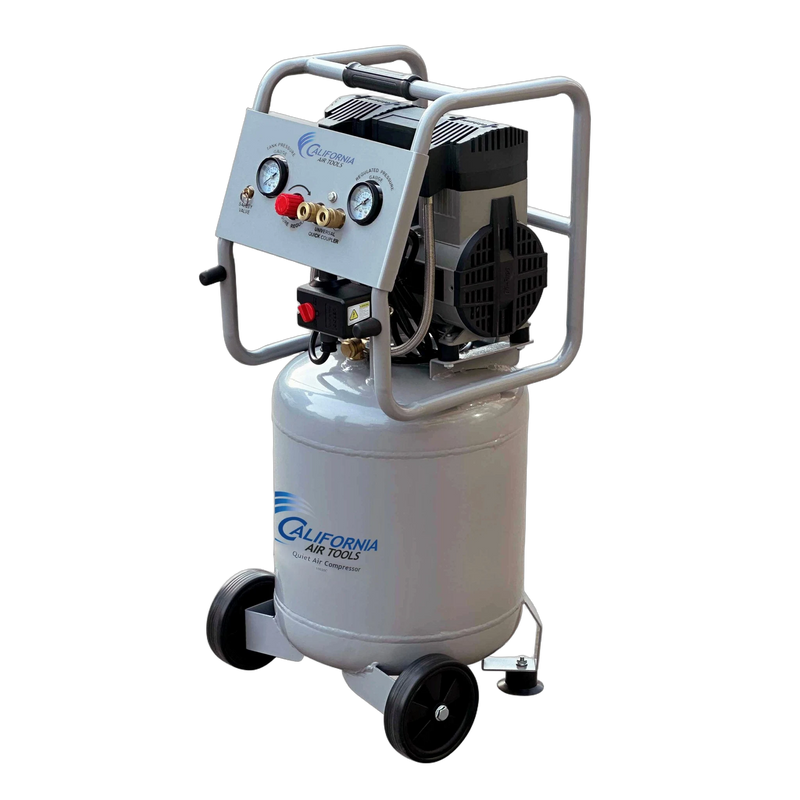

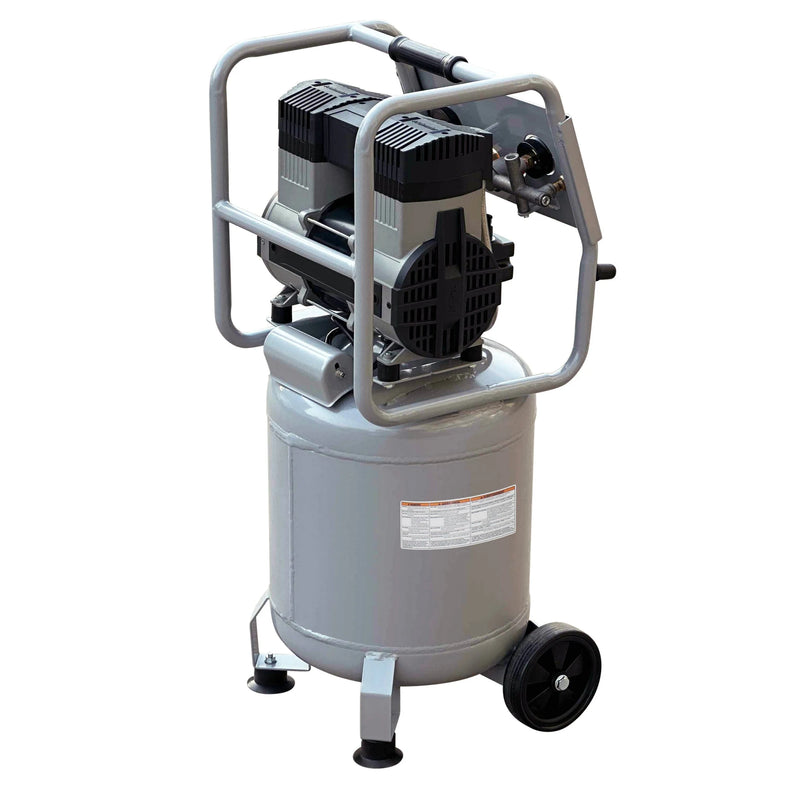

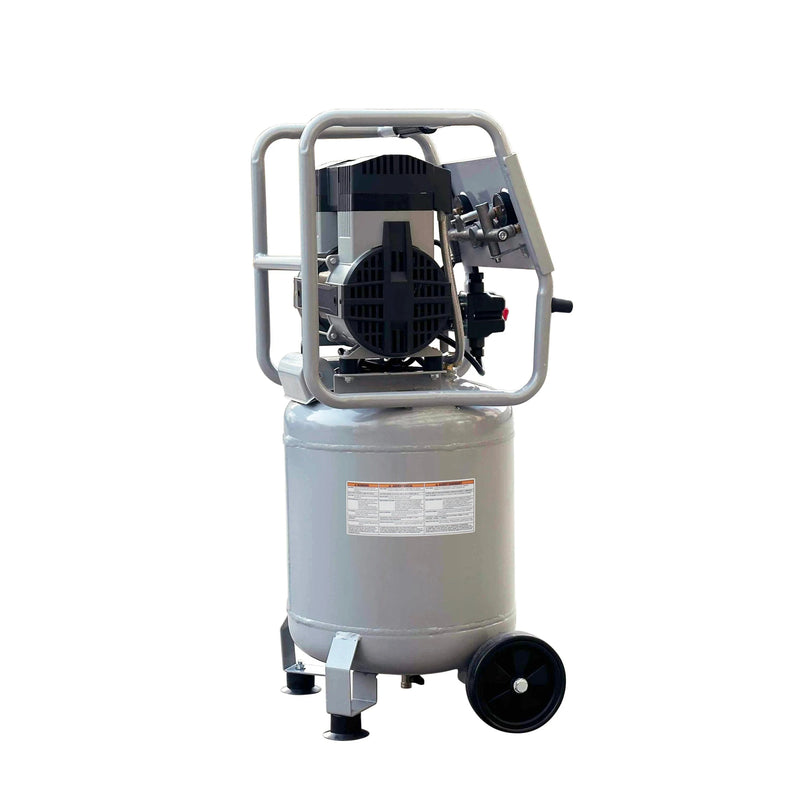

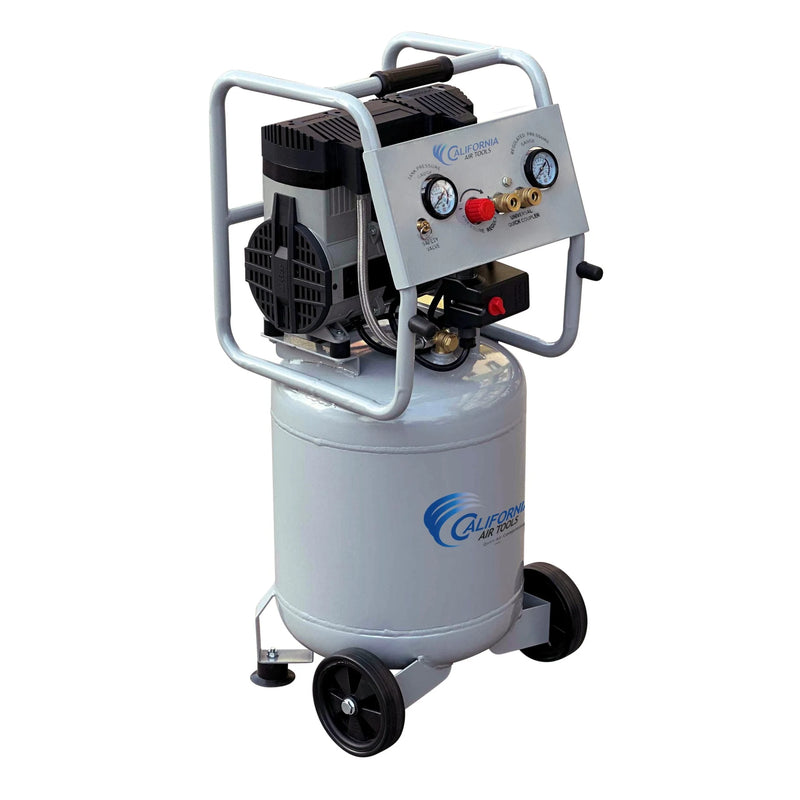

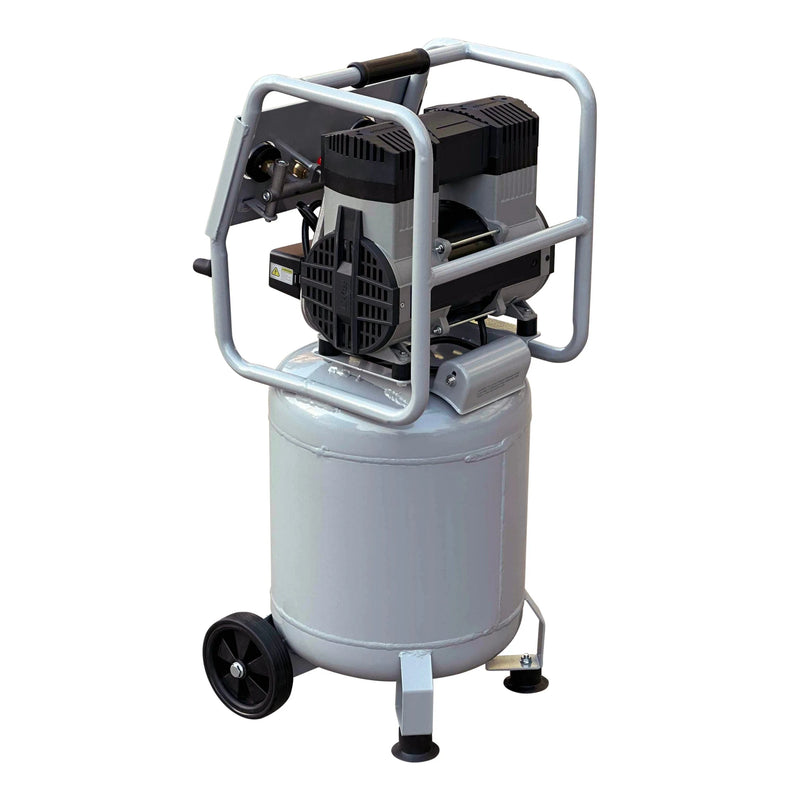

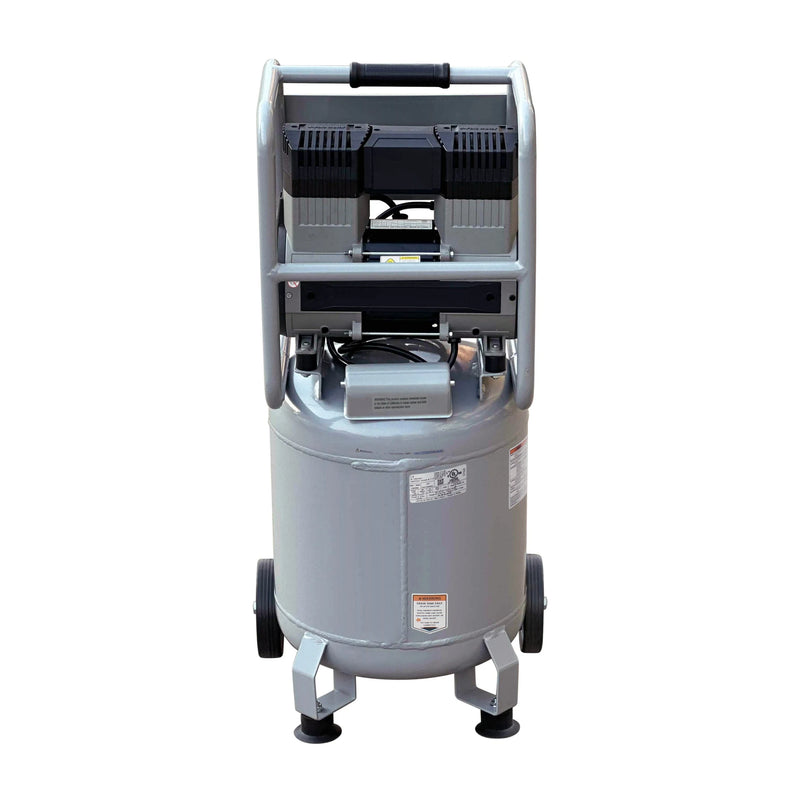

California Air Tools 10020C 2 HP 10 Gallon Oil-Free Air Compressor

The California Air Tools 10020C Air Compressor is designed for portable compressed air use in workshops, garages, and job site environments. The compressor uses an oil-free dual piston pump system designed to reduce maintenance while providing consistent compressed air output.

A 2.0 HP motor operating at approximately 1680 RPM powers the compressor while helping reduce operating noise and mechanical wear. The unit includes a 10 gallon steel air tank designed to provide increased air storage for pneumatic tool applications.

The compressor is suitable for inflation tasks and pneumatic tool operation where a portable air compressor is required.

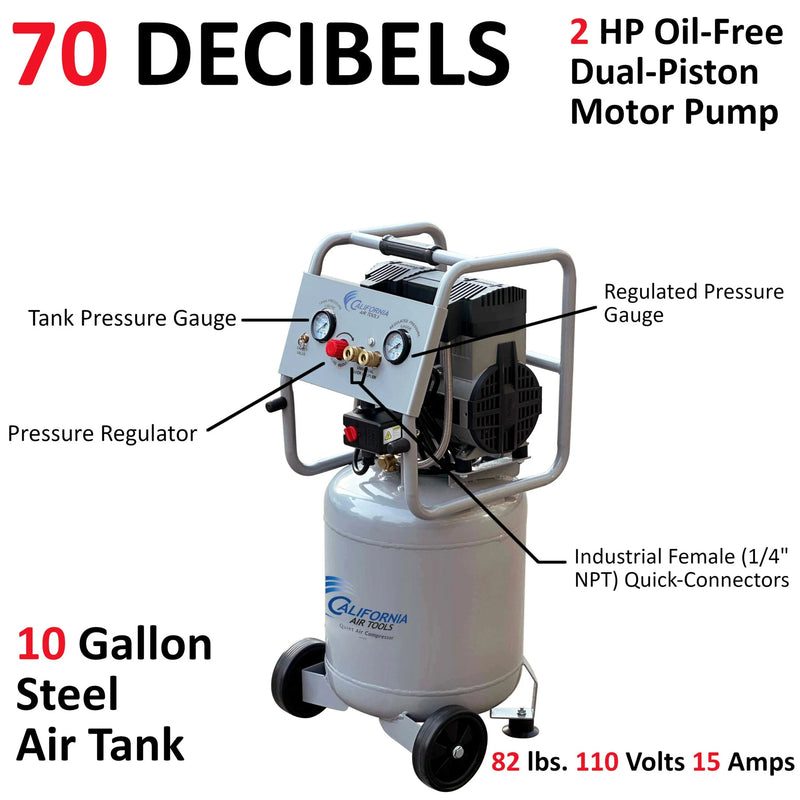

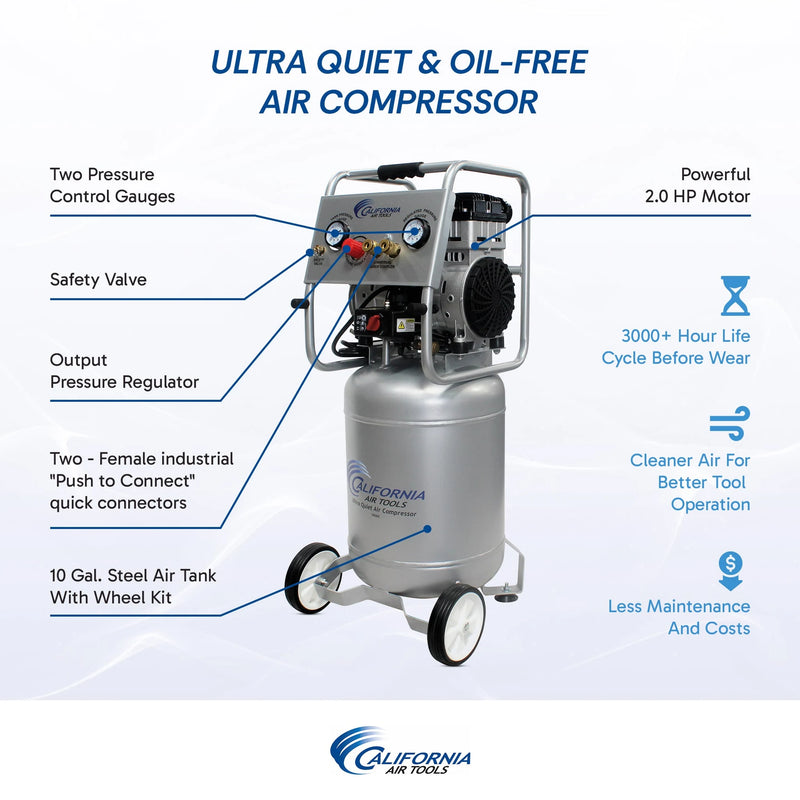

Standard Equipment

• Oil-free dual piston compressor pump
• 10 gallon steel air tank

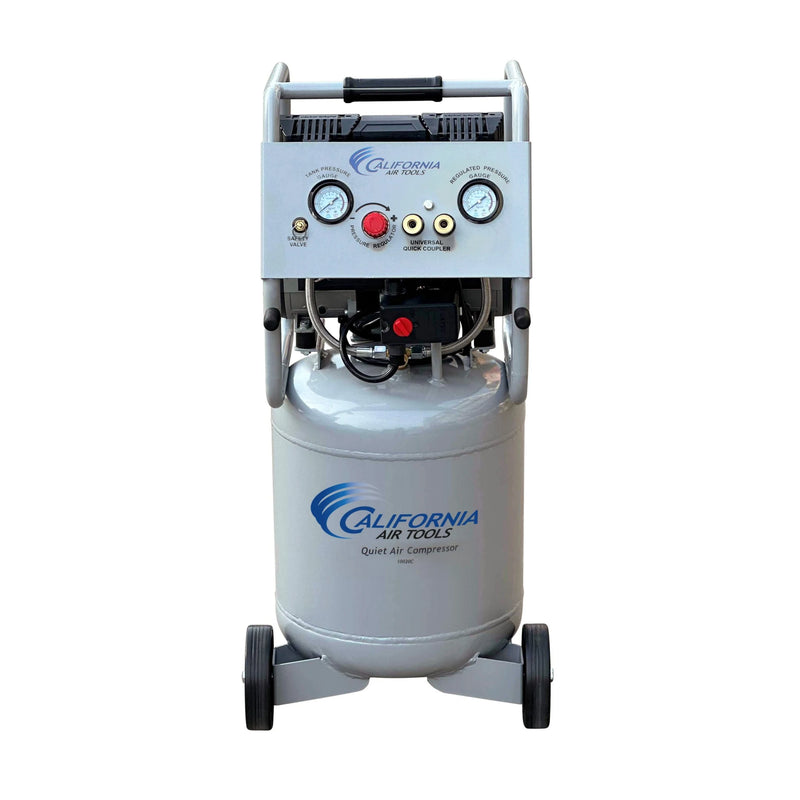

• Dual pressure control gauges

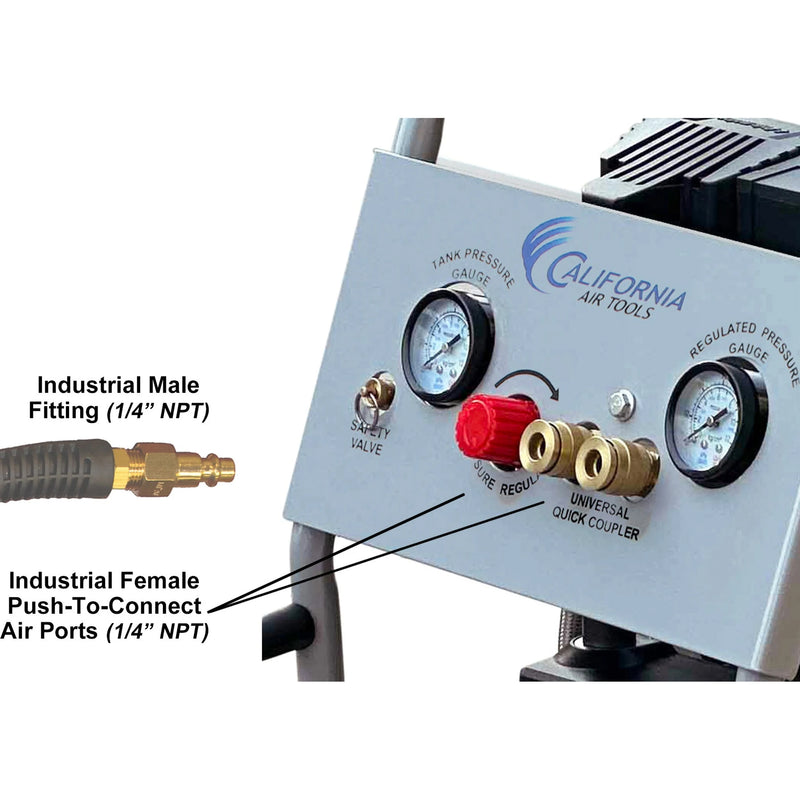

• Two industrial push-to-connect quick connectors
• Condor pressure switch
• Thermal overload protector
• Wheel kit for mobility
• Two air filters
• 1 year limited manufacturer warranty

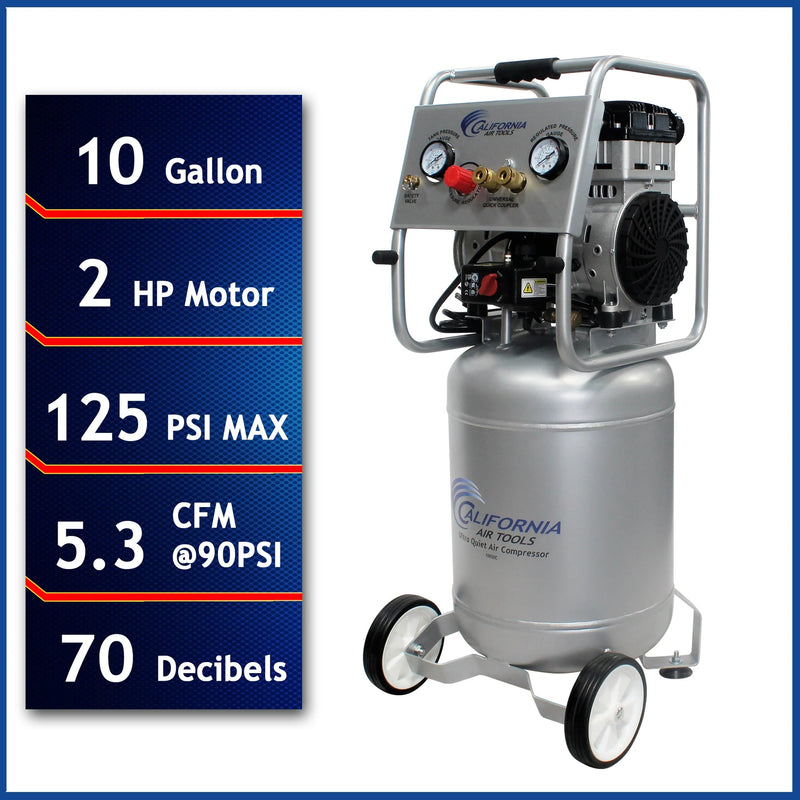

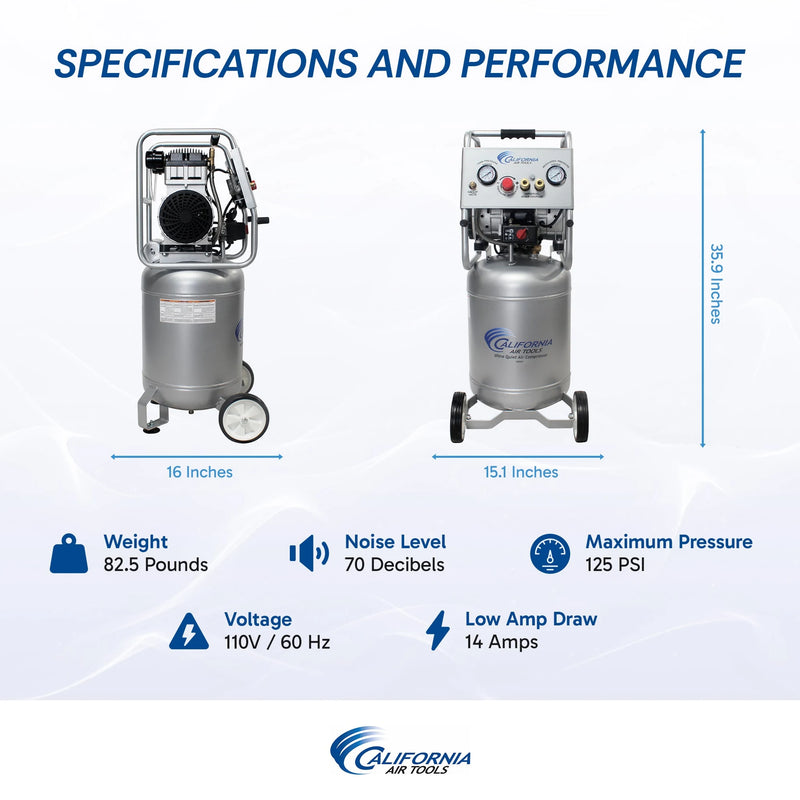

Technical Data + Specifications

• Motor Power: 2.0 HP
• Motor Type: SP-9421
• Motor Speed: ~1680 RPM
• Maximum Pressure: 125 PSI
• Noise Level: 70 dB
• Voltage: 110V / 60 Hz
• Minimum Generator Requirement: ~5500 Running Watts
• Amperage: 14 Amps
• Duty Cycle: 70/30
• Tank Capacity: 10 Gallon
• Tank Material: Steel
• Tank Fill Time (Empty to Full): ~120 seconds
• Recovery Time (95 PSI to 125 PSI): ~25 seconds
• Dimensions: 16" L x 15.1" W x 36" H
• Weight: 82.5 lbs
• Tank Type: Non-ASME
• Certification: UL
