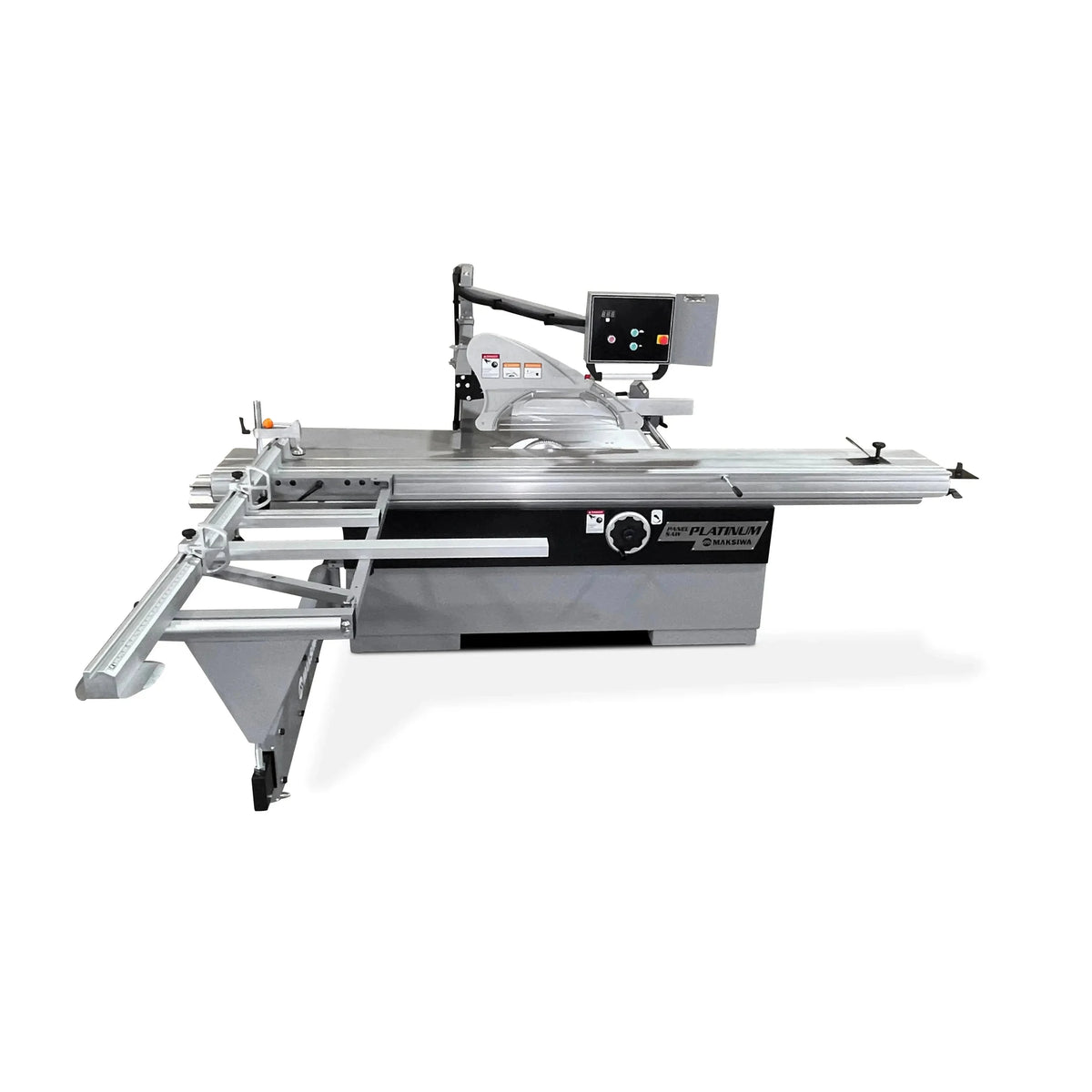

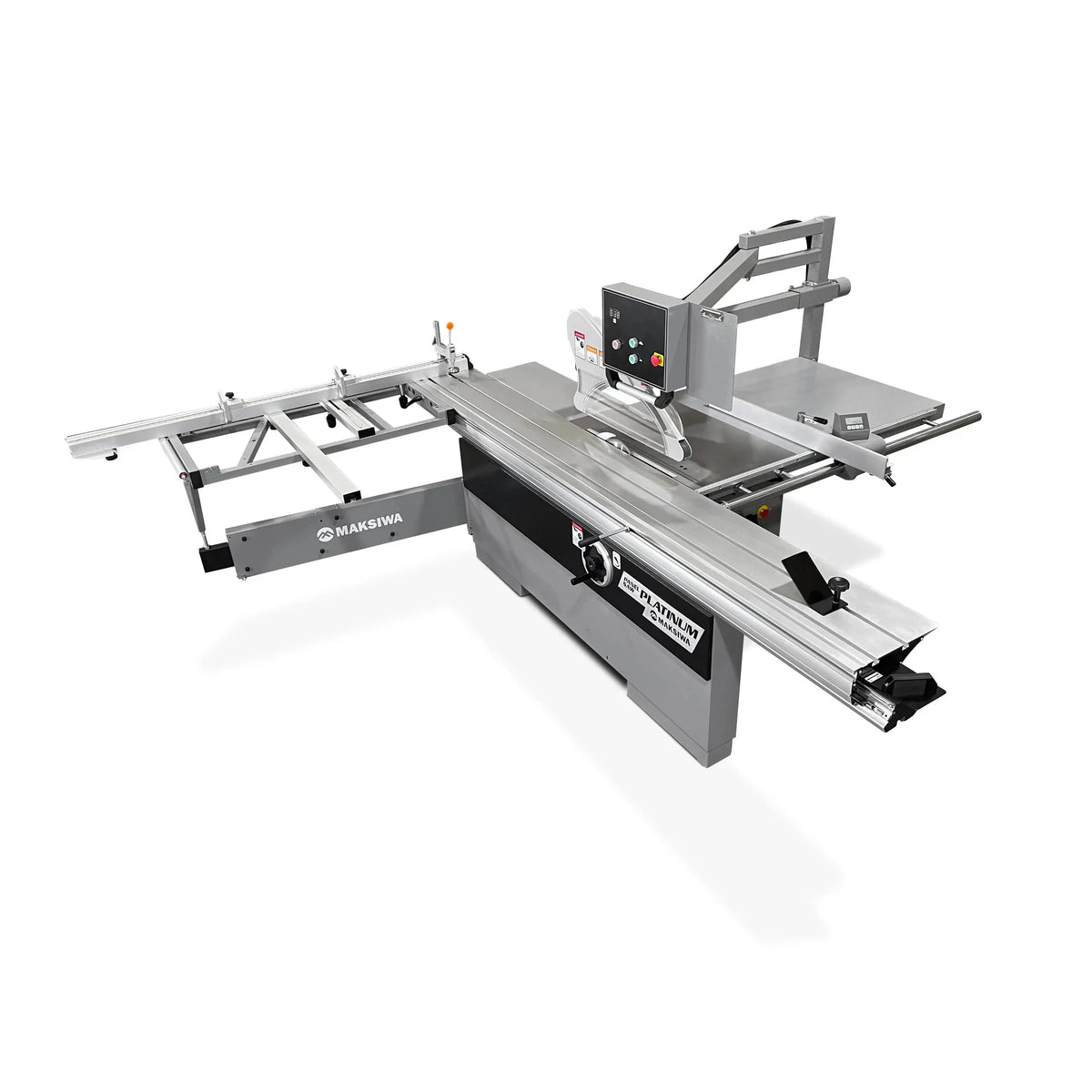

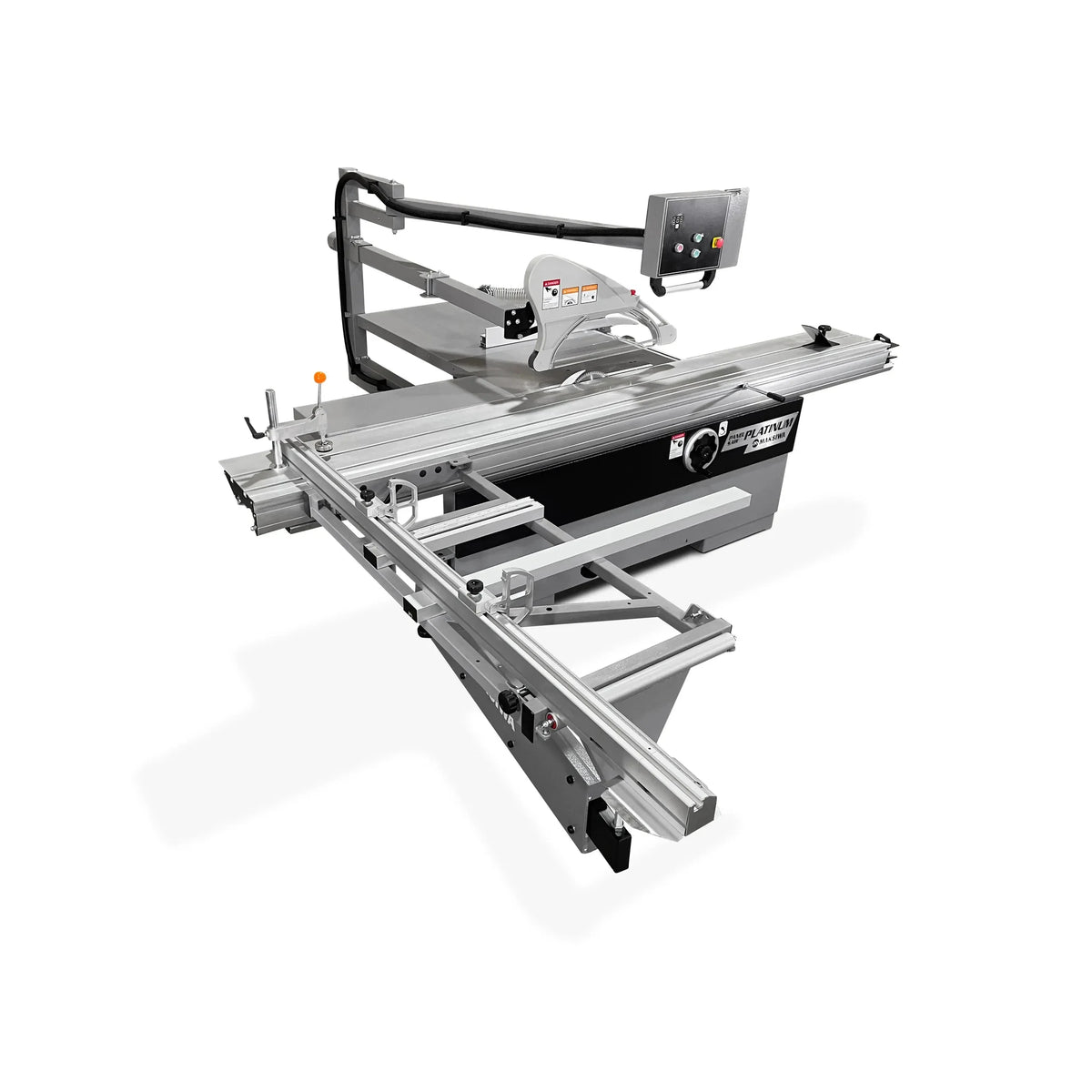

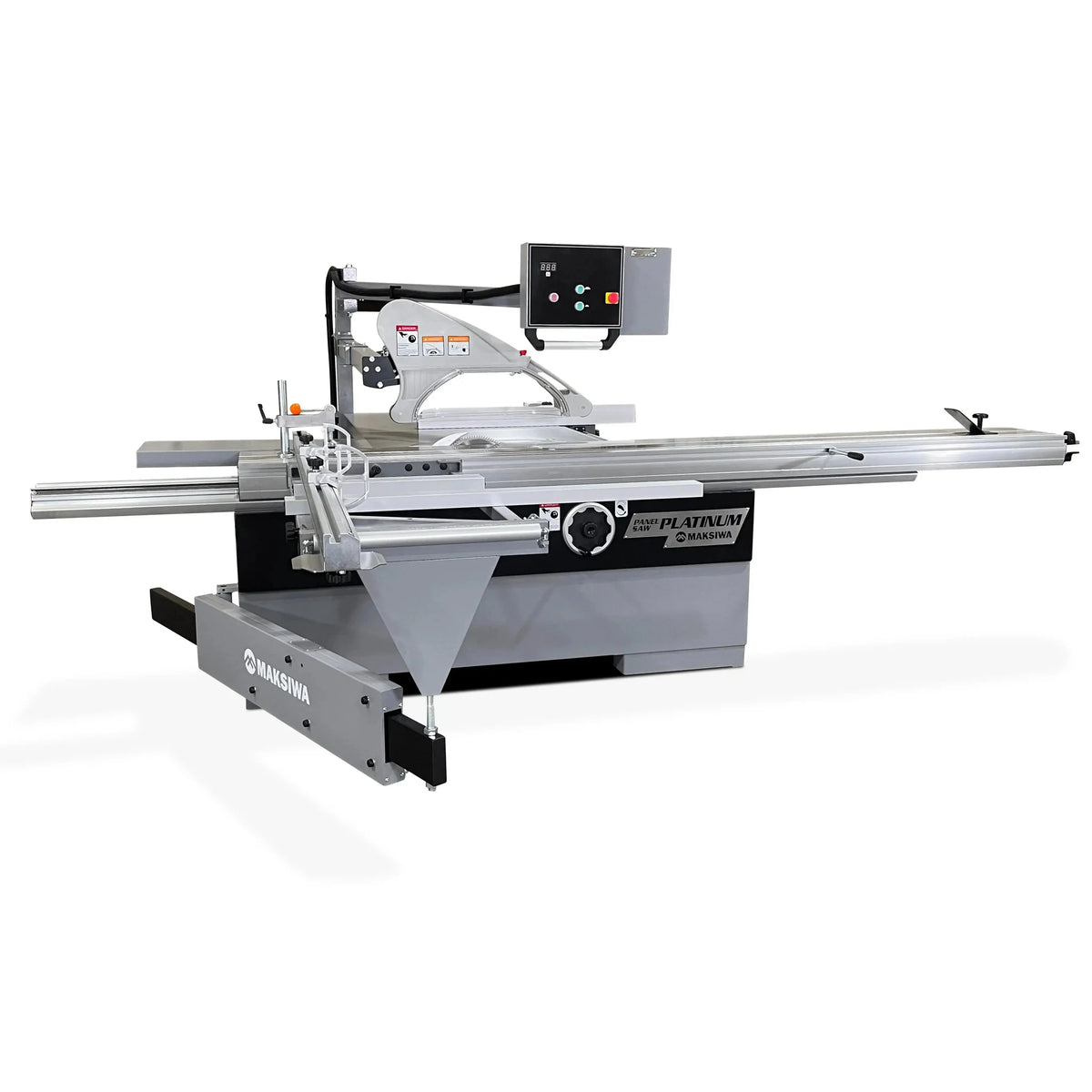

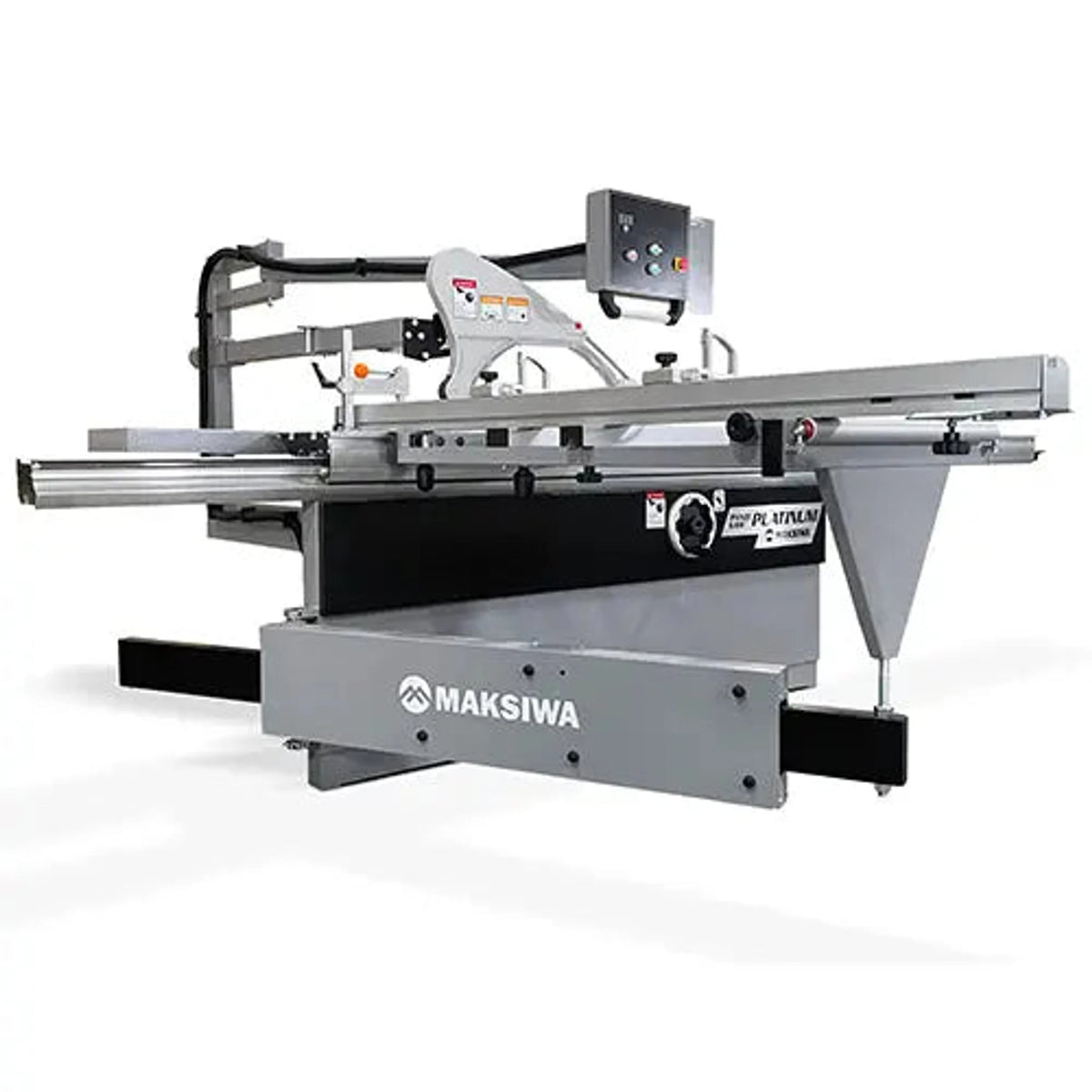

Maksiwa BMP.3200.IR Platinum Sliding Panel Table Saw

The Maksiwa BMP.3200.IR Platinum is the most powerful sliding panel saw in the Maksiwa lineup, built for high-production shops that need maximum cutting capacity, precision, and efficiency in a single machine. Powered by a 7.5HP main motor and running on 3 phase power, it delivers the muscle to handle demanding panel work day in and day out without breaking stride.

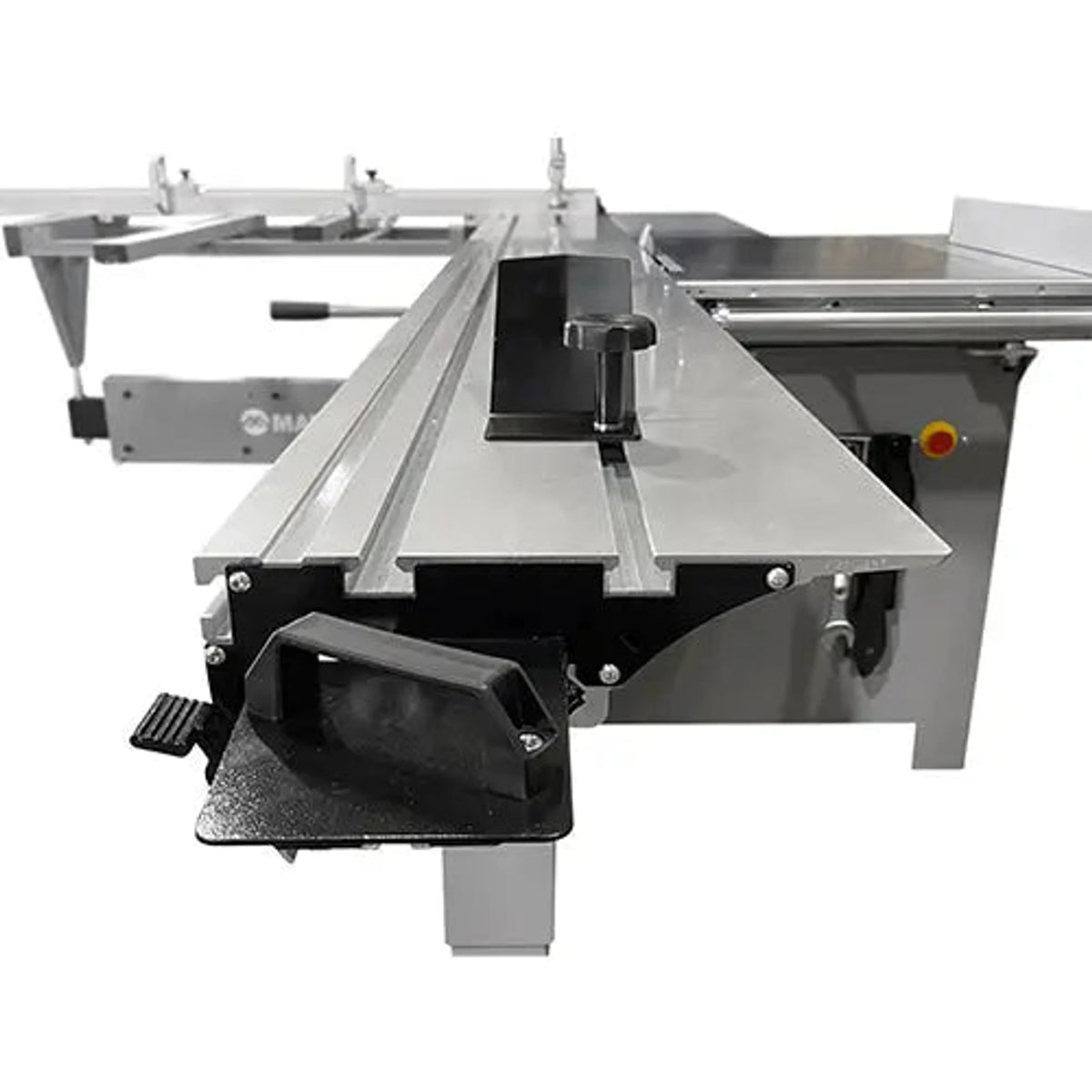

Precision Linear Guide Rail System

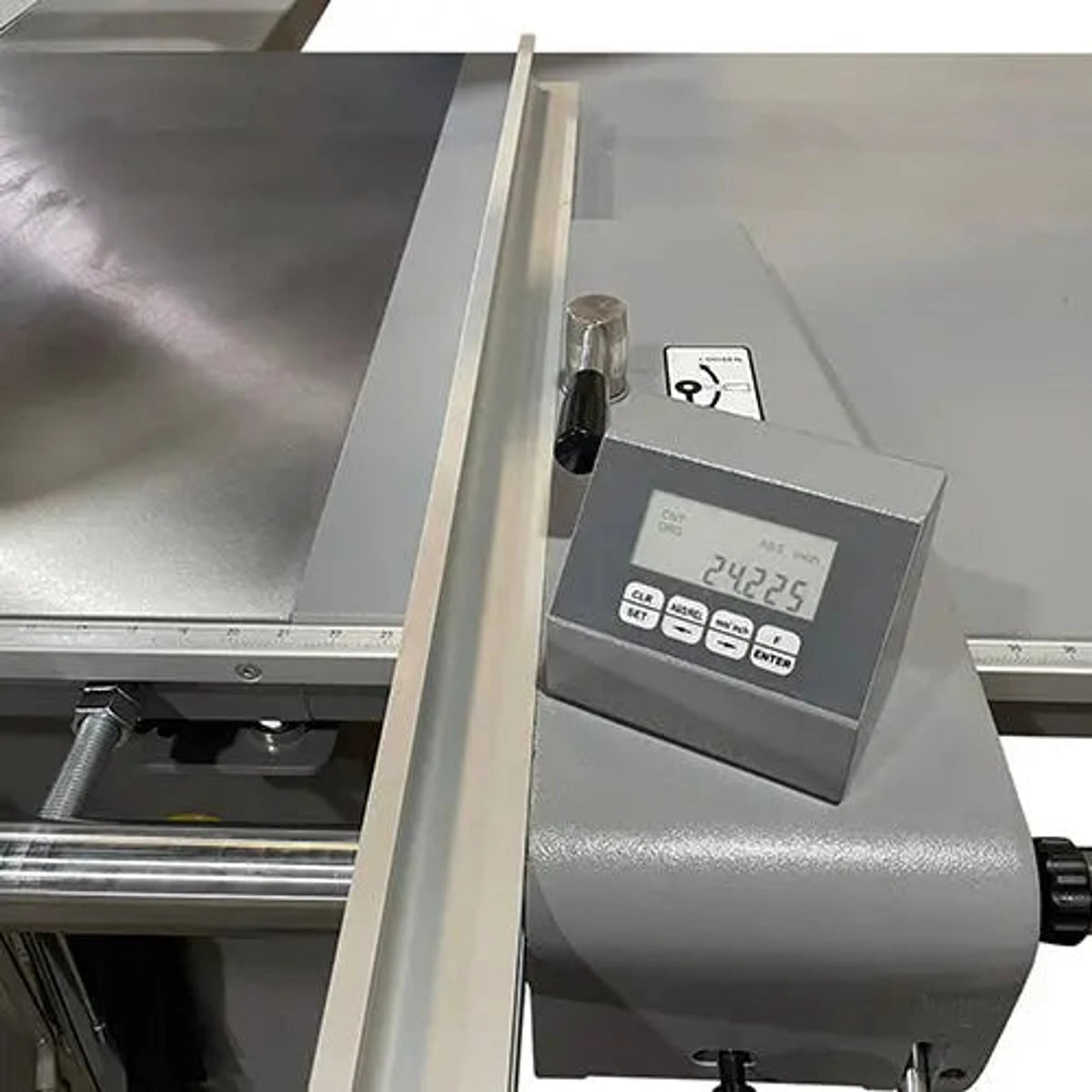

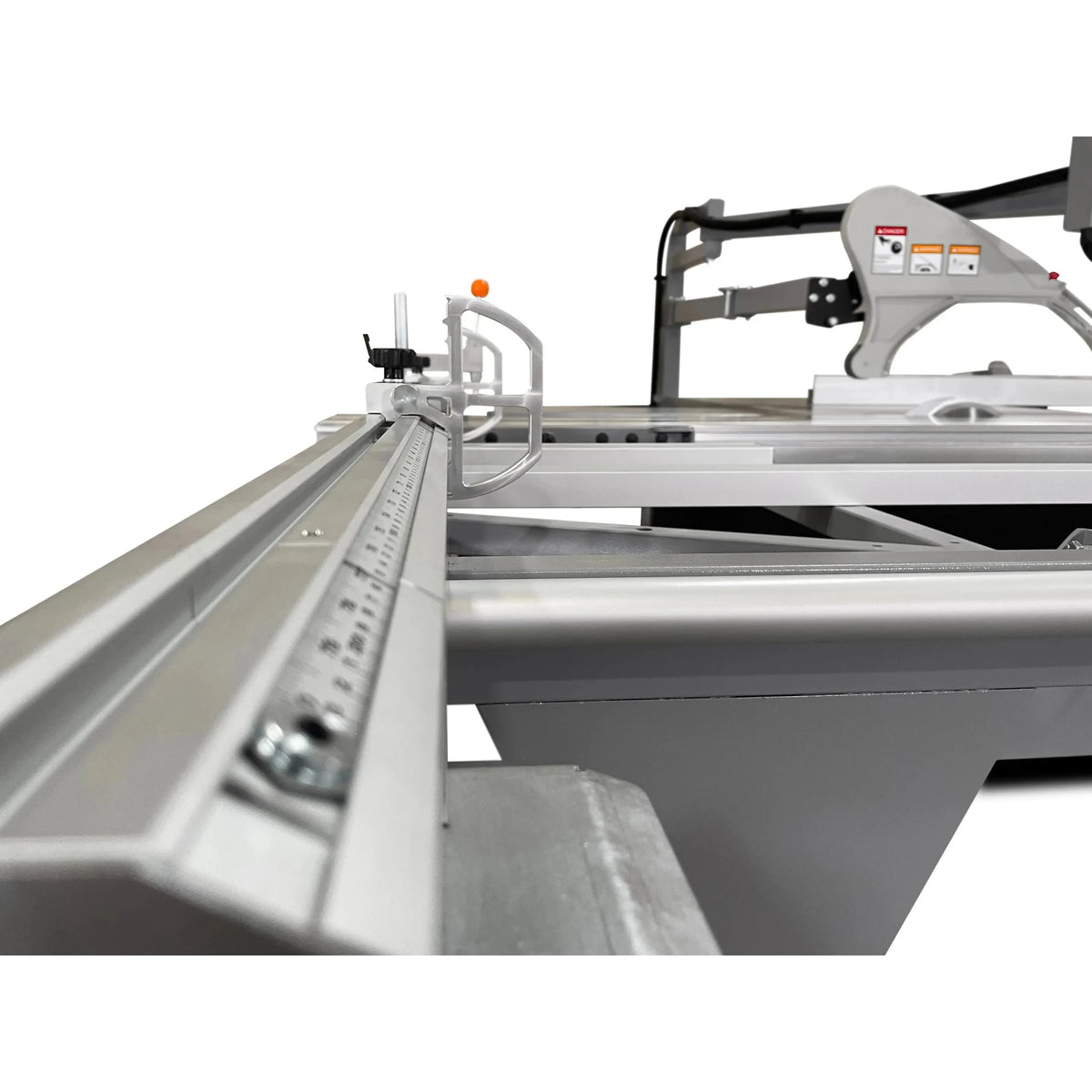

The 126" anodized aluminum sliding table runs on precision linear guide rails, giving the table an ultra-smooth, effortless movement even under heavy panel loads. The European-style 51" rip fence features a digital readout with micro-adjustment for fine-tuning, locking firmly in place on a heavy-duty casting that rides on a micro-polished solid steel bar, keeping every rip cut accurate and repeatable.

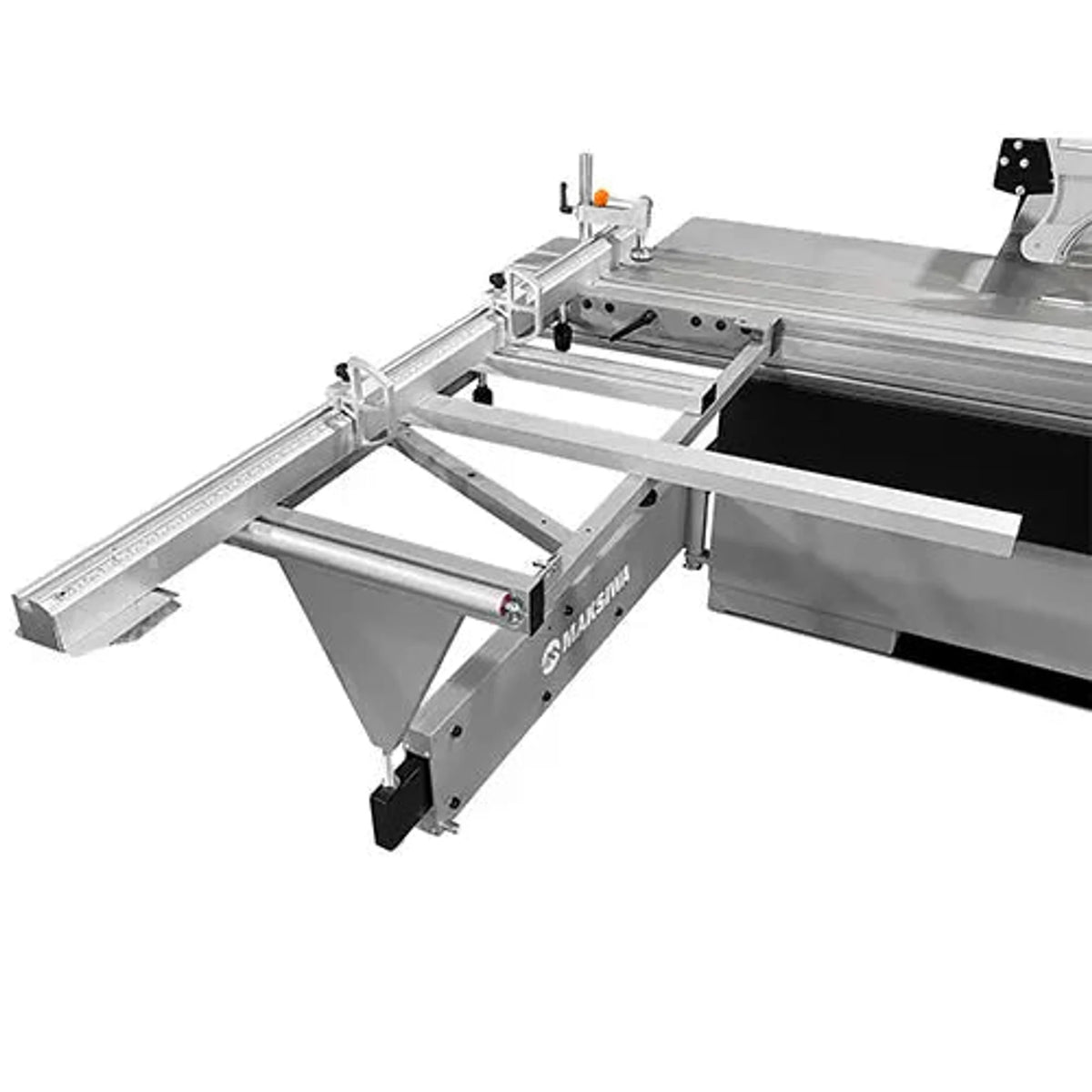

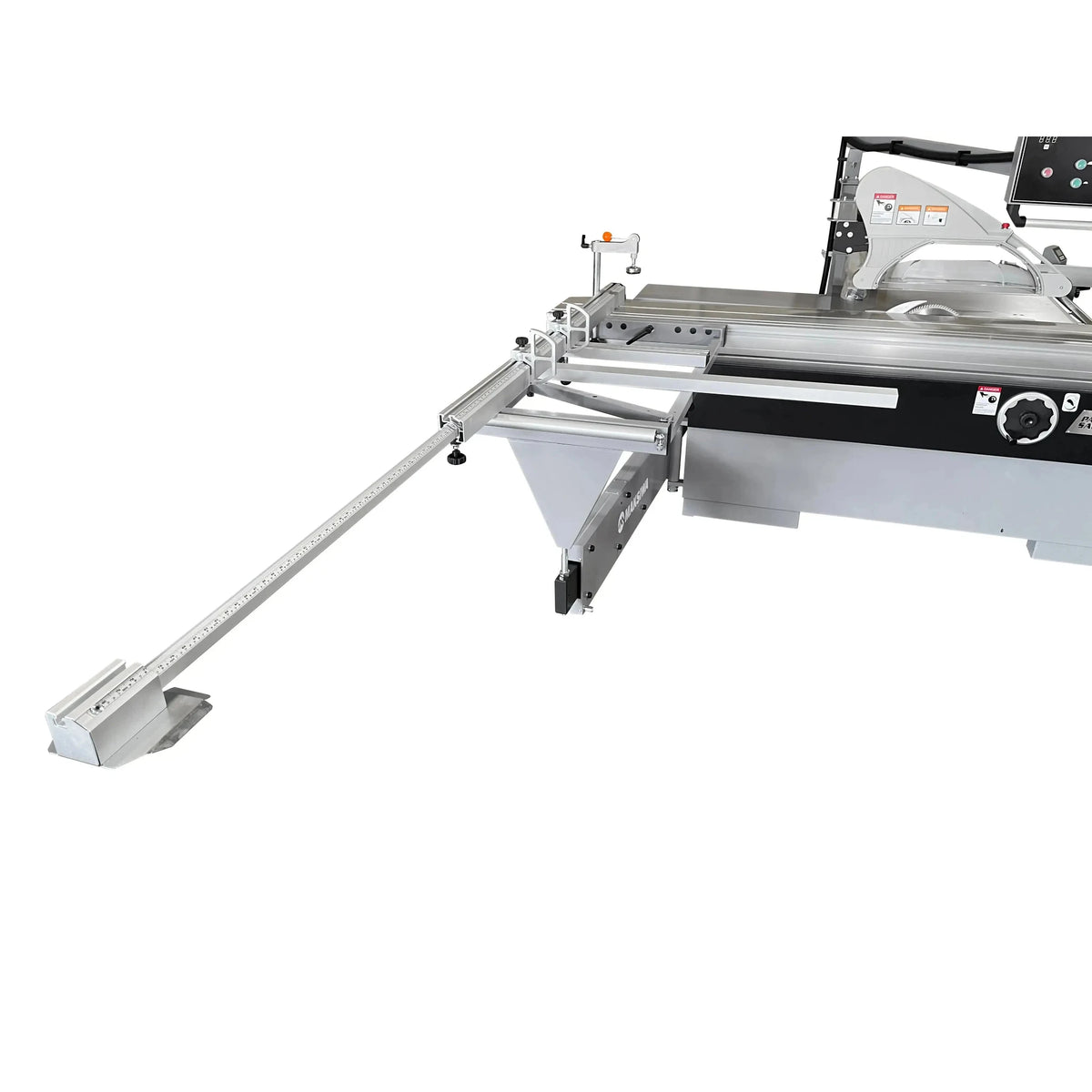

Advanced Crosscut Fence

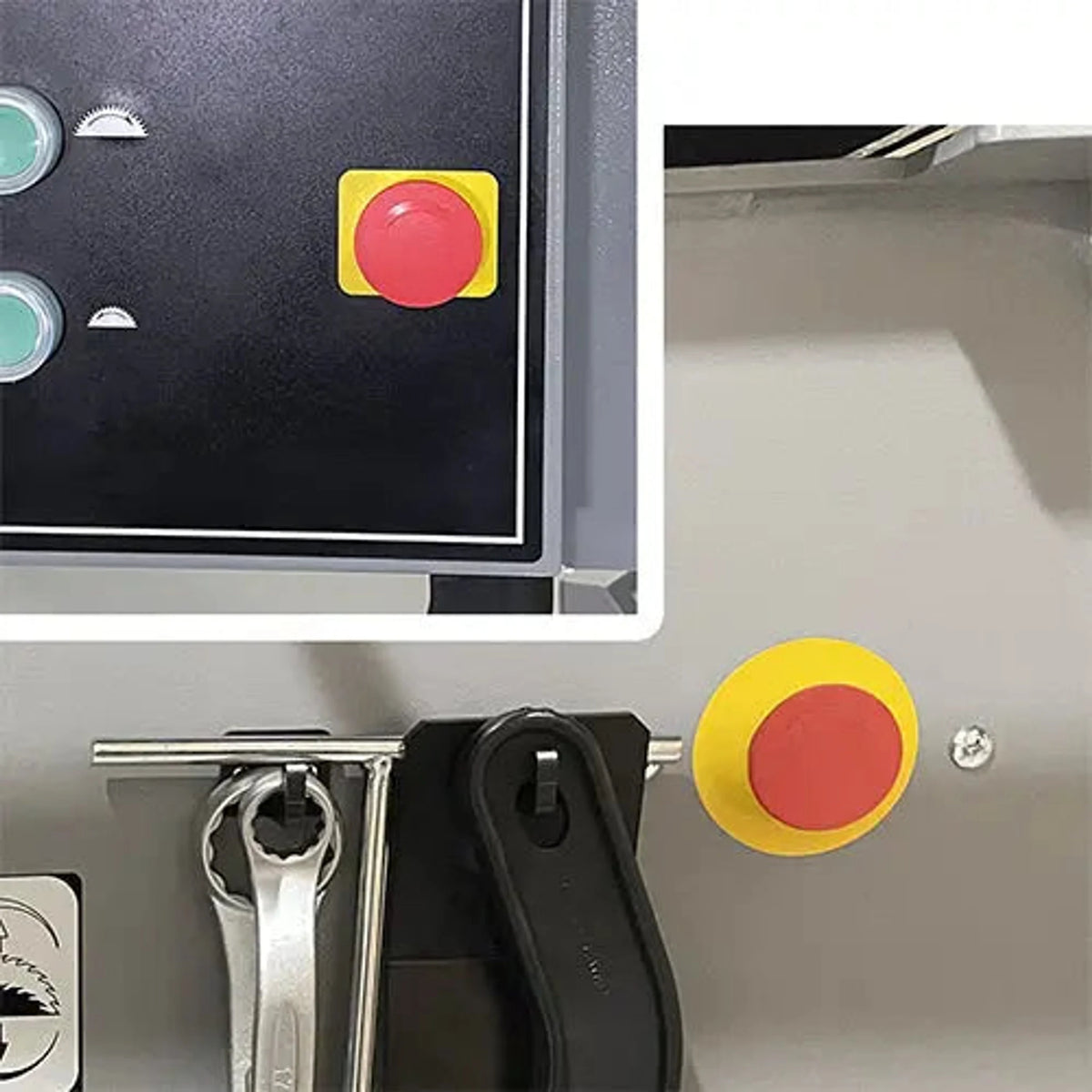

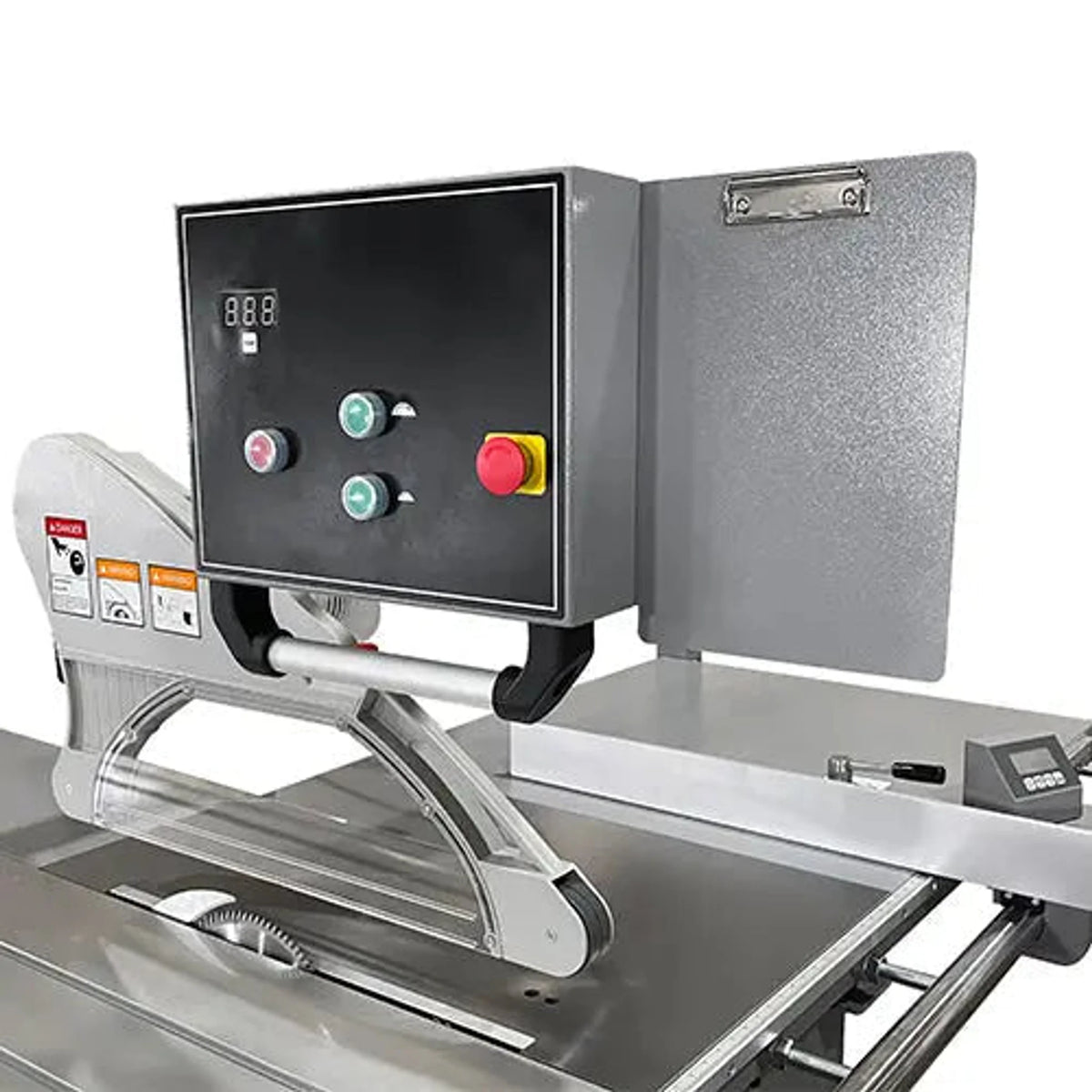

The heavy-duty anodized aluminum crosscut fence telescopes up to 140", features two solid flip-stops, a 45° miter function, and an ergonomic tape design for easy reading. The control panel sits at eye level for convenient access to all main operating functions during production.

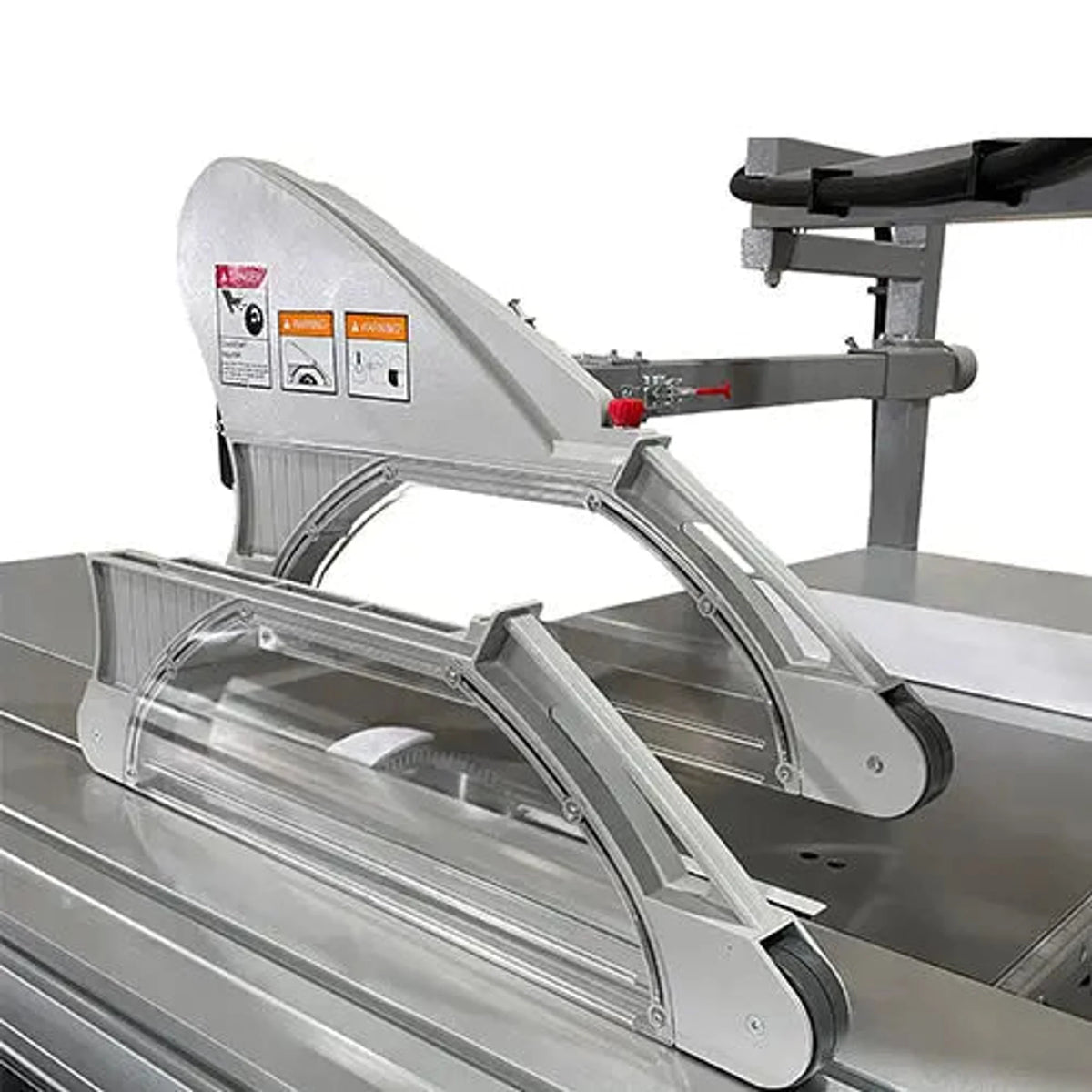

Dual Overhead Guard System

Two overhead guards, one at 90° and one at 45°, feature a quick-change swing-away function that lets you switch between them in seconds or move them out of the way without tools. A push handle, hold-down clamp, and wedge clamp are all included as standard. Two 4" dust collection ports keep fine dust under control, with a minimum dust collection requirement of 1,000 CFM.

Specifications

• Main Motor: 7.5HP, 4,000 RPM, 5.5 kW
• Max Blade Diameter: 14" (355mm)
• Main Blade Arbor: 1-3/16" (30mm)
• Max Cutting Height (90°): 3-1/2" (90mm)
• Max Cutting Height (45°): 2-7/16" (63mm)
• Scoring Motor: 3/4HP, 8,000 RPM, 0.74 kW
• Scoring Blade Diameter: 4-3/4" (120mm)
• Scoring Blade Arbor: 3/4" (20mm)
• Scoring Blade Type: Conical
• Max Ripping Capacity: 51" (1,295mm)
• Crosscut Capacity: 126" (3,200mm)
• Crosscut Fence: 78" closed / 120" open
• Sliding Table Dimensions: 126" x 14" (3,200 x 358mm)

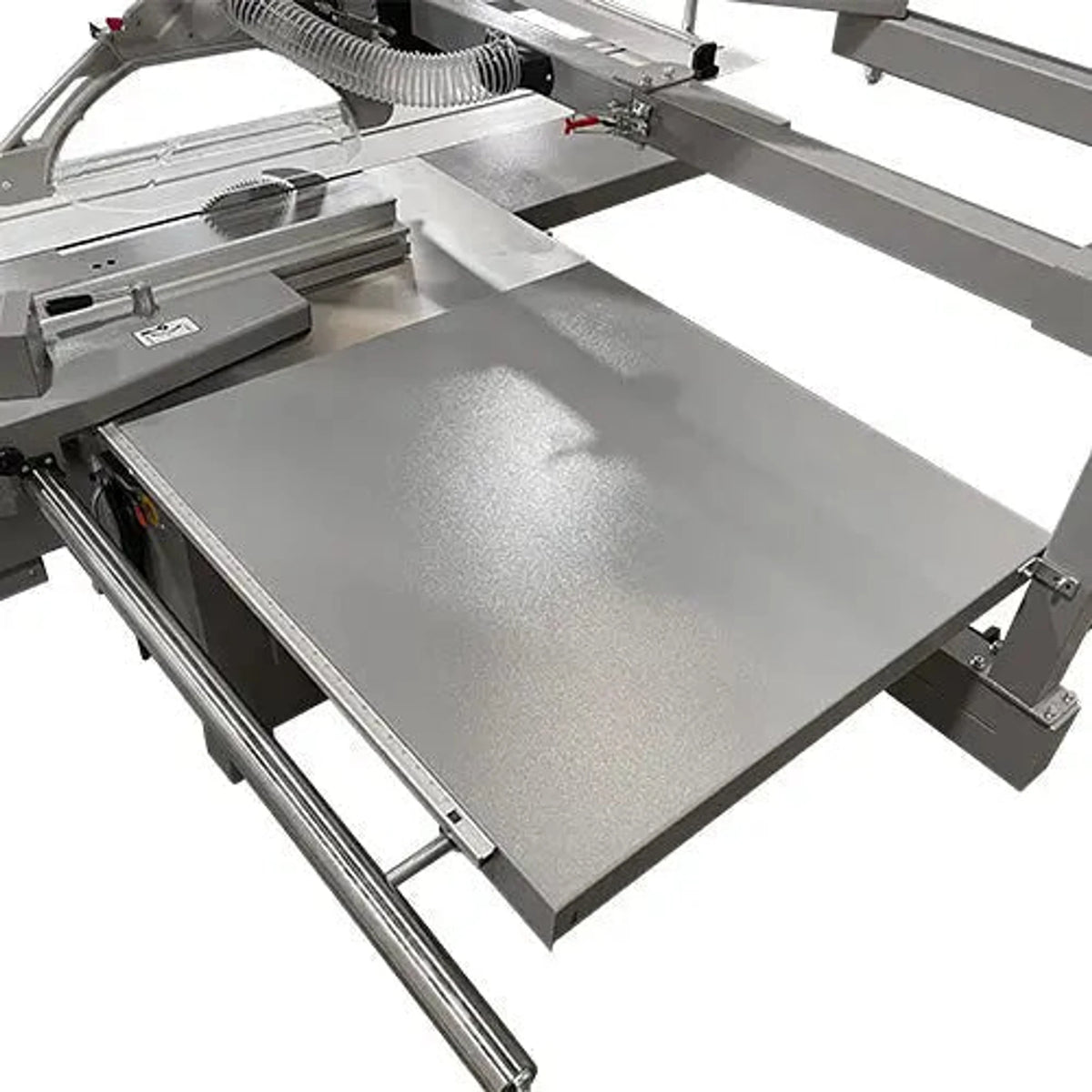

• Cast Iron Table Dimensions: 35" x 21" x 34" (896 x 548 x 864mm)

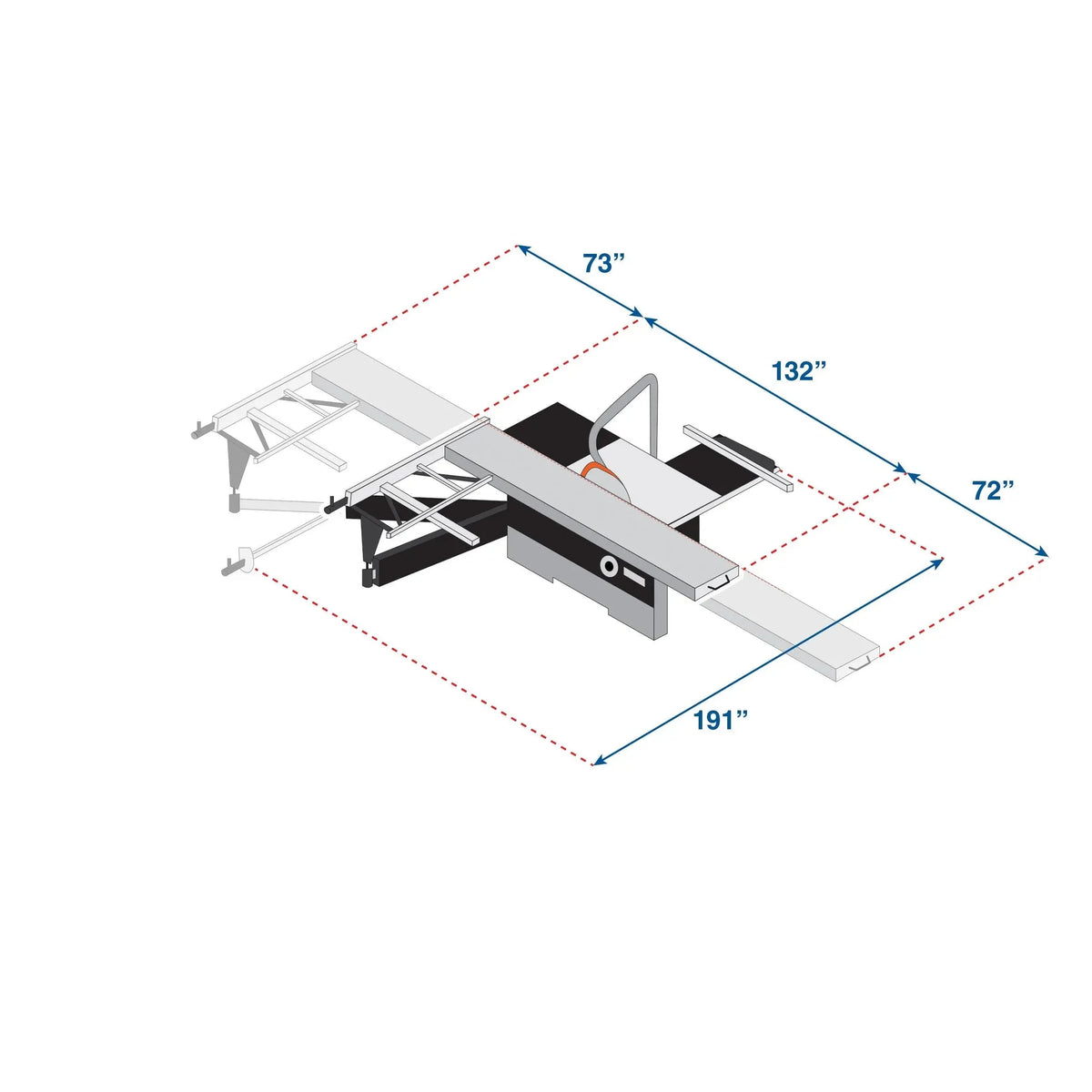

• Machine Working Dimensions: 132" x 137" x 75"
• Dust Collection Ports: 2 x 4" (100mm)
• Minimum Dust Collection: 1,000 CFM
• Electrical: 3 Phase, 220V, 30A, 60Hz
• Main Body Crate Dimensions: 83" x 45" x 45"
• Main Body Crate Weight: 1,470 lbs (667 kg)
• Sliding Table Crate Dimensions: 133" x 18" x 15"
• Sliding Table Crate Weight: 274 lbs (124 kg)
