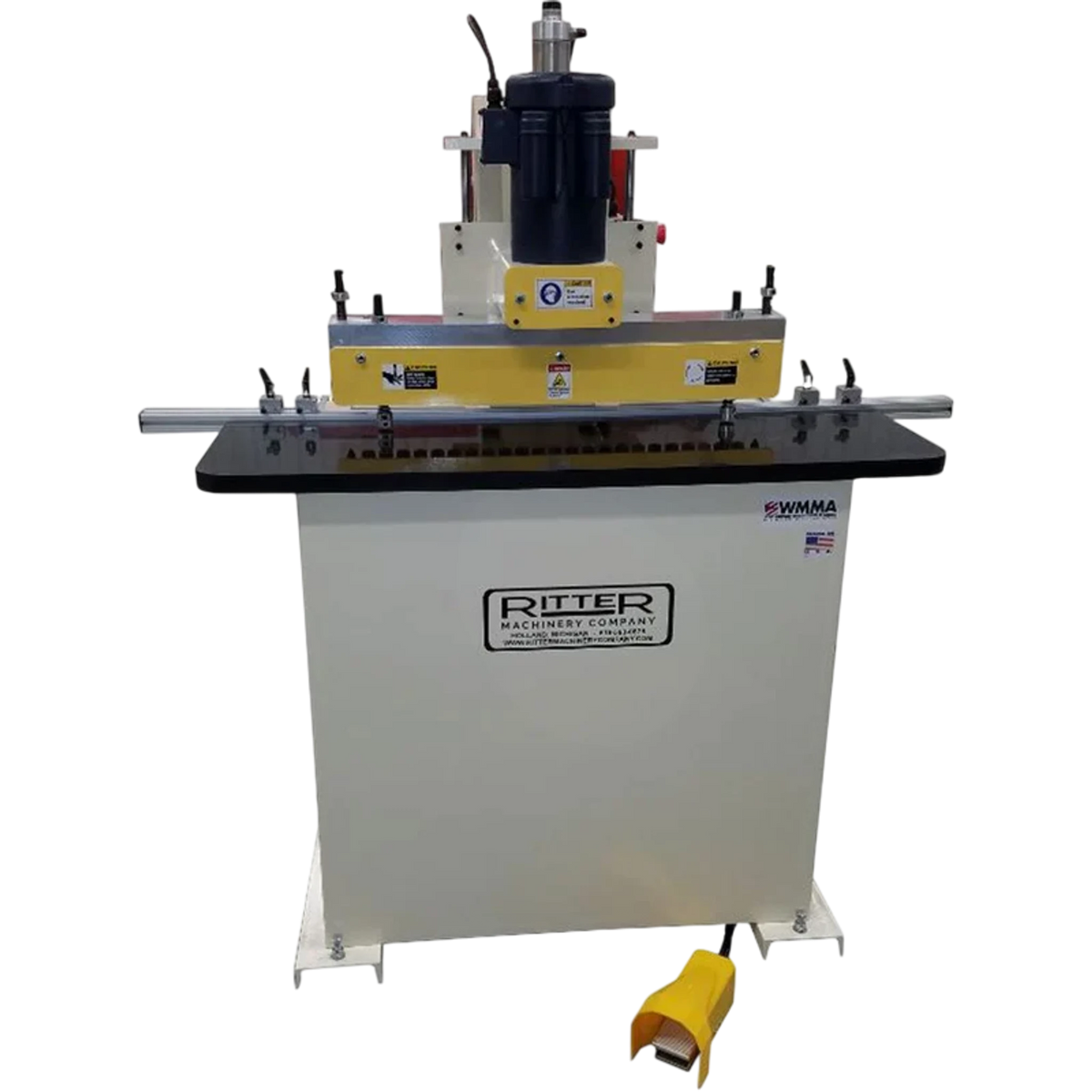

Ritter R19F1 - 23 Spindle Single Row Line Drill

The Ritter R19F Line Drill is a mid-level machine in Ritter’s line of line boring drills. It is designed for drilling adjustable shelving hole patterns used in cabinet and furniture production. The multi-spindle drill head allows multiple holes to be drilled simultaneously on standard 32 mm centers, supporting consistent shelf pin spacing across cabinet panels.

The R19F includes indexing pins on both the left and right sides of the machine so the drilling pattern can be repeated along the length of the workpiece. An adjustable rear fence allows the operator to set the offset distance from the panel edge before drilling.

The machine uses a pneumatic boring cycle activated with a foot pedal, allowing hands-free operation during the drilling process. Spring-operated clamps hold the material in position while the drill head performs the boring cycle.

Standard Equipment

• 23-spindle gear driven drill head on 32 mm centers
• (12) right-hand spindles and (11) left-hand spindles
• 60″ rear fence with (4) adjustable material stops
• Right and left hand work stations
• (2) spring loaded indexing pins
• (2) spring operated material clamps
• Adjustable boring depth
• Pneumatic driven boring cycle
• Tooling not included

Technical Data + Specifications

Additional Options

• R19F1 configuration – 230V single phase with 2 HP spindle drive motor (TEFC)
