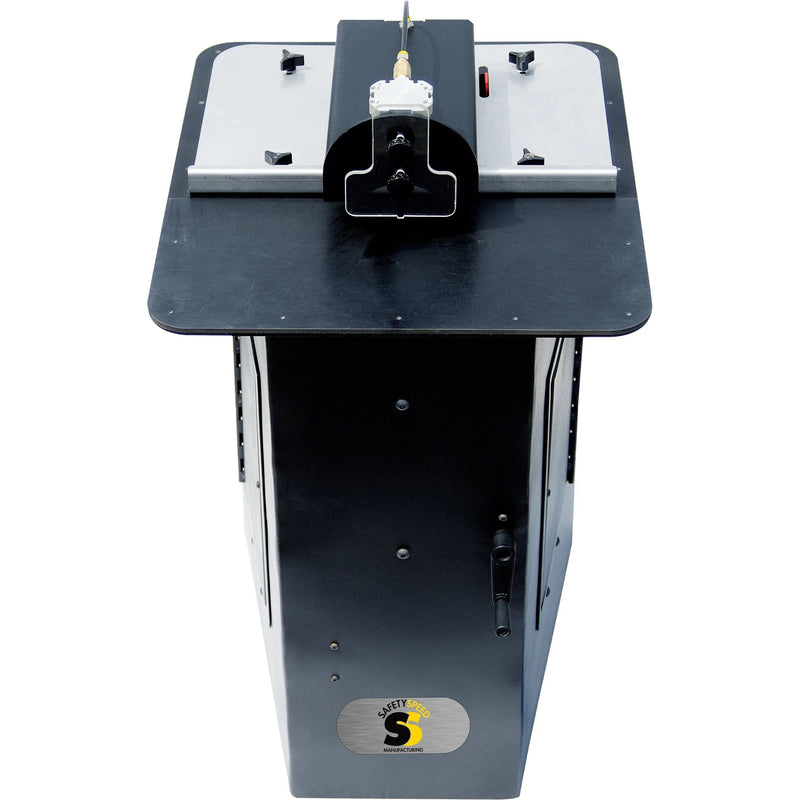

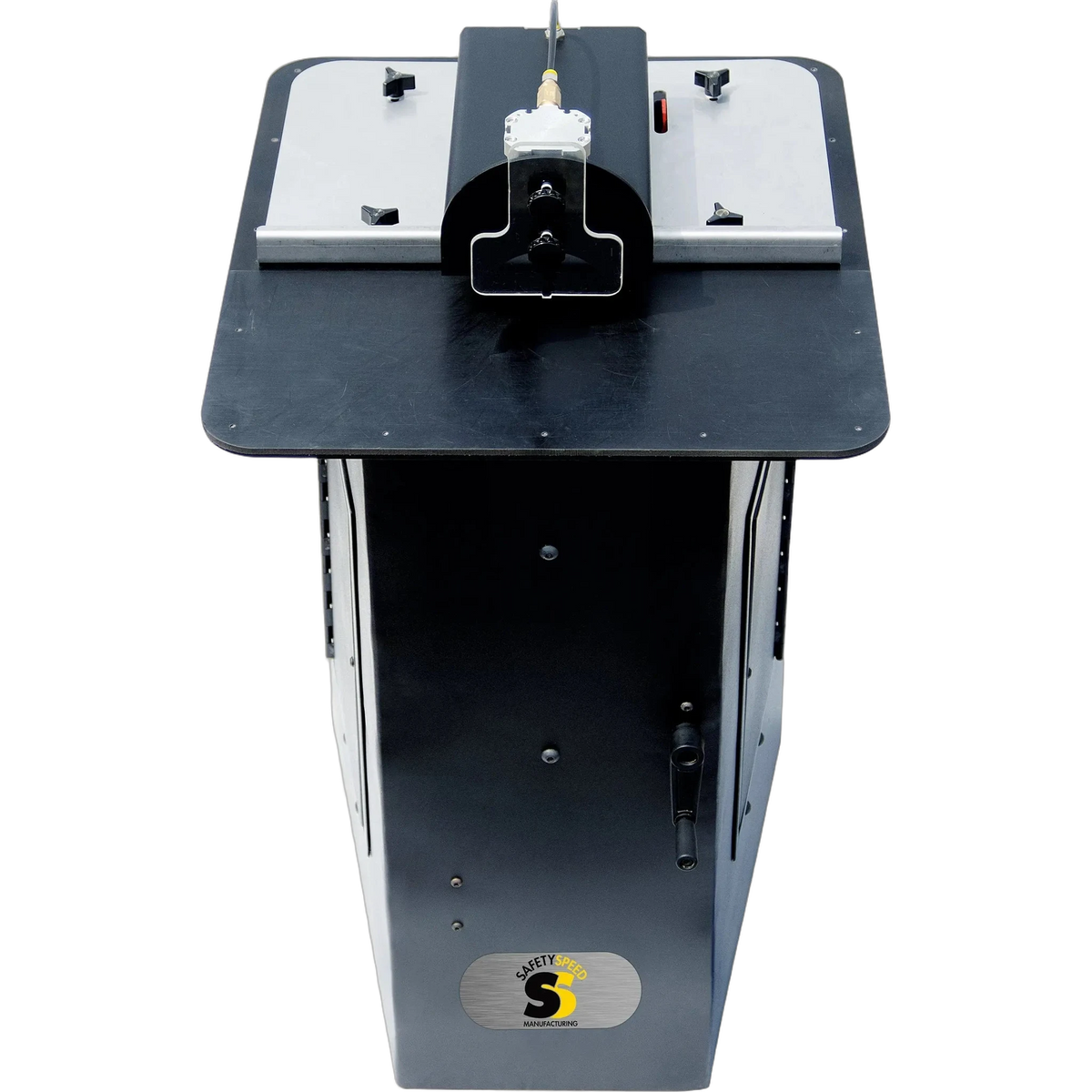

Safety Speed Screw Pocket Machine SPM301

The Safety Speed SPM301 Screw Pocket Machine is designed for drilling pilot holes and machining low-angle screw pockets for woodworking and cabinet assembly applications. The machine uses a cam-driven mechanical action to provide controlled machining during the cutting cycle.

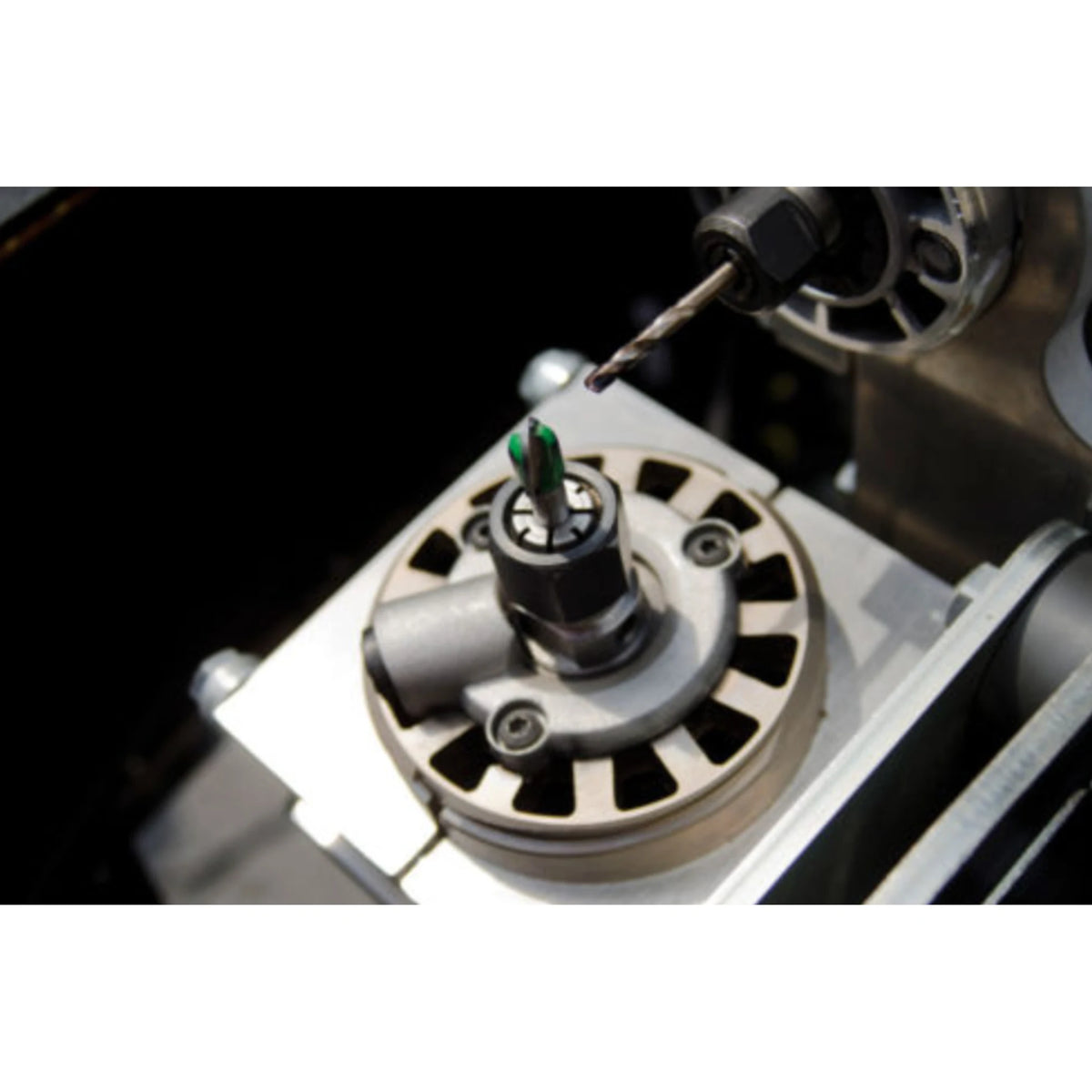

A pilot drill and ball end mill operate simultaneously to produce screw pockets while helping reduce cycle time. The mechanical linkage system keeps the drill and router bit synchronized throughout the machining process. An analog depth gauge allows operators to adjust for different material thicknesses quickly.

The SPM301 operates on standard 110V power and requires compressed air for machine operation. Its heavy-duty construction supports repeated use in cabinet shops and woodworking production environments.

Features

• Cam-driven mechanical cutting action
• Pilot drill and ball end mill operate simultaneously

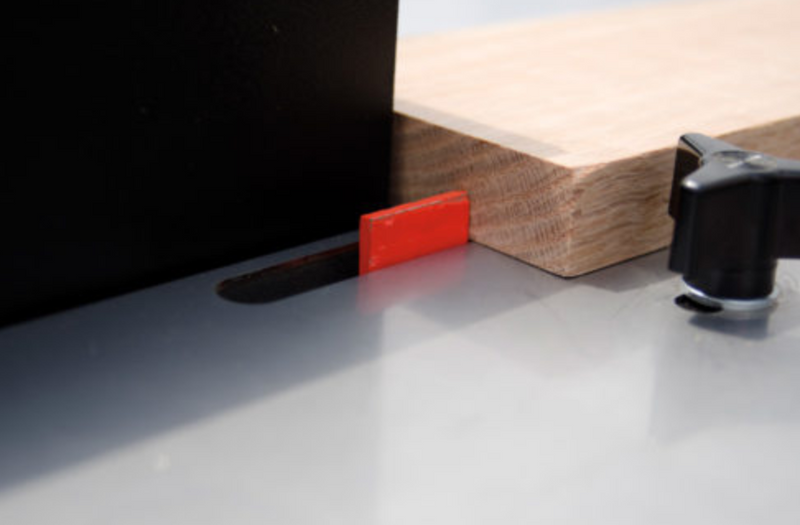

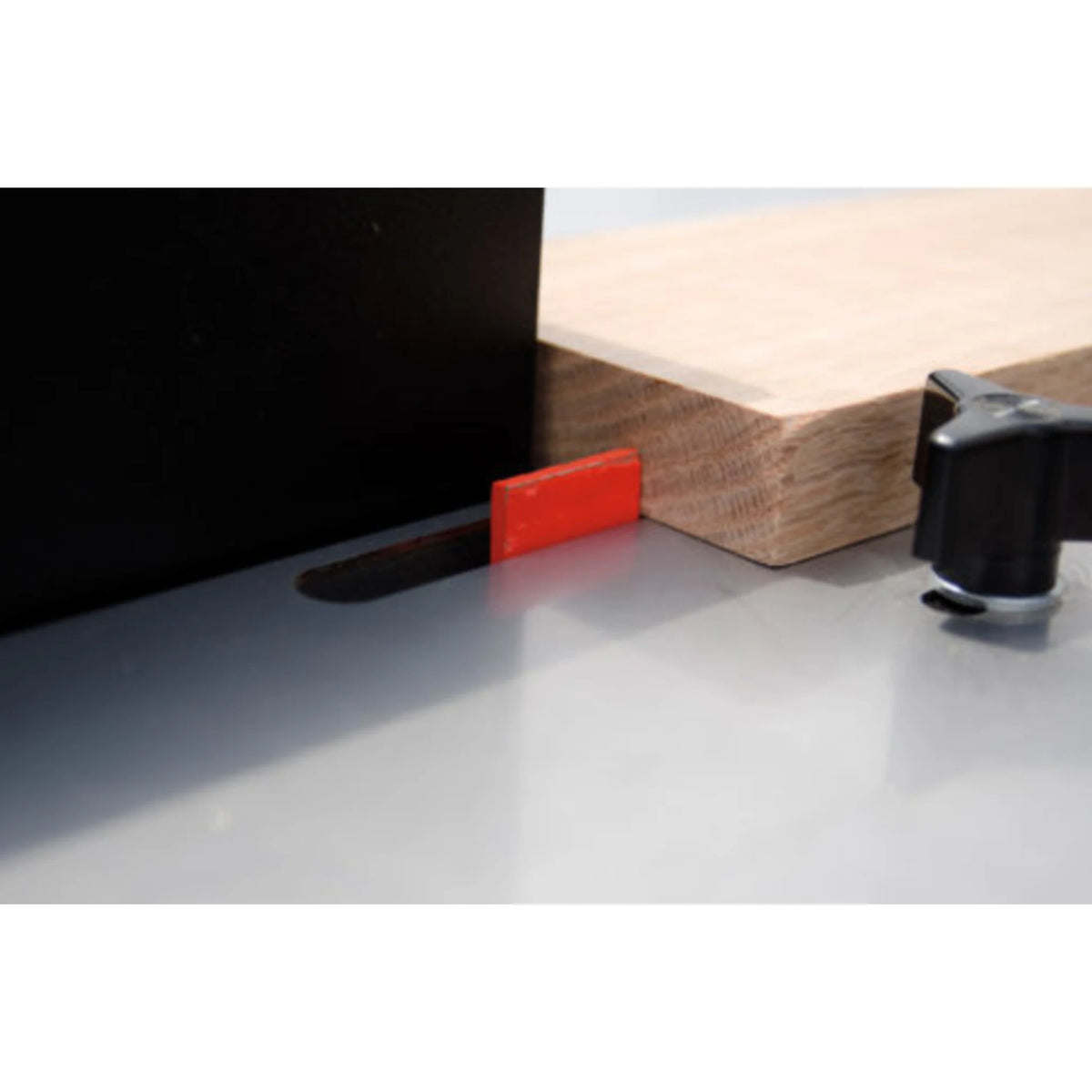

• Adjustable back fence and stop rail for setup adjustments
• Analog depth gauge for material thickness adjustments
• Router motor: 2-1/4 HP
• Drill motor (compact router): 7 amp, 16,000–27,000 RPM
• Vacuum requirement: 220 CFM with 3" hose connection
• Compressed air requirement: 1–2 CFM at 80 PSI

Typical Applications

• Cabinet face frame assembly
• Casework production
• Furniture joinery

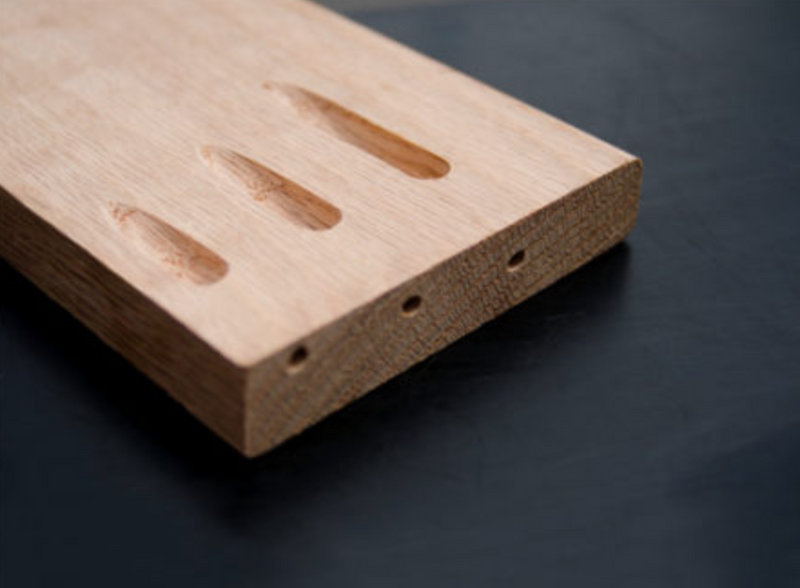

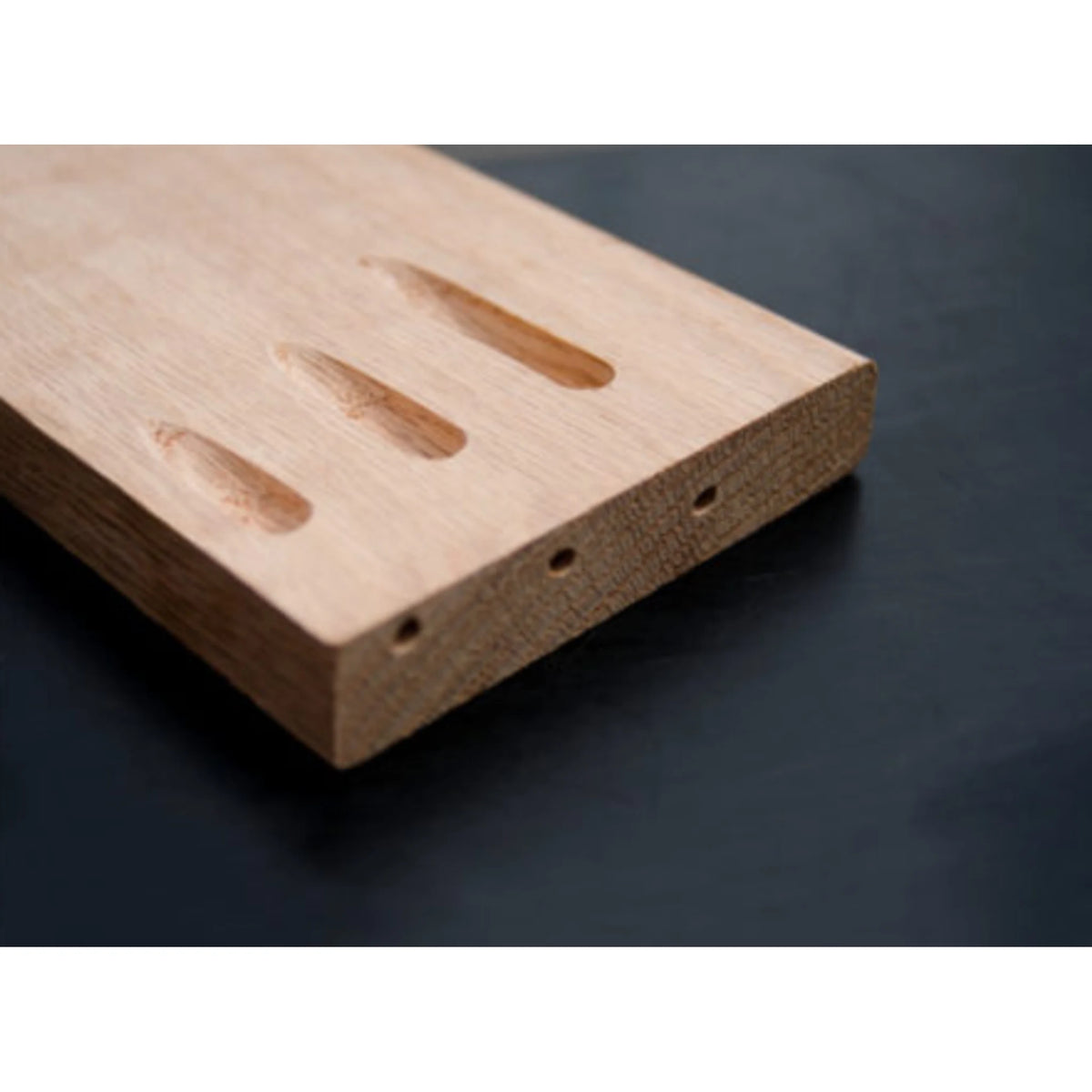

• Pocket hole machining for woodworking components
