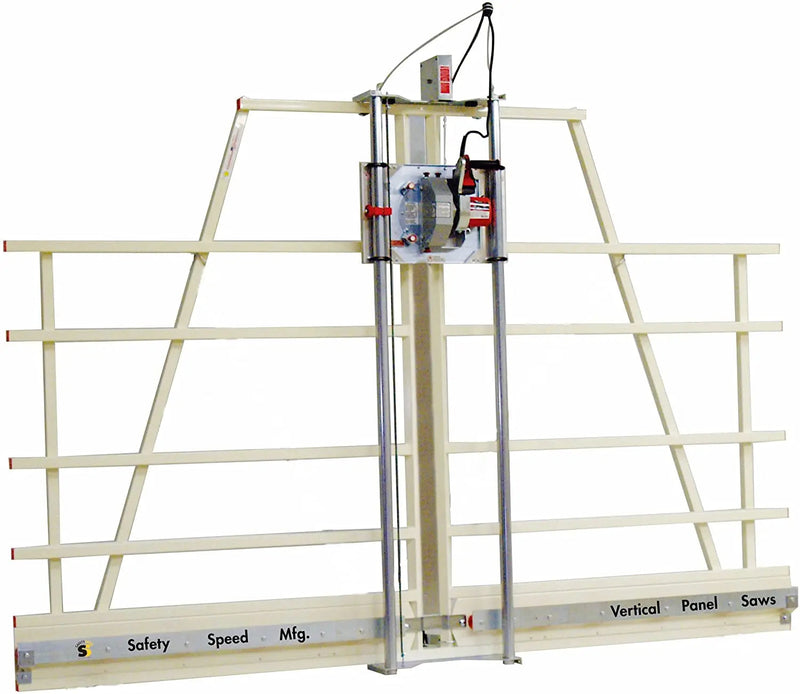

Safety Speed H4 Vertical Panel Saw – front

Safety Speed H4 Vertical Panel Saw

by Safety Speed
SKU H4220V
Save $300.00 Save $104.00
$3,999.00
$3,999.00 - $3,999.00
$3,999.00
$3,895.00
$3,699.00 - $3,895.00
$3,895.00
Free Shipping
  • ✔ Fast & Safe Shipping Right To Your Workshop
  • ✔ Questions? Speak with a Team Member Today: (973) 319-8415
Shipping information

Orders are processed in 2–3 business days. Ground orders typically arrive in 7–10 business days. Orders over 100 lbs ship LTL freight and are scheduled with the carrier. Shipping is quoted at checkout or before fulfillment, and we ship within the United States only. See our Shipping Policy.

Returns & warranty

Every machine is sourced directly from the manufacturer and covered by the full manufacturer warranty. Report shipping damage immediately so we can help. Return terms vary by manufacturer — see our Return and Refund Policy.

Featuring a 10′ frame, and 50″ maximum crosscut with an unlimited rip cut, this panel saw is a preferred solution for cutting 4′ X 8′ sheets of plywood. The H5 panel saw cuts within 1/32″ on a wide variety of panel materials up to 1¾″ thick.

Standard Equipment

  • 3 ¼ Hp, 15 amp industrial duty saw motor.
  • Zinc plated 1 ¾” steel guide tubes.
  • 4 Nylatron roller bearing systems.
  • Adjustable vertical and horizontal rulers.
  • Quick change from vertical to horizontal cutting.
  • Thin material pressure guard.
  • Injection-molded plastic material rollers.
  • Spring loaded counter balance system.
  • Integrated dust collection bonnet.
  • Extended warranty.
  • TUV certified to UL/CSA standards

Technical Data + Specifications

Weight 298 lbs
Dimensions 120 x 11 x 83 in
Max. Crosscut 64″ / 1625mm
Max. Rip Cut Unlimited
Cut Depth 1 ¾″ / 45mm
Cut Accuracy 1/32″ / .8mm
Frame Length 120″ / 3050mm
Daily Usage 1–3 Hours
Rollers 14
Saw Blade Diameter 8″ / 210mm
Saw Blade Bore 5/8″
Motor Horsepower, Amperage and Volts 3.25 HP, 15 amps, 120 Volt; 3.25 HP, 7.5 amps, 220 Volt
Motor Manufacturer Milwaukee Tool
Model H5
Country of Origin USA
