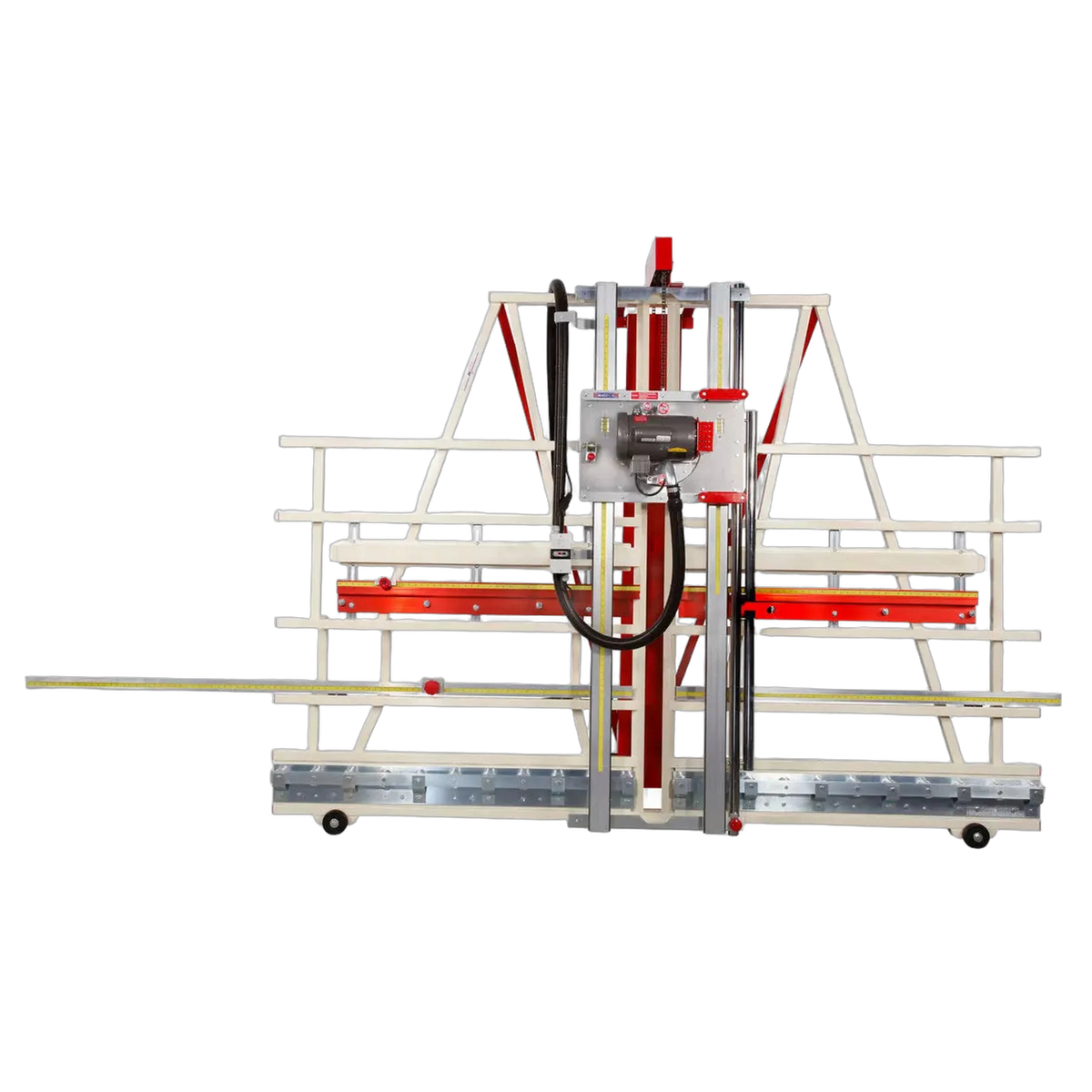

Safety Speed 7400XL Panel Saw

Built with many similarities to the 7000 Series, the 7400 and 7400XL vertical panel saws include upgraded frame rigidity and additional features designed for panel processing in professional woodworking and fabrication environments.

Key upgrades on the 7400 and 7400XL models include:

• Rigid beams and reinforced frame construction
• Integrated MID-WAY® Fence system
• 22 aluminum material rollers on the 7400 model
• Cut accuracy tolerance of .005"
• Maximum cutting depth of 2.125"

Material scoring is optional and commonly used when processing laminated panels, melamine, or other finished materials.

Accessories included with this machine configuration:

• Quick stop gauges (8′ left, 5′ right)
• Wheels
• MID-WAY FENCE® for processing panels at waist level
• Dust kit
• 864NRATB saw blade
• Hold Down Bar
• Integrated stand system

The 7400M panel saw features a 10′ frame, while the 7400XL features a 13′ frame. Aside from frame length, the machines share the same construction, components, and operating characteristics.

Standard Equipment

• Single-phase or three-phase heavy-duty induction saw motor
• Welded steel frame with integrated stand
• Dual V-track precision guide system
• Adjustable vertical and horizontal rulers
• Quick stop gauges (8′ left, 5′ right)
• Saw blade
• Quick change between vertical and horizontal cutting
• Floating pressure saw foot
• Solid aluminum material rollers
• Enclosed counterweight system
• MID-WAY FENCE™
• Dust collection ready
• Hold down bar
• Wheels
• 3-year manufacturer warranty
• TUV certified to UL/CSA standards

Technical Data + Specifications
