Safety Speed SR5U Panel Saw and Router Combo

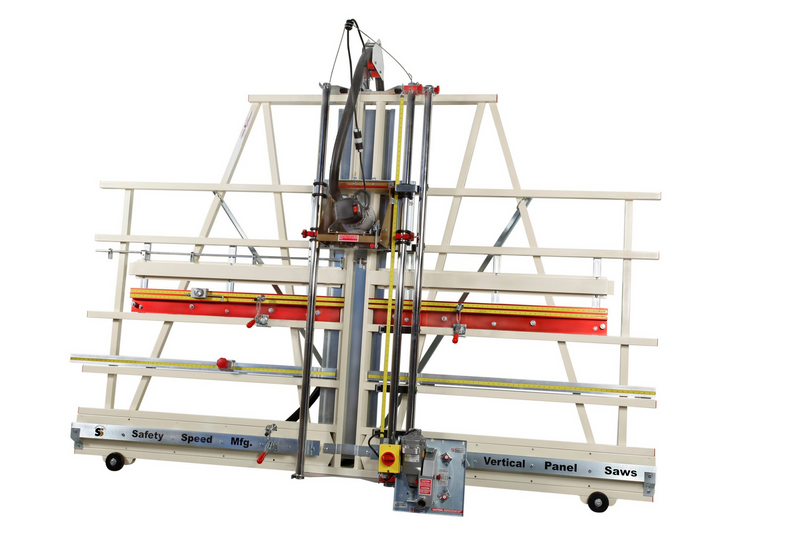

A big brother to the SR5, the SR5U is equipped with a heavier duty worm drive motor, a 3+ Hp router motor and aluminum material rollers. Photos are shown with a stand, and wheels which are optional accessories.

This machine is perfect for cabinet shops, composite panel fabrication and other applications where both panel sizing and panel routing are required functions. Ask about our V-grooving package.

Standard Equipment

• 3 Hp, worm driven saw motor.
• 3+ Hp, heavy-duty router motor.
• 10 ft. welded steel frame.
• Chrome-plated 1 ¾” guide tubes.
• 8 Nylatron roller bearing system.
• Adjustable vertical and horizontal rulers.
• Quick change from vertical to horizontal cutting.
• Thin material pressure guard 4 material clamps.
• Integrated dust collection bonnets.
• Solid aluminum material rollers.
• Enclosed counterweight system.
• Adjustable floating router head.
• MID-WAY FENCE™ flip stop.
• 2 blind dado stops.
• Extended warranty.
• TUV certified to UL/CSA standards.

• Weight: 589 lbs

• Dimensions: 124 × 17 × 92 in

• Max. Crosscut: 62" / 1575 mm

• Max. Rip Cut: Unlimited

• Max. Cut Thickness: 1 3/4" / 45 mm

• Cut Accuracy (Straight & Square): 1/64" / 0.4 mm

• Saw Blade Diameter: 8" / 210 mm

• Saw Motor Amperage: 13 amps

• Saw Motor Horsepower: 3 HP

• Saw Motor Type: Worm-driven motor

• Router Motor Amperage: 15 amps

• Router Motor Horsepower: 3 HP

• Router Bit Collet: 1/4" or 1/4" collet router bits

• Router Motor Type: Variable speed

• Frame Length: 120" / 3050 mm

• Voltage: 120 volts

• Country of Origin: USA
