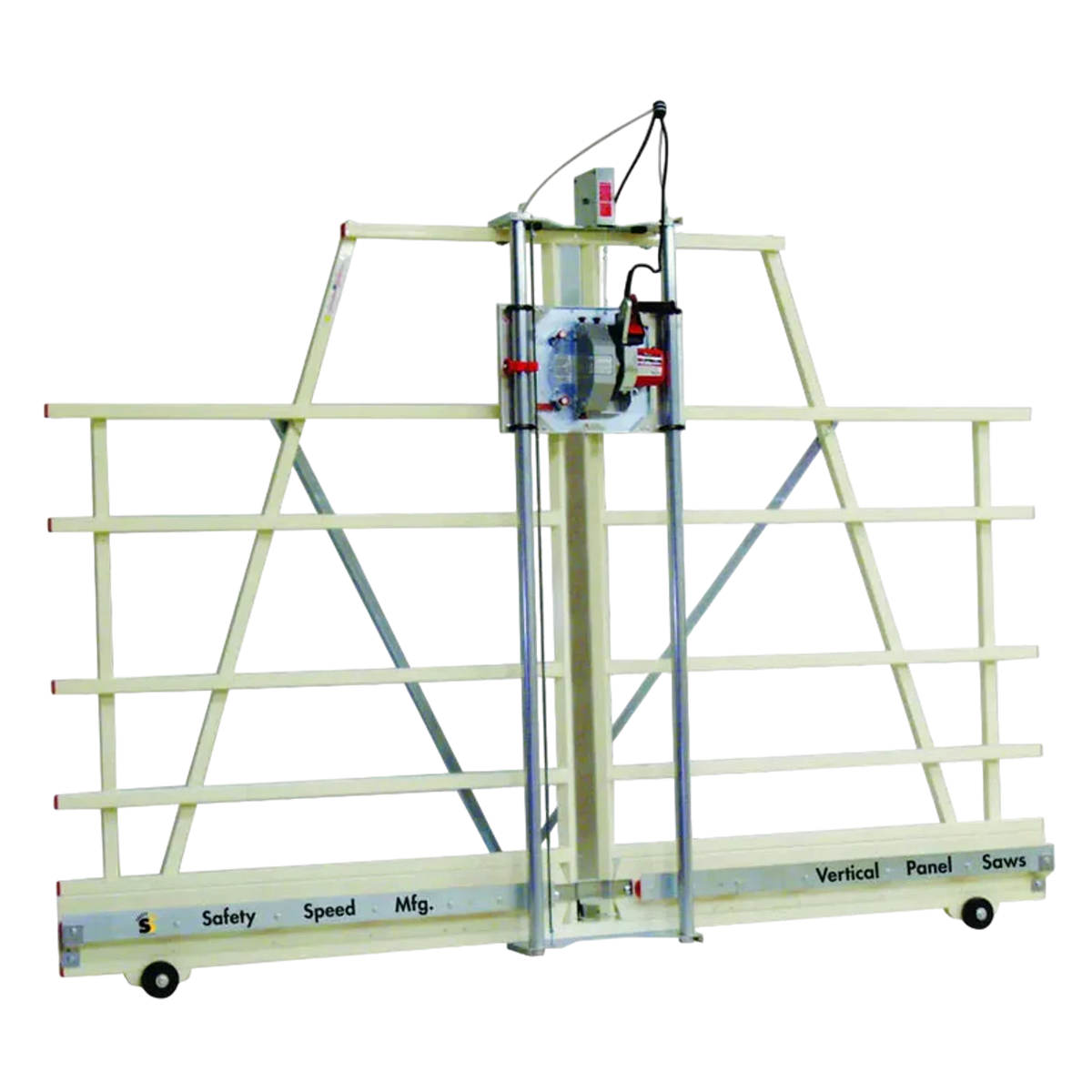

Safety Speed H5 Vertical Panel Saw – front

Safety Speed H5 Vertical Panel Saw

by Safety Speed
SKU H5120v
Save $604.00 Save $400.00
$4,199.00
$4,199.00 - $4,599.00
$4,199.00
$3,799.00
$3,799.00 - $3,995.00
$3,799.00
Free Shipping
  • ✔ Fast & Safe Shipping Right To Your Workshop
  • ✔ Questions? Speak with a Team Member Today: (973) 319-8415
Shipping information

Orders are processed in 2–3 business days. Ground orders typically arrive in 7–10 business days. Orders over 100 lbs ship LTL freight and are scheduled with the carrier. Shipping is quoted at checkout or before fulfillment, and we ship within the United States only. See our Shipping Policy.

Returns & warranty

Every machine is sourced directly from the manufacturer and covered by the full manufacturer warranty. Report shipping damage immediately so we can help. Return terms vary by manufacturer — see our Return and Refund Policy.

Featuring a 10′ frame and a 64″ maximum crosscut with an unlimited rip cut, the H5 panel saw is a preferred solution for cabinet and furniture makers. The only difference between this model and the H4 and H6 models is that those provide 50″ and 74″ maximum crosscuts. Photos are shown with a stand and wheels, which are optional accessories.

The popular H5 panel saw is ideally suited for customers looking for a full-size vertical panel saw at a very affordable price. This saw has a crosscutting height of 64″ while delivering an accuracy of 1/32″ straight and square. With a 3 1/4 HP industrial motor, these versatile saws are used in a variety of panel cutting operations.

Standard Equipment

  • 3 ¼ Hp, 15 amp industrial duty saw motor.
  • Zinc plated 1 ¾″ steel guide tubes.
  • 4 Nylatron roller bearing systems.
  • Adjustable vertical and horizontal rulers.
  • Quick change from vertical to horizontal cutting.
  • Thin material pressure guard.
  • Injection-molded plastic material rollers.
  • Spring loaded counter balance system.
  • Integrated dust collection bonnet.
  • Extended warranty.
  • TUV certified to UL/CSA standards.

Technical Data + Specifications

Weight 298 lbs
Dimensions 120 x 11 x 83 in
Max. Crosscut 64″ / 1625mm
Max. Rip Cut Unlimited
Cut Depth 1 ¾″ / 45mm
Cut Accuracy 1/32″ / .8mm
Frame Length 120″ / 3050mm
Daily Usage 1–3 Hours
Rollers 14
Saw Blade Diameter 8″ / 210mm
Saw Blade Bore 5/8″
Motor Horsepower, Amperage and Volts 3.25 HP, 15 amps, 120 Volt; 3.25 HP, 7.5 amps, 220 Volt
Motor Manufacturer Milwaukee Tool
Model H5
Country of Origin USA
