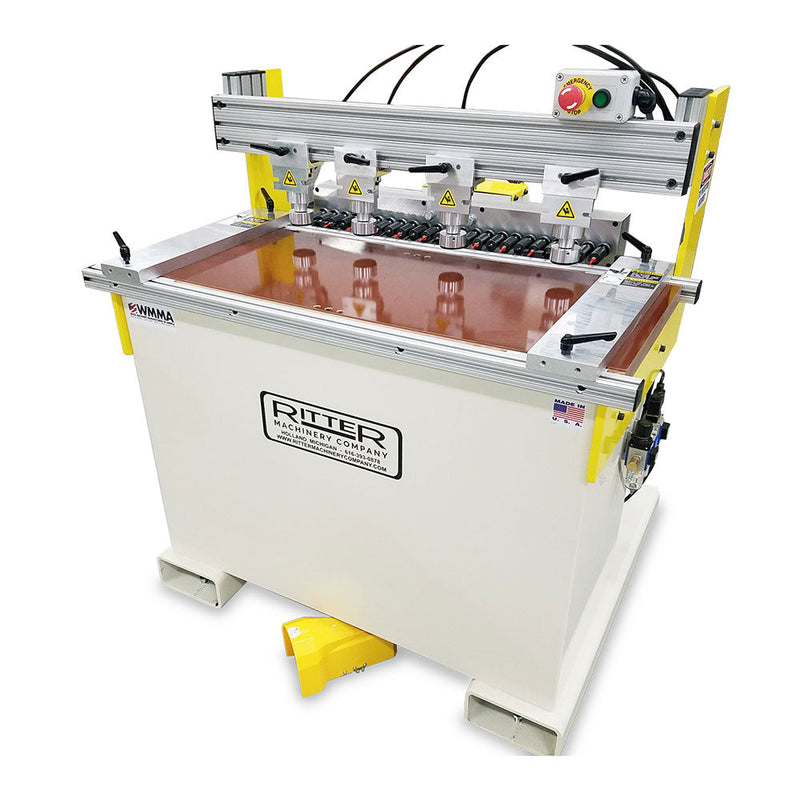

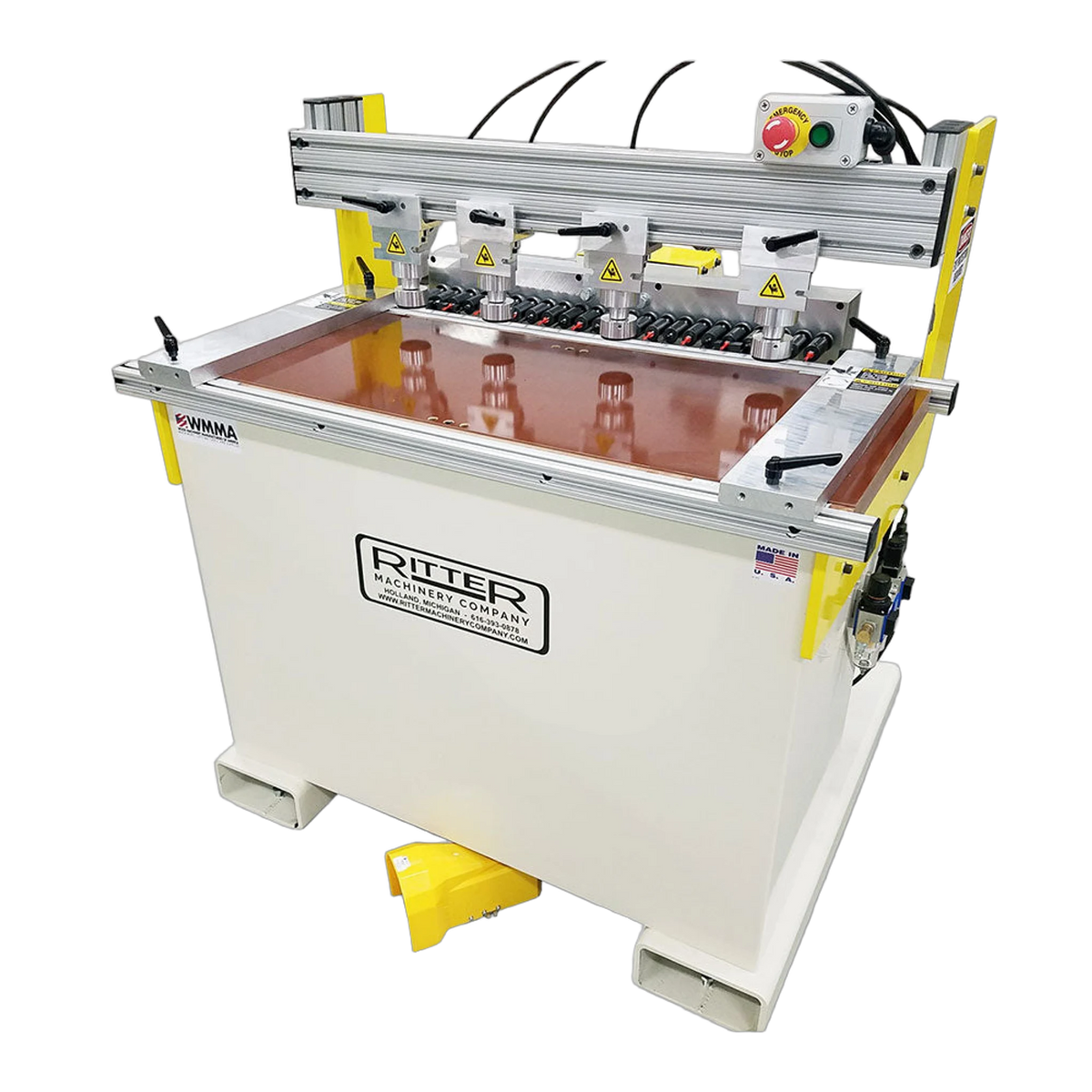

Ritter R823 23 Spindle Horizontal Boring Machine 32mm Centers

The Ritter R823 is a 23-spindle horizontal borer purpose-built to serve as a supplemental borer for CNC nested-based router and point-to-point borer applications. With 23 gear-driven horizontal spindles set on 32mm centers, this machine produces clean, accurate drilling of wood components at high volume. Pneumatic clamps hold the workpiece securely against the precision ground table, and index stops, bed height, and depth of cut are all fully adjustable. Designed and manufactured in the USA.

Ideal Applications

The R823 is designed to complement CNC production workflows by handling the repetitive, high-accuracy boring tasks that keep nested-based and point-to-point operations running efficiently. It is well suited for cabinet shops, furniture manufacturers, and production facilities looking to reduce bottlenecks in their drilling operations.

 Machine Features

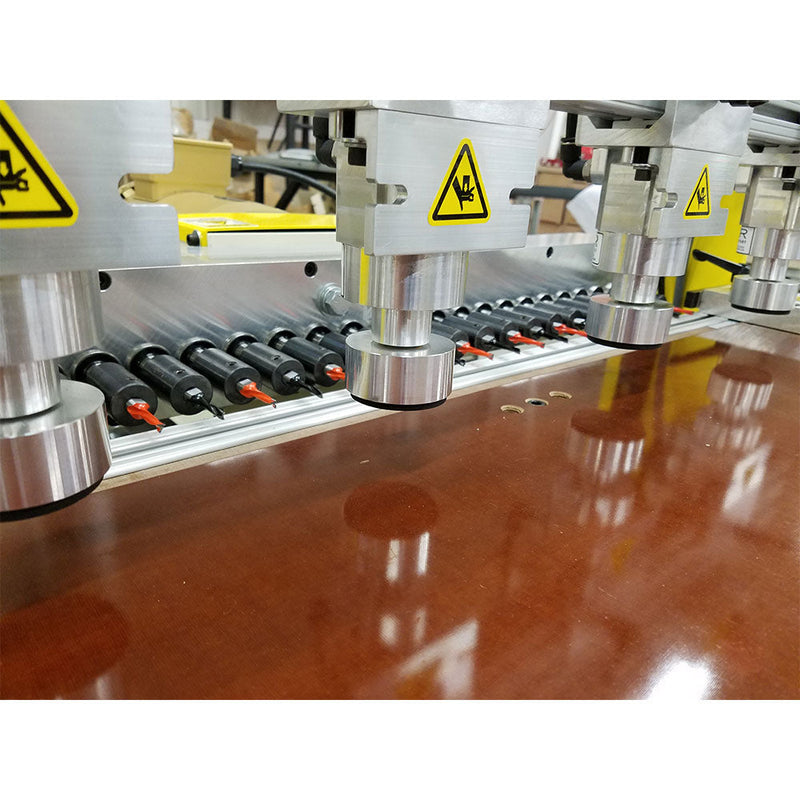

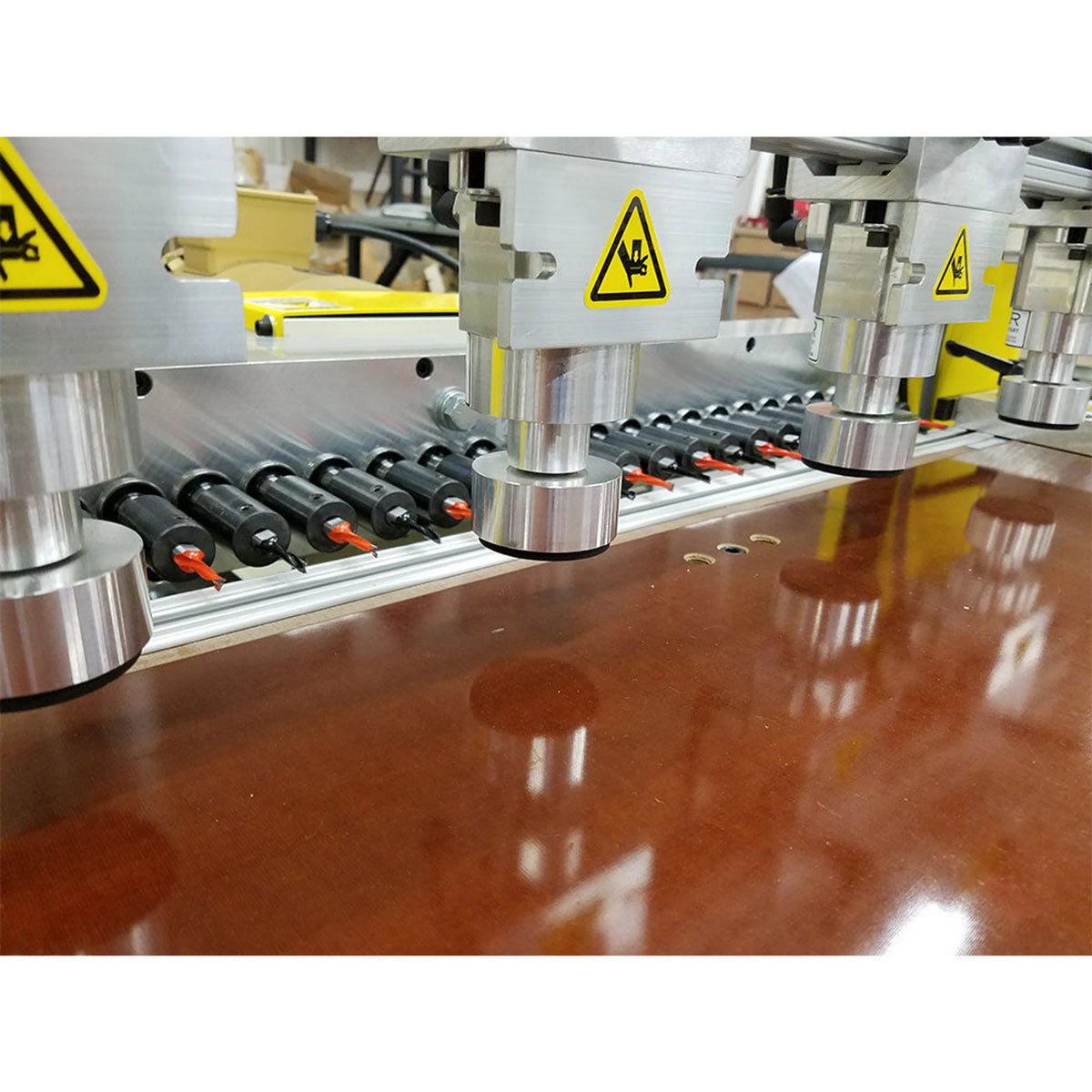

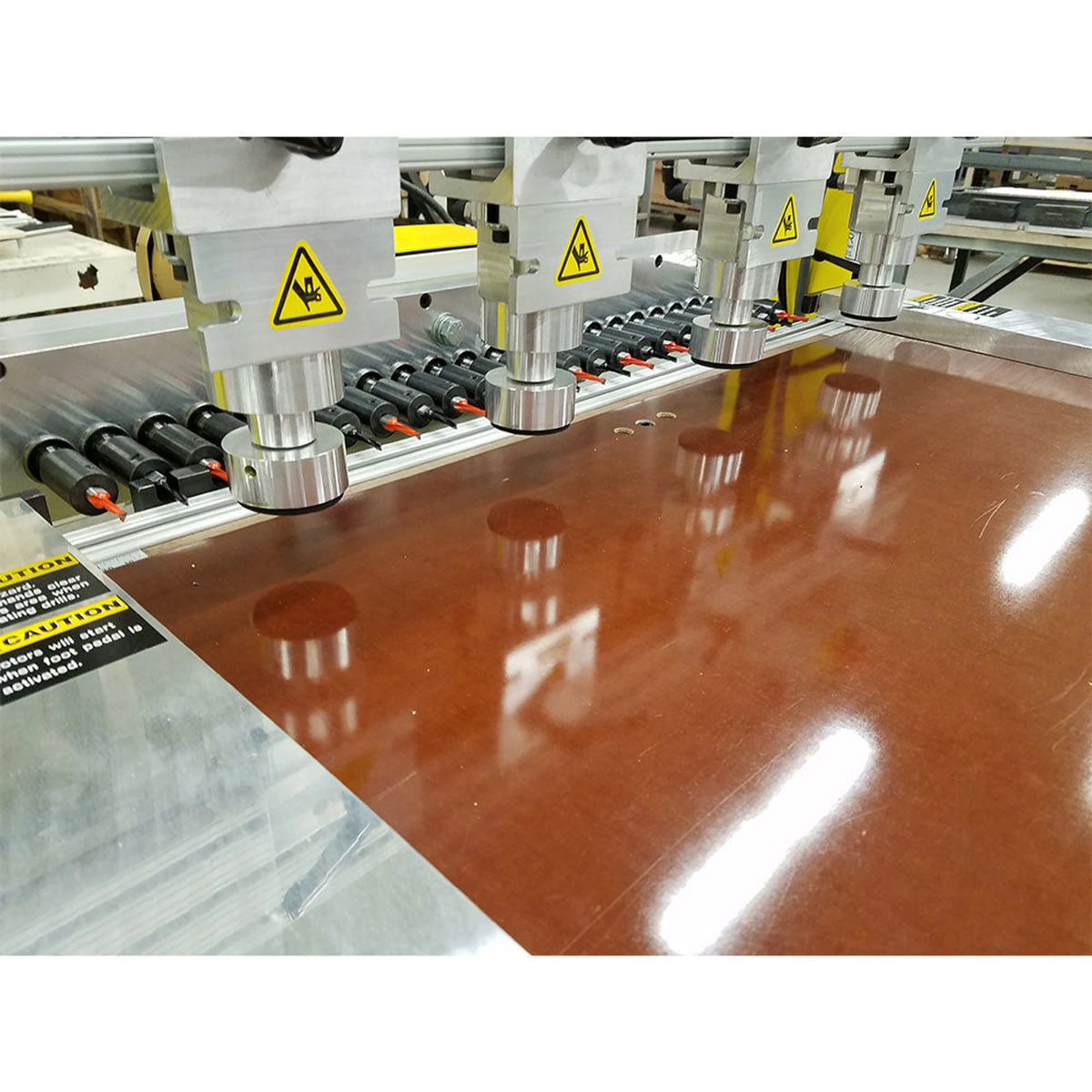

• 23 Horizontal Gear Driven Spindles
• 32mm Spindle Centers
• 10mm Bored Collets
• (12) Right Hand, (11) Left Hand Spindles
• 3,450 Spindle RPM

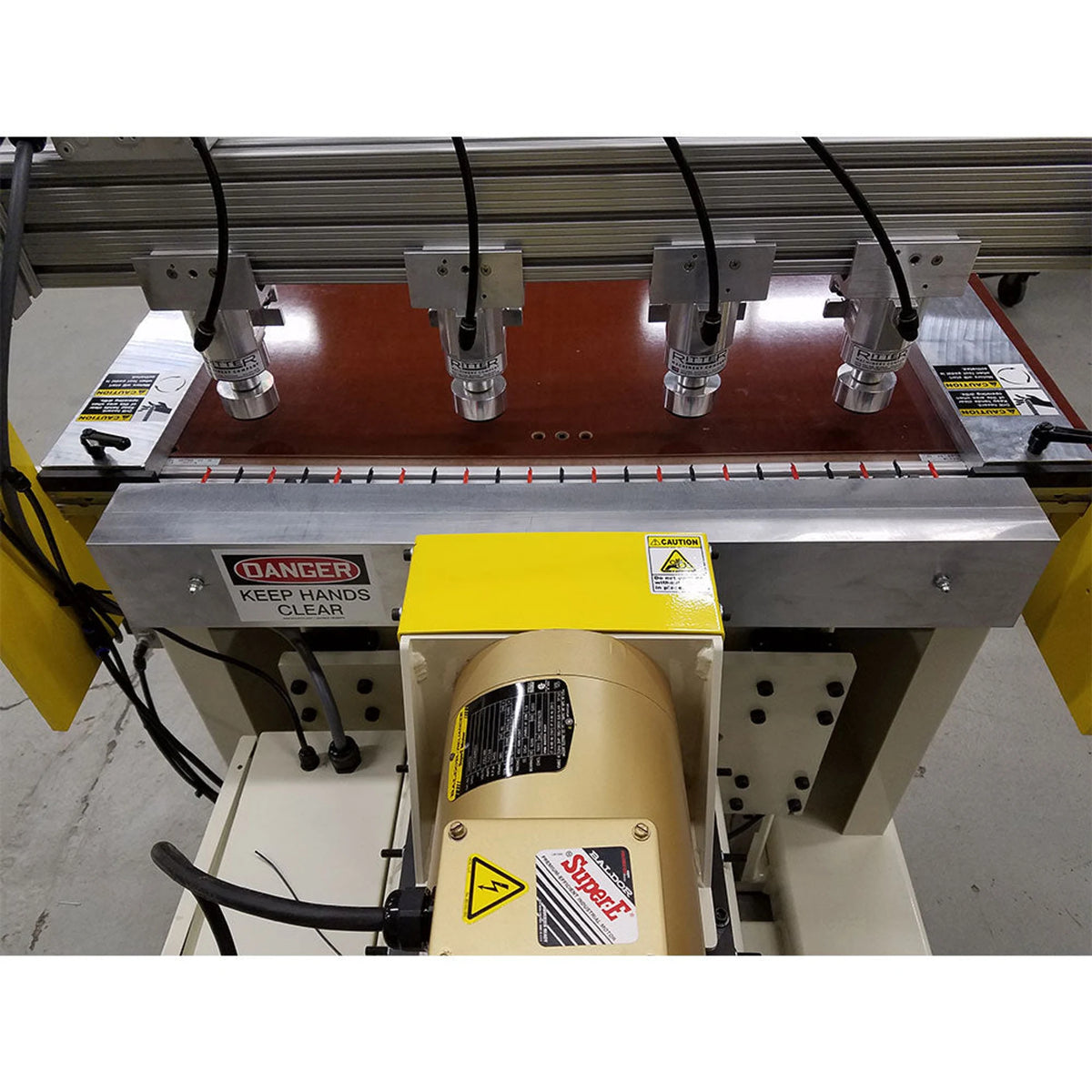

• 3 H.P. Spindle Drive Motor, TEFC
• 0 to 2 Inch Adjustable Boring Depth
• 20 x 42 Inch Precision Ground Table
• Back Fence Lip

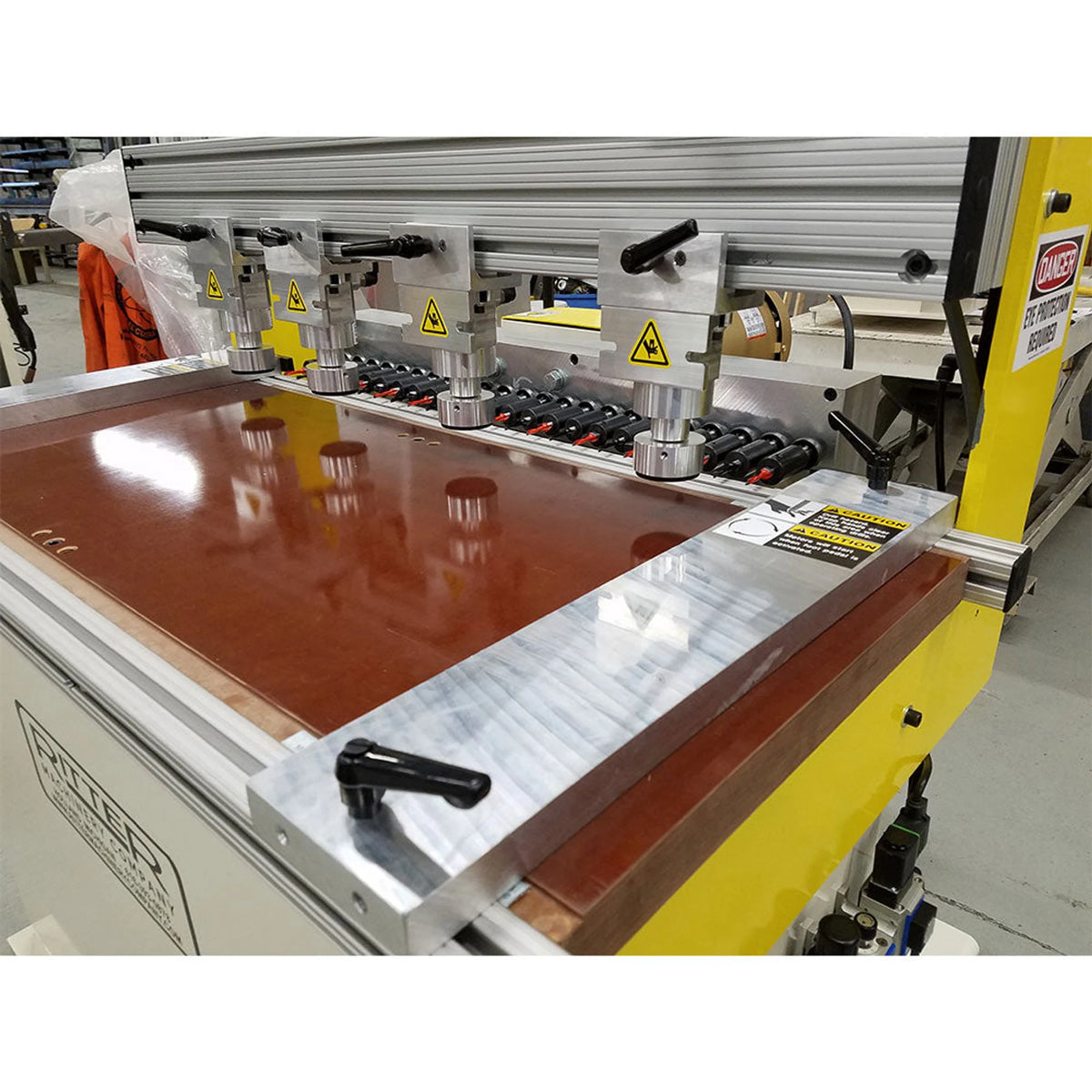

• (2) End Boring Fences
• (1) 5-Ton Carriage Adjusting Jack
• (4) 2.00 Inch Bore Clamping Cylinders
• Available in 230V, 3-Phase, 60 Hz or 460V, 3-Phase, 60 Hz
• Foot Pedal Actuated Boring Cycle
• No Tooling Included
• Designed and Manufactured in the USA

 Technical Specifications

• Spindles: 23 Horizontal Gear Driven
• Spindle Centers: 32mm
• Collets: 10mm Bored
• Spindle Configuration: (12) Right Hand, (11) Left Hand
• Spindle Speed: 3,450 RPM
• Motor: 3 H.P., TEFC
• Boring Depth: 0 to 2 Inches, Adjustable
• Work Table: 20 x 42 Inch Precision Ground
• Bore Clamping Cylinders: (4) 2.00 Inch
• Electrical Option 1: 230V, 3-Phase, 60 Hz / 460V, 3-Phase, 60 Hz
• Crated Dimensions: 54 x 54 x 55 Inches
• Crated Weight: 1,485 lbs
• Tooling: Not Included
