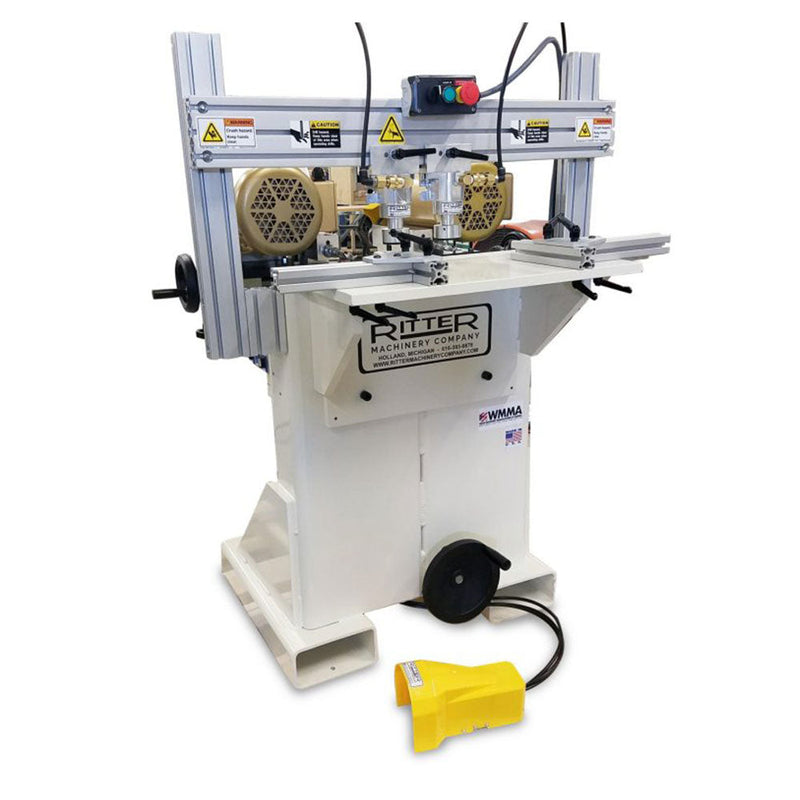

Ritter R8021 Double Spindle Horizontal Borer - Adjustable Centers 2" to 11"

The Ritter R8023 is a heavy-duty, two-spindle twin motor horizontal borer built to perform as a reliable workhorse in any woodworking shop. With two independent 1 HP TEFC spindle drive motors and spindle centers adjustable from 2 to 11 inches, this machine handles a wide range of boring tasks with precision and repeatability. A pneumatic clamp secures the workpiece firmly against the table throughout the cycle, and index stops, bed height, and depth of cut are all fully adjustable. Designed and manufactured in the USA.

 Common Applications

The R8023 is well suited for production shops and custom woodworking operations alike. Typical uses include stile and rail drilling, furniture doweling, line boring, table pin locating, and accurate drilling of a variety of wood components.

 Machine Features

• (2) 1 H.P. Spindle Drive Motors, TEFC
• (2) Single Spindle Boring Heads
• 2 to 11 Inch Adjustable Spindle Centers
• 7/16-14 R/H Female Threaded Collets
• 0 to 3 Inch Adjustable Boring Depth
• 0 to 2 Inch Spindle Height Adjustment
• 36 Inch Fixed Work Table Height
• 12 x 24 Inch Machined Steel Work Table
• (2) 2.00 Inch Bore Clamping Cylinders
• Right Angle Tee Fence Set
• (2) End Boring T-Fences
• Manual Motor Controls
• Foot Pedal Actuated Boring Cycle
• Available in 230V 3-Phase 60Hz 10A or 460V 3-Phase 60Hz 5A
• Tooling Not Included
• Designed and Manufactured in the USA

Technical Specifications

• Electrical Option 1: 230V, 3-Phase, 60 Hz, 10A
• Electrical Option 2: 460V, 3-Phase, 60 Hz, 5A
• Motors: (2) 1 H.P., TEFC
• Spindle Heads: (2) Single Spindle Boring Heads
• Spindle Centers: 2 to 11 Inches, Adjustable
• Collets: 7/16-14 R/H Female Threaded
• Boring Depth: 0 to 3 Inches, Adjustable
• Spindle Height Adjustment: 0 to 2 Inches
• Work Table: 12 x 24 Inch Machined Steel
• Work Table Height: 36 Inches, Fixed
• Bore Clamping Cylinders: (2) 2.00 Inch
• Tooling: Not Included
