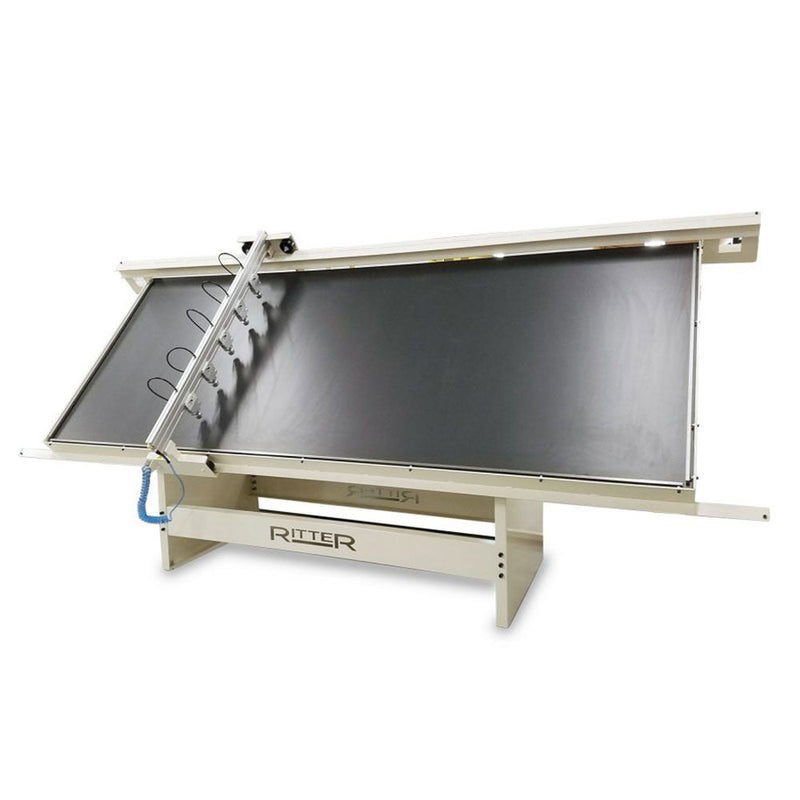

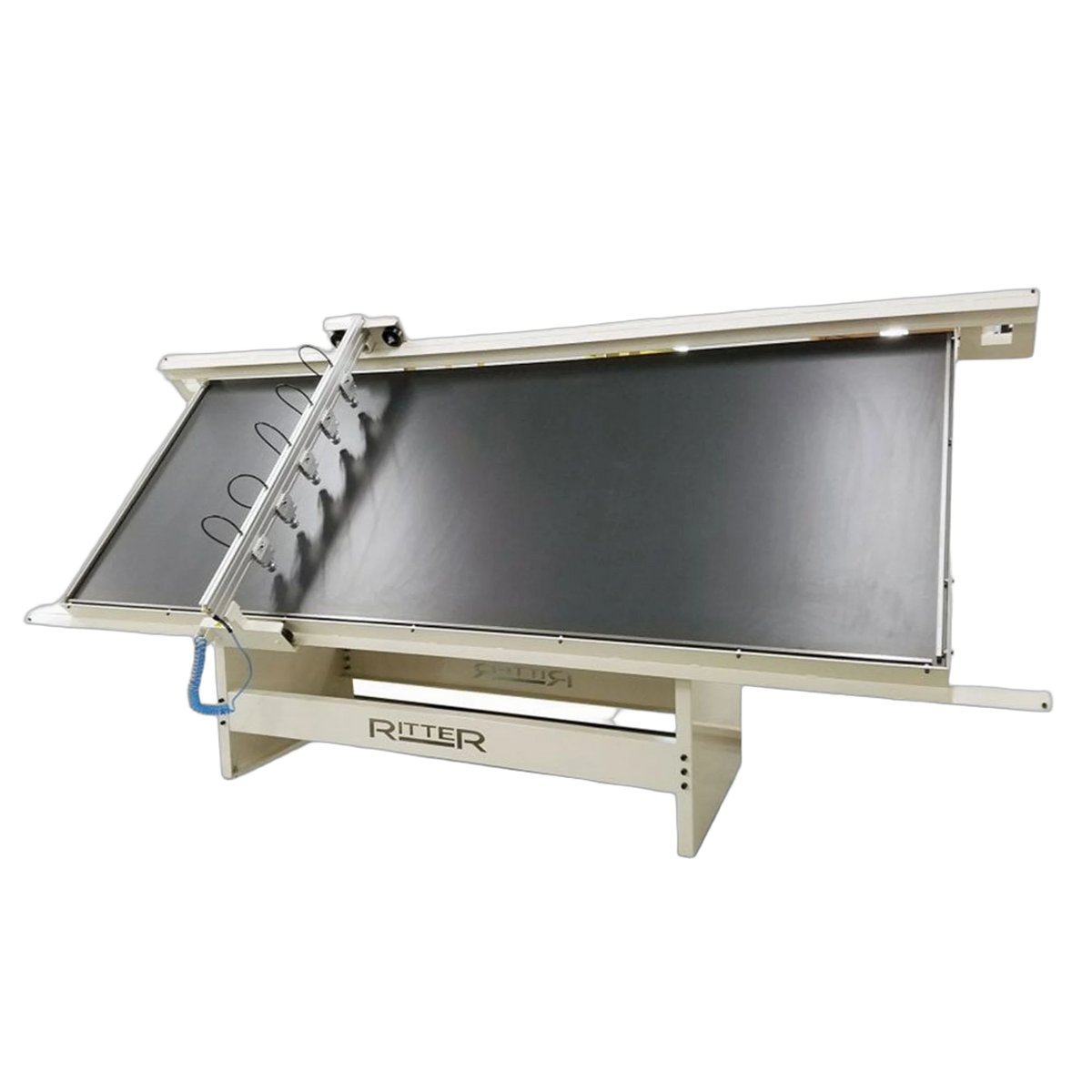

Ritter MachineryR210EAO Open Back Face Frame Assembly Easel - 5' x 12' with 5 Clamps

The Ritter R200EA Face Frame Assembly Easel is designed for the assembly of wooden cabinet face frames. The unit provides a flat work surface with integrated squaring bars and pneumatic clamping support to help hold frame components during assembly operations. The vertical easel design allows for convenient positioning of face frames while maintaining alignment during screw-based assembly methods.

The system is commonly used with pocket hole cutting equipment such as the R200T or R220T, which are used to create screw pockets for mechanical fastening of face frame components.

Standard Equipment

• 5’ x 12’ Face Frame Table
• 5-Cylinder Clamp Arm
• Open Back For 60″ Plus Frame Height
• 45 Degree Vertical Easel
• Squaring Bars on Right, Left, and Bottom Sides
• 1″ Thick Formica Surfaced Table
• 3″ I-Beam Easel Frame
• Hold Down Beam with (5) Adjustable Hold Down Cylinders
• Screw Driver Not Included
• Designed and Manufactured in the USA

Technical Data + Specifications
