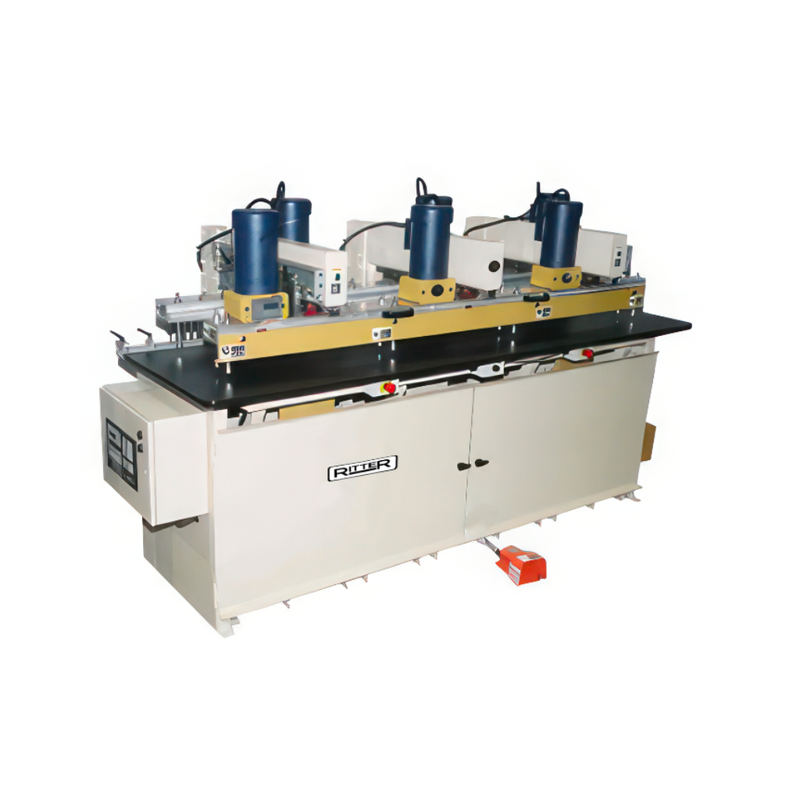

RITTER R152 Double Row System Drill, 152 Spindles – front

RITTER R152 Double Row System Drill, 152 Spindles

by Ritter Machinery
SKU R152
$117,490.00 - $117,490.00
$117,490.00
$117,490.00 - $117,490.00
$117,490.00
Shipping: $499
  • ✔ Fast & Safe Shipping Right To Your Workshop
  • ✔ Questions? Speak with a Team Member Today: (973) 319-8415
Shipping information

Orders are processed in 2–3 business days. Ground orders typically arrive in 7–10 business days. Orders over 100 lbs ship LTL freight and are scheduled with the carrier. Shipping is quoted at checkout or before fulfillment, and we ship within the United States only. See our Shipping Policy.

Returns & warranty

Every machine is sourced directly from the manufacturer and covered by the full manufacturer warranty. Report shipping damage immediately so we can help. Return terms vary by manufacturer — see our Return and Refund Policy.

The Ritter R152 Line Drill is designed for drilling evenly spaced system holes in cabinet and closet panel components. The machine uses two drill rows operating simultaneously to produce shelf pin hole patterns used in cabinet and furniture construction.

The R152 is equipped with 152 spindles arranged in two rows of 76, allowing panels up to 8 feet in length to be drilled in a single operation. The machine configuration supports consistent hole spacing and repeatable drilling across full-length panels commonly used in closet system manufacturing.

CNC table feed control and programmable through-boring allow the drilling process to be adjusted for different panel sizes and layouts. Twin ball screw stroke control and servo-driven movement provide controlled drill positioning while right and left work stations support panel handling during operation.

Standard Equipment

  • (2) 76-spindle gear driven drill heads
  • (6) 3 HP spindle drive motors, TEFC
  • 32 mm spindle centers
  • 10 mm bored collets
  • (76) right-hand and (76) left-hand spindles
  • CNC table feed control
  • Electronic drill head squaring
  • Foot actuated boring cycle
  • Minimum hole spacing: 5″ (127 mm)
  • Magnetic controls
  • Tooling not included

Technical Data + Specifications

Drive Motors 3 HP
Spindle Centers 32 mm
Collet Size 10 mm
Throat Capacity 24″
First to Last Spindle 2400 mm (94.488″)
Maximum Material Thickness 1.25″
Electrical 230V, 3 Phase, 60 Hz, 60A or 460V, 3 Phase, 60 Hz, 30A
Air Requirement 2 CFM at 80–100 PSI
Work Height 36″
Machine Footprint 54″ × 136″
Table Area 30″ × 108″
Shipping Weight 4,432 lbs
Shipping Dimensions 120″ L × 63″ W × 83″ H
