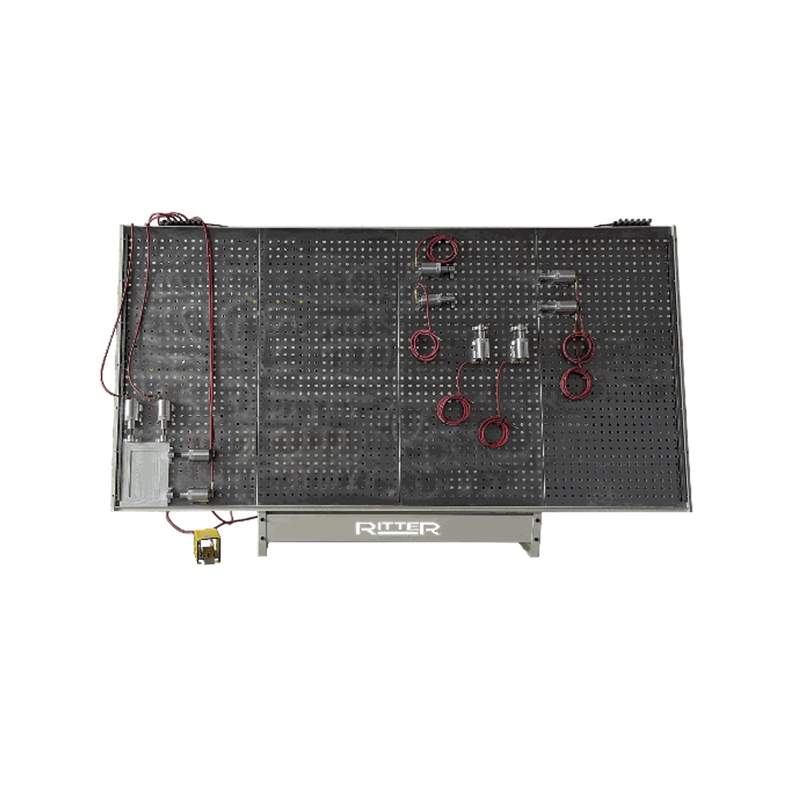

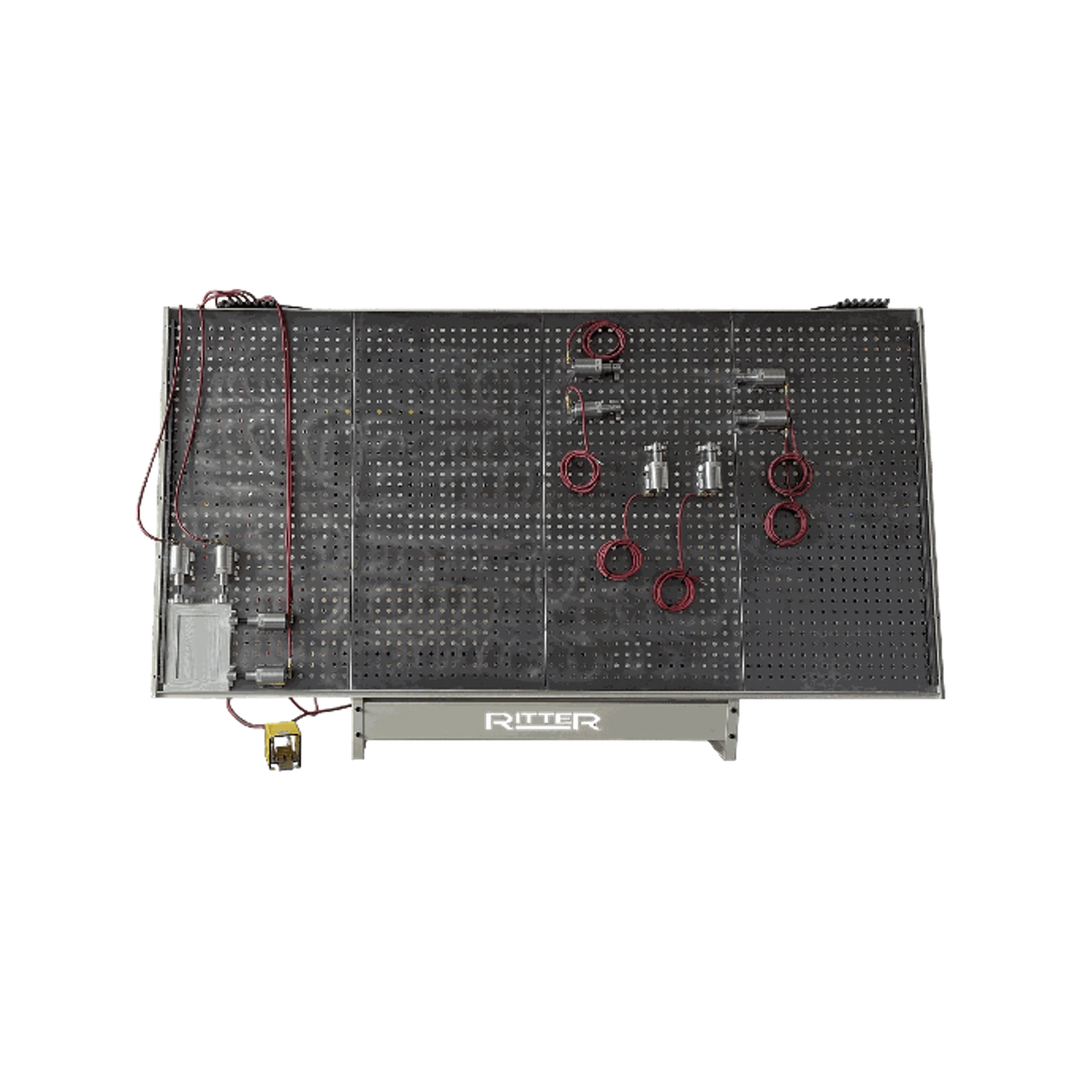

Ritter Machinery 6’ x 12’ Raised Panel Door Clamping Table R300V – front

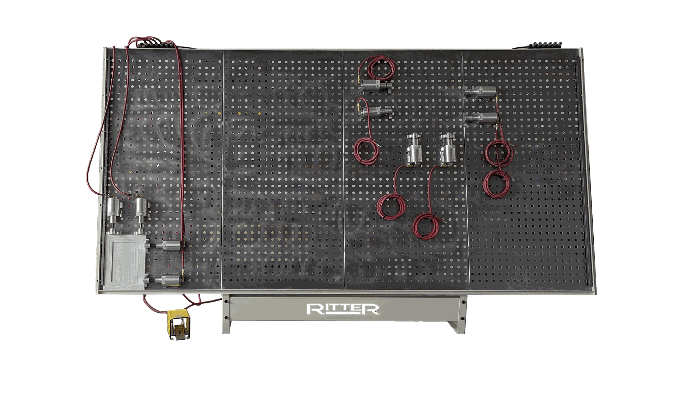

Ritter Machinery 6’ x 12’ Raised Panel Door Clamping Table R300V

by Ritter Machinery
SKU R300V
Save $1,009.00 Save $1,009.00
$15,099.00
$15,099.00 - $15,099.00
$15,099.00
$14,090.00
$14,090.00 - $14,090.00
$14,090.00
Shipping: $499
  • ✔ Fast & Safe Shipping Right To Your Workshop
  • ✔ Questions? Speak with a Team Member Today: (973) 319-8415
Shipping information

Orders are processed in 2–3 business days. Ground orders typically arrive in 7–10 business days. Orders over 100 lbs ship LTL freight and are scheduled with the carrier. Shipping is quoted at checkout or before fulfillment, and we ship within the United States only. See our Shipping Policy.

Returns & warranty

Every machine is sourced directly from the manufacturer and covered by the full manufacturer warranty. Report shipping damage immediately so we can help. Return terms vary by manufacturer — see our Return and Refund Policy.

The Ritter R300V is designed for both high and low volume production requirements and is the largest version of the heavy duty cabinet door clamping tables. The operator is freed from managing individual bar or pipe clamps, instead using pneumatic clamp cylinders to apply pressure to the glue line. Each cylinder is easily operated by a slide toggle, and the entire system is activated by a foot pedal. The vertical easel allows for fast and square assembly, while the multiple pneumatic clamps ensure high clamping pressures on the piece.

Standard Features

  • 6' x 12' Vertical Assembly Easel
  • 17° Easel Angle
  • (10) Universal Clamping Cylinders & Manifold
  • Squaring Bars on Left and Right Sides
  • (4) Material Hold Down Dogs
  • (3) Adjustable Material Positioning Stops
  • 2" Cylinder Position Grid Pattern
  • 3" Bore Clamp Cylinder Housing
  • Heavy Duty Steel Frame
  • Perforated Steel Table
  • 12 port Manifold with 1/4" NPT Regulator/Gage
  • Adjustable pressure from 20 to 130 PSI
  • Foot Treadle

Technical Data and Specifications

  • Usable Table Area: 139" x 70"
  • Work Height: 16"
  • Footprint: 144" L x 27" D x 85" H
  • Electrical: N/A
  • Air: 80-100 PSI
