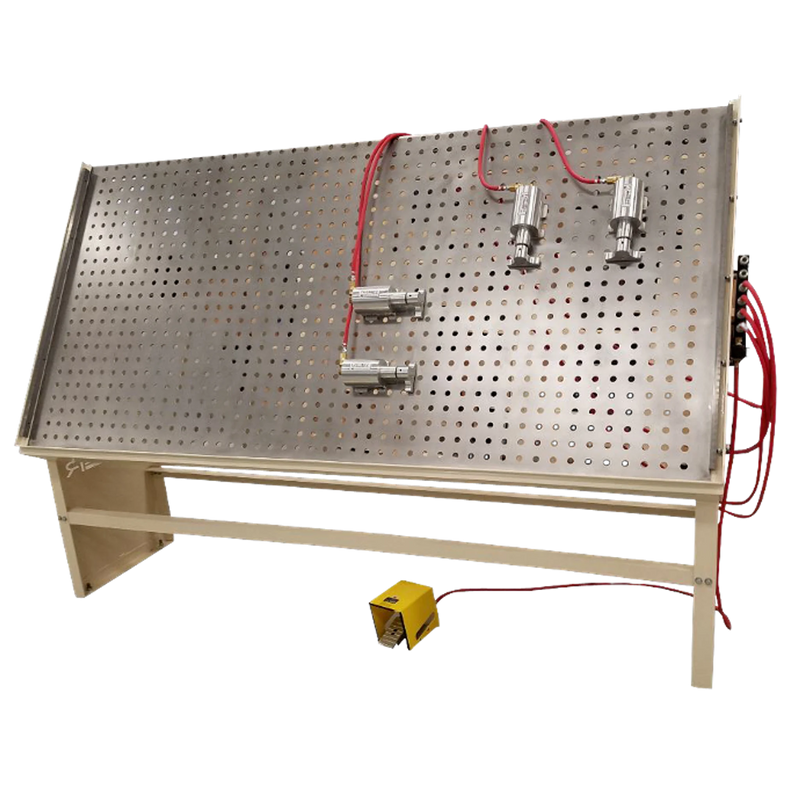

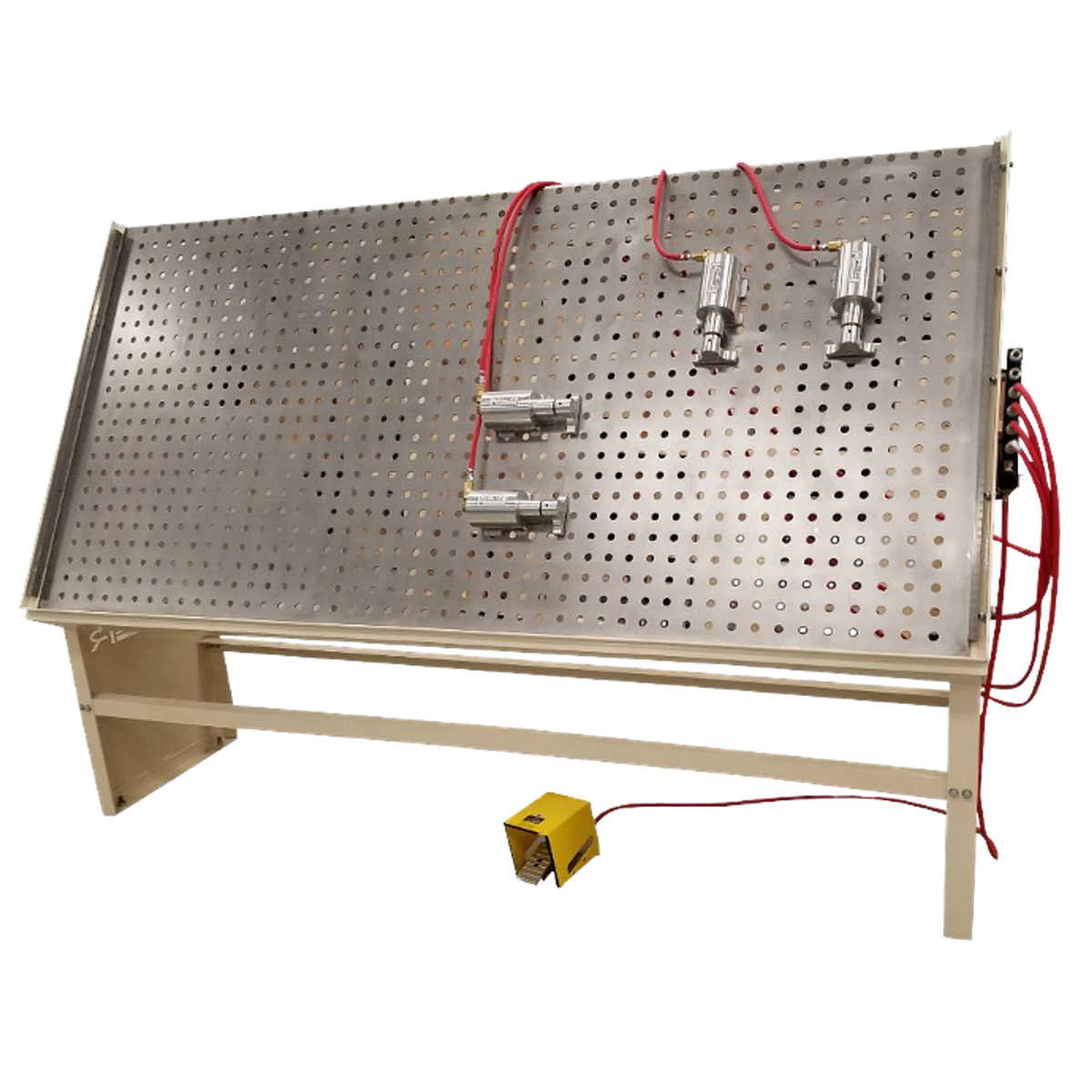

Ritter Machinery 4' x 8' Door Clamping Table with 6 Clamps R375V/H – front

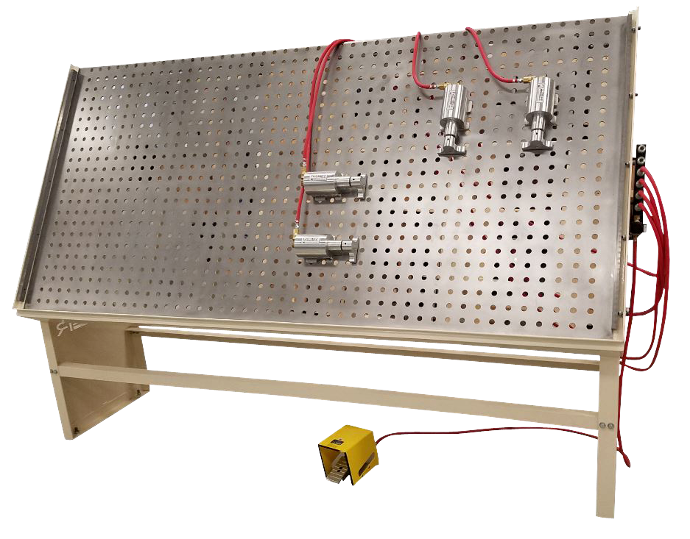

Ritter Machinery 4' x 8' Door Clamping Table with 6 Clamps R375V/H

by Ritter Machinery
SKU R375V
Save $509.00 Save $509.00
$9,599.00
$9,599.00 - $9,599.00
$9,599.00
$9,090.00
$9,090.00 - $9,090.00
$9,090.00
Shipping: $499
  • ✔ Fast & Safe Shipping Right To Your Workshop
  • ✔ Questions? Speak with a Team Member Today: (973) 319-8415
Shipping information

Orders are processed in 2–3 business days. Ground orders typically arrive in 7–10 business days. Orders over 100 lbs ship LTL freight and are scheduled with the carrier. Shipping is quoted at checkout or before fulfillment, and we ship within the United States only. See our Shipping Policy.

Returns & warranty

Every machine is sourced directly from the manufacturer and covered by the full manufacturer warranty. Report shipping damage immediately so we can help. Return terms vary by manufacturer — see our Return and Refund Policy.

The Ritter R375V brings precision and speed to cabinet door assembly in a compact, versatile package. Built for shops with moderate production demands, this pneumatic clamping table eliminates the hassle of traditional bar and pipe clamps. With a steeper 30° easel angle for easy material handling and a streamlined cylinder layout, the R375V delivers consistent, high-pressure clamping at the press of a foot pedal. Each cylinder is individually controlled by a slide toggle, giving the operator full command over every glue joint.

Standard Features

  • 4' x 8' Vertical Assembly Easel
  • 30° Easel Angle
  • (6) Universal Clamping Cylinders & Manifold
  • Squaring Bar and Fence
  • 2" Cylinder Position Grid Pattern
  • 3" Bore Clamp Cylinder Housing
  • Heavy Duty Steel Frame
  • Perforated Steel Table
  • 6 port Manifold with 1/4" NPT Regulator/Gage
  • Adjustable pressure from 20 to 130 PSI
  • Foot Treadle

Technical Data and Specifications

  • Usable Table Area: 95" x 46"
  • Work Height: 31"
  • Footprint: 74" x 30"
  • Electrical: N/A
  • Air: 80-100 PSI
