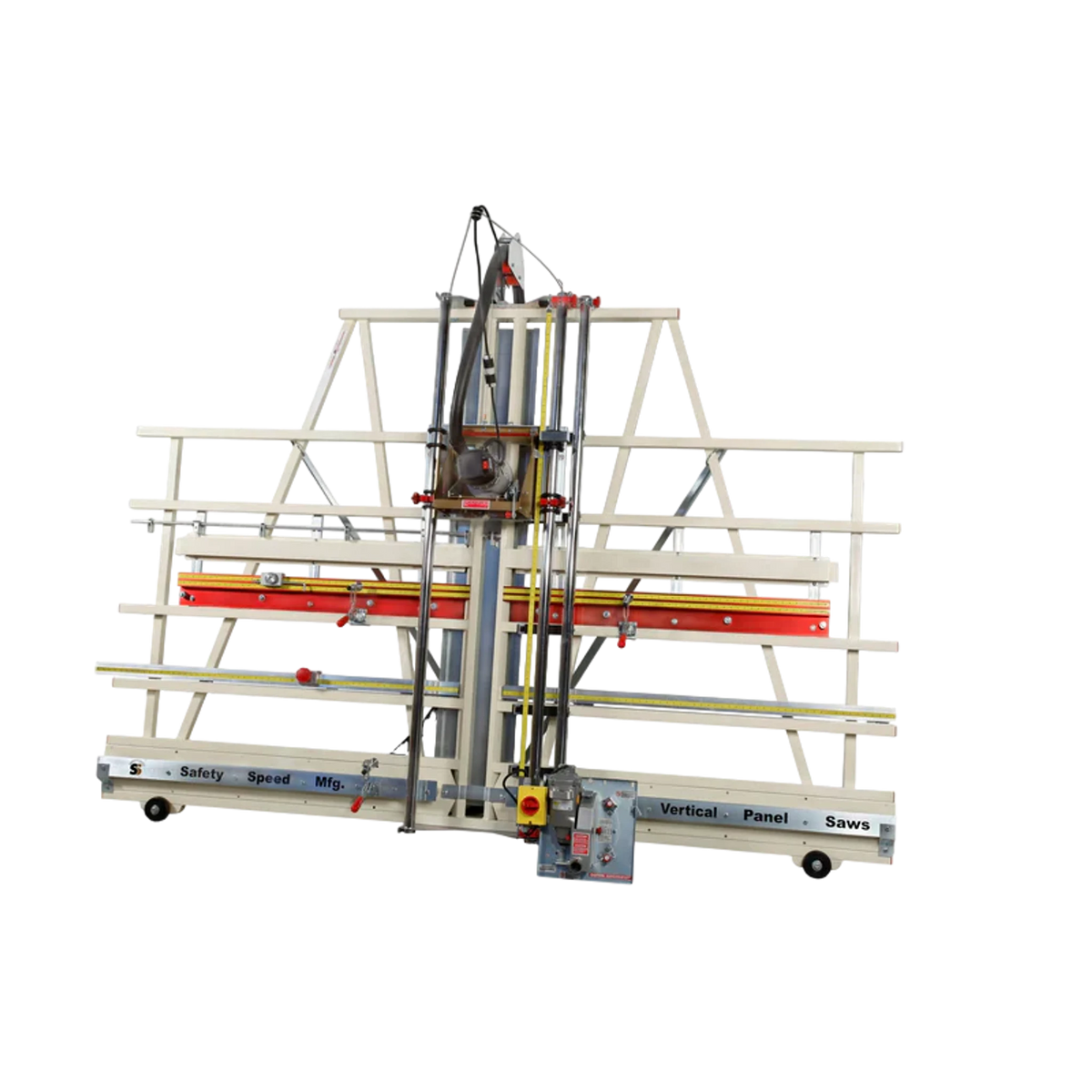

Safety Speed SR5UA ACM Panel Saw and Router Combo – front

Safety Speed SR5UA ACM Panel Saw and Router Combo

by Safety Speed
SKU SR5UA
Save $2,870.00 Save $2,870.00
$11,999.00
$11,999.00 - $11,999.00
$11,999.00
$9,129.00
$9,129.00 - $9,129.00
$9,129.00
  • ✔ Fast & Safe Shipping Right To Your Workshop
  • ✔ Questions? Speak with a Team Member Today: (973) 319-8415
Shipping information

Orders are processed in 2–3 business days. Ground orders typically arrive in 7–10 business days. Orders over 100 lbs ship LTL freight and are scheduled with the carrier. Shipping is quoted at checkout or before fulfillment, and we ship within the United States only. See our Shipping Policy.

Returns & warranty

Every machine is sourced directly from the manufacturer and covered by the full manufacturer warranty. Report shipping damage immediately so we can help. Return terms vary by manufacturer — see our Return and Refund Policy.

The SR5UA Saw Router Combination Machine is a complete vertical panel saw and routing system designed for cutting and routing sheet materials in professional fabrication environments. It features over $1,400 in savings compared to ordering each accessory individually. The following upgrades and accessories are included with this machine configuration:

The SR5UA combination system allows operators to switch between sawing and routing functions on the same vertical frame. The floating router head with nylon guide allows controlled depth adjustments for routing operations such as V-grooving aluminum composite material (ACM) panels. The machine can be switched between saw and router operation quickly without requiring major setup changes.

An integrated dust hood and hose system helps collect debris generated during cutting and routing operations.

Standard Equipment

  • 3 HP worm drive saw motor
  • 3+ HP heavy-duty router motor
  • 10 ft welded steel frame
  • Chrome plated 1¾" guide tubes
  • 8 Nylatron roller bearing systems
  • Adjustable vertical and horizontal rulers
  • Quick change from vertical and horizontal cutting
  • Thin material pressure guard
  • Solid aluminum material rollers
  • Counterweight system
  • Adjustable floating router head
  • MID-WAY FENCE® with stop
  • Backerboard
  • 4 material clamps
  • 2 blind dado stops
  • Wheels
  • Fixed stand
  • Extensions
  • Left and right Quick Stop® gauges
  • MID-WAY FENCE™ flip stop
  • Dust hood and hose kit
  • Hold down bar
  • Specialty saw blade and router bit for V-grooving
  • 1 year parts warranty

Technical Data + Specifications

Weight 687 lbs
Dimensions 124 × 17 × 92 in
Maximum Crosscut 62 in (1575 mm)
Maximum Rip Cut Unlimited
Maximum Cut Thickness 1¾ in (45 mm)
Cut Accuracy 1/64 in (0.4 mm)
Saw Motor Power 3 HP
Saw Motor Type Worm Drive
Saw Motor Amperage 13 A
Saw Motor Voltage 120 V
Saw Blade Diameter 8 in (210 mm)
Router Motor Power 3 HP
Router Motor Type Variable Speed
Router Motor Amperage 15 A
Router Motor Voltage 120 V
Router Bit Collet ¼ in or ½ in
Frame Length 120 in (3050 mm)
Country of Origin United States
