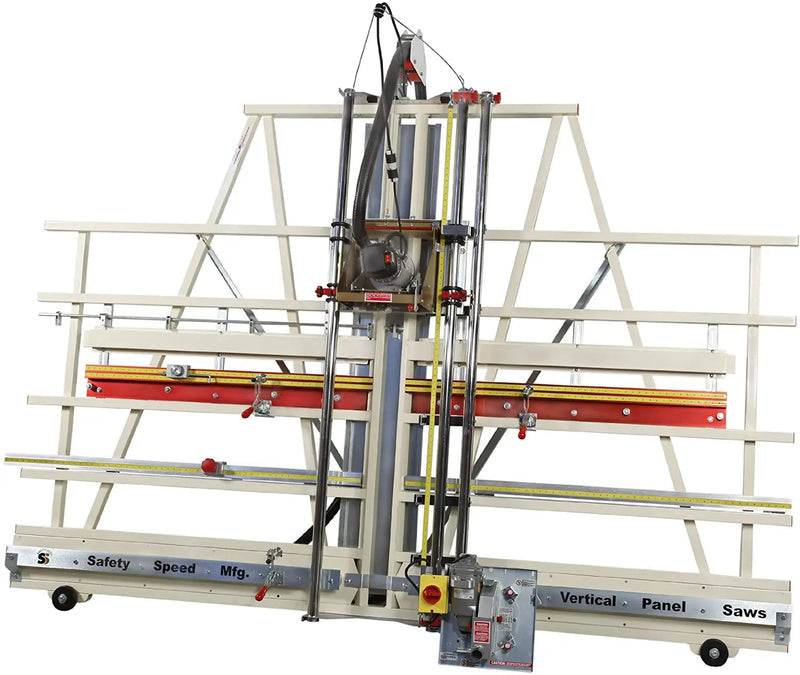

Safety Speed SR5 Panel Saw and Router Combo

Cutting and routing full sized panels is often a job that’s dreaded in the shop due to effort required or fear of getting too close to exposed tooling. The SR5 Saw & Router combination machine features a heavily guarded blade and can be changed from a saw to a router in under a minute, all while delivering an accuracy of 1/64” straight and square. The SR5 & is ideal for shops doing extensive cutting, and dado or rabbet routing. The interchangeable motor carriage features a rotating saw and router for sizing panels by pushing the panel through and making a ripcut, or by letting gravity take control and pushing the saw or router down for making a vertical crosscut. The patented self-adjusting, floating router carriage provides a consistent depth of cut.  MID-WAY Fence® allows for processing smaller panels at waist level. If both panel cutting and routing are part of your operation, why not consider one machine that will do both?

Note that you can use either 1/4″ or 1/2″ collet router bits for the router. These router bits can be found at your hardware store of choice.

Technical Data + Specifications

Max. Cross-cut: 62" (1575mm)
Max. Rip Cut: Unlimited
Max. Cut Thickness: 1-3/4" (45mm)
Cut Accuracy, Straight & Square: 1/64" (0,4mm)
Saw Blade Diameter: 8" (200mm)
Motor: 120V, 15amp
Router: 120V, 11amps
Frame Length: 120" (3050mm)
Shipping Weight: 320lbs (145kg)

Benefits + Features

• LOW MAINTAINANCE BEARING & GUIDE SYSTEM - Precise straight, square & accurate cuts
• POSITIONING OF SAW BLADE - No casual operator contact; much safer than alternative panel cutting methods.  Cuts both vertical and horizontal

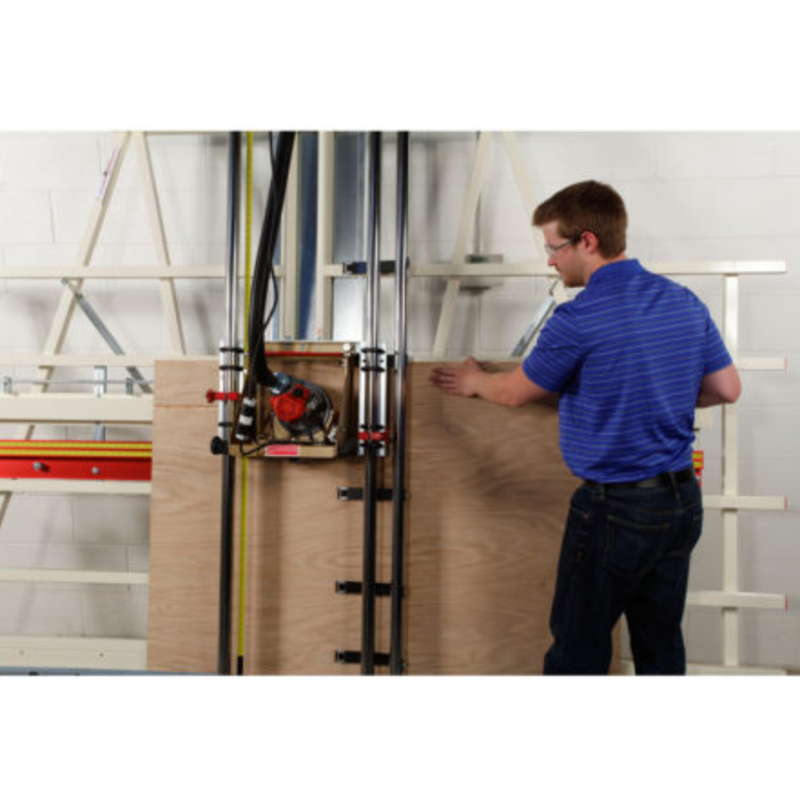

• VERTICAL POSITIONING FOR PANELS - One person easily handles full-sized sheets accurately and safely
• SIMPLE CONTROLS - Easy operation for all environments
• INDUSTRIAL-DUTY MOTORS - Powerful enough for tough cutting applications
• MATERIAL ROLLERS - Utilizes 3/4" diameter bearings for consistent accuracy & ease of loading and unloading
• BUILT-IN RULERS - Quick and easy precision cuts - no need to use pencil marks
• RUGGED CONSTRUCTION - One-piece steel welded frame.  One-piece welded guide tube carriage for consistent accuracy

• 3 1/4 hp, 15 amp Industrial-duty Saw Motor
• 1 3/4 hp, 11 amp Industrial-duty Router Motor
• 10' Welded Steel Frame
• Chrome-plated 1 3/4" Guide Tubes
• 8 Nylatron Roller Bearing Systems
• Adjustable vertical and horizontal Rulers
• Quick change from vertical to horizontal cutting
• Thin Material Pressure Guard
• Injection-molded Plastic Material Rollers
• Spring-loaded Counterbalance System
• Adjustable Floating Router Head
• Mid-way Fence with stop
• 4 Material Clamps
• 2 Blind Dado Stops
• Extended Warranty
• TUV certified to UL/CSA standards
