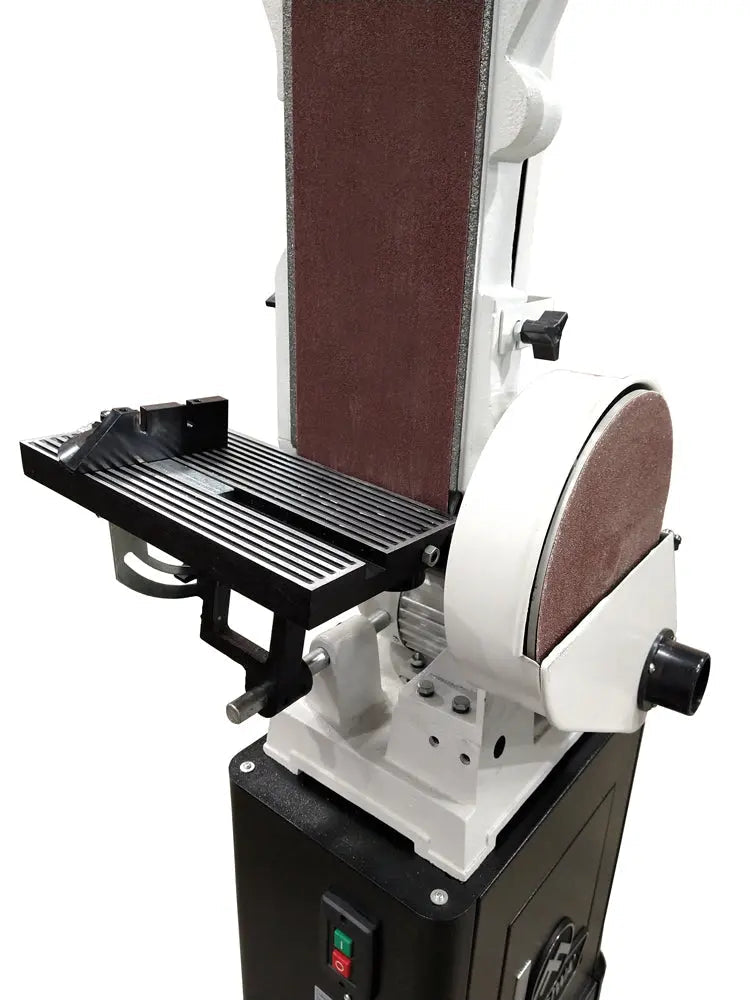

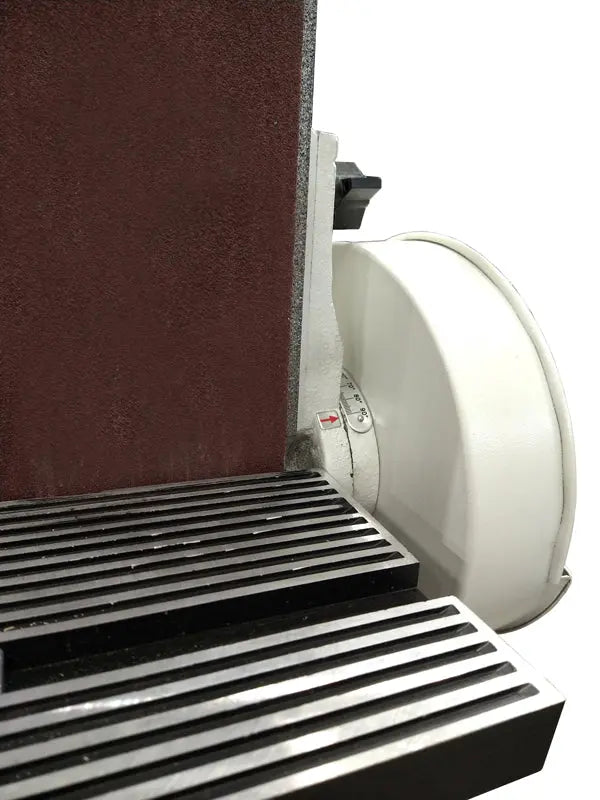

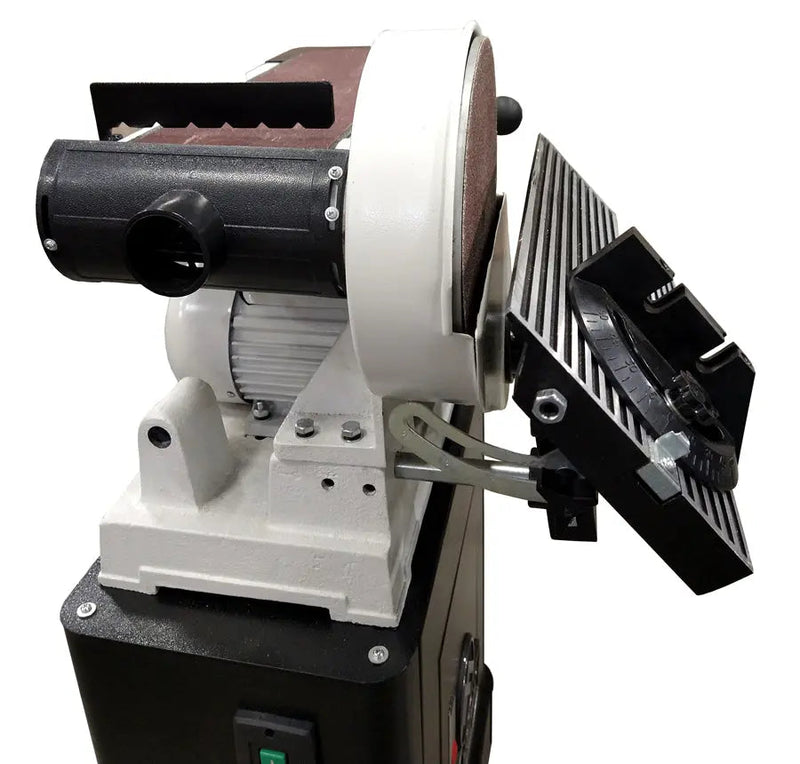

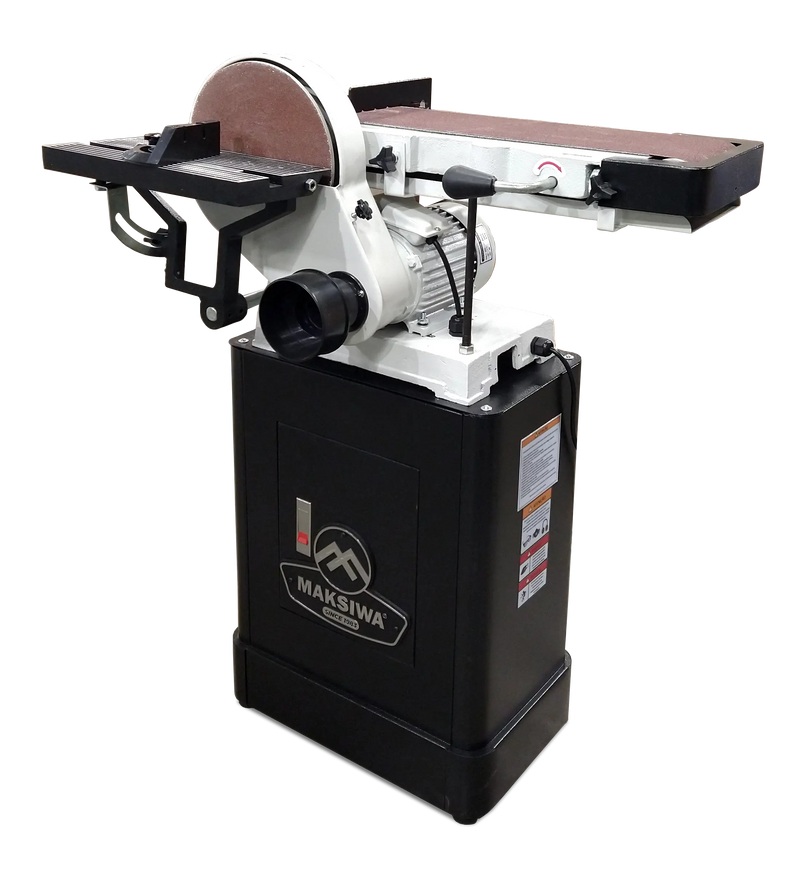

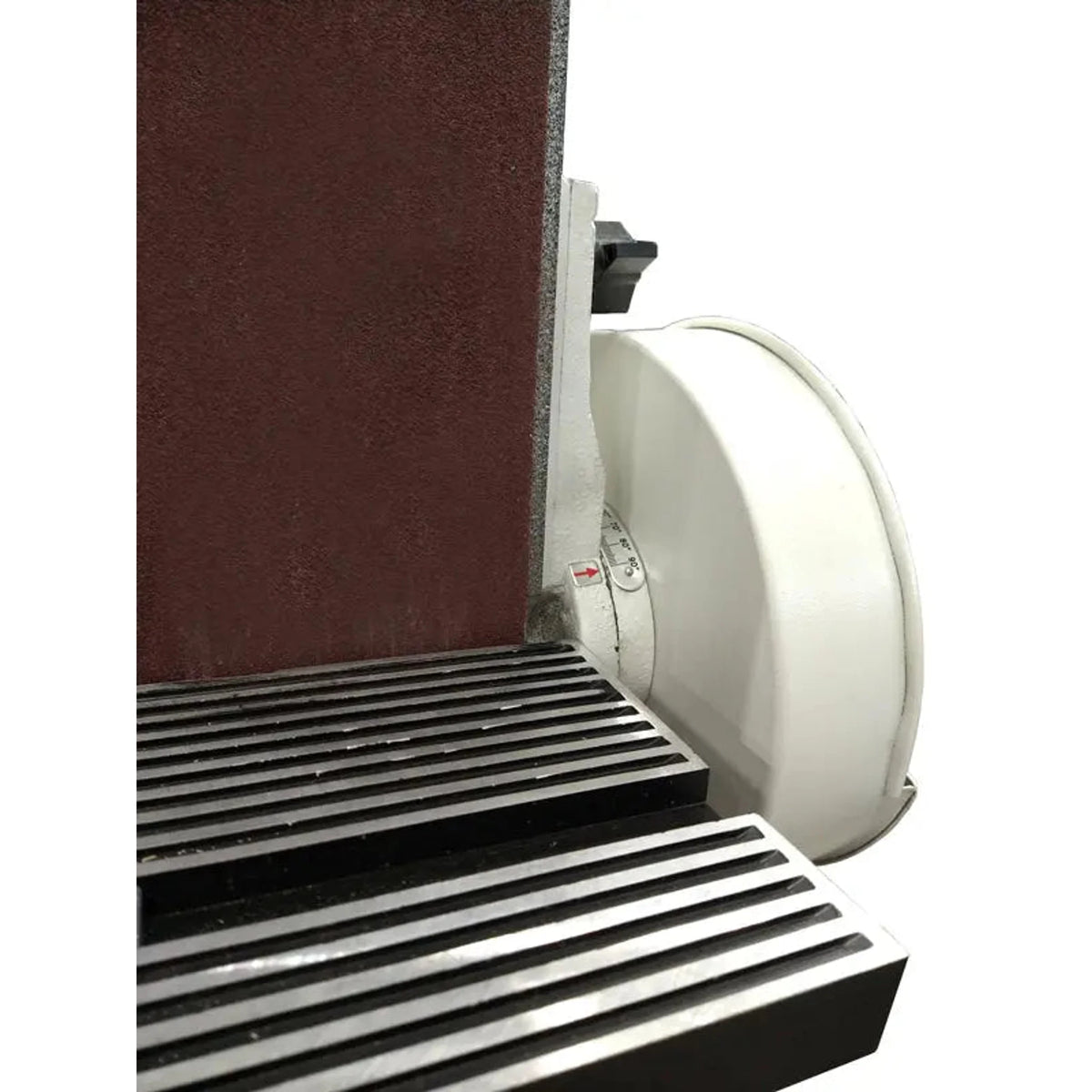

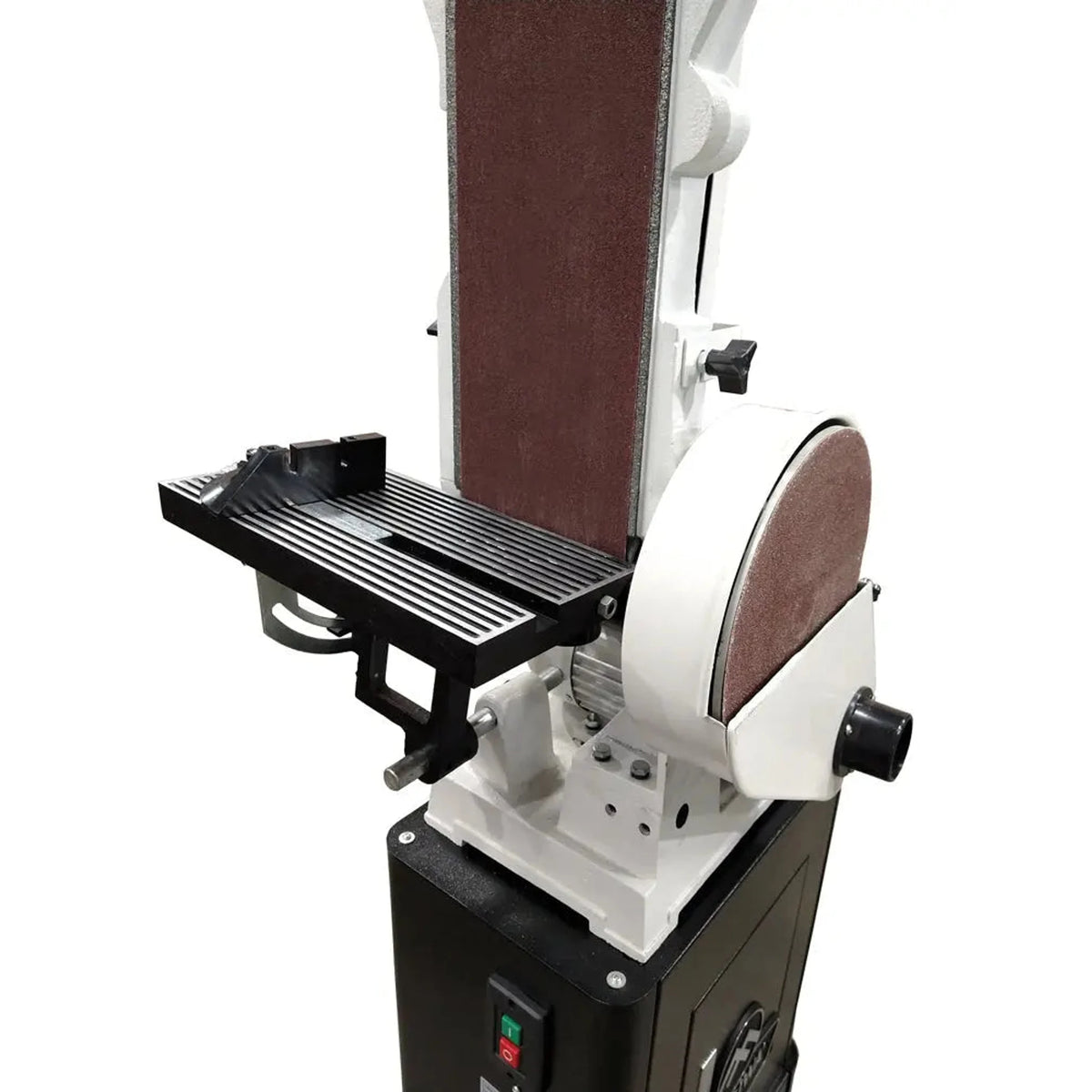

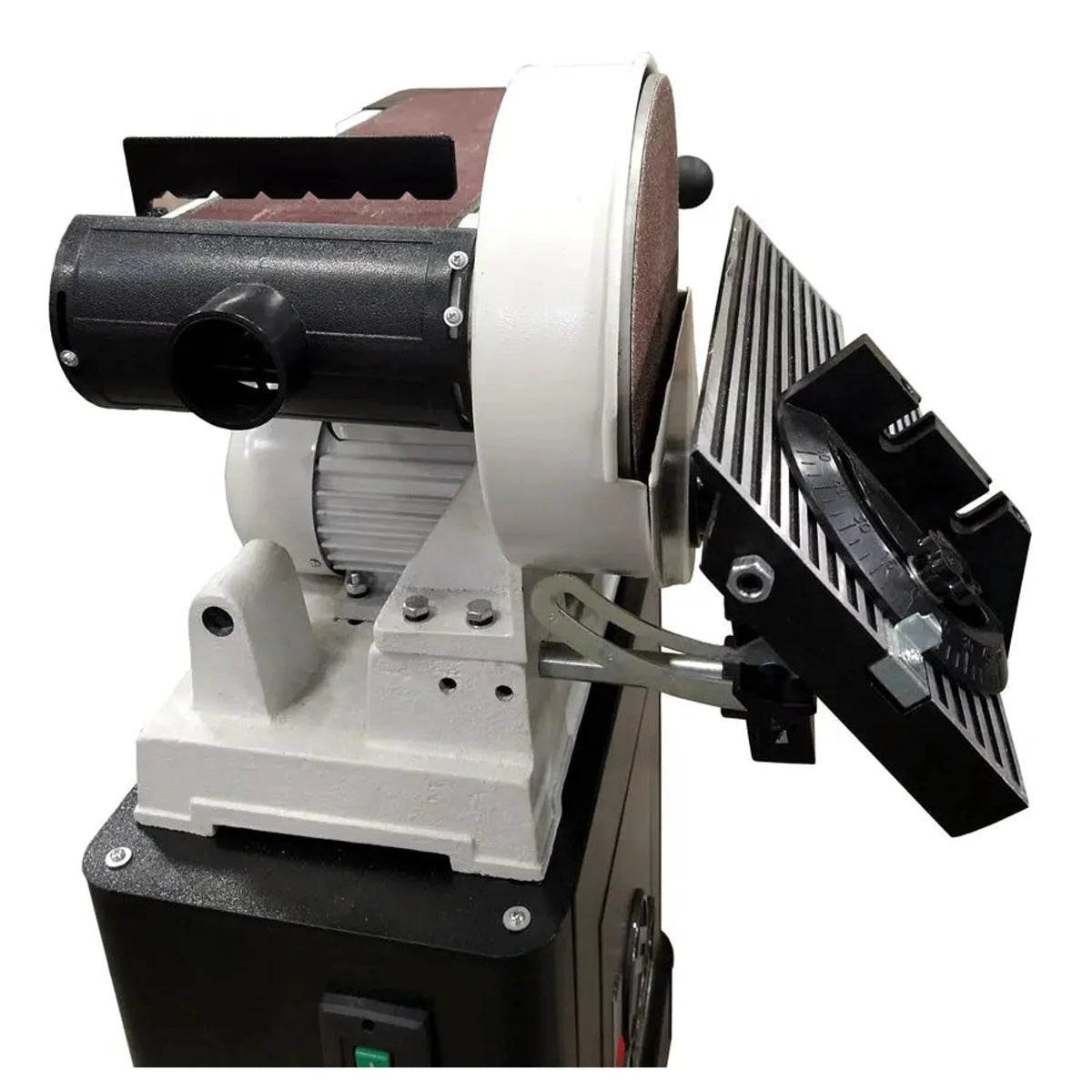

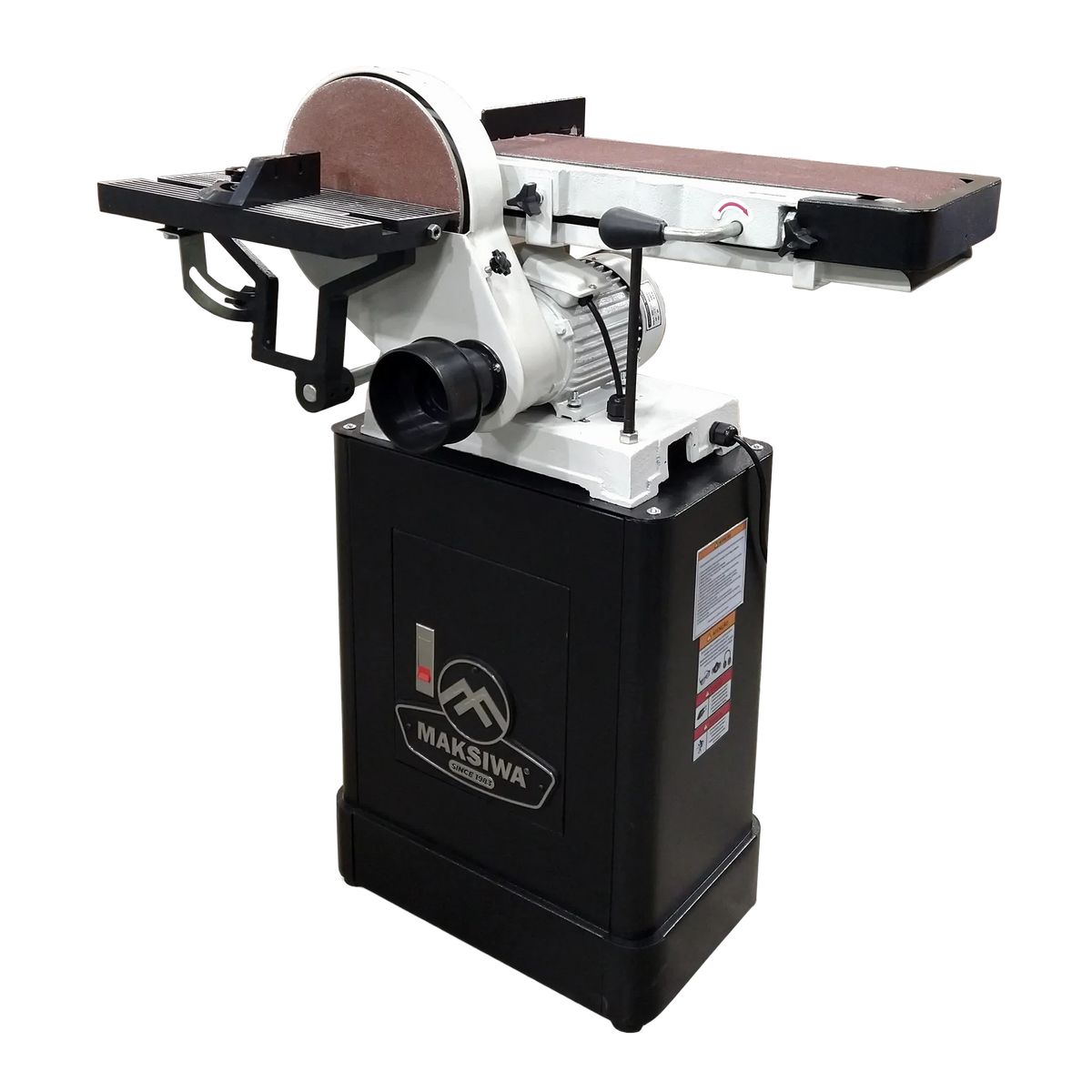

Maksiwa LDF Combination Belt and Disc Sander

Shipping Included In Price

The Maksiwa LDF Combination Belt and Disc Sander gives you two sanding stations in one compact machine, handling a wider range of sanding tasks than either a standalone belt or disc sander could on its own. With independent tilt adjustments on both the disc table and belt, it accommodates straight and angled work across virtually any configuration.

Two Sanders, One Machine

The 9" disc table tilts from 0° to 45° for bevel sanding and miter work, while the belt table goes further — tilting from 0° to 90° — opening up sanding angles that a disc alone can't reach. Whether you're smoothing flat faces, shaping edges, or working compound angles, the LDF handles it without switching between machines.

Consistent Power Across Both Stations

A 3/4HP motor drives both the disc at 1,700 RPM and the 48" belt at 20.7 ft/s, delivering smooth, controlled material removal at both stations. Flexible voltage options — single phase at 127V or 220V, or three phase at 220V or 380V — make it straightforward to integrate into your existing electrical setup. Backed by a 2-year warranty.

Specifications

• Motor: 3/4HP, 1 or 3 Phase
• Voltage/Amperage (1 Phase): 127V/13.8A or 220V/6.9A
• Voltage/Amperage (3 Phase): 220V/2.8A or 380V/1.6A
• Disc Diameter: 9"
• Disc Speed: 1,700 RPM
• Belt Dimensions: 48"
• Belt Speed: 20.7 ft/s
• Table Size: 12-3/8"
• Table Tilt (Disc): 0° to 45°
• Belt Tilt: 0° to 90°
• Weight: 134 lbs
• Warranty: 2 years
