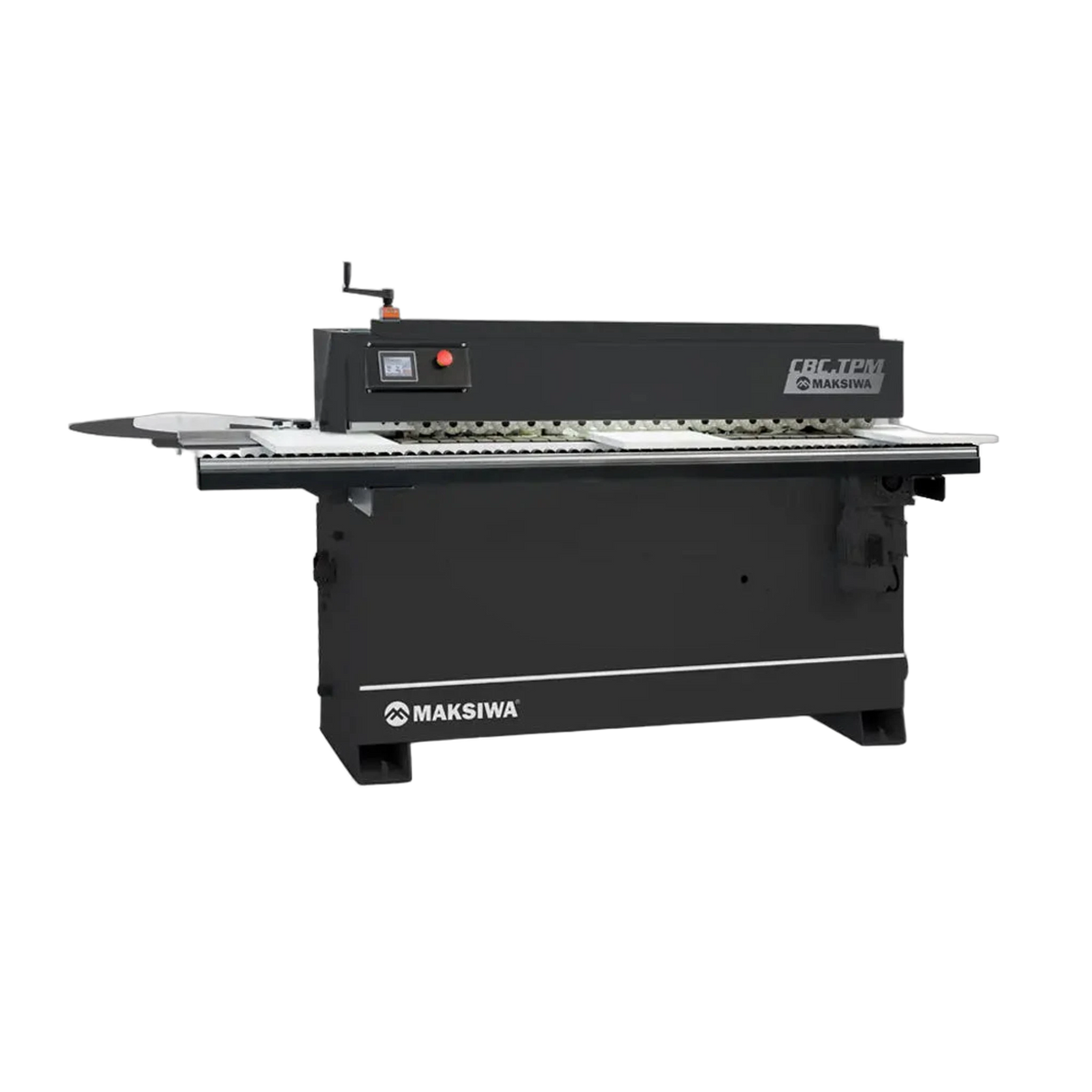

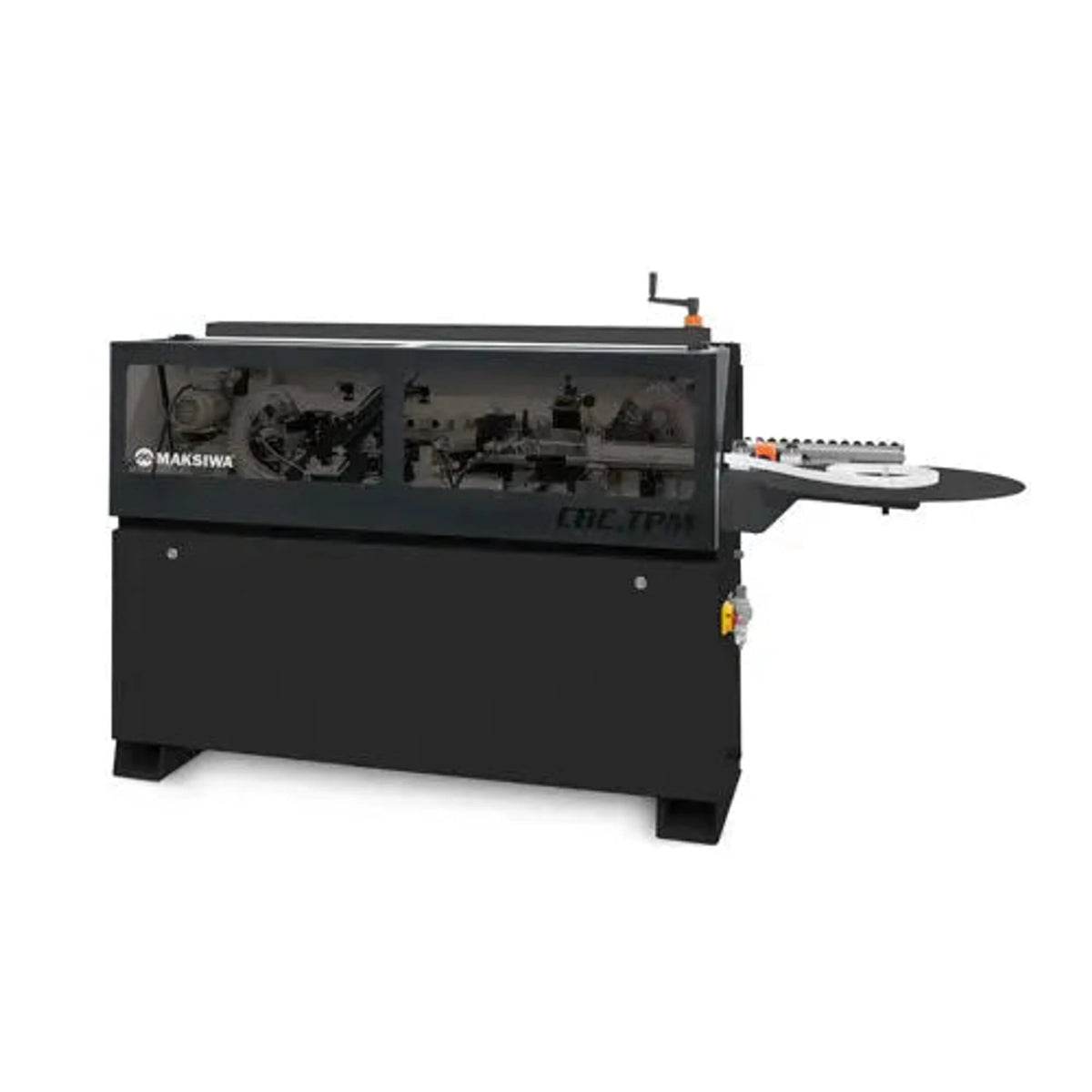

Maksiwa Edgebander CBC TPM - Pre-Milling

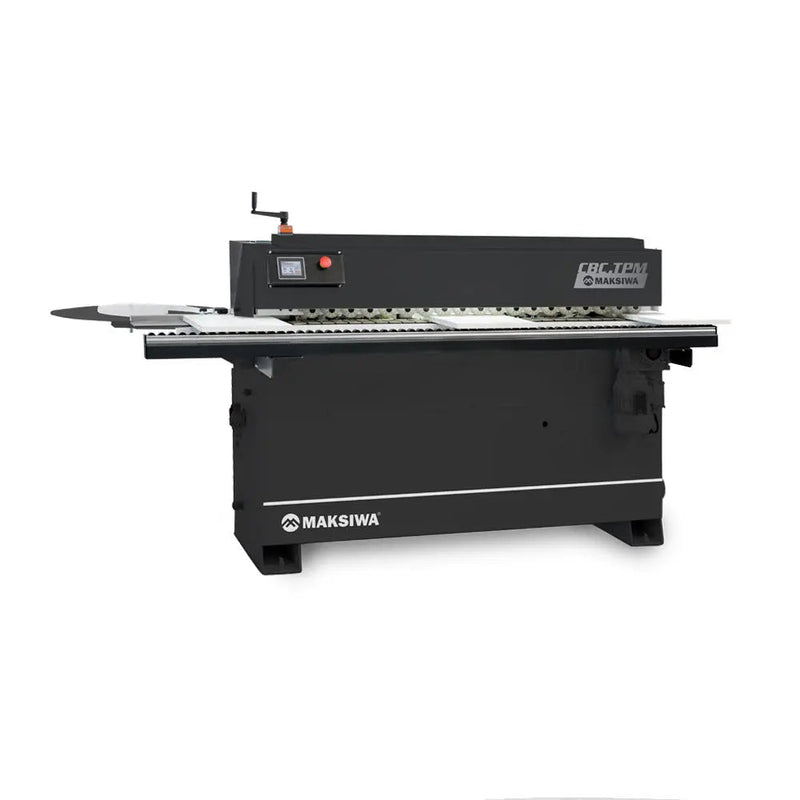

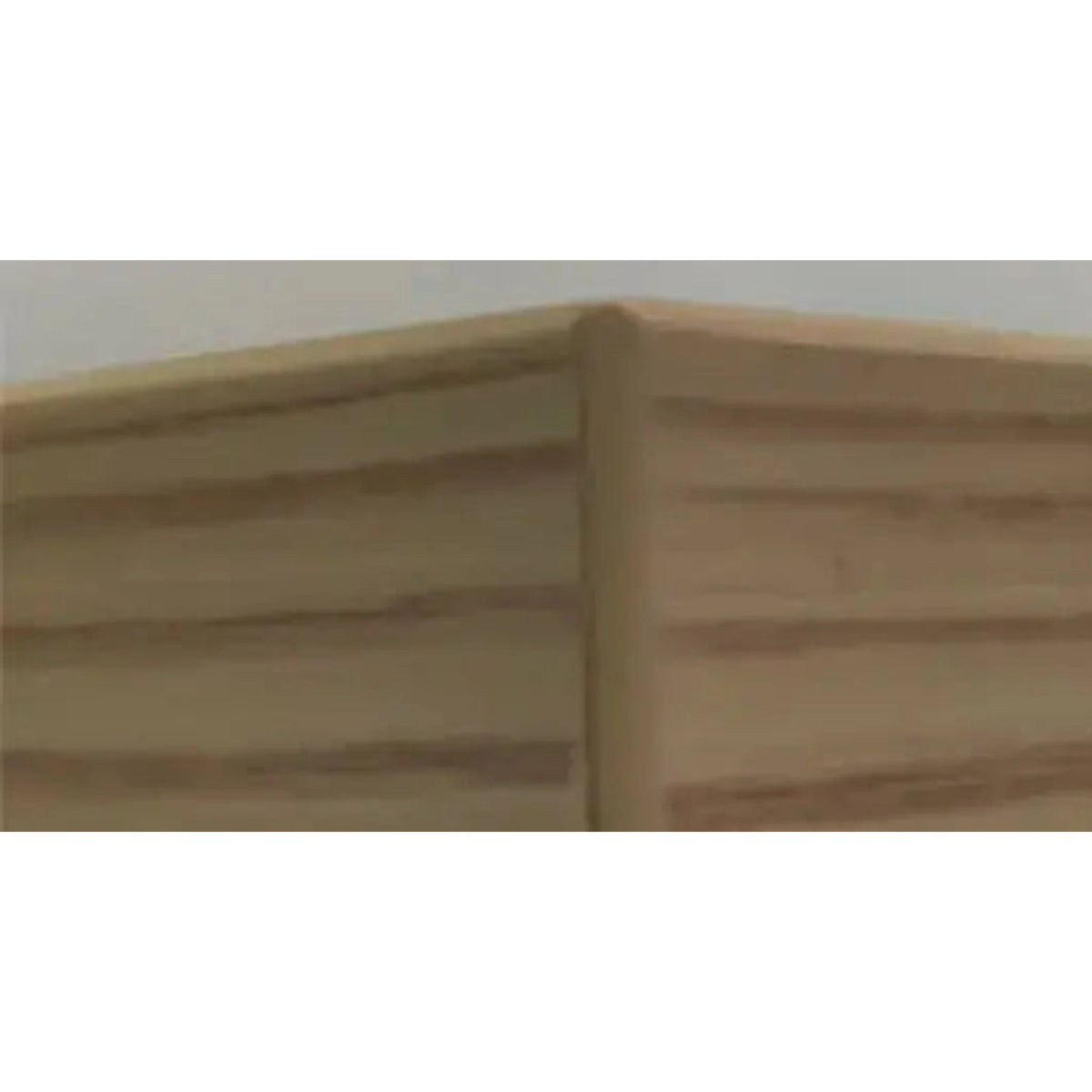

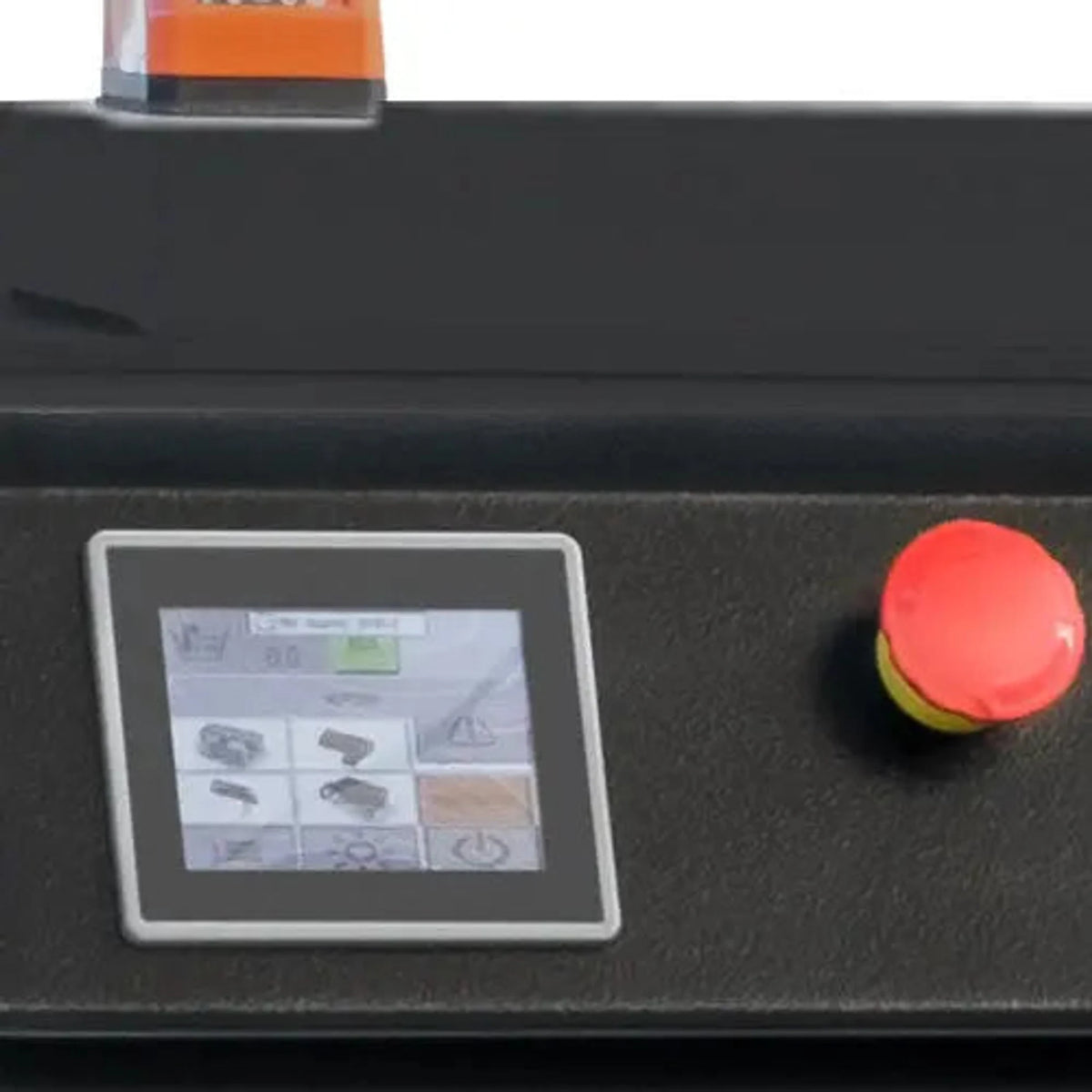

The Maksiwa CBC.TPM Automatic Edgebander brings full production-line capability to workshops where floor space is at a premium. Built around a compact design without sacrificing functionality, it combines pre-milling, gluing, end trimming, top and bottom trimming, glue scraping, buffing, and vertical rounding in a single machine — all controlled through an intuitive touchscreen panel.

Pre-Milling for a Flawless Finish

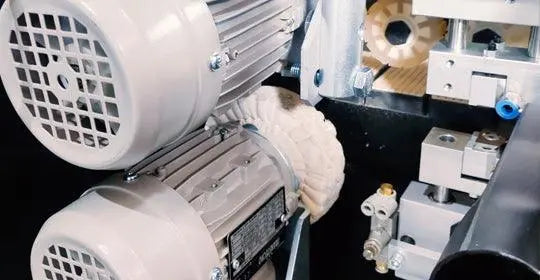

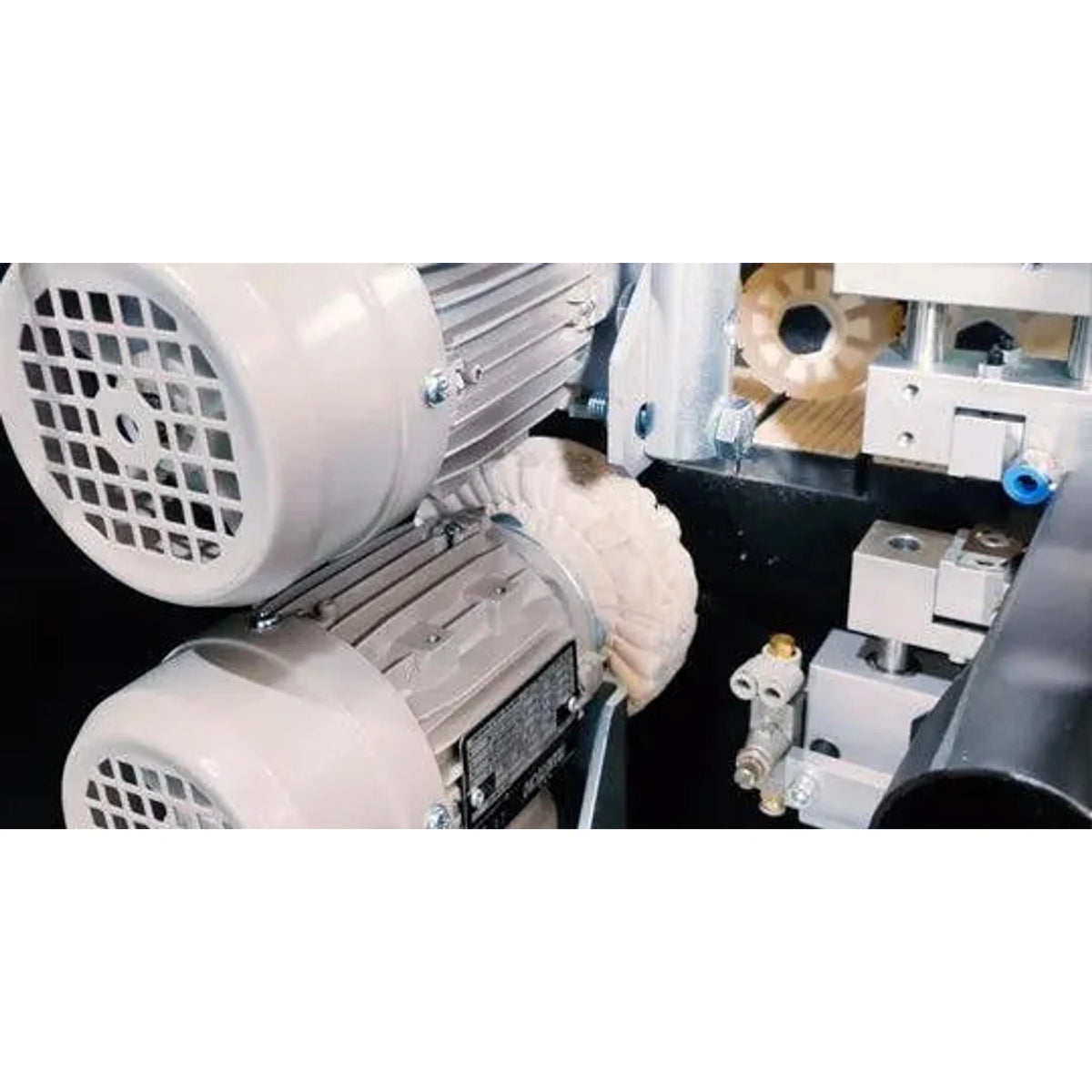

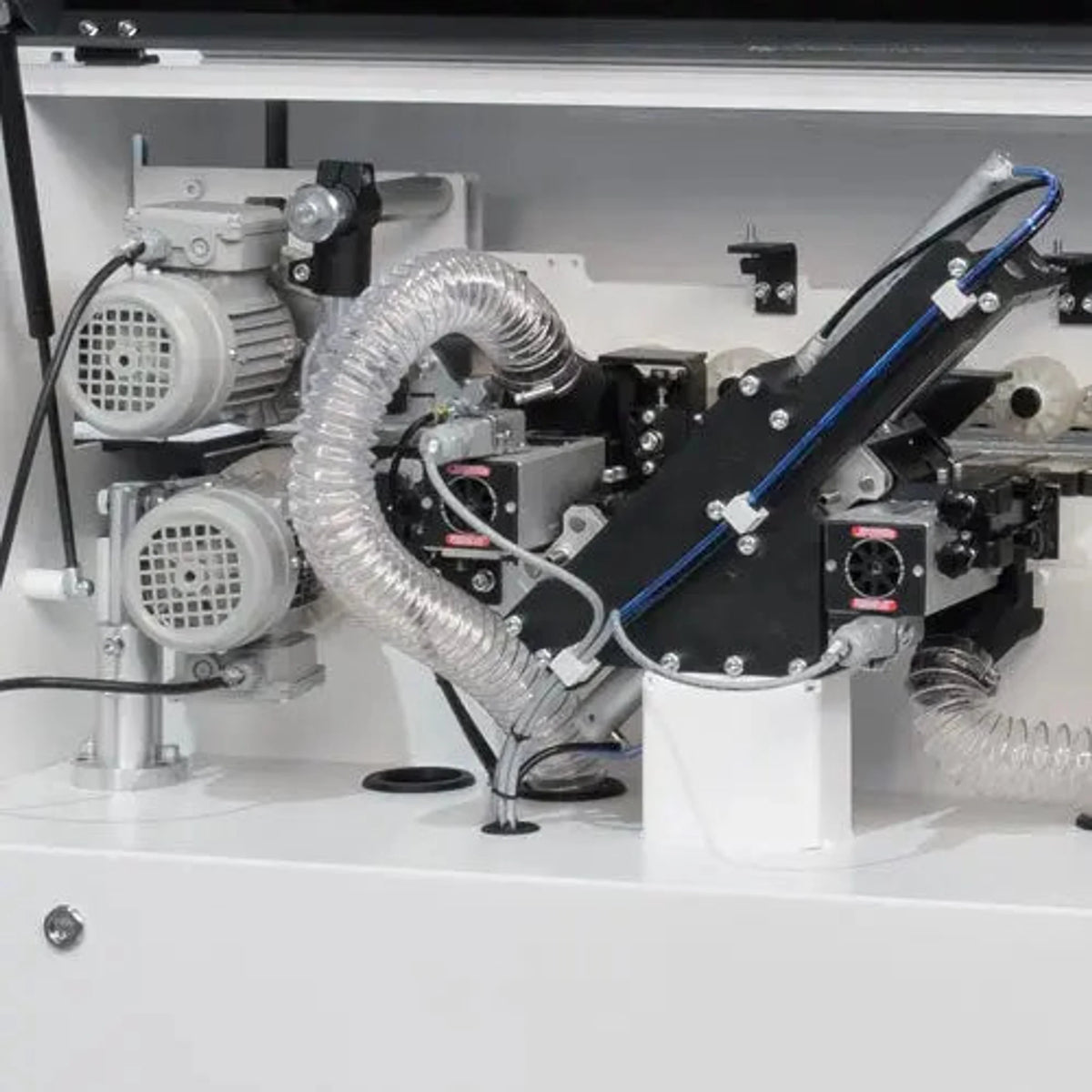

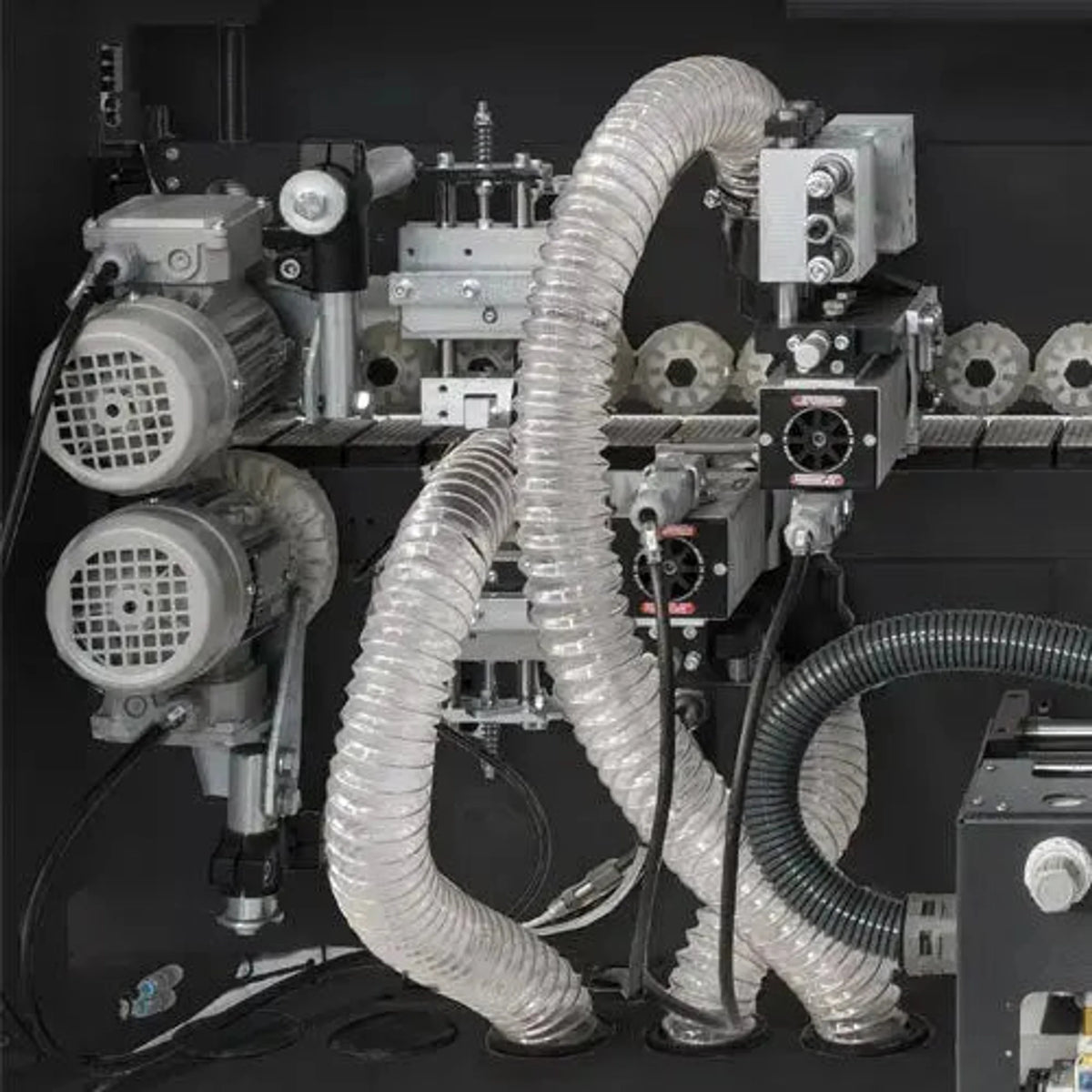

The dual high-frequency pre-milling motors run at 9,000 RPM and clean up the panel edge before the tape is applied, ensuring a tight, seamless bond with no gaps or irregularities. Combined with the glue scraper and buffing units, the CBC.TPM delivers a finished edge that requires no additional cleanup — straight off the machine.

Automatic, Synchronized Operation

Panels feed through automatically at 21 ft/min (6.5 m/min) with all operating units working in sync. The Teflon-coated glue pot holds 1 lb (0.5 kg) of granulated hot-melt EVA glue, operating in the recommended range of 356°F to 410°F (180°C to 210°C). The machine handles panel thicknesses from 13/32" to 1-3/4" and edgebanding from 0.4mm to 2mm across materials including Melamine, PVC, ABS, and PP.

Compact Without Compromise

At 93-1/2" x 40-13/16" x 53" with the extendable panel support rail reaching 83-1/2", the CBC.TPM fits into tighter shop layouts while still supporting panels as small as 4-3/4" in length and 1-3/4" in width. Sound output is rated at 80 dB.

Specifications

• Automatic Feeding Speed: 21 ft/min (6.5 m/min)
• Panel Thickness: 13/32" to 1-3/4" (10 to 45mm)
• Edgebanding Thickness: 0.4mm to 2mm
• Max Edgebanding Height: 1" (30mm)
• Max Pre-Milling Height: 1" (30mm)
• Minimum Panel Width: 1-3/4" (45mm)
• Minimum Panel Length: 4-3/4" (120mm)
• Glue Pot Capacity: 1 lb (0.5kg) — Teflon Coated
• Glue Type: Granulated Hot-Melt EVA
• Glue Temperature Range: 356°F to 410°F (180°C to 210°C)

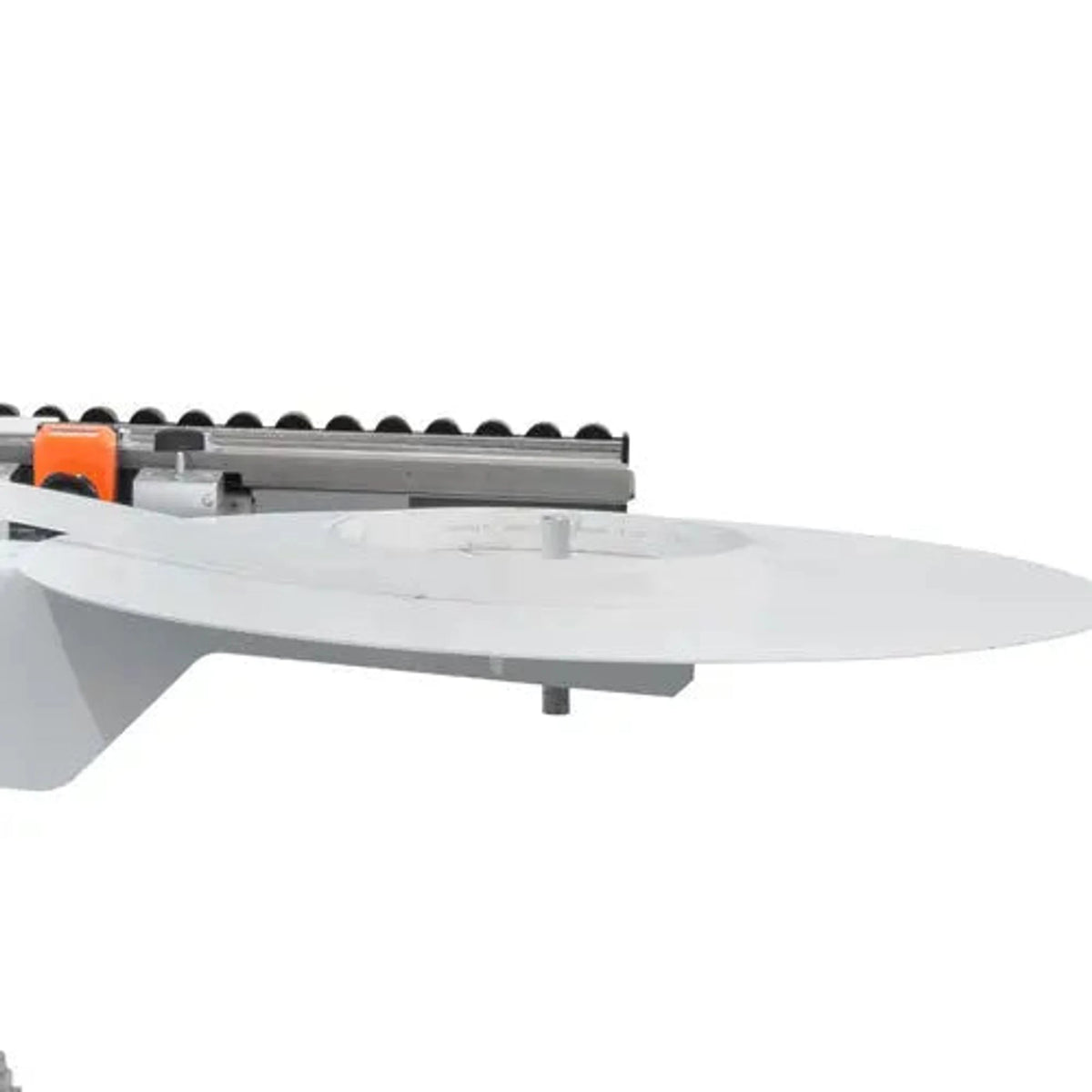

• Edgebanding Coil Support Diameter: 59" (1,498mm)
• Extendable Panel Support Rail: 83-1/2" (2,122mm)
• Extension Table Max Width: 10" (257mm)
• Dust Collection Port Size: 6" (150mm)
• Minimum Dust Collection: 1,236 CFM
• Air Pressure Requirement: 14 SCFM @ 87 PSI
• Machine Dimensions: 93-1/2" x 40-13/16" x 53"
• Net Weight: 1,191 lbs (540 kg)
• Shipping Dimensions: 91" x 30" x 57"
• Sound Rating: 80 dB
• Electrical: 1 Phase, 220V, 30A, 60Hz

Motor Specifications

• Conveyor Motor: 60Hz, 1,390 RPM, 0.66 kW
• Top/Bottom Trimmer HFM: 200Hz, 12,000 RPM, 0.27 kW
• End Trimmer Motor: 200Hz, 12,000 RPM, 0.27 kW
• Front/Rear Pre-Milling HFM: 150Hz, 9,000 RPM, 0.75/0.25 kW
• Top Buffing Motor: 60Hz, 1,680 RPM, 0.11 kW
• Bottom Buffing Motor: 60Hz, 1,680 RPM, 0.11 kW
