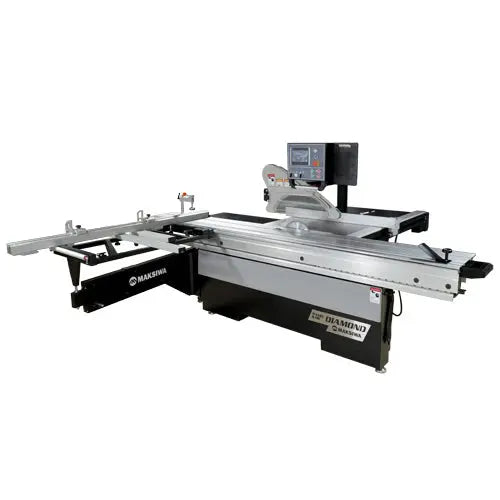

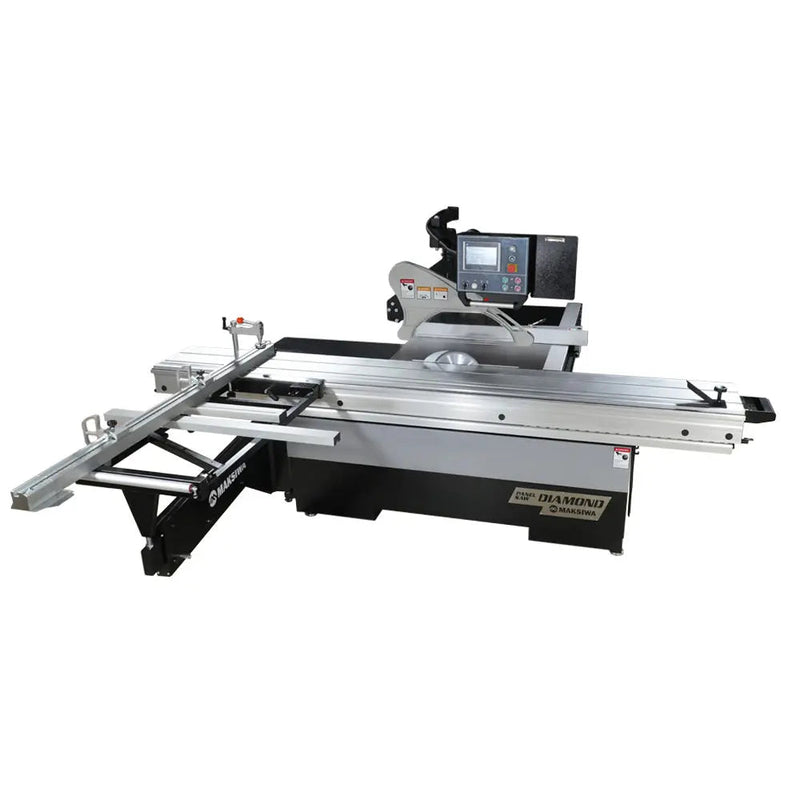

Maksiwa Diamond - BMD.3200.IR Sliding Panel Saw - 10HP 3Ph 220V

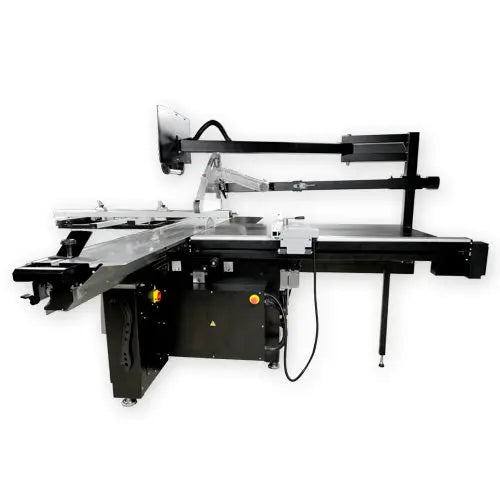

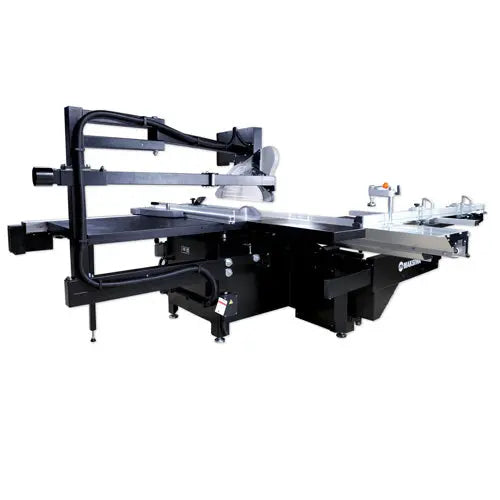

The Maksiwa BMD.3200.IR is a high-performance sliding panel saw built for cabinetmakers, furniture manufacturers, and custom woodworkers who need serious cutting power with CNC-level precision. A 10HP three-phase motor, programmable rip fence, and touchscreen interface set it apart from conventional panel saws, making it a strong fit for demanding modern production environments.

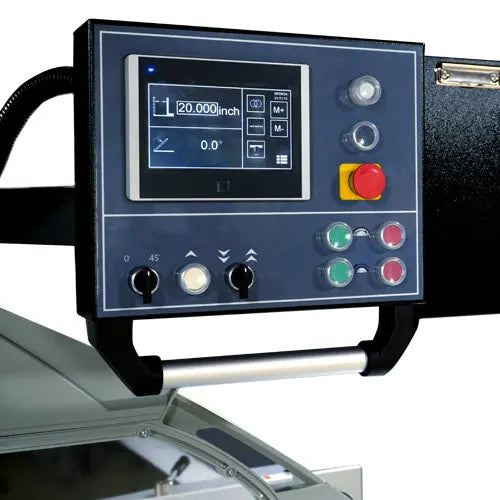

CNC-Controlled Rip Fence with Touchscreen Interface

The programmable rip fence takes the guesswork out of repetitive rip cuts, allowing precise fence positioning to be dialed in and recalled through the intuitive touchscreen panel. This level of control reduces setup time significantly during high-volume runs and keeps cut accuracy consistent across every panel.

Exceptional Cutting Capacity

The 10HP main motor offers three selectable blade speeds, 3,000, 4,000, and 5,000 RPM, allowing the operator to match cutting speed to material type and thickness. The 16" blade capacity handles a maximum cutting height of 5" at 90° and 3-1/2" at 45°, with a max cut capacity of 51". The 1HP conical scoring motor runs at 8,000 RPM to eliminate tear-out on veneered and melamine surfaces before the main blade passes through.

Generous Table System

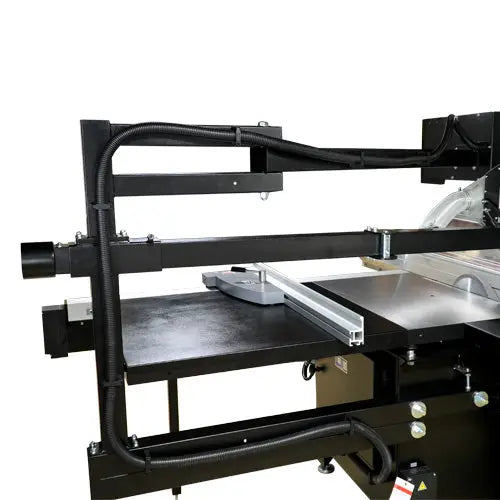

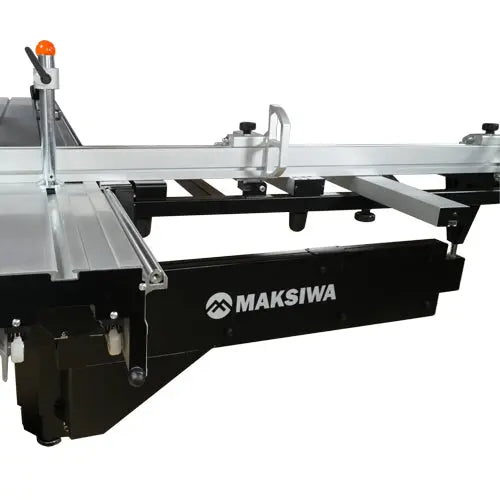

The 126" x 15" sliding table is complemented by a 35" x 21" cast iron table, a 37" x 35" rear extension table, and a 32-1/2" x 12-1/2" front extension table, bringing the total table surface to 68" x 59". This gives operators ample support for large panels throughout the entire cut. A dual blade protection cover and built-in dust collection, with a 4" overhead port and a 4-3/4" main port, keep the work environment clean and safe. A full set of blades is included. Backed by a 2-year warranty.

Specifications

• Main Motor: 10HP, 3 Phase, 220V
• Main Blade Speed: 3,000 / 4,000 / 5,000 RPM
• Max Blade Diameter: 16" (400mm)
• Main Blade Arbor: 1" (30mm)
• Max Cutting Height (90°): 5" (130mm)
• Max Cutting Height (45°): 3-1/2" (90mm)
• Max Cut Capacity: 51" (1,300mm)

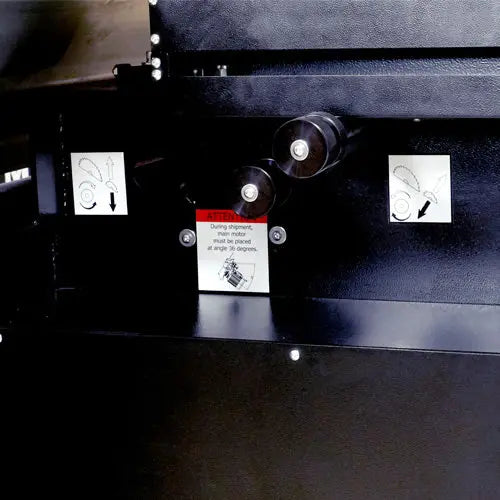

• Blade Tilt Adjustment: Manual, 0° to 45°
• Scoring Motor: 1HP (0.75 kW), 8,000 RPM
• Scoring Blade Diameter: 4-3/4" (120mm)
• Scoring Blade Bore: 3/4" (20mm)
• Sliding Table Dimensions: 126" x 15" (3,200 x 378mm)
• Cast Iron Table: 35" x 21" (896 x 548mm)
• Rear Extension Table: 37" x 35" (952 x 896mm)
• Front Extension Table: 32-1/2" x 12-1/2" (830 x 320mm)
• Total Table Size: 68" x 59" (1,726 x 1,500mm)

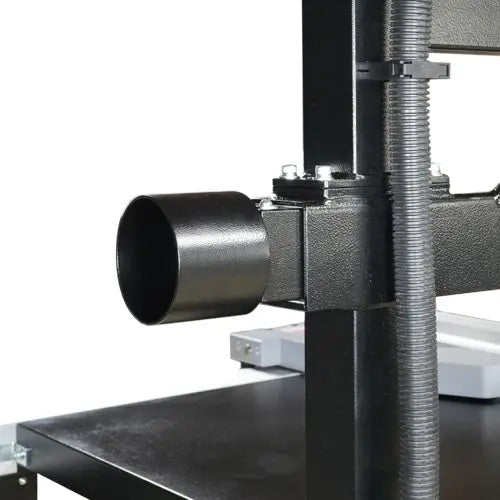

• Dust Collection, Overhead Guard: 4" (100mm)

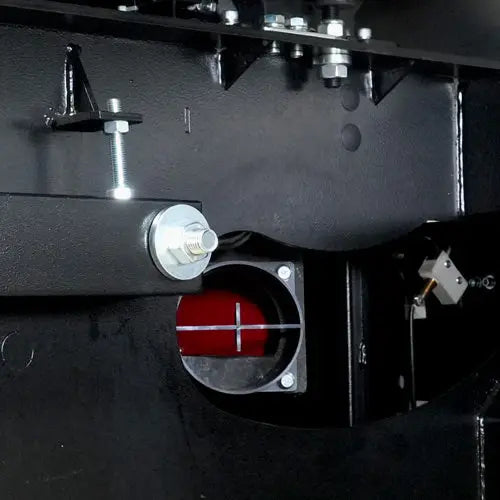

• Dust Collection, Main Port: 4-3/4" (120mm)

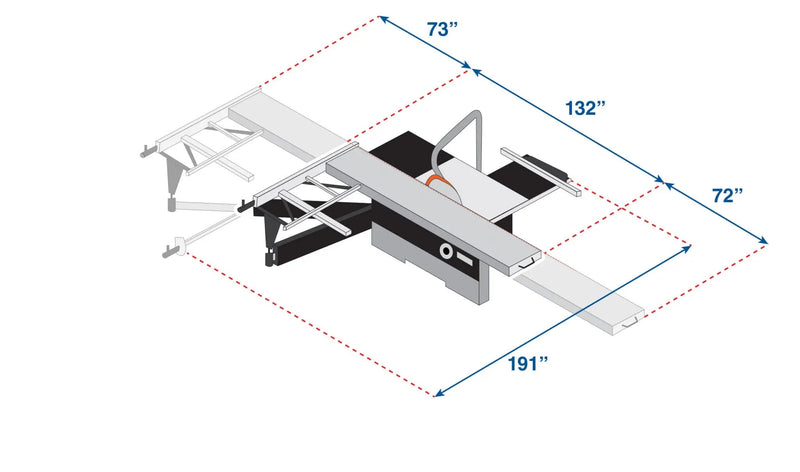

• Machine Dimensions: 82" x 47" x 43-3/4" (2,100 x 1,200 x 1,110mm)
• Net Weight: 1,179 lbs (535 kg)
• Gross Weight: 1,400 lbs (635 kg)
• Programmable Rip Fence: Yes

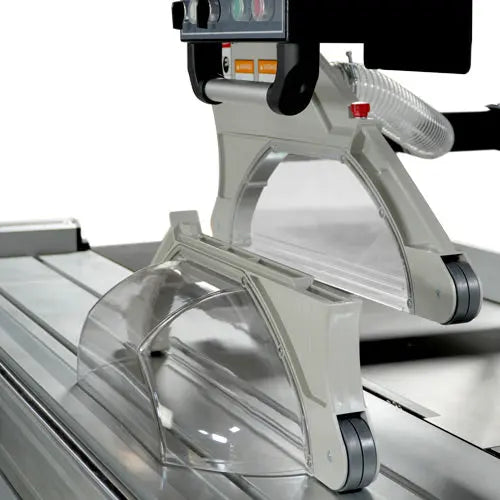

• Dual Blade Protection Cover: Yes
• Set of Blades: Included
• Warranty: 2 years
