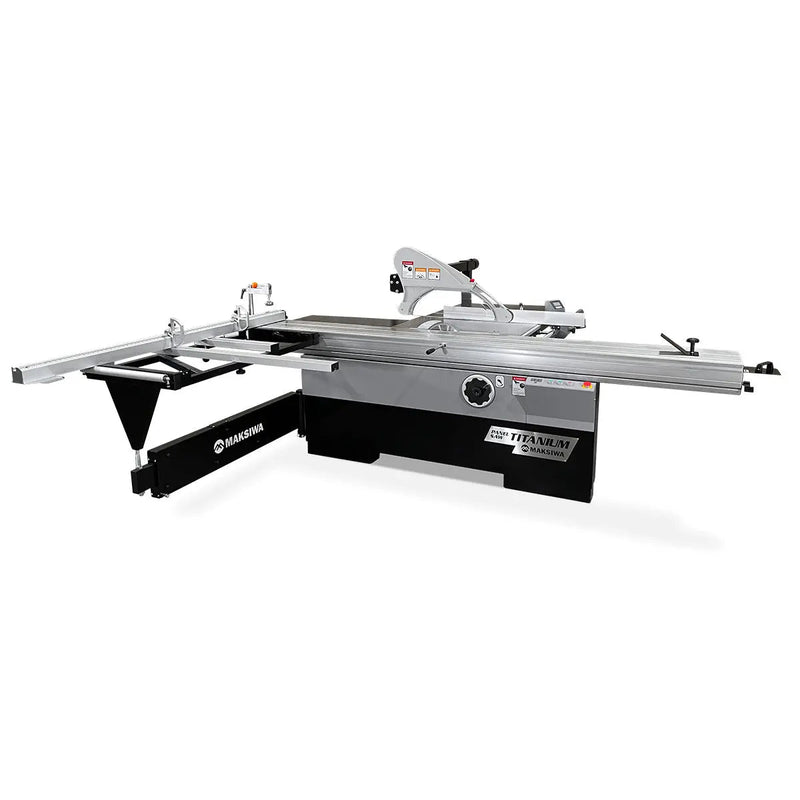

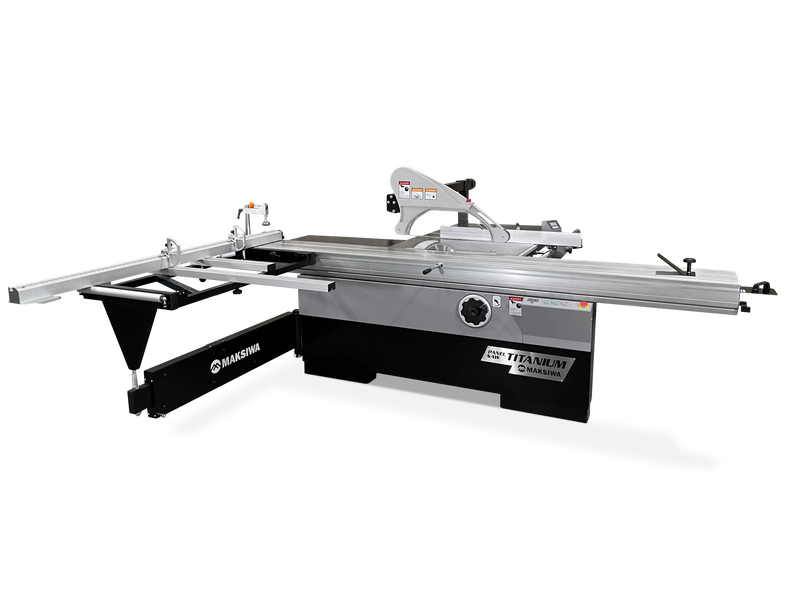

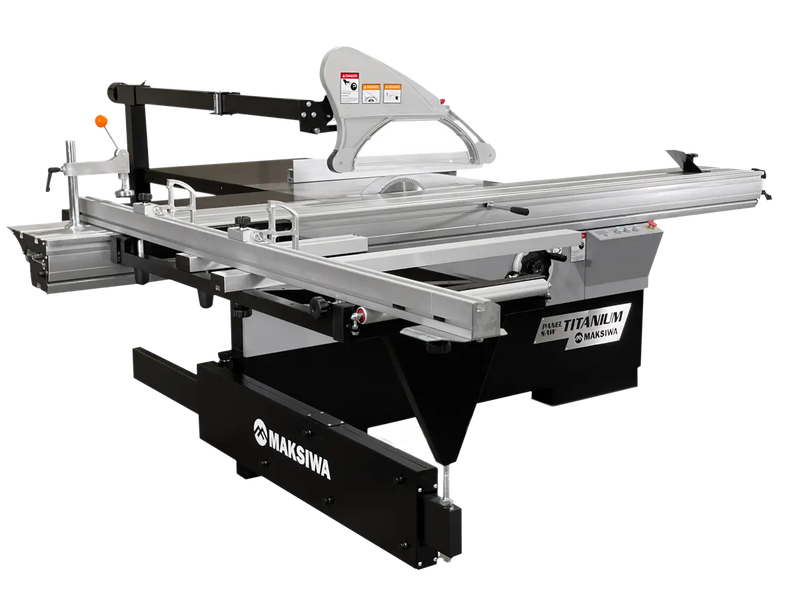

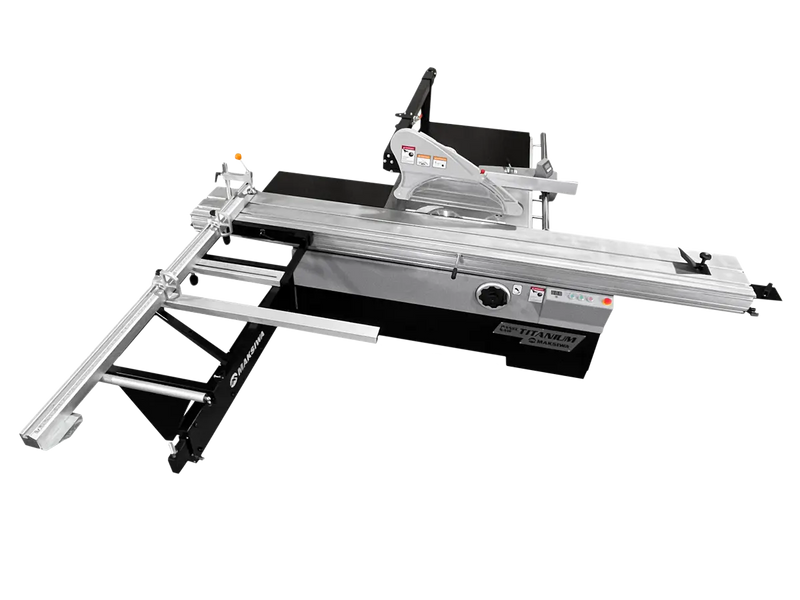

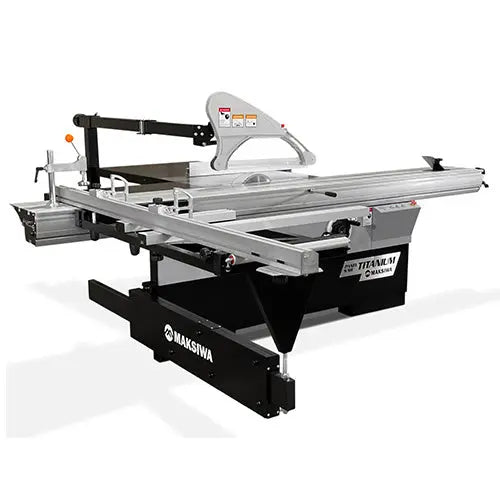

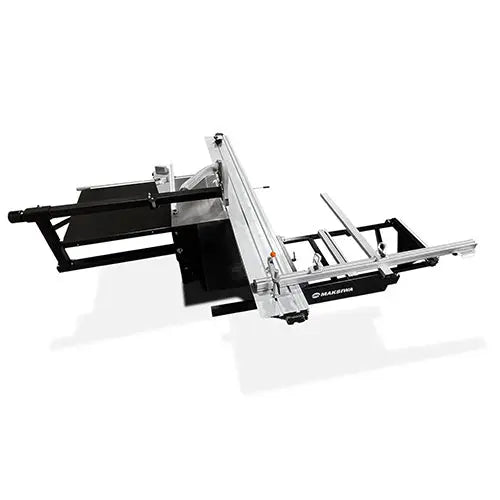

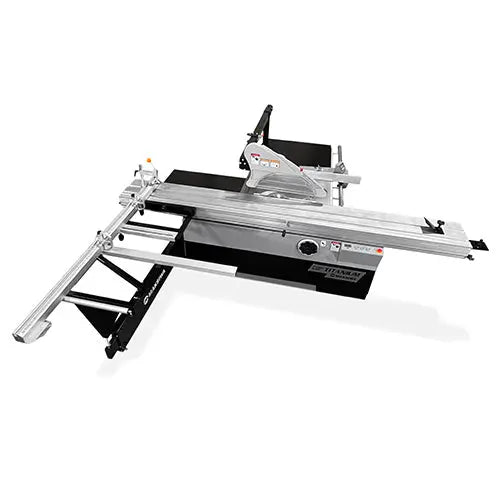

Maksiwa BMT.3200.IR Titanium Sliding Panel Saw

The Maksiwa BMT.3200.IR Titanium Sliding Panel Saw is built for shops that demand the highest level of precision and smoothness in a sliding panel saw. Engineered with superior components throughout, it handles heavy panel loads with effortless movement and delivers consistent, accurate cuts from the first pass to the last.

Unmatched Smoothness Under Load

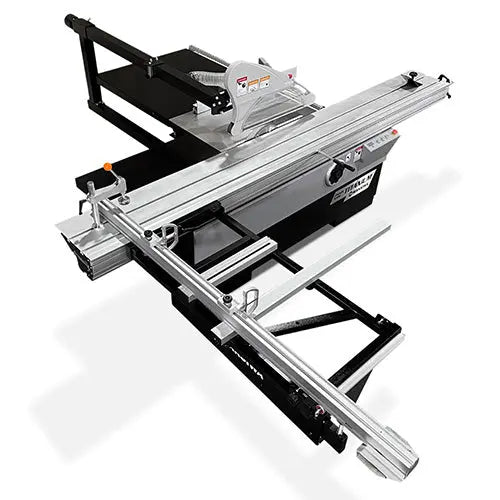

The BMT.3200.IR table system is designed to move freely and accurately even under heavy panel loads, reducing operator fatigue and maintaining cut quality throughout long production runs. The 126" x 14" sliding table handles panels up to 126" in crosscut capacity, while the cast iron table measures 35" x 21" for solid workpiece support on the fixed side.

Power and Precision in Every Cut

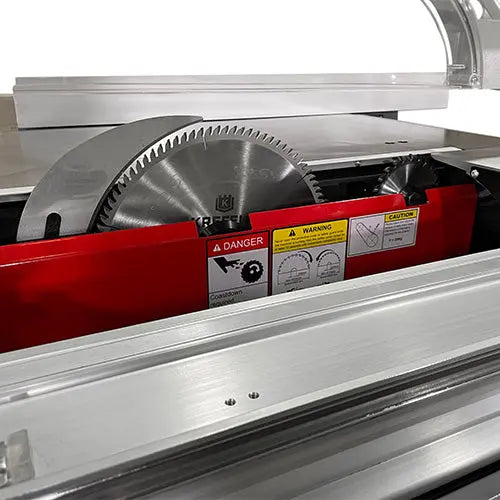

The 5HP main motor runs at 4,000 RPM with a maximum cutting height of 3-1/2" at 90° and 2-7/16" at 45°, covering everything from full-depth rips to precise bevel cuts. The 3/4HP conical scoring motor at 8,000 RPM scores the underside of the panel before the main blade passes through, eliminating tear-out on veneered and melamine surfaces. Max ripping capacity reaches 51" and the crosscut fence adjusts from 78" closed to 120" open.

Built-In Dust Management

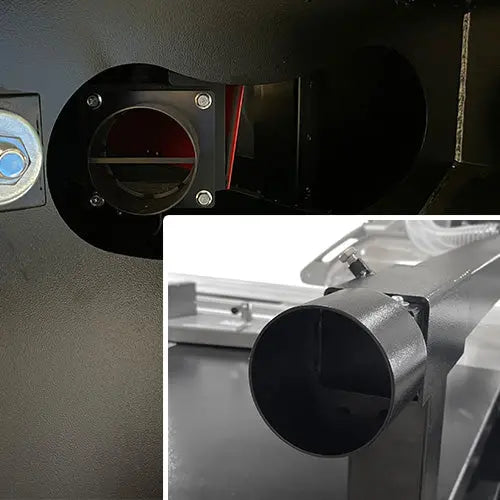

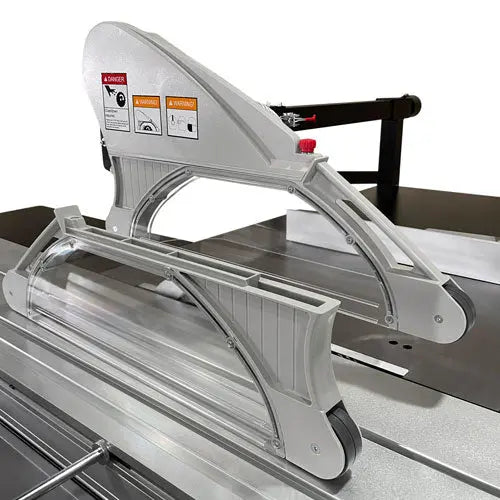

Two 4" dust collection ports, including one on the dual overhead saw guard, keep fine dust under control during operation. Minimum dust collection requirement is 1,000 CFM for optimal performance.

Specifications

• Main Motor: 5HP, 4,000 RPM, 3.7 kW
• Max Blade Diameter: 12" (305mm)
• Main Blade Arbor: 1-3/16" (30mm)
• Max Cutting Height (90°): 3-1/2" (90mm)
• Max Cutting Height (45°): 2-7/16" (63mm)
• Scoring Motor: 3/4HP, 8,000 RPM, 0.55 kW
• Scoring Blade Diameter: 4-3/4" (120mm)
• Scoring Blade Arbor: 3/4" (20mm)
• Scoring Blade Type: Conical
• Max Ripping Capacity: 51" (1,300mm)
• Crosscut Capacity: 126" (3,200mm)

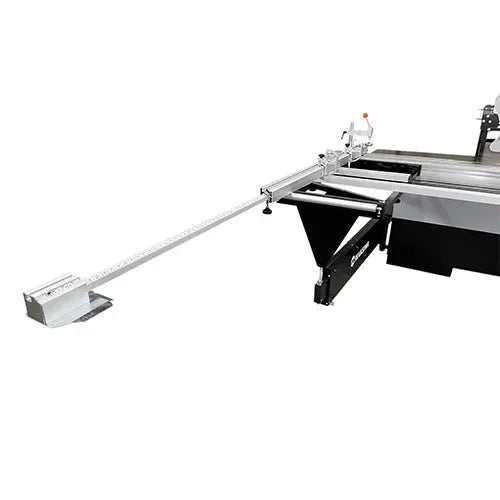

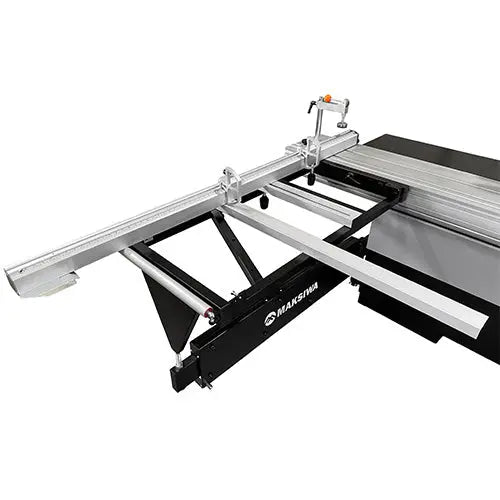

• Crosscut Fence: 78" closed / 120" open
• Sliding Table Dimensions: 126" x 14" (3,200 x 358mm)
• Cast Iron Table Dimensions: 35" x 21" (896 x 548mm)
• Machine Working Dimensions: 132" x 137" x 65"
• Dust Collection Ports: 2 x 4" (100mm)
• Minimum Dust Collection: 1,000 CFM
• Electrical: 1 Phase, 220V, 30A, 60Hz
• Main Body Crate Dimensions: 83" x 45" x 45"
• Main Body Crate Weight: 1,254 lbs (569 kg)
• Sliding Table Crate Dimensions: 133" x 18" x 15"
• Sliding Table Crate Weight: 274 lbs (124 kg)
