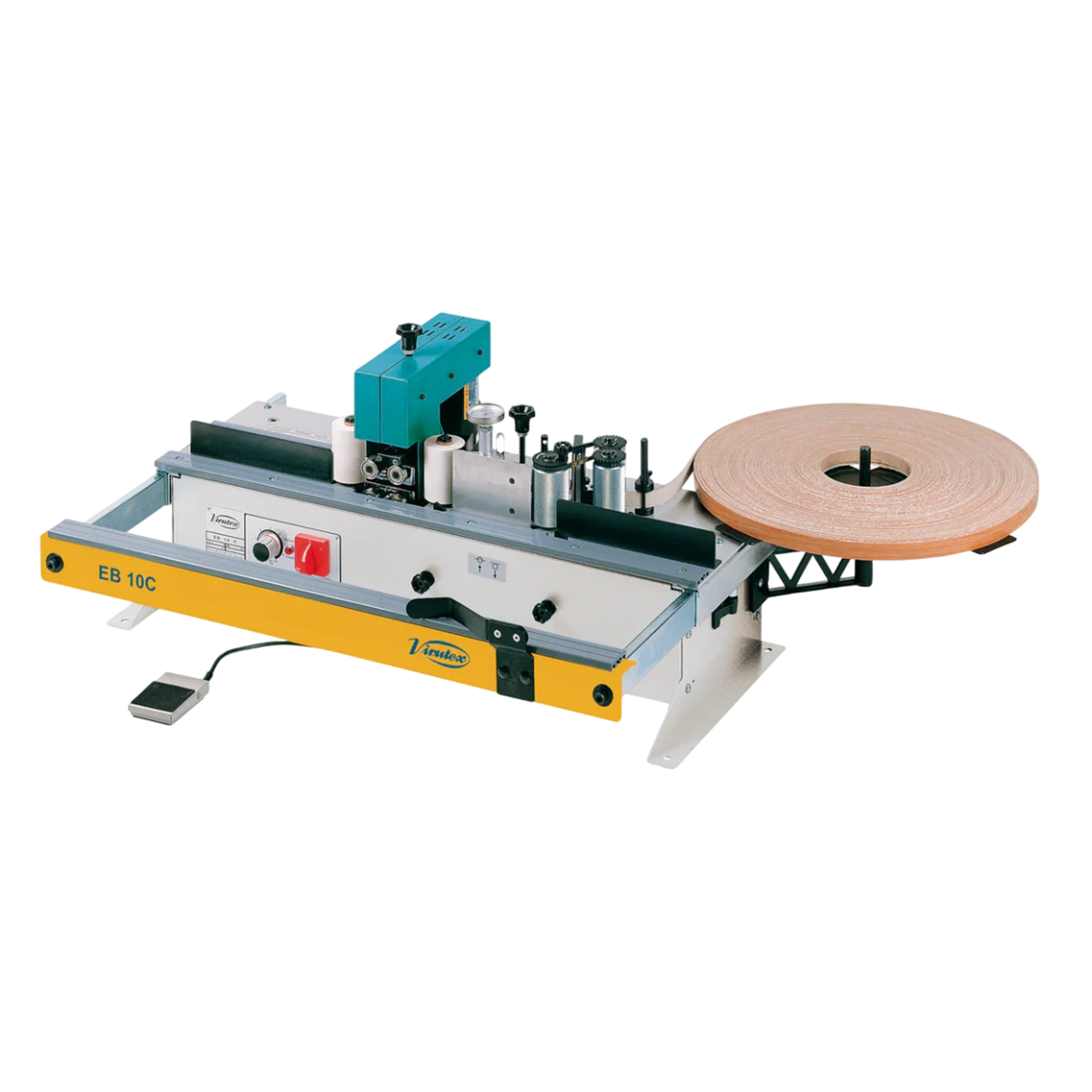

Virutex EB10C Compact Edgebander Machine 5100097

Applications

• Edgebanding with pre-glued PVC, melamine, and veneer tapes

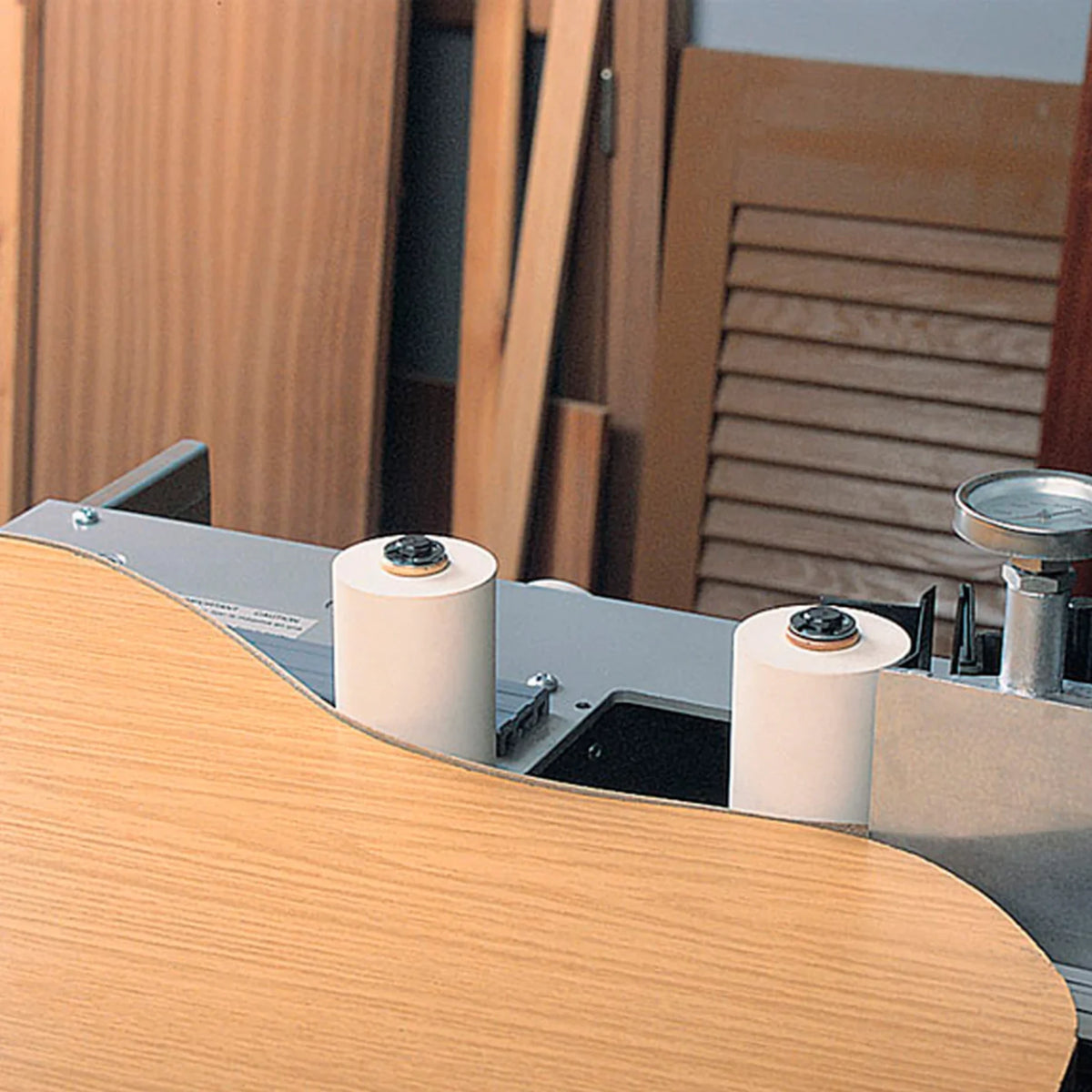

• Straight and curved panel processing
• Furniture manufacturing, cabinetry, and panel finishing
• Compact workshops and locations without compressed air infrastructure

Specifications

Construction & Performance

• Hot air activation system bonds pre-glued tapes without a glue pot, eliminating glue pot maintenance, warm-up waste, and adhesive inventory management.

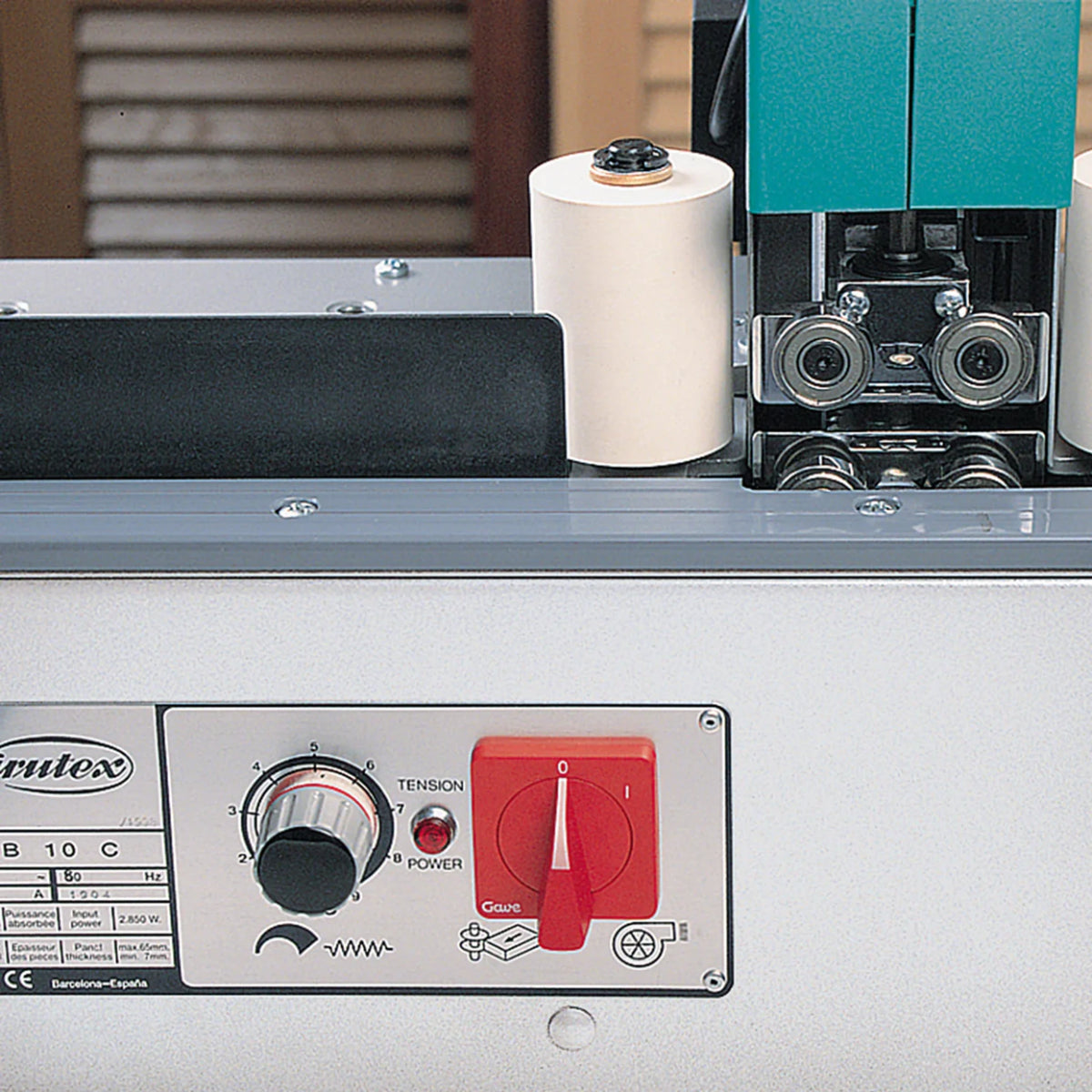

• Electronic temperature control to 500°C adjusts heat output to match tape material and thickness for consistent activation across different edge band types.
• 2-minute heat-up time gets the machine production-ready faster than glue pot systems that require longer warm-up cycles.

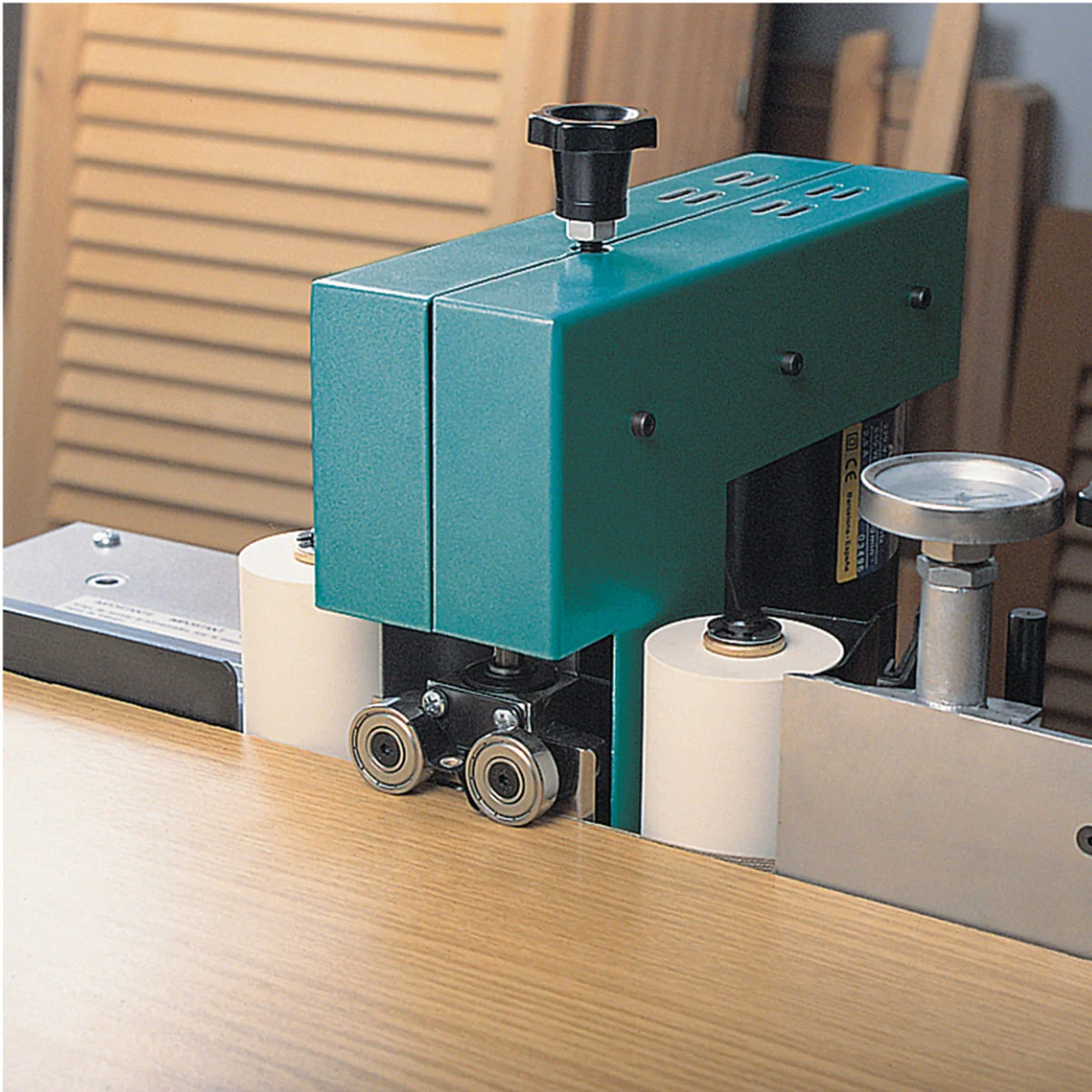

• AK97NW motorized dual-side trimming unit finishes both faces of the panel edge simultaneously for clean, accurate results without a separate trimming pass.
• Automatic end trimming cuts the trailing tape edge cleanly at the end of each panel.
• Foot pedal rear trimming gives operator-controlled trimming on curved and irregular panel profiles where automatic cutting cannot follow the geometry.
• No compressed air or dust extraction required allows installation anywhere with a standard power outlet, without infrastructure investment.

Why the EB10C

• Hot air system eliminates glue pot maintenance entirely, a meaningful daily time saving in high-frequency production environments.
• No compressed air requirement removes the infrastructure barrier that prevents smaller shops from running a dedicated edgebander.
• Foot pedal rear trimming is a specific capability for curved panel work that many compact edgebanders in this class lack.
• 2-minute heat-up means the machine doesn't need to run idle between jobs to stay at temperature, reducing energy use.
