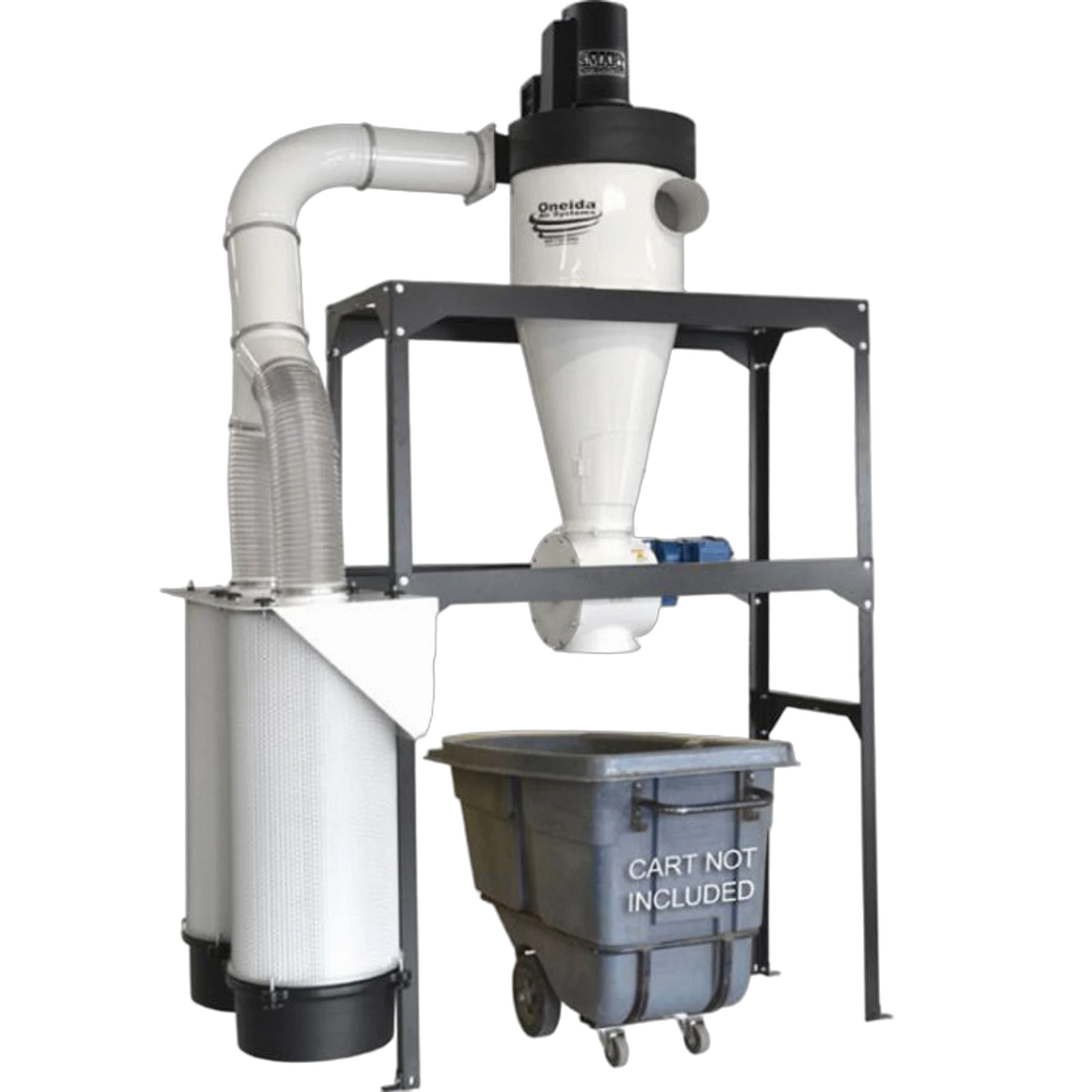

Oneida 5hp High Vacuum SMART Boost Freestanding Cyclone Dust Collector w/ Air Lock – front

Oneida 5hp High Vacuum SMART Boost Freestanding Cyclone Dust Collector w/ Air Lock

by Oneida Air Systems
SKU XXS050334
Save $254.00 Save $254.00
$11,299.00
$11,299.00 - $11,299.00
$11,299.00
$11,045.00
$11,045.00 - $11,045.00
$11,045.00
Shipping: $749
  • ✔ Fast & Safe Shipping Right To Your Workshop
  • ✔ Questions? Speak with a Team Member Today: (973) 319-8415
Shipping information

Orders are processed in 2–3 business days. Ground orders typically arrive in 7–10 business days. Orders over 100 lbs ship LTL freight and are scheduled with the carrier. Shipping is quoted at checkout or before fulfillment, and we ship within the United States only. See our Shipping Policy.

Returns & warranty

Every machine is sourced directly from the manufacturer and covered by the full manufacturer warranty. Report shipping damage immediately so we can help. Return terms vary by manufacturer — see our Return and Refund Policy.

Please Note: All Oneida Air products currently have a 4–6 week lead time.

High static air pressure system designed for CNC routing, sanding, and other fine dust applications. Equipped with SMART Boost® technology that increases airflow performance through smaller 2.5″–4″ ports. The complete system includes a heavy-gauge steel cyclone separator, U.S.-made motor, modular cartridge filters, angle iron stand, rotary air lock valve, remote control, and additional components. Dust bin sold separately.

Primarily designed for CNC applications, this system uses patented SMART Boost® technology to deliver higher static pressure than standard dust collectors and maintain strong airflow at the cutter head. This increased suction helps improve cut quality, extend cutter life, and reduce cleanup.

Traditional dust collector motors operate at a fixed speed. When duct runs are long or tool ports are smaller, airflow volume can decrease. SMART Boost technology adjusts fan speed as needed to maintain consistent airflow and suction performance during operation.

This high-pressure system is suitable for CNC machines as well as saws, jointers, lathes, shapers, planers, routers, sanders, and other woodworking equipment.

Standard Equipment

  • Industrial 5 HP U.S.-made fan blower motor
  • SMART Boost variable speed airflow controller
  • Wireless RF remote control keyfob
  • (2) internal silencers
  • Magnetic starter
  • Filter plenum assembly
  • (2) FlameGuard cartridge filters
  • Heavy-duty angle iron frame stand
  • Industrial rotary air lock
  • 2-year limited warranty

Technical Data + Specifications

SKU XXS050334
Horsepower 5 HP
Motor Type U.S. TEFC motor
Motor Service Factor 1.15
Voltage 208–230V
Recommended Breaker Size 30A
Amperage (Typical) 15A
Phase Three-phase (pre-wired)
Frequency 60Hz
Impeller Type Single-piece, backward inclined, non-sparking / non-ferrous
Impeller Size 15″ diameter
Real CFM Rating 1,976 CFM at 3.6″ WC
Maximum Suction 23″ WC
Noise Level 86–88 dBA at 10 ft
Cyclonic Separation Efficiency Removes over 99% of fine wood dust
Filter Type Izumi Axtar spunbond media
Filtration Efficiency 99.9% @ 0.2–2.0 microns
Total Filtration Area 220 sq ft
Waste Capacity Customizable
Remote Control Included
Primary Build Materials Cold-rolled steel
Construction Seam welded
Static Resistance Rating Conductive metal construction
Color White
Inlet Size 7″ diameter
Outlet Size 7-3/8″ W × 6-3/8″ H square ID
Discharge Size 10″ ID flange
Height to Center of Inlet 103″
Weight 793 lbs
Manufacturer Oneida Air Systems
Country of Origin USA
Warranty 2-year limited warranty
Certifications cETLus certified for indoor use
