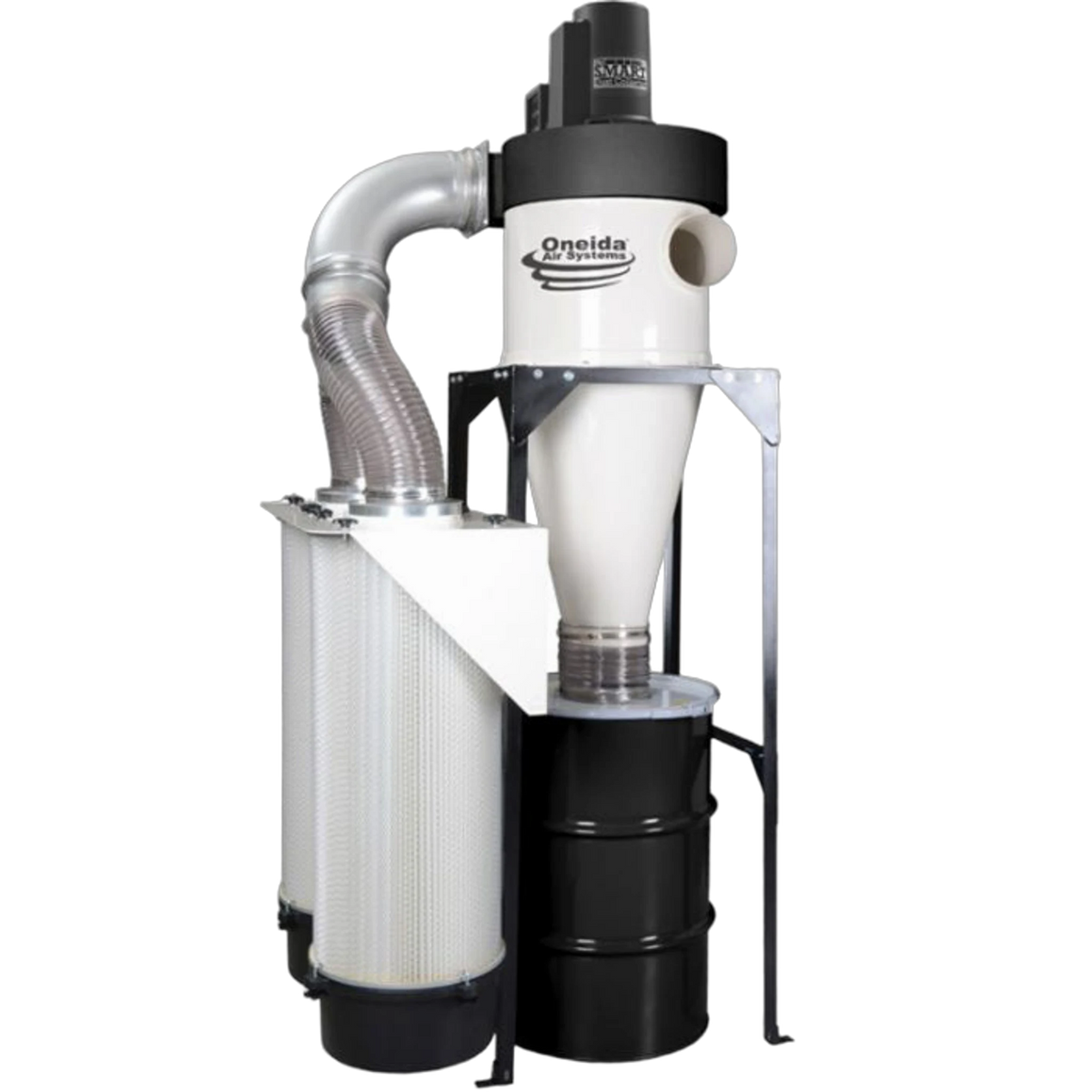

Oneida 5hp High Vacuum SMART Boost 55 Gal. Freestanding Cyclone Dust Collector – front

Oneida 5hp High Vacuum SMART Boost 55 Gal. Freestanding Cyclone Dust Collector

by Oneida Air Systems
SKU XXS050333
Save $304.00 Save $304.00
$7,299.00
$7,299.00 - $7,299.00
$7,299.00
$6,995.00
$6,995.00 - $6,995.00
$6,995.00
Shipping: $749
  • ✔ Fast & Safe Shipping Right To Your Workshop
  • ✔ Questions? Speak with a Team Member Today: (973) 319-8415
Shipping information

Orders are processed in 2–3 business days. Ground orders typically arrive in 7–10 business days. Orders over 100 lbs ship LTL freight and are scheduled with the carrier. Shipping is quoted at checkout or before fulfillment, and we ship within the United States only. See our Shipping Policy.

Returns & warranty

Every machine is sourced directly from the manufacturer and covered by the full manufacturer warranty. Report shipping damage immediately so we can help. Return terms vary by manufacturer — see our Return and Refund Policy.

Please Note: All Oneida Air Systems products currently have a 4–6 week lead time.

This high-vacuum dust collection system from Oneida Air Systems is designed for CNC machining, sanding operations, and other fine dust applications that require higher static pressure than traditional shop dust collectors. The system uses a heavy-gauge steel cyclone separator and modular cartridge filtration to remove fine dust particles before air is returned to the workspace.

SMART Boost® variable-speed airflow control allows the motor to adjust performance based on duct length, tool port size, and system resistance, helping maintain consistent airflow across different shop layouts.

Standard Equipment

  • 5HP industrial fan blower motor
  • SMART Boost® variable-speed airflow controller
  • Wireless RF remote control key fob
  • Single-piece molded fan housing
  • Heavy-gauge steel cyclone separator
  • Modular cartridge filtration system
  • Internal foam silencer
  • Heavy-duty angle iron stand
  • 55-gallon reinforced steel dust bin
  • Automatic dust bin fill level indicator
  • Ductwork design guide
  • 2-year limited manufacturer warranty

Technical Data + Specifications

SKU XXS050333
Motor Power 5 HP
Motor Type TEFC (Totally Enclosed Fan Cooled)
Motor Service Factor 1.15
Voltage 208–230V
Recommended Breaker 30A
Typical Amperage 15A
Phase Three-Phase (Pre-wired)
Frequency 60 Hz
Impeller Type Backward inclined, non-ferrous
Impeller Diameter 15 in
Airflow Rating 1,976 CFM at 3.6 in WC
Maximum Static Pressure 23 in WC
Noise Level 86–88 dBA @ 10 ft
Filtration Efficiency 99.9% at 0.2–2.0 microns
Filter Media Izumi Axtar spunbond
Total Filtration Area 220 sq ft
Waste Capacity 55 gallons
Primary Materials Cold-rolled steel
Inlet Diameter 7 in
Discharge Diameter 9 in
Height to Inlet Center 79 in
Weight 494 lbs
Certification cETLus certified
Country of Manufacture United States
