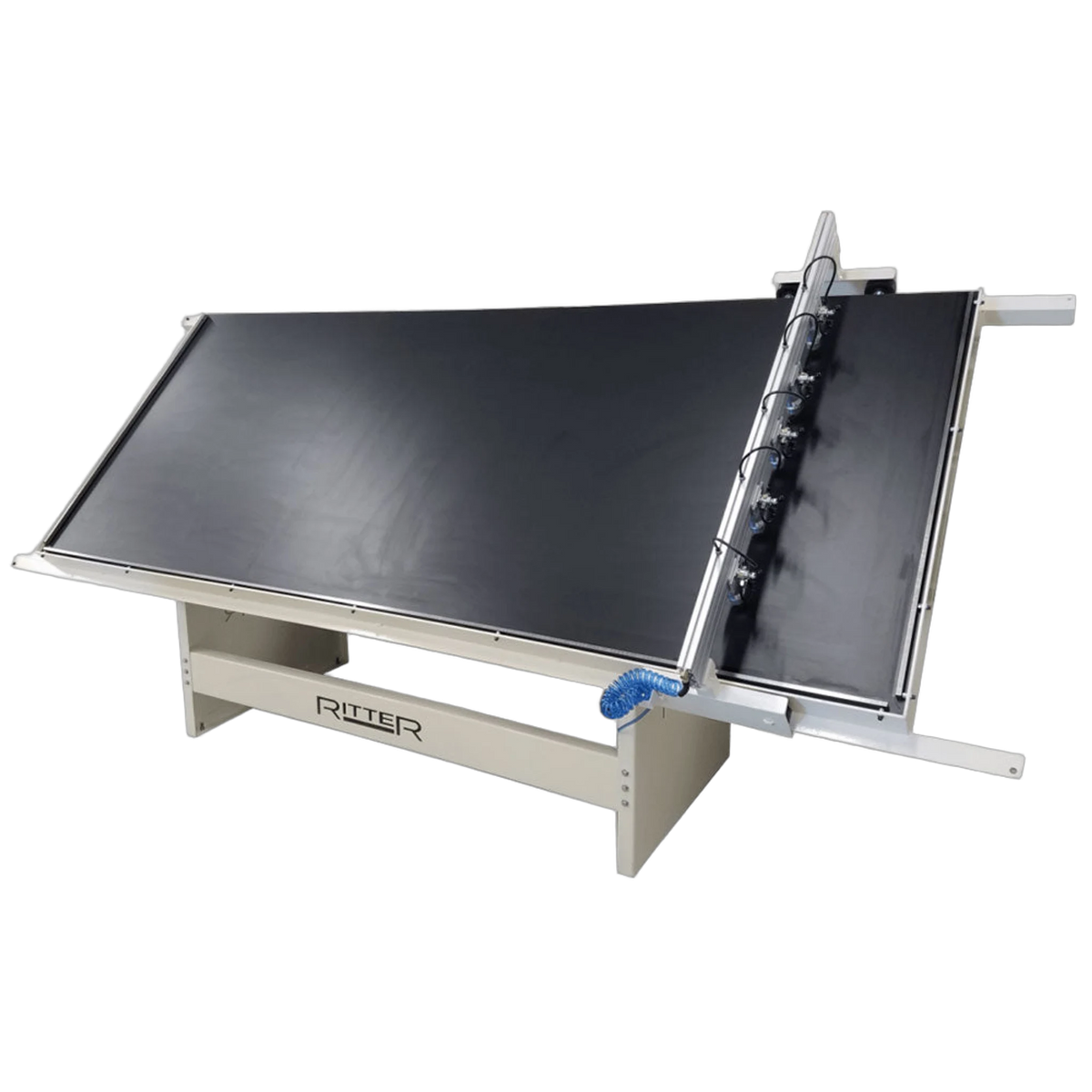

Ritter R200E/A 5' x 12' Face Frame Assembly Easel - with 5 Clamps – front

Ritter R200E/A 5' x 12' Face Frame Assembly Easel - with 5 Clamps

by Ritter Machinery
SKU R200E/A
Save $609.00 Save $609.00
$10,299.00
$10,299.00 - $10,299.00
$10,299.00
$9,690.00
$9,690.00 - $9,690.00
$9,690.00
Shipping: $499
  • ✔ Fast & Safe Shipping Right To Your Workshop
  • ✔ Questions? Speak with a Team Member Today: (973) 319-8415
Shipping information

Orders are processed in 2–3 business days. Ground orders typically arrive in 7–10 business days. Orders over 100 lbs ship LTL freight and are scheduled with the carrier. Shipping is quoted at checkout or before fulfillment, and we ship within the United States only. See our Shipping Policy.

Returns & warranty

Every machine is sourced directly from the manufacturer and covered by the full manufacturer warranty. Report shipping damage immediately so we can help. Return terms vary by manufacturer — see our Return and Refund Policy.

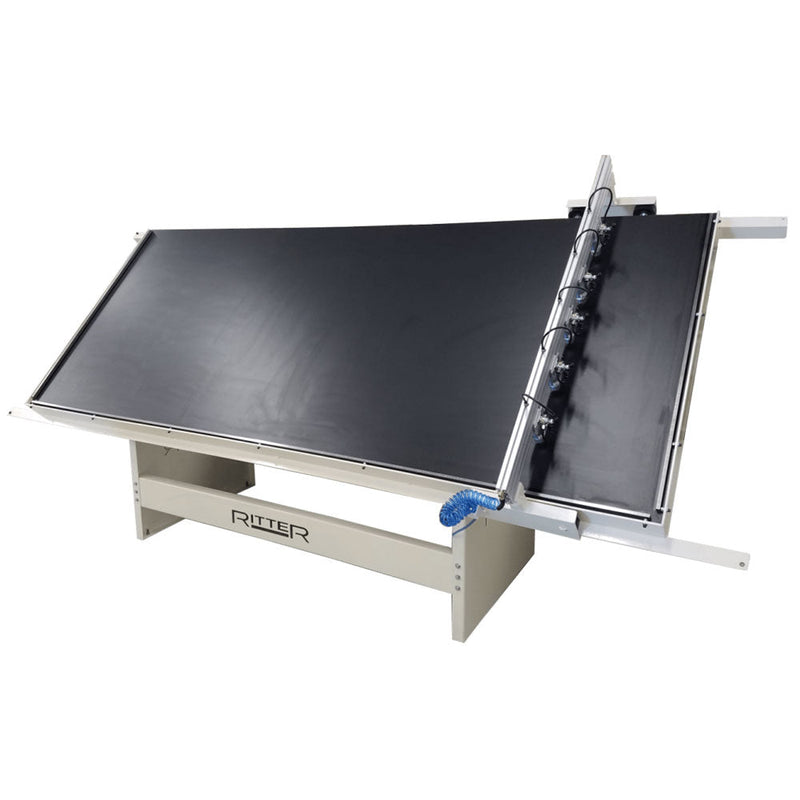

The Ritter R200EA Face Frame Assembly Easel is designed for the assembly of wooden cabinet face frames in woodworking and cabinet shop environments. The machine provides a flat work surface with squaring references and pneumatic clamping to help secure frame components during assembly operations.

The R200EA is commonly used in conjunction with a pocket hole machine such as the R200T or the R220T to create the screw pocket used during face frame assembly.

Standard Features

  • 5' x 12' assembly table
  • 45 degree vertical easel
  • Hold down beam with (5) adjustable hold down cylinders
  • Squaring bars on left, right, and bottom sides
  • 1" thick laminated surface table
  • Heavy-duty steel frame
  • (1) coilhose for pneumatic screw gun
  • Screw gun not included

Technical Data + Specifications

Usable Table Area 58.5" x 14"
Footprint 165" L x 48" D
Electrical N/A
Air Requirement 100 PSI
