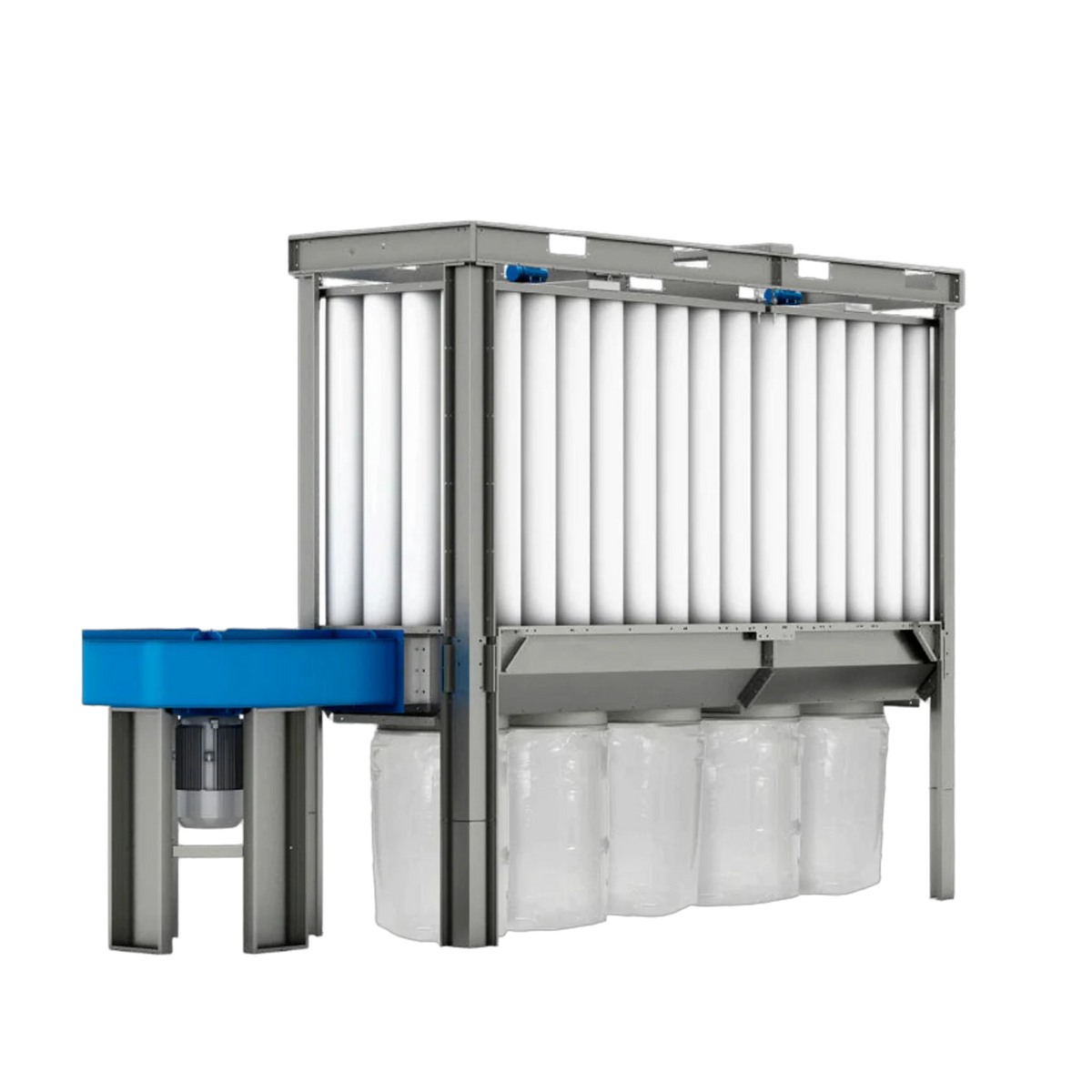

COIMA USA SHK-5 20 HP / 7100 CFM Enclosureless Dust Collector with Shaker – front

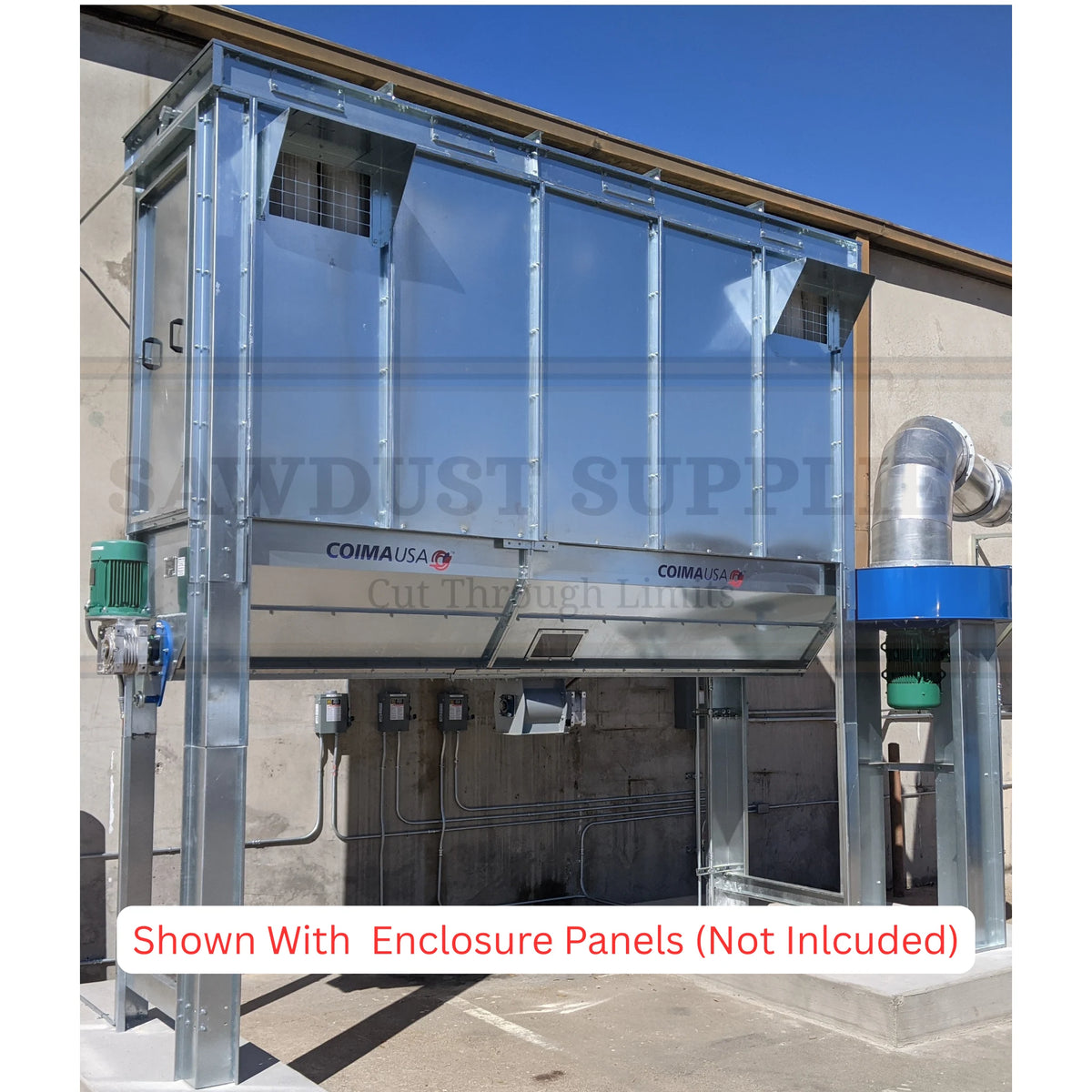

COIMA USA SHK-5 20 HP / 7100 CFM Enclosureless Dust Collector with Shaker – alternate view 2

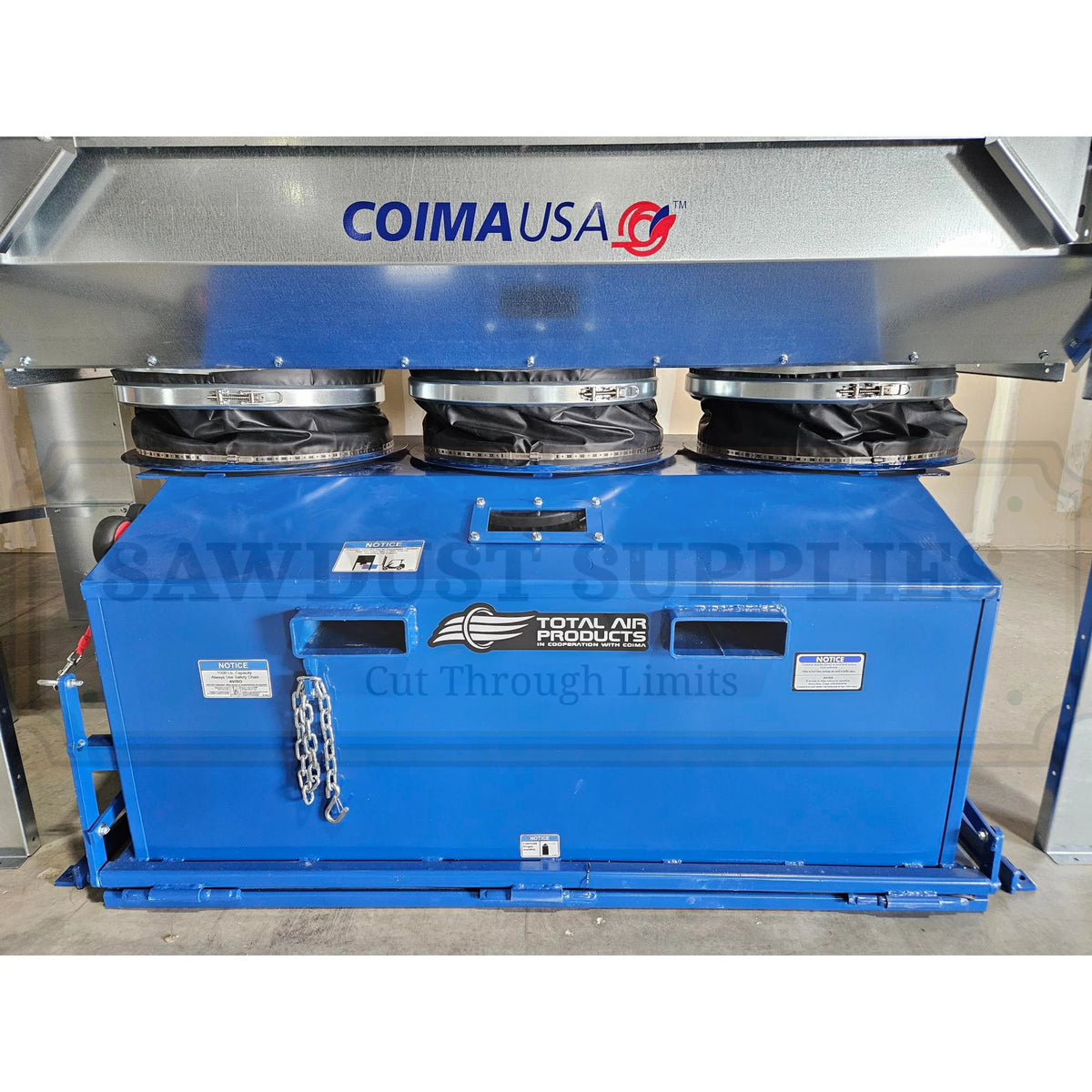

COIMA USA SHK-5 20 HP / 7100 CFM Enclosureless Dust Collector with Shaker – alternate view 3

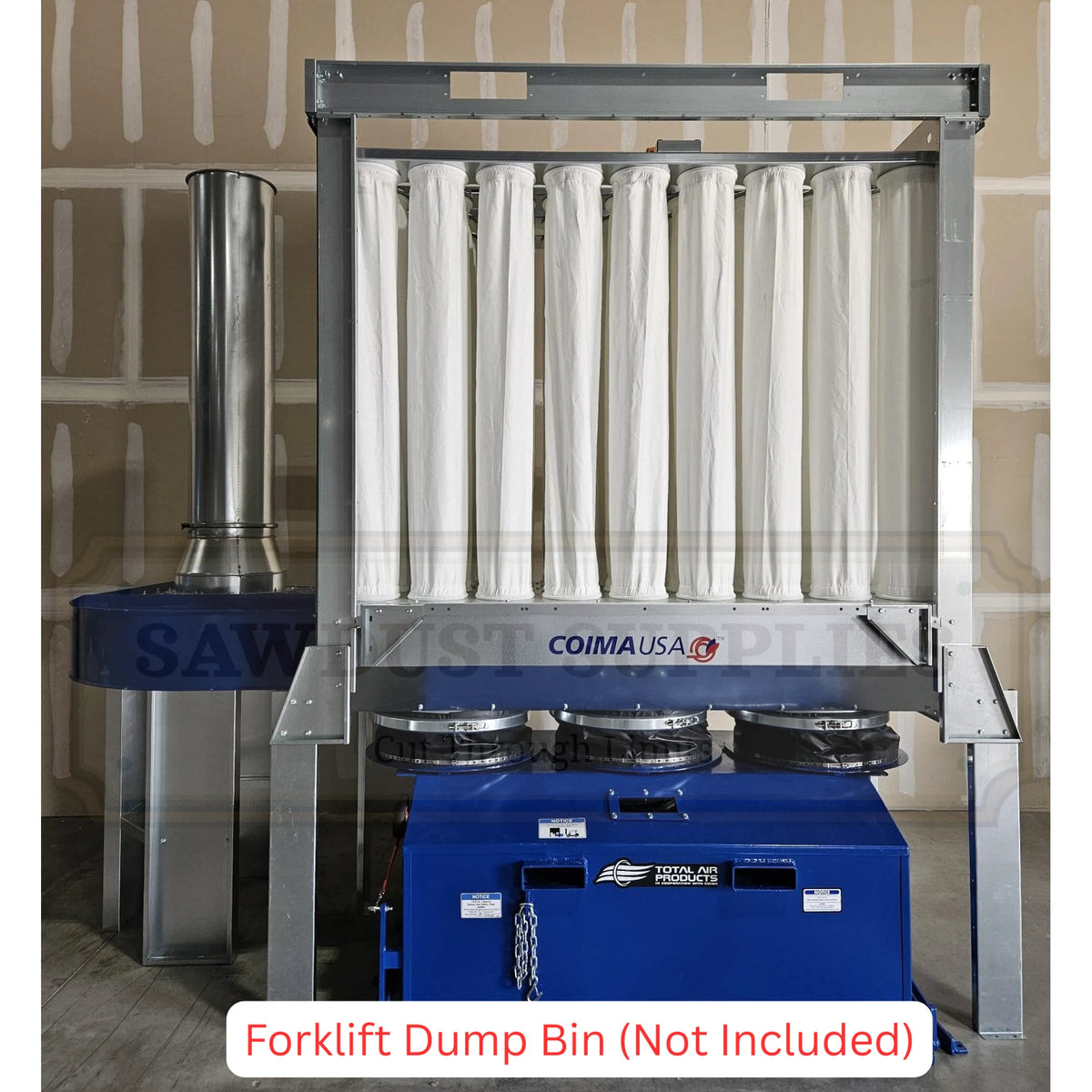

COIMA USA SHK-5 20 HP / 7100 CFM Enclosureless Dust Collector with Shaker – alternate view 4

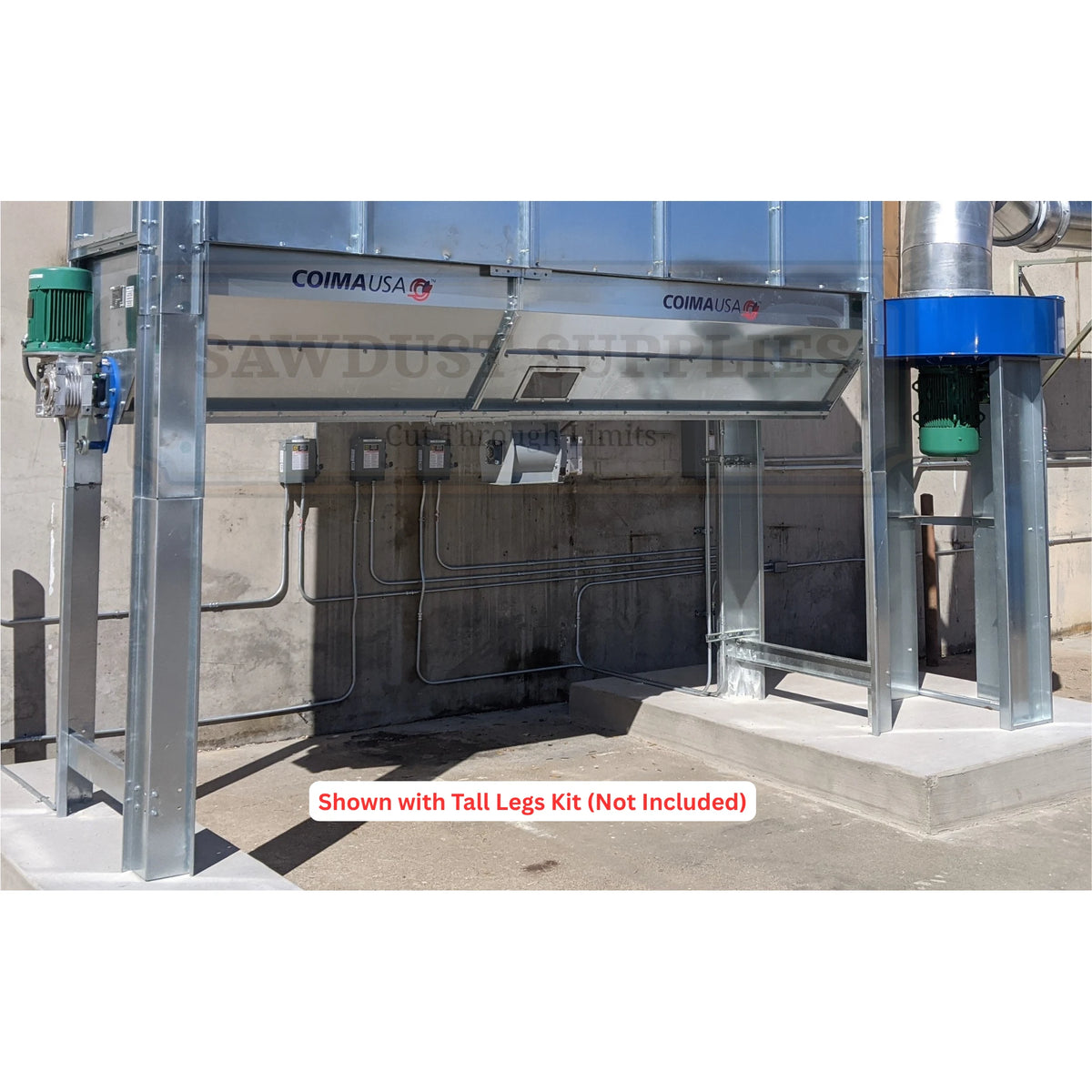

COIMA USA SHK-5 20 HP / 7100 CFM Enclosureless Dust Collector with Shaker – alternate view 5
COIMA USA SHK-5 20 HP / 7100 CFM Enclosureless Dust Collector with Shaker – front
COIMA USA SHK-5 20 HP / 7100 CFM Enclosureless Dust Collector with Shaker – alternate view 2
COIMA USA SHK-5 20 HP / 7100 CFM Enclosureless Dust Collector with Shaker – alternate view 3
COIMA USA SHK-5 20 HP / 7100 CFM Enclosureless Dust Collector with Shaker – alternate view 4
COIMA USA SHK-5 20 HP / 7100 CFM Enclosureless Dust Collector with Shaker – alternate view 5

COIMA USA SHK-5 20 HP / 7100 CFM Enclosureless Dust Collector with Shaker

by Coima USA
SKU SHK-5
Save $3,604.00 Save $3,604.00
$29,999.00
$29,999.00 - $29,999.00
$29,999.00
$26,395.00
$26,395.00 - $26,395.00
$26,395.00
Shipping: $1300
  • ✔ Fast & Safe Shipping Right To Your Workshop
  • ✔ Questions? Speak with a Team Member Today: (973) 319-8415
Shipping information

Orders are processed in 2–3 business days. Ground orders typically arrive in 7–10 business days. Orders over 100 lbs ship LTL freight and are scheduled with the carrier. Shipping is quoted at checkout or before fulfillment, and we ship within the United States only. See our Shipping Policy.

Returns & warranty

Every machine is sourced directly from the manufacturer and covered by the full manufacturer warranty. Report shipping damage immediately so we can help. Return terms vary by manufacturer — see our Return and Refund Policy.

The SHK-5 dust collector is designed for industrial dust collection systems in woodworking and manufacturing environments where higher airflow capacity and mechanical filter cleaning are required. The unit uses polyester antistatic filter media and a shaker motor system to assist with routine filter maintenance.

The system is equipped with a 20 HP fan operating at 1770 RPM and is designed to provide airflow up to 7100 CFM depending on duct configuration. Filtration is provided by cylindrical filters with a total filter area of 595 square feet.

The housing is constructed from 14 gauge galvanized steel. A flanged inlet adapter is required and should be selected based on the application and duct layout.

The SHK-5 is designed in accordance with NFPA 654-2020 and NFPA 664-2020 guidelines. Additional NFPA-compliant safety equipment may be available depending on the dust type and system configuration.

Standard Equipment

  • 20 HP Fan Motor
  • 1/4 HP Shaker Motor for Filter Cleaning
  • Polyester Antistatic Filter Media
  • 14 Gauge Galvanized Steel Construction

Technical Data + Specifications

Model SHK-5
Fan HP / RPM 20 HP / 1770 RPM
Airflow Capacity Up to 7100 CFM
Static Pressure 11 in. H₂O
Inlet Flanged inlet adapter required to suit application
Filter Cleaning 1/4 HP Shaker Motor
Filter Media Polyester Antistatic Filter Media
Filter Area 595 ft² (55 m²)
Filter Efficiency 99.9219% < 2µm
Filter Size / Quantity 8" × 60" / 60
Sound Level 81.71 ± 3 dB(A)
Construction 14 Gauge Galvanized Steel
NFPA Compliance NFPA 654-2020 / NFPA 664-2020
Additional Safety Systems Full NFPA-compliant equipment available depending on application
Weight 1,628 lbs
Shipping Weight 1,980 lbs
Shipping Dimensions 2 Crates @ 90" × 46" × 46" each
