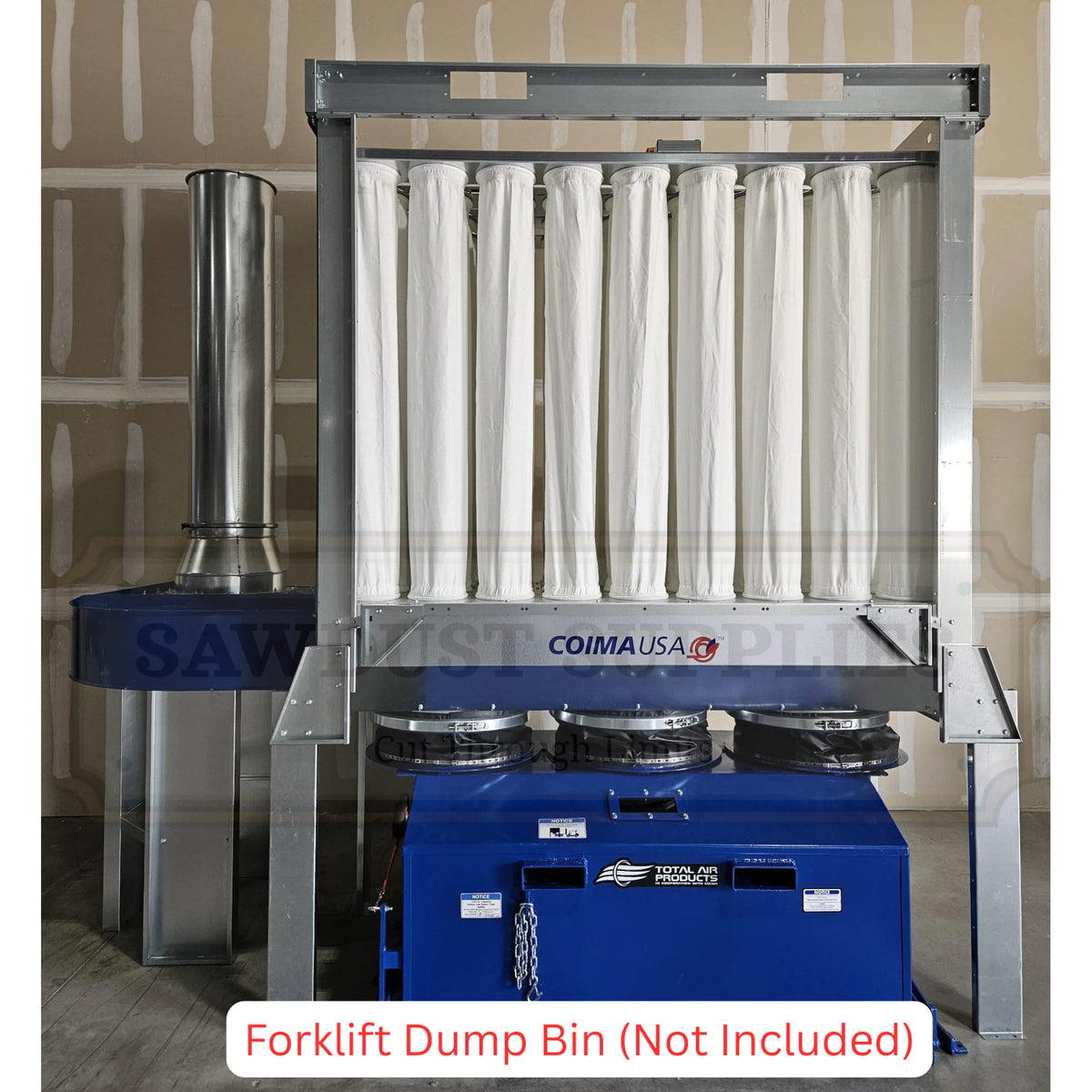

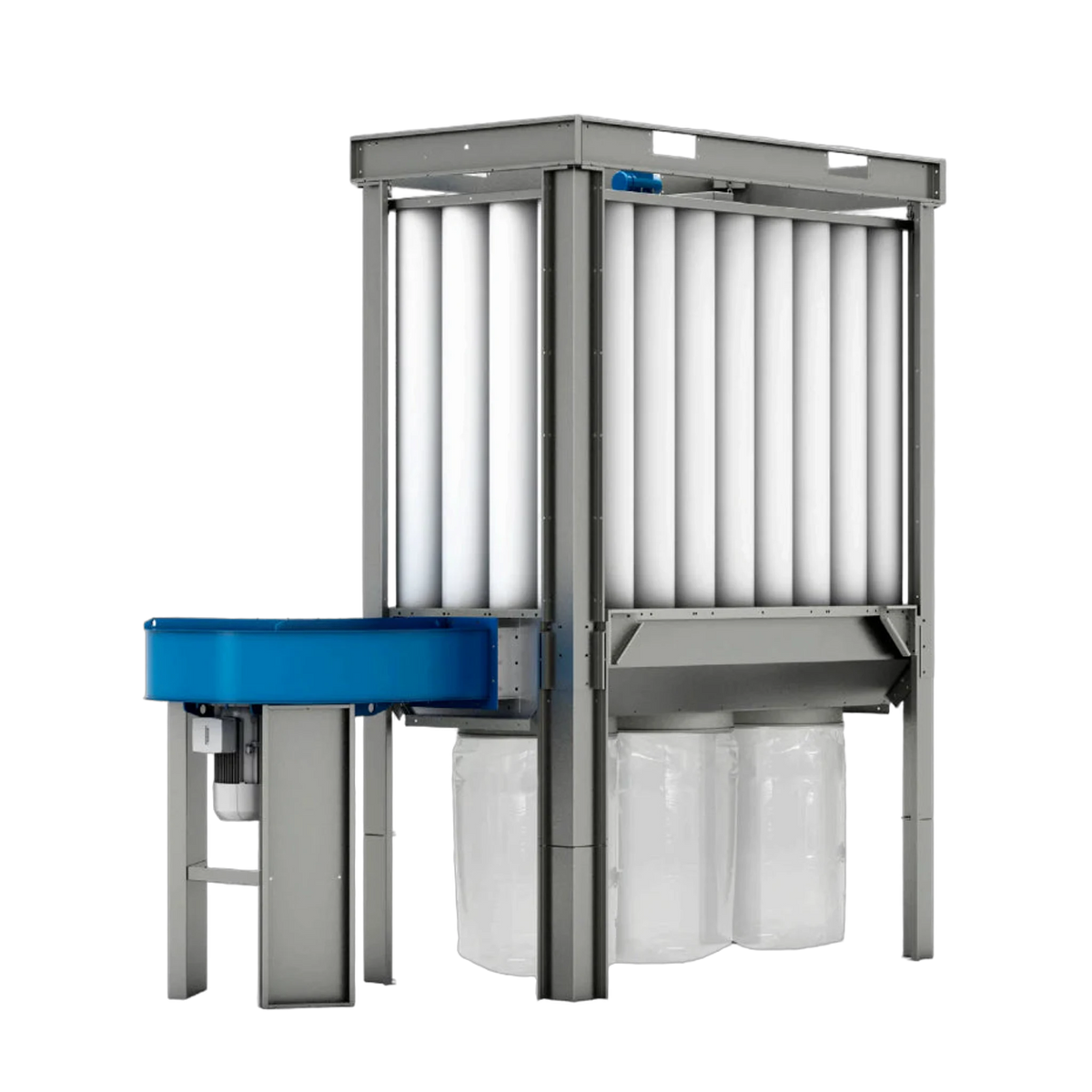

COIMA USA SHK-3 10 HP / 5000 CFM Enclosureless Dust Collector with Shaker

The COIMA SHK-3 v2 dust collector is an enclosureless dust collection system designed for continuous airflow and mechanical filter cleaning in industrial dust collection applications. The unit uses polyester antistatic filter media combined with a shaker motor system to assist with routine filter maintenance.

The system is equipped with a 10 HP fan operating at 1770 RPM and is designed to provide airflow up to 5000 CFM. Filtration is handled through cylindrical filter sleeves designed to capture fine dust generated during woodworking and manufacturing operations.

The SHK-3 v2 includes a tri-voltage motor (208/230/460V) and plastic bag discharge for dust collection. The unit ships with filter sleeves and waste bags for initial setup. A control panel and inlet adapter are included but require confirmation of voltage during ordering.

The collector housing is constructed from 14 gauge galvanized steel and is designed in accordance with NFPA 654-2020 and NFPA 664-2020 guidelines. Additional NFPA-compliant safety equipment may be available depending on the dust type and system configuration.

SHK-3 v2 Technical Data + Specifications

SHK-3 PLUS Technical Data + Specifications
