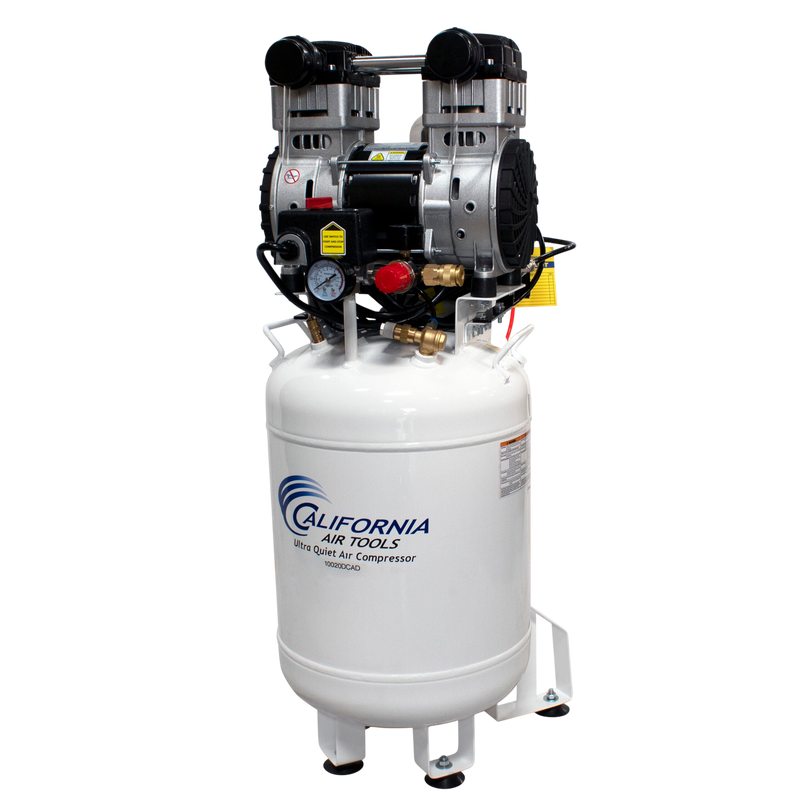

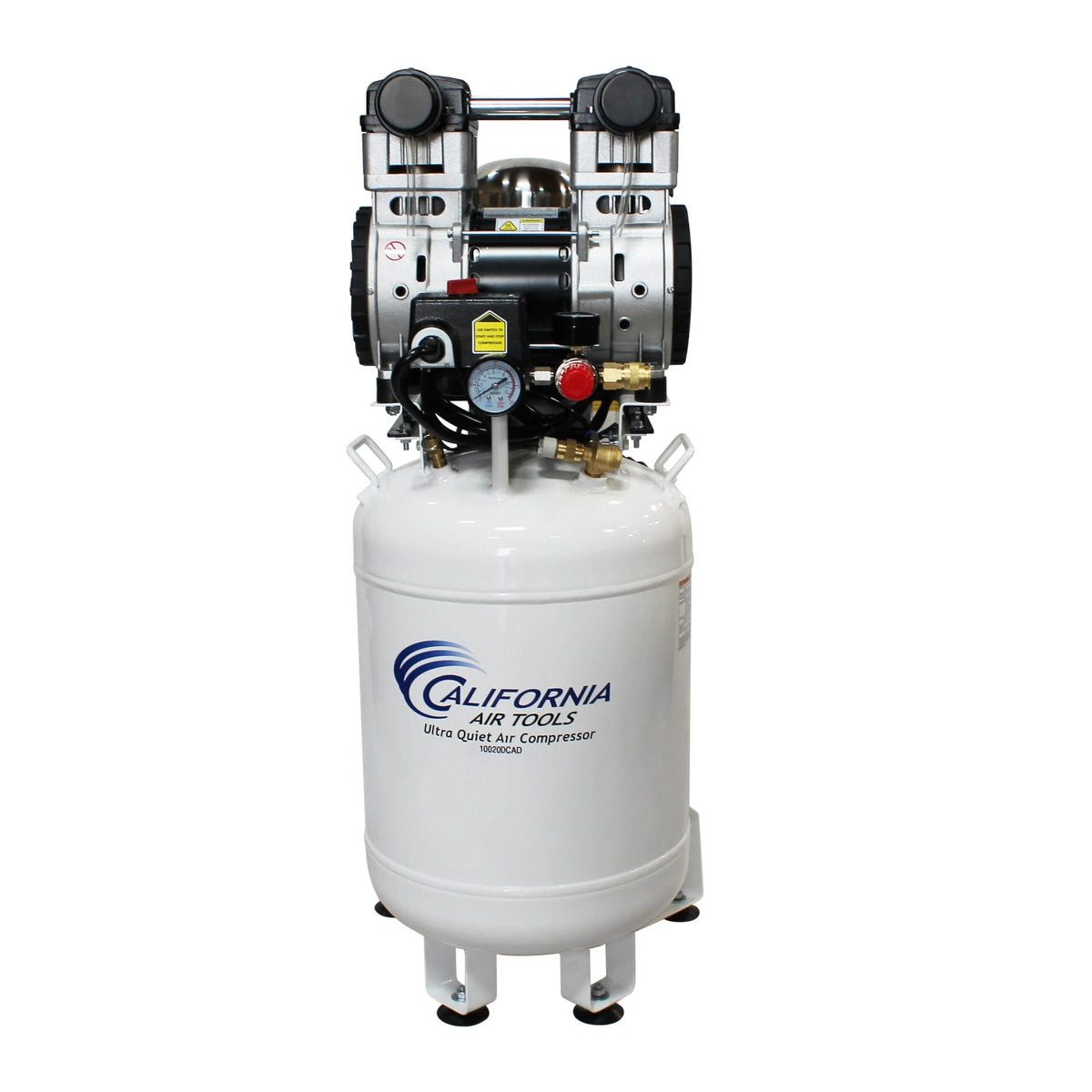

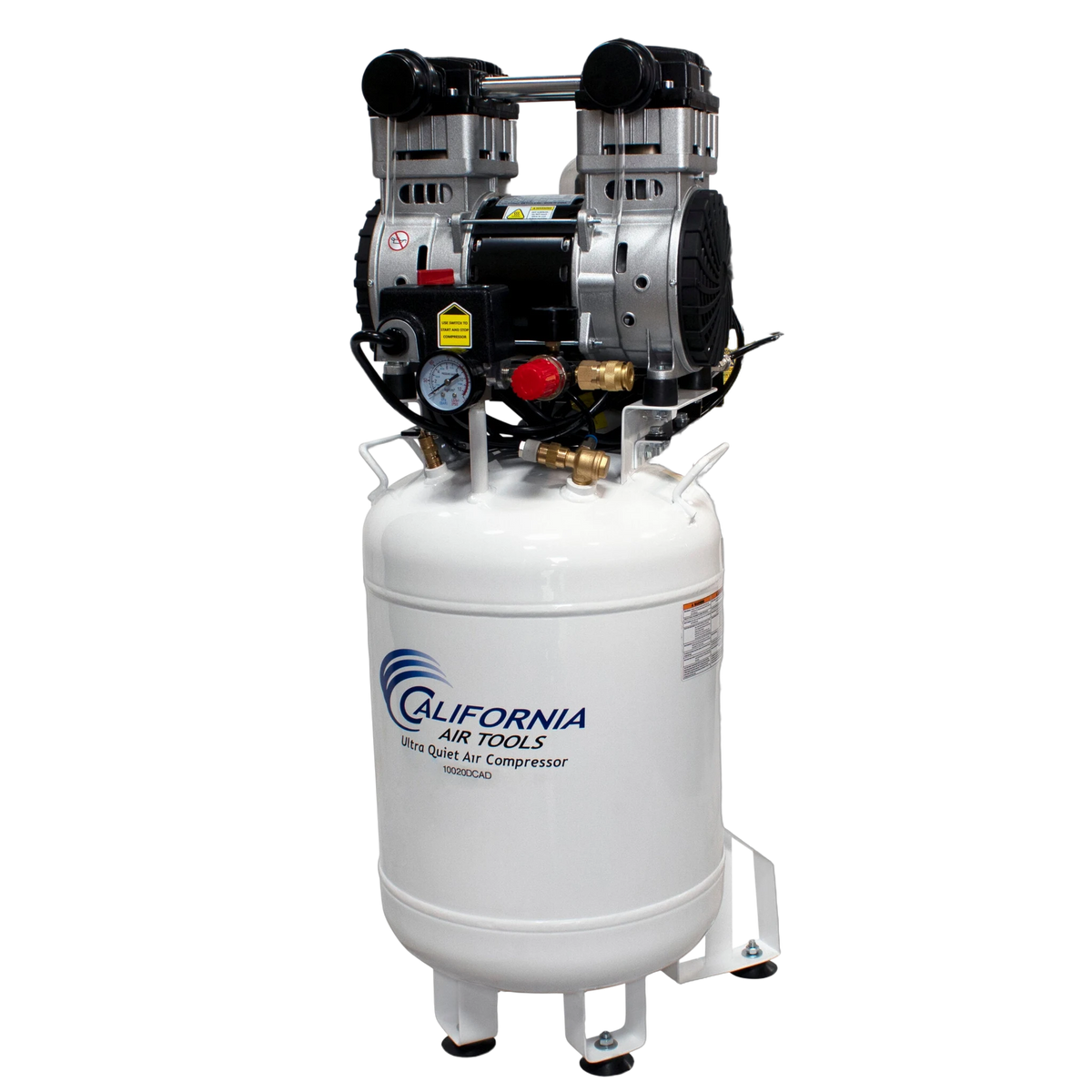

California Air Tools 10020DCAD-22060 2 HP 10 Gallon Oil-Free Air Compressor with 80% Air Dryer & Auto Drain

The California Air Tools 10020DCAD-22060 is a 220-volt air compressor designed for workshops and workspaces that benefit from reduced moisture in compressed air. This model combines an oil-free dual piston compressor with an integrated aftercooler and desiccant drying system intended to lower moisture content before the air reaches connected equipment.

California Air Tools compressors are designed around lower operating speeds compared with many conventional shop compressors. The 10020DCAD-22060 uses a SP-series 2 horsepower motor operating at approximately 1680 RPM, which helps reduce vibration and overall noise while maintaining steady airflow for pneumatic tools and equipment.

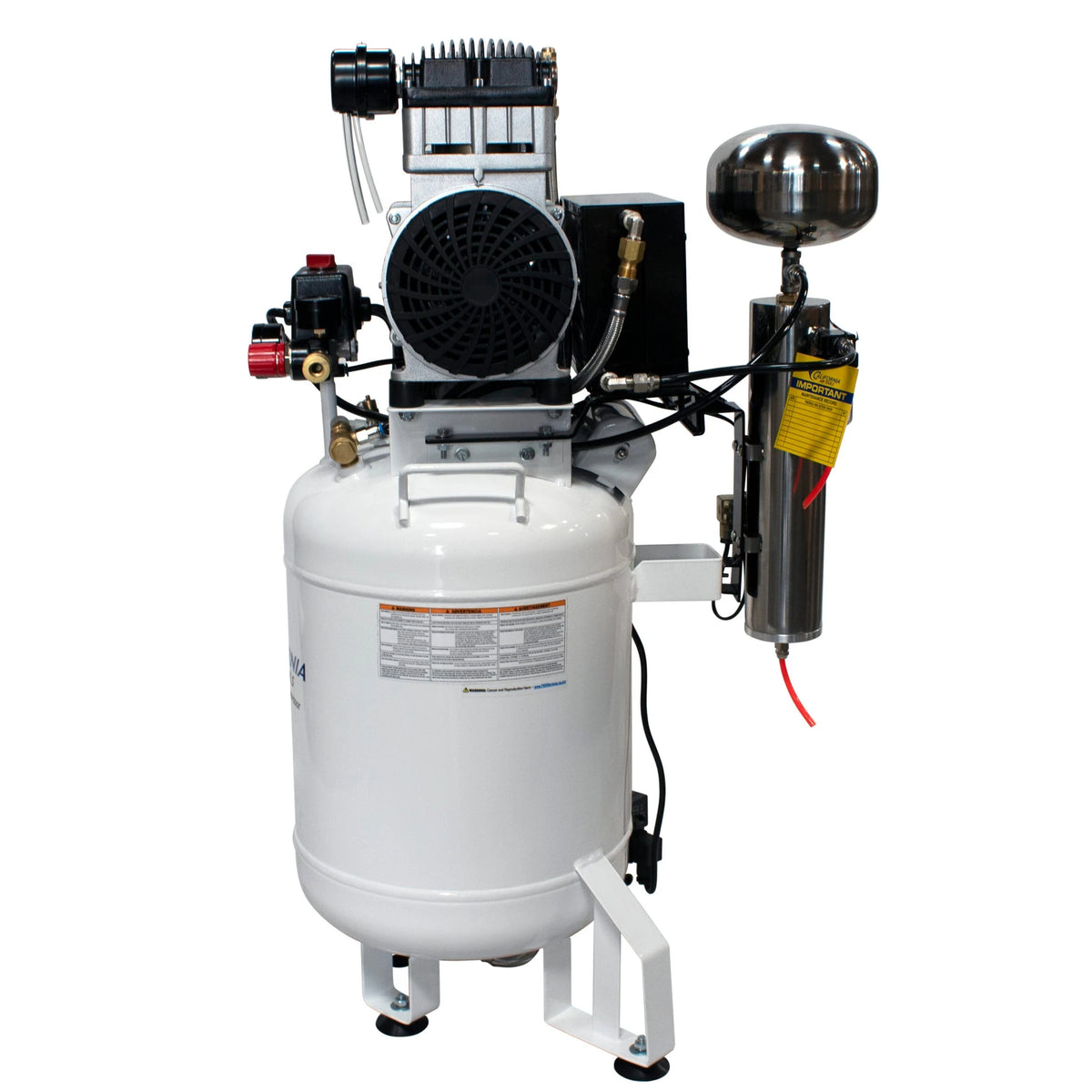

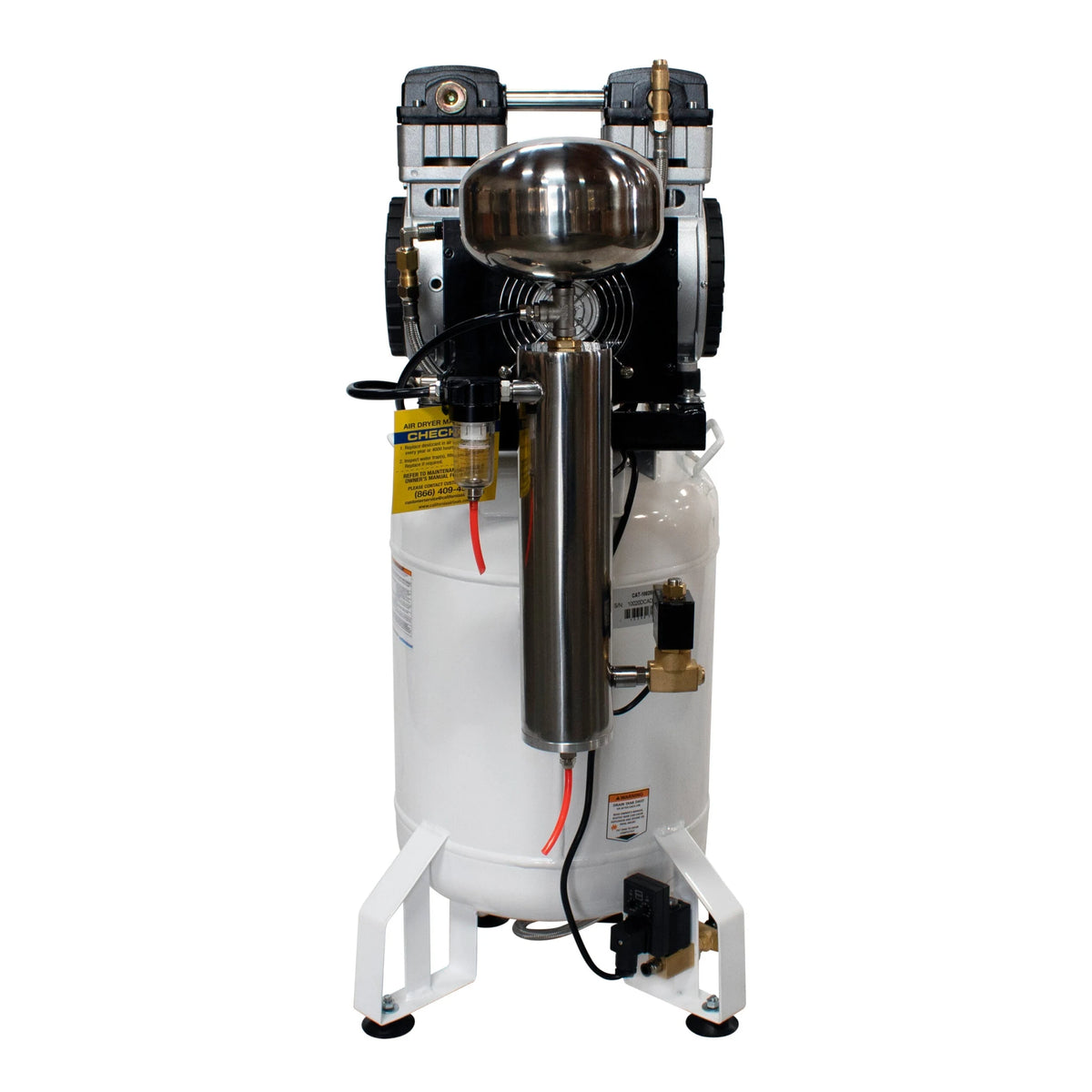

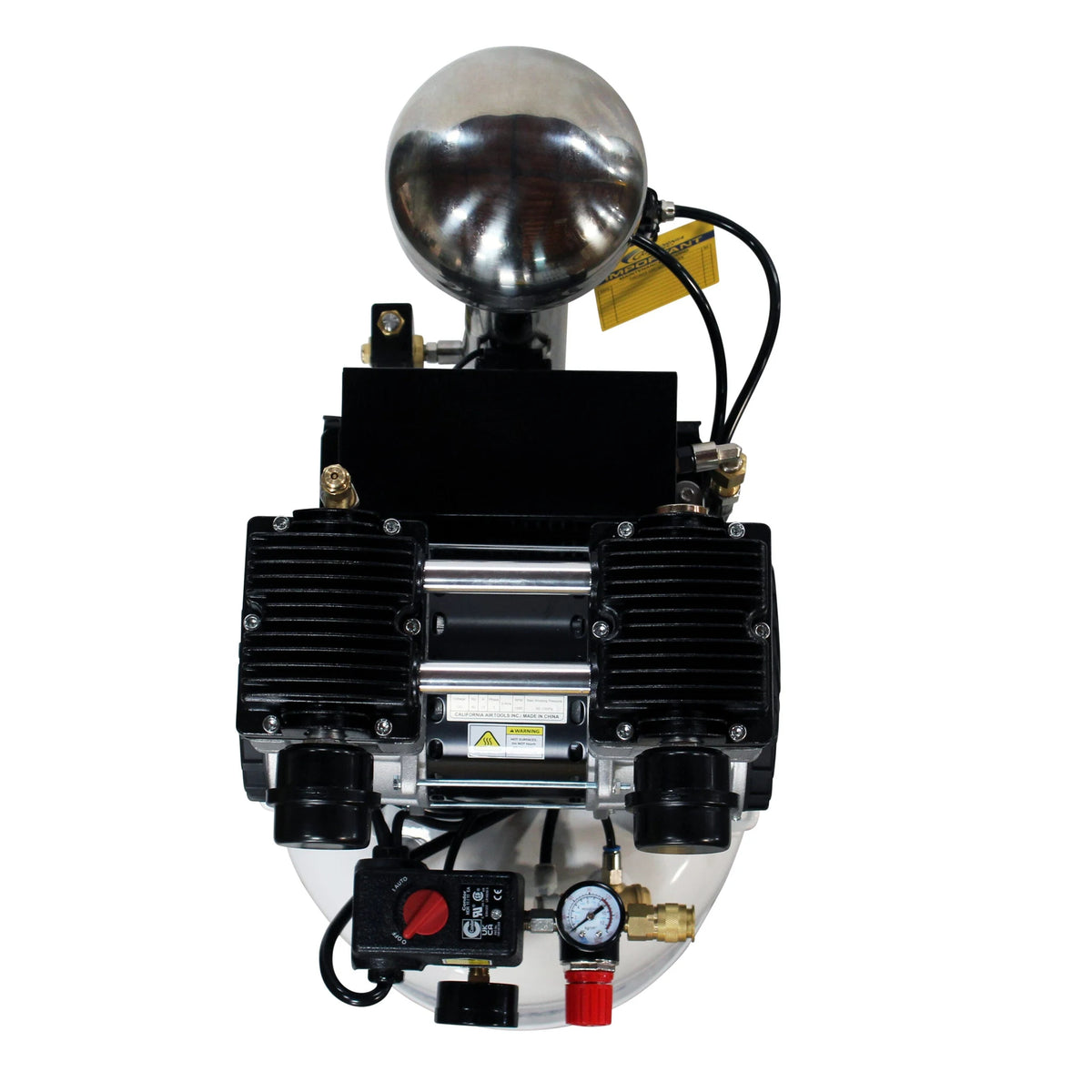

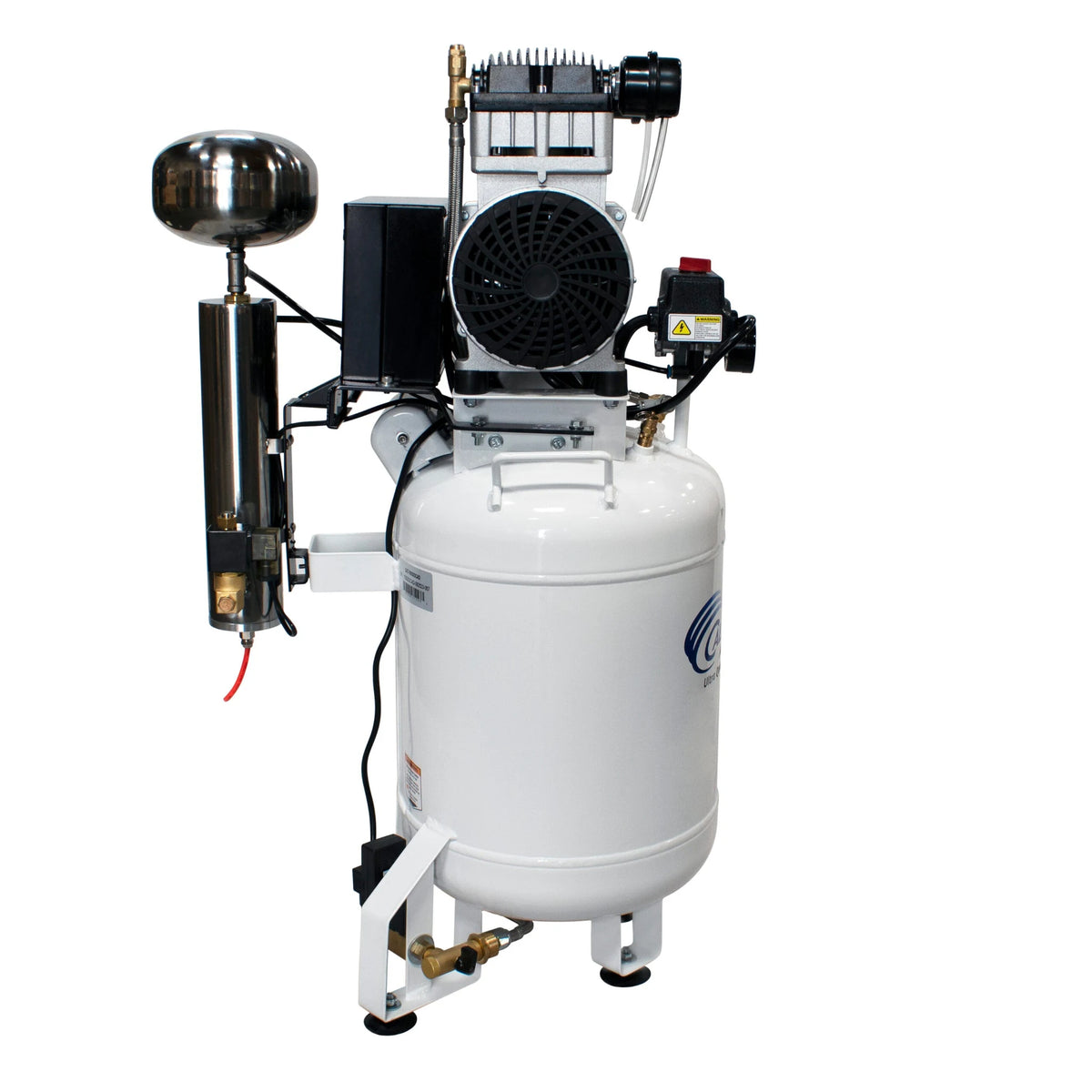

The built-in air treatment assembly includes an aftercooler that lowers the temperature of discharge air and condenses moisture. Air then passes through a desiccant drying stage using activated alumina material, which helps remove additional water vapor from the compressed air stream.

An EZ-1 automatic drain valve is factory installed to periodically discharge condensation collected in the tank. This timed drain cycle helps reduce the need for manual tank draining and supports routine maintenance.

The compressor stores air in a horizontal 10 gallon steel tank designed for stable operation and compact placement beneath benches or shelving. A wheel kit allows the unit to be moved easily within a workshop or jobsite.

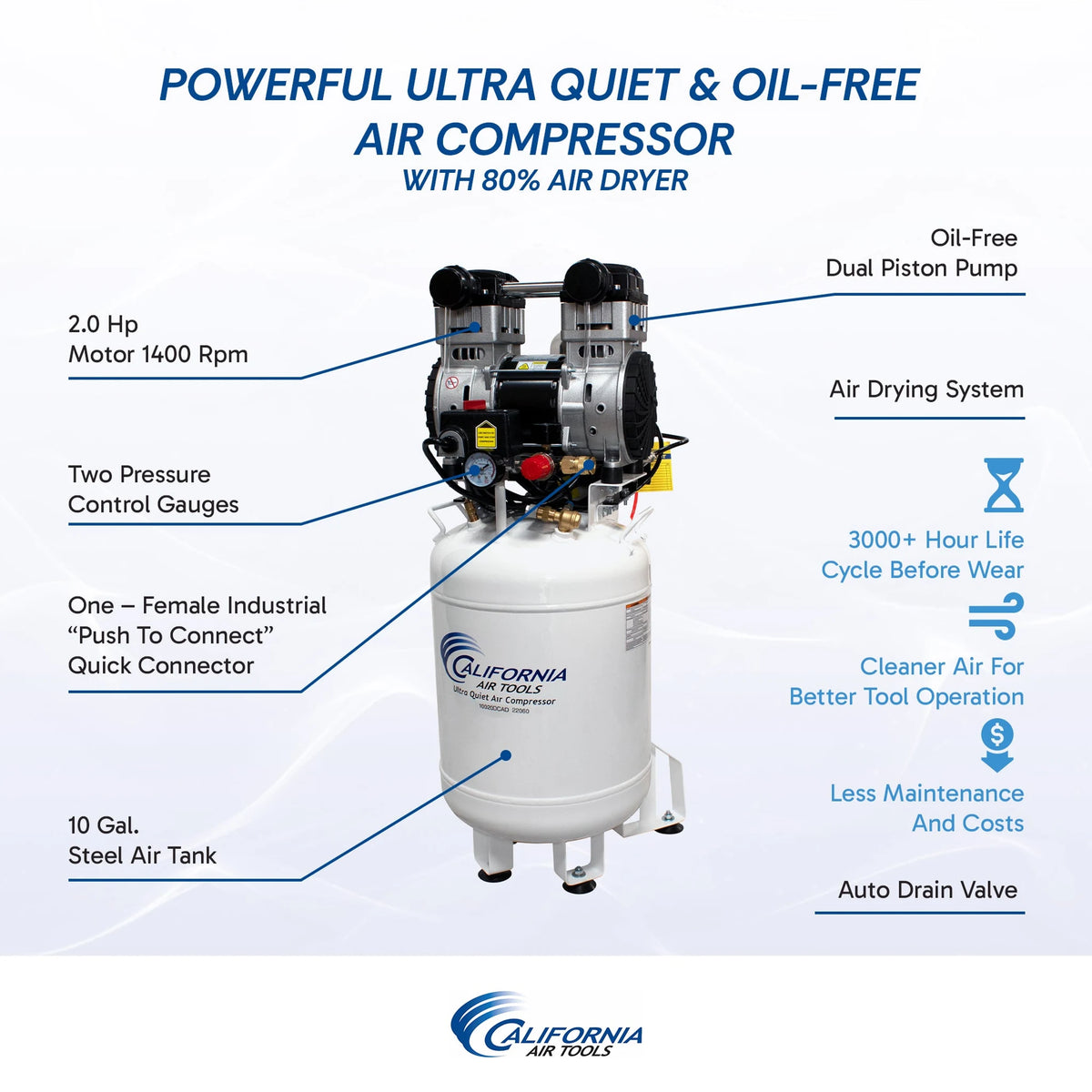

Standard Equipment

• Oil-free dual piston compressor pump
• SP-series 2 HP compressor motor
• Integrated aftercooler
• Desiccant air dryer with activated alumina cartridge
• 0.01 micron prefilter
• 5 micron air filter and regulator assembly
• Dual pressure control gauges
• Industrial push-to-connect air outlet
• EZ-1 automatic drain valve
• Easy Start Valve
• Thermal overload protection
• Two intake air filters
• Wheel kit

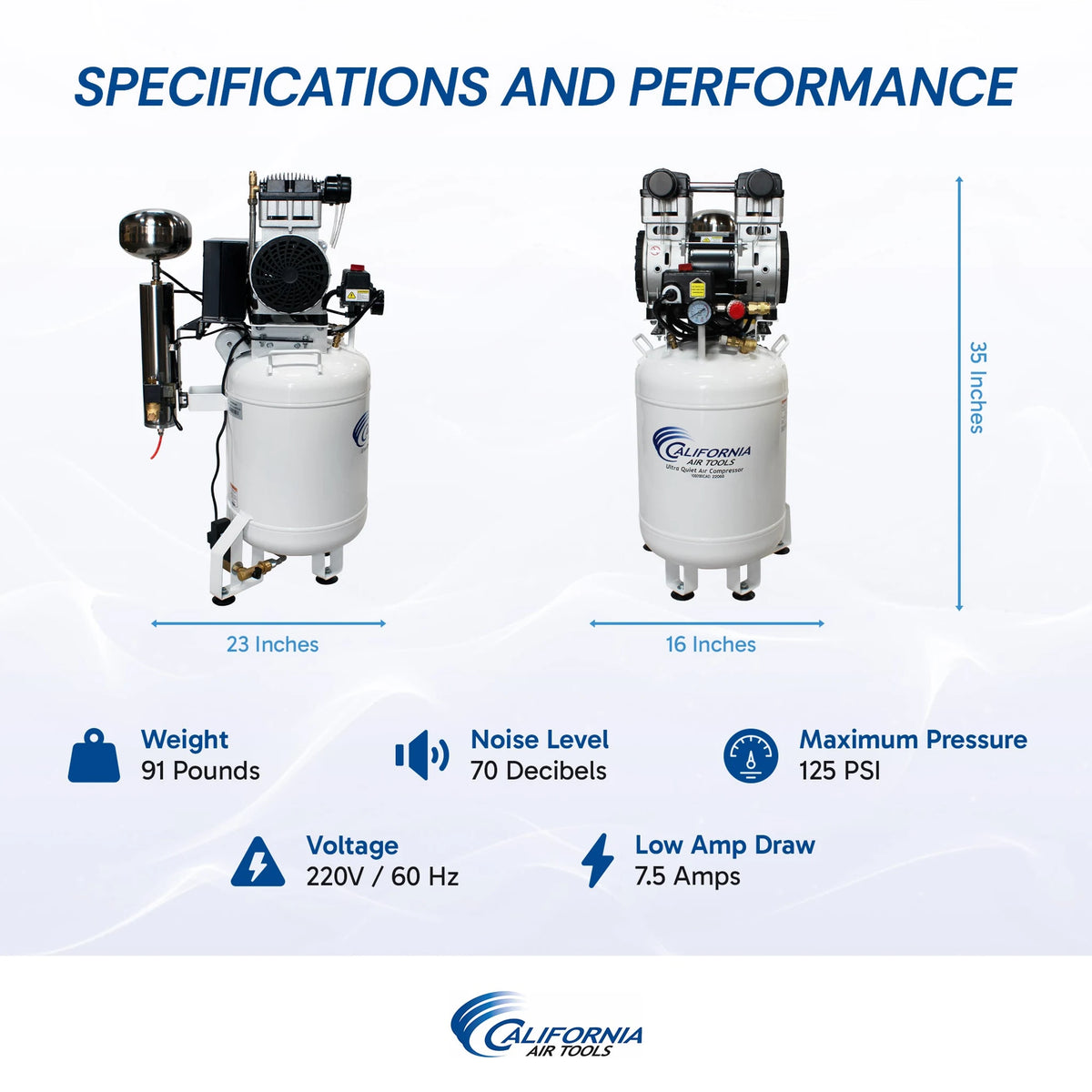

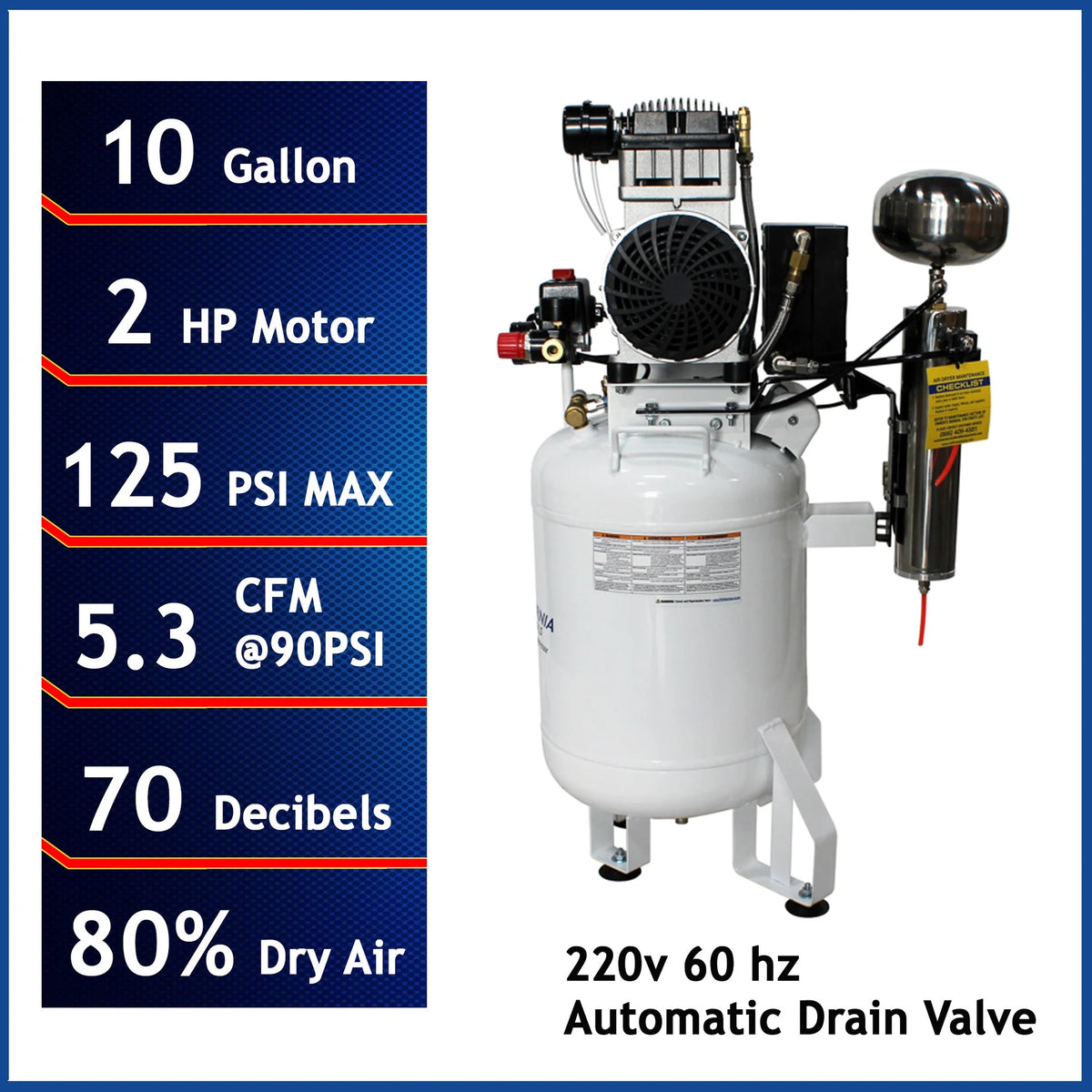

Technical Specifications

• Motor Power: 2.0 HP
• Motor Speed: ~1680 RPM
• Noise Level: 70 dB
• Maximum Pressure: 125 PSI
• Working Pressure Range: 95 – 125 PSI

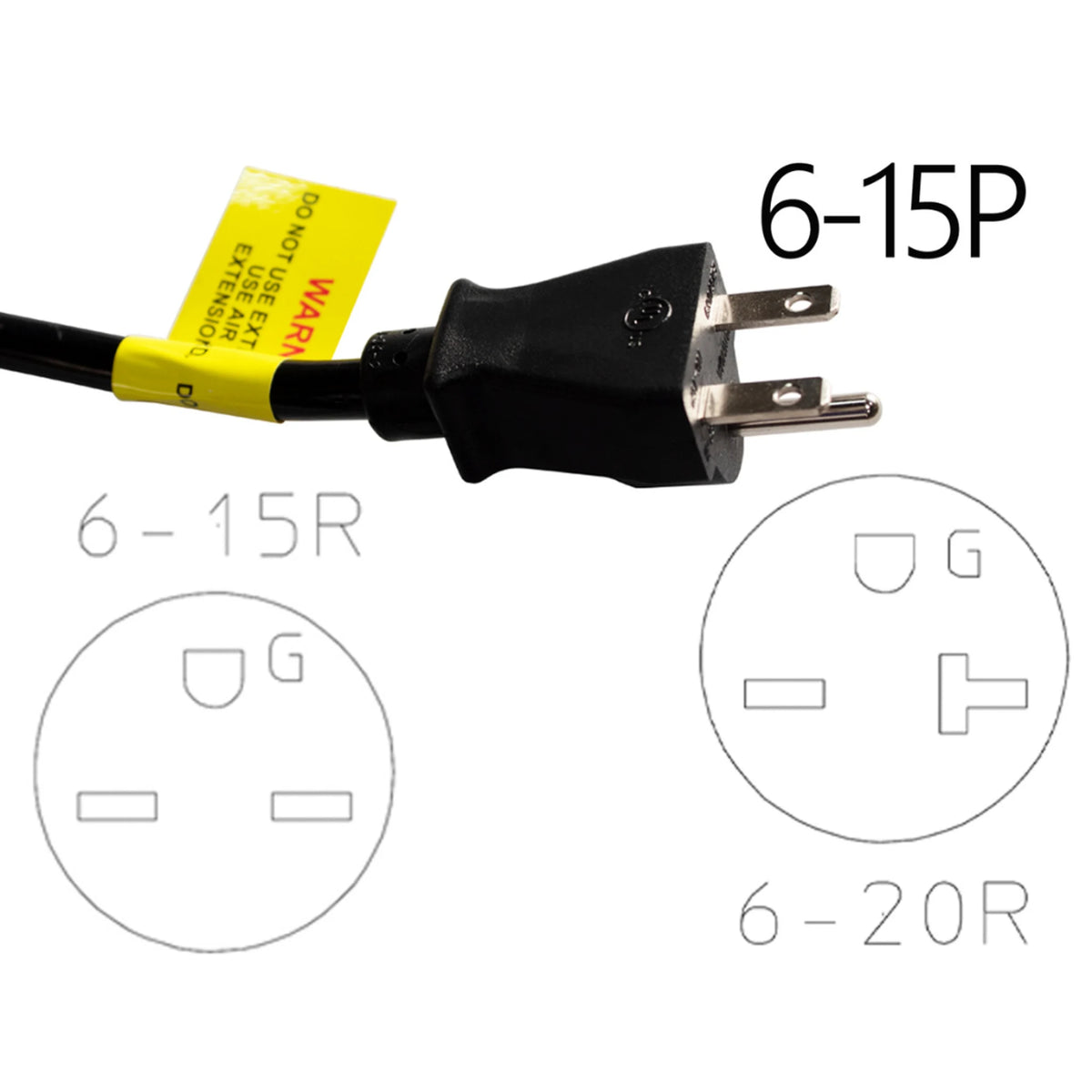

• Voltage: 220V / 60Hz / Single Phase
• Amperage Draw: 7.0 Amps
• Tank Capacity: 10 Gallons
• Tank Orientation: Horizontal
• Tank Material: Steel
• Tank Fill Time: ~130 seconds
• Recovery Time: ~40 seconds (95 PSI – 125 PSI)
• Duty Cycle: 70 / 30
• Dimensions: 16" L x 23" W x 35" H
• Weight: 92 lbs
• Air Treatment: Aftercooler and desiccant drying system
• Tank Type: Non-ASME
• Assembly Location: United States with global components
