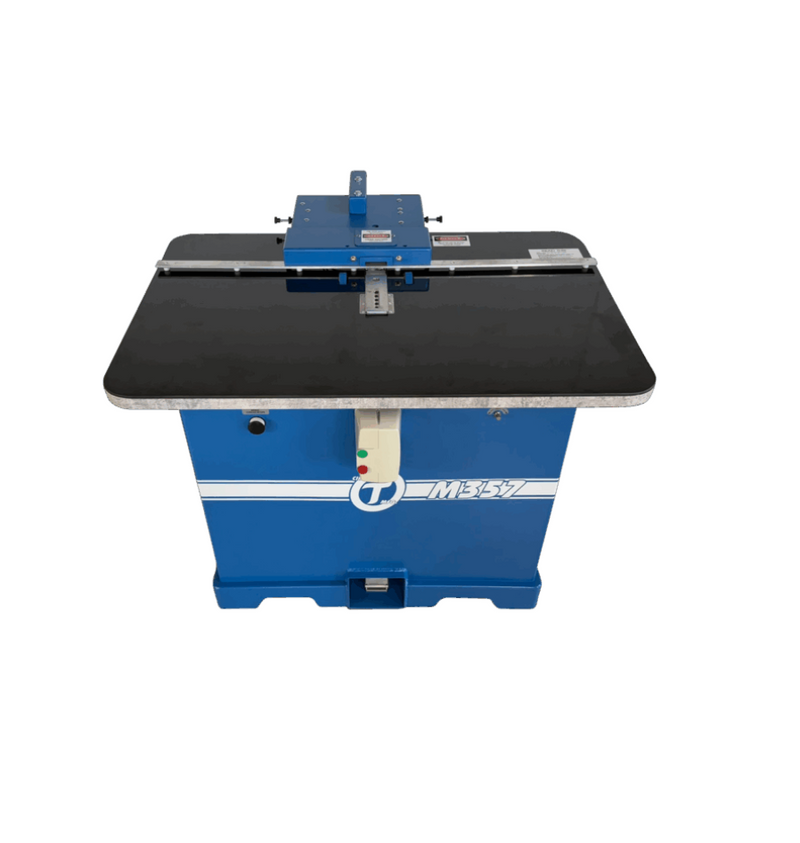

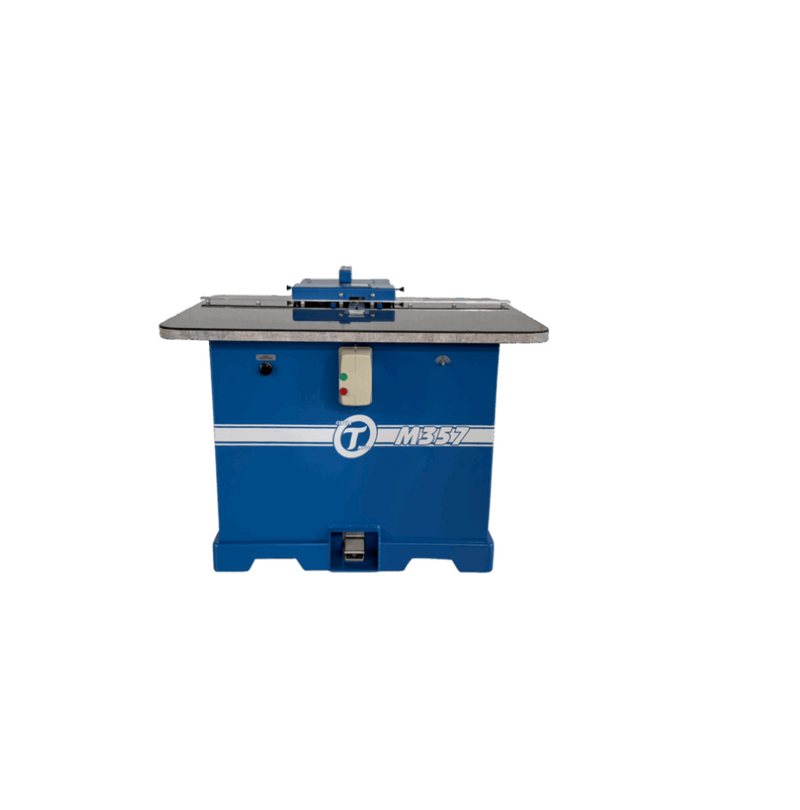

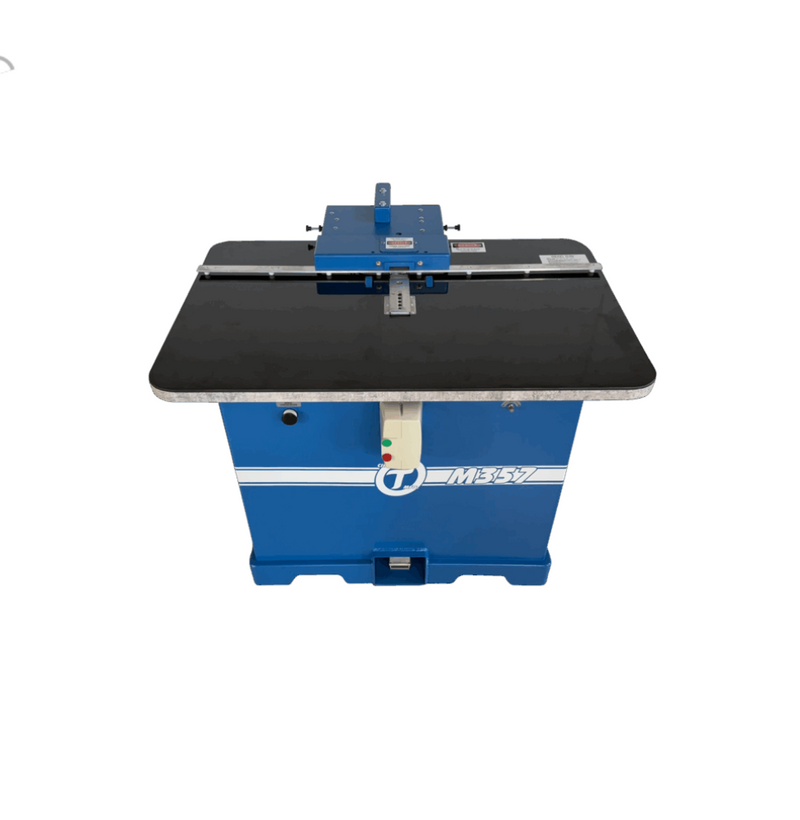

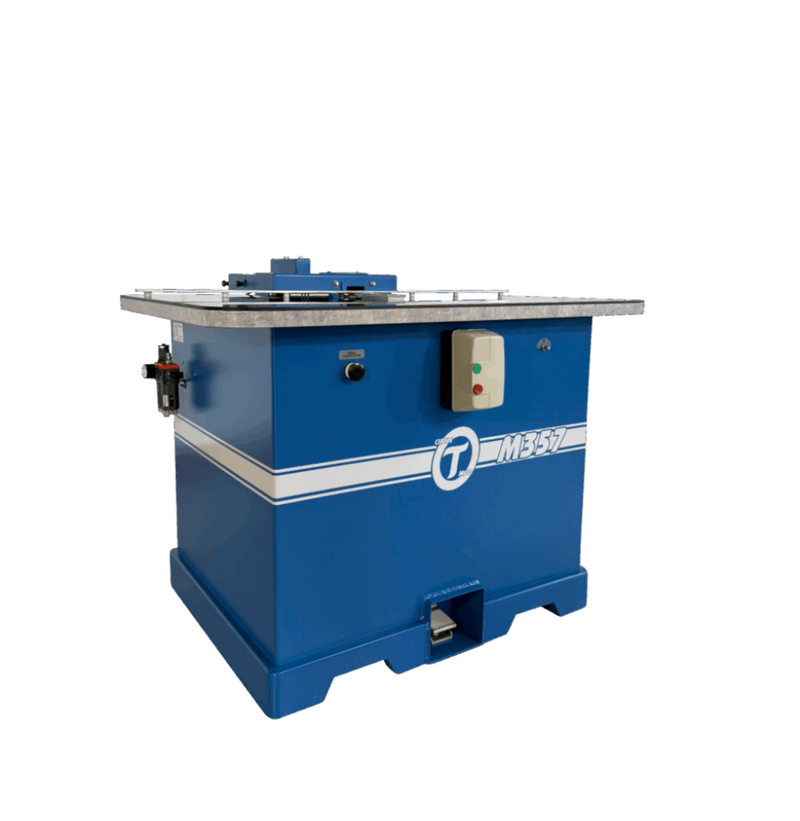

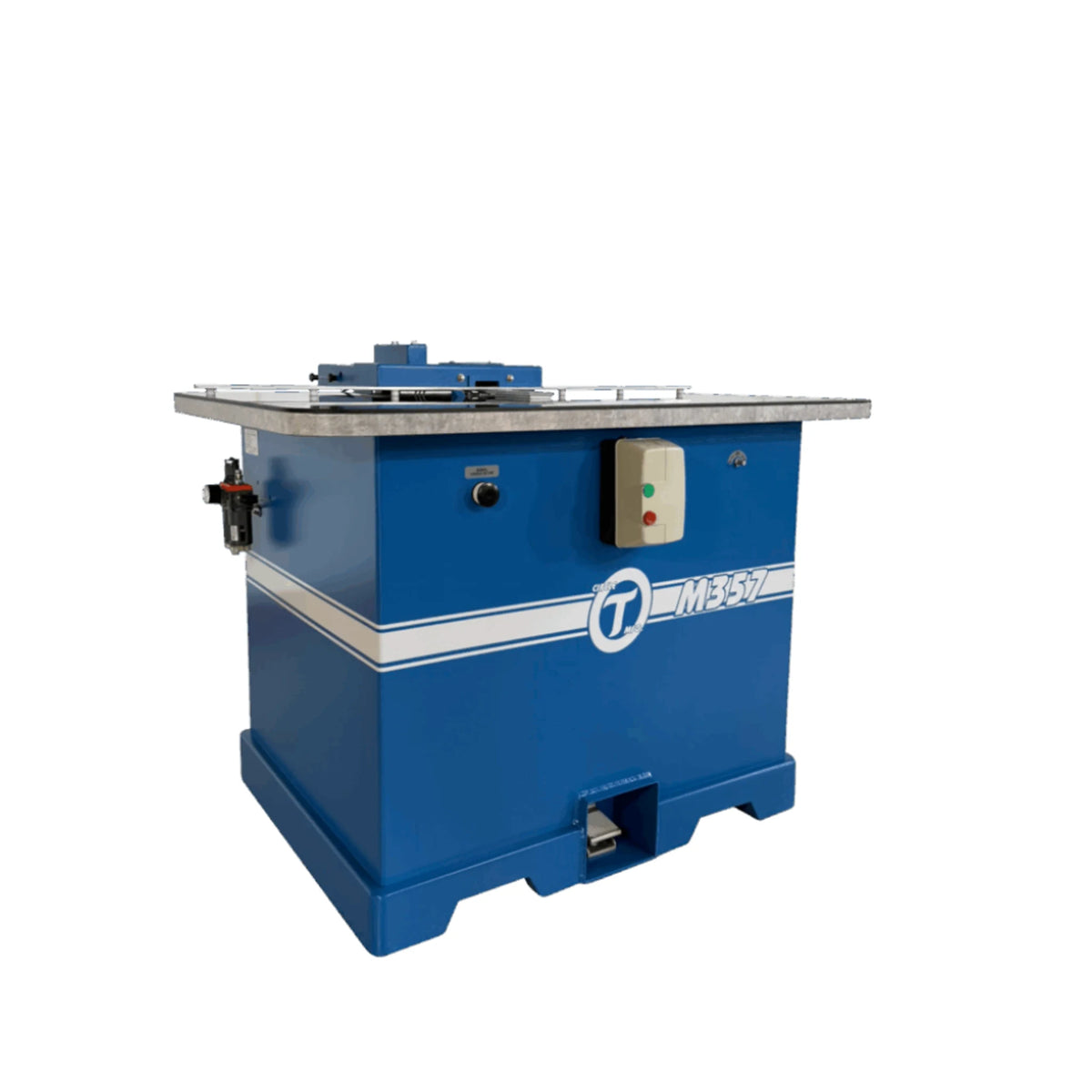

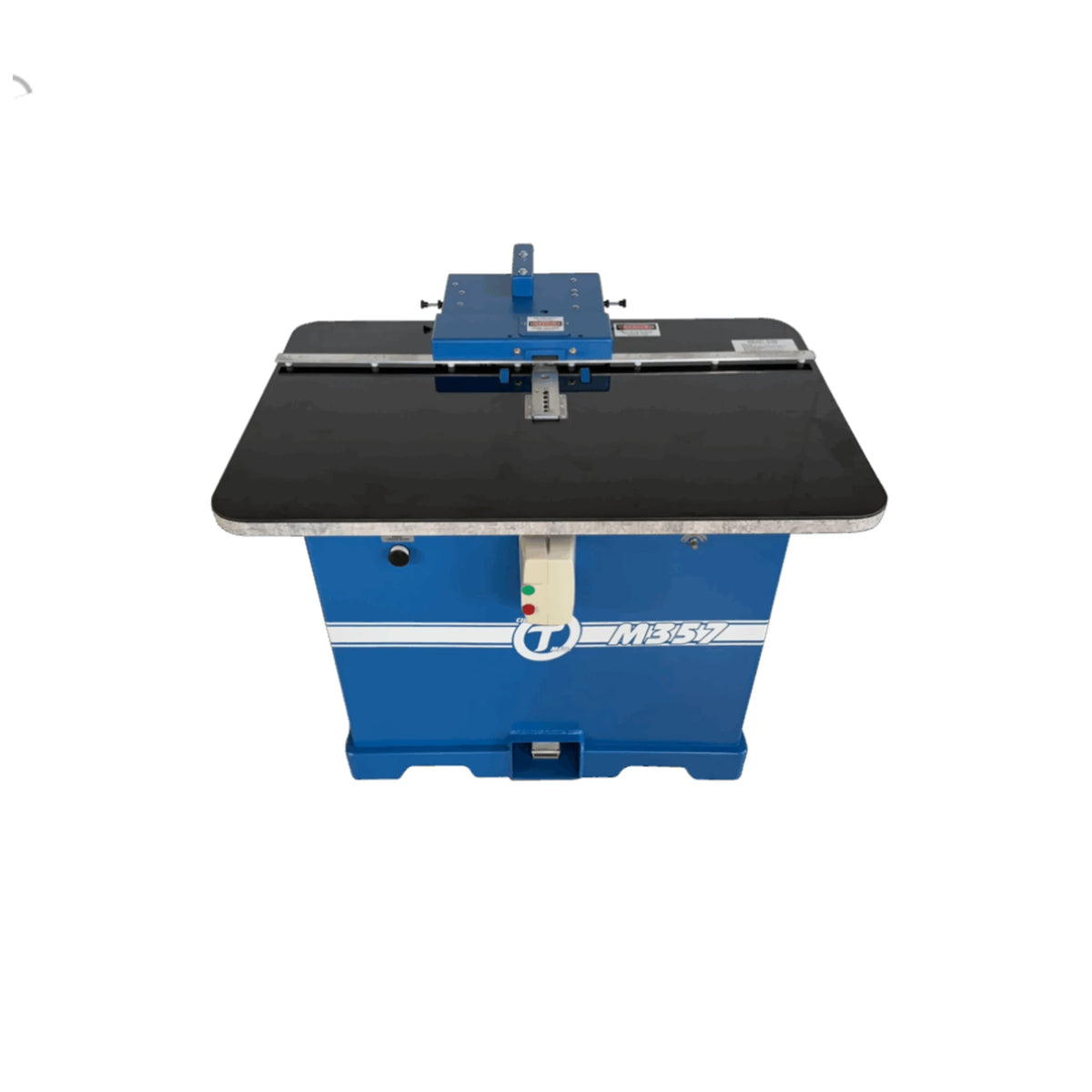

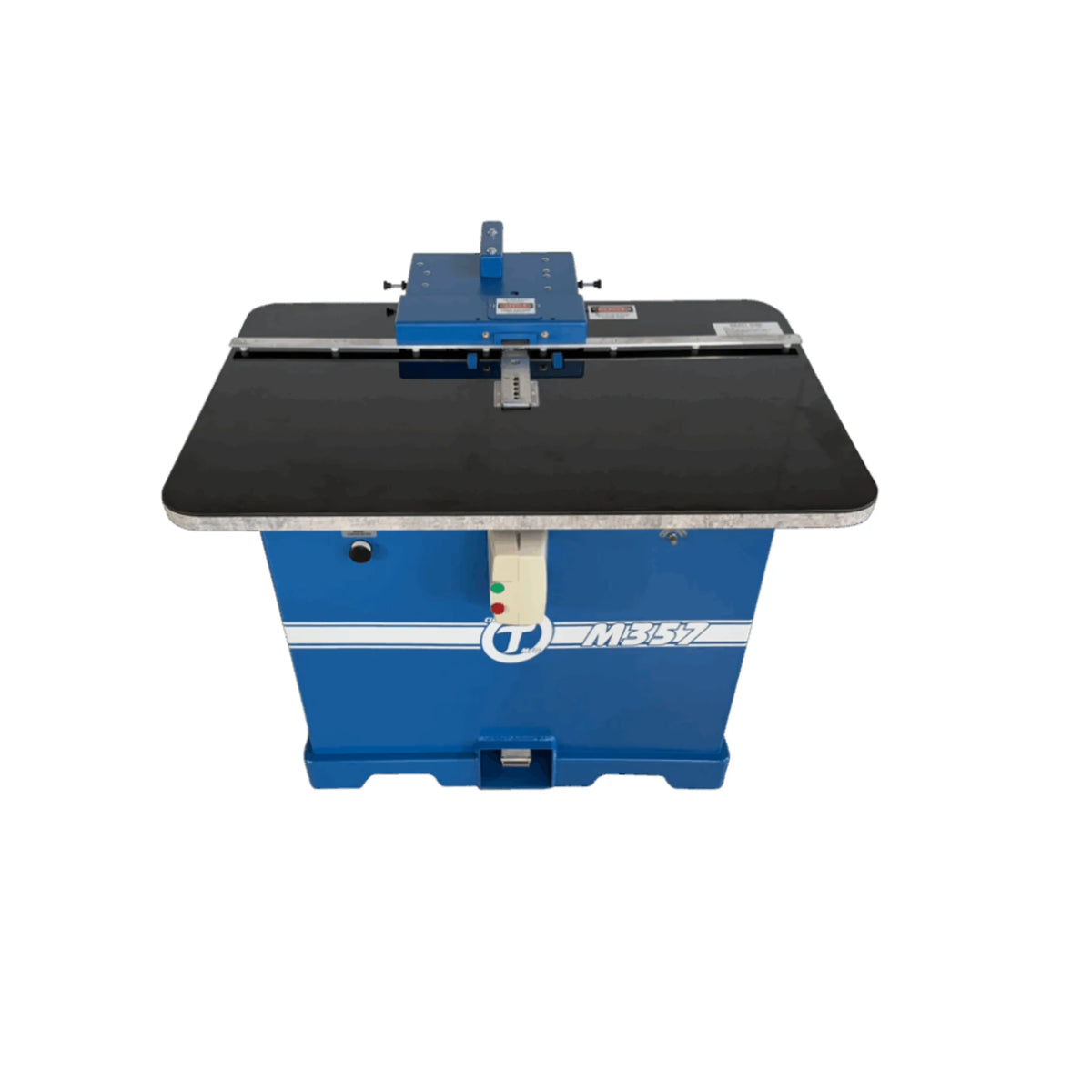

Circle T EASY Drawer Notcher M357

Typically ships in 2–4 weeks, but lead times may vary. Call or Text (973) 319-8415 or email support@sawdustsupplies.com for a current estimated lead time.

The M357 replaces the previous M312 model and offers significantly greater versatility. The key upgrade is its ability to support multiple insert cutterhead sizes depending on your application, including 35mm, 51mm, and 57mm options.

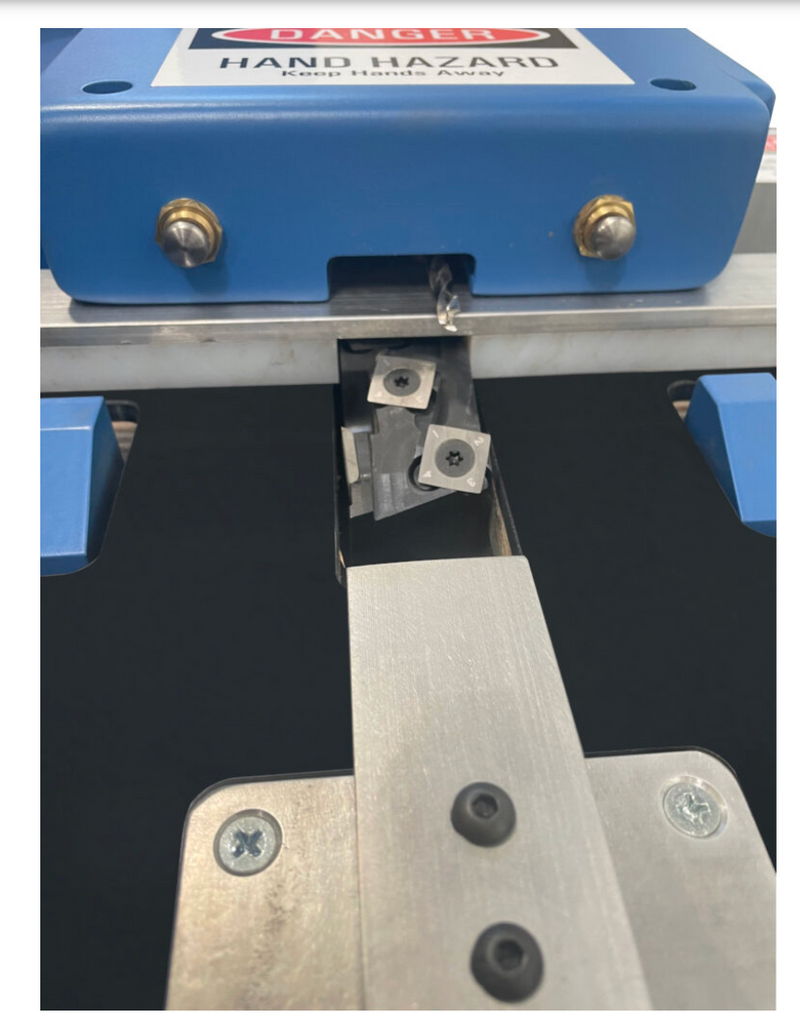

This is a true single-pass machine, meaning that whatever cutterhead size is installed, the notch and locating hole are cut simultaneously in one pass.

M357 Drawer Notcher Details

• EASY foot cycle switch included
• High-wear phenolic table surface

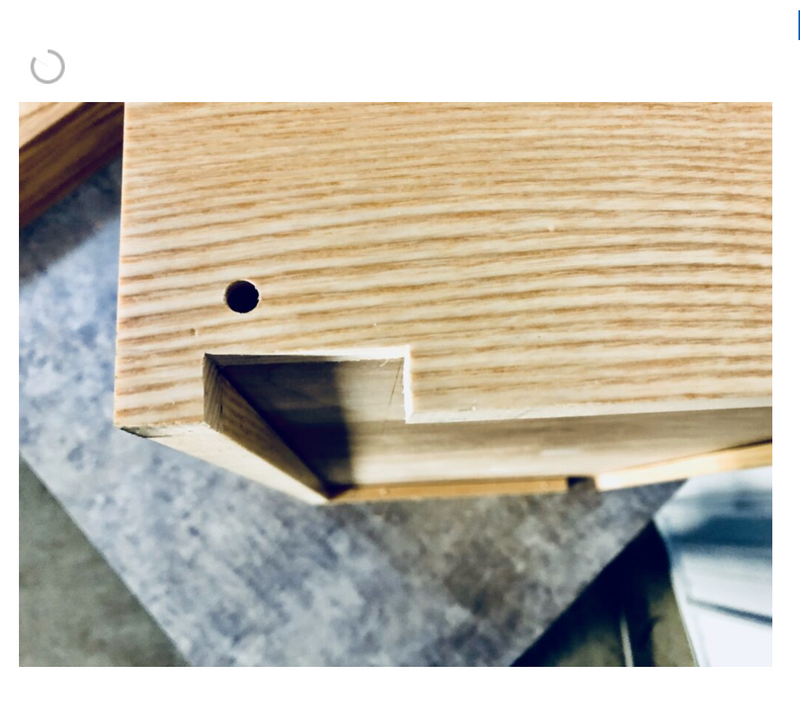

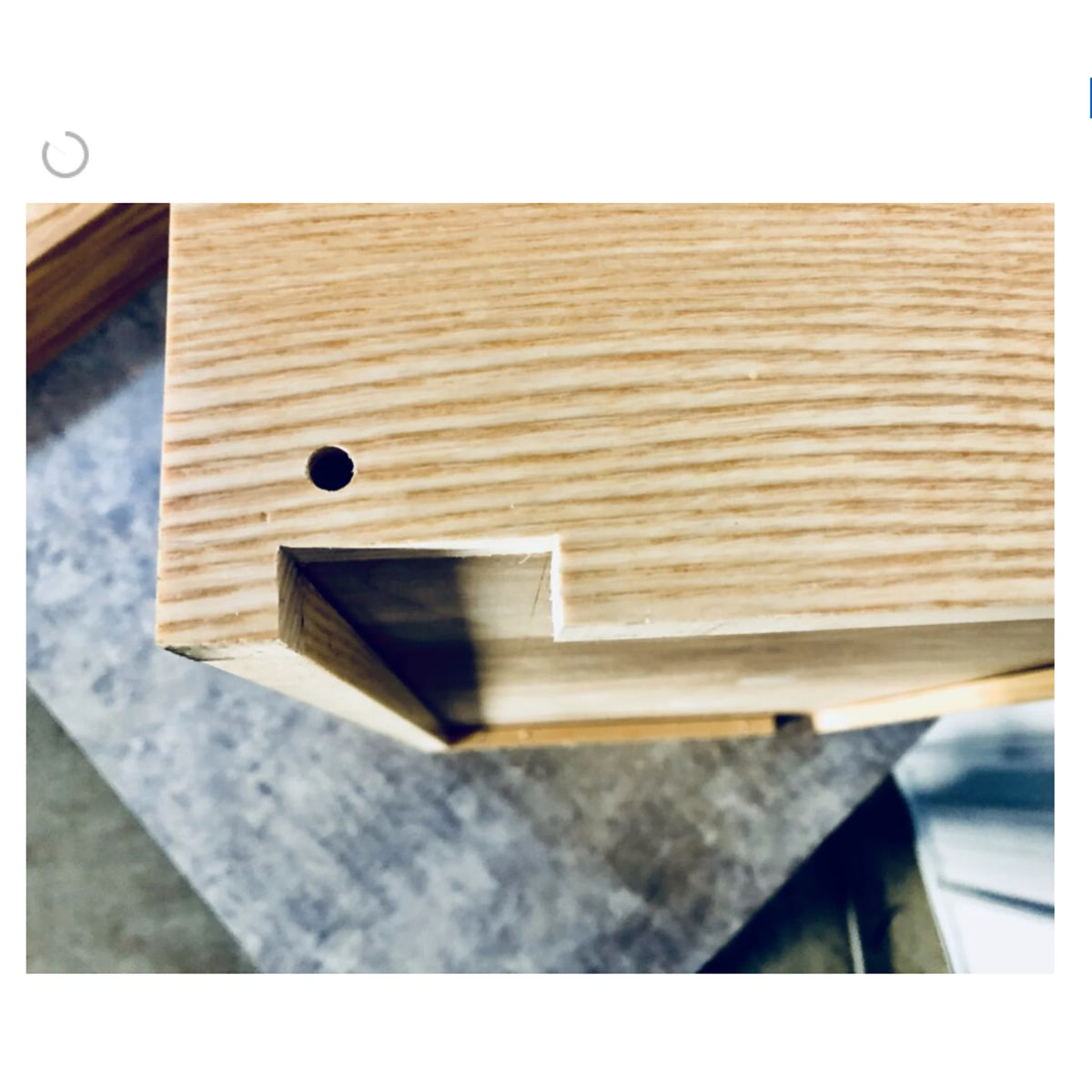

• Undermount notch and locating hole drilled simultaneously
• Center stop allows easy drawer positioning regardless of box width
• Low-maintenance machine designed for long service life

Application Specifications

• Notch Dimension: 35mm W × 1/2″ H
• Locating Hole Diameter: 6mm
• Operating Performance: Over 200 boxes per hour

Drive Package Specifications

• Main Motor: 1.5 HP
• Pneumatic Drill Included

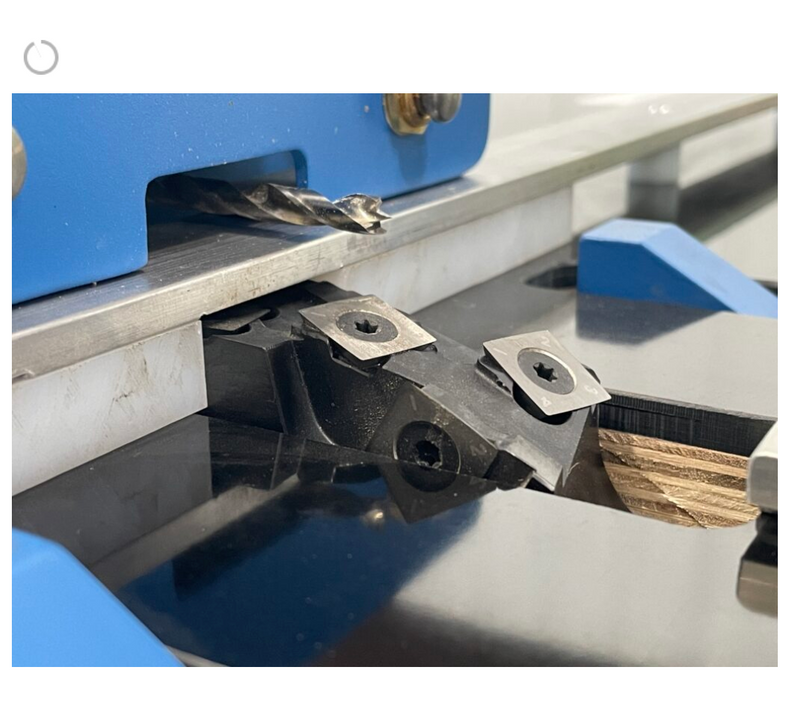

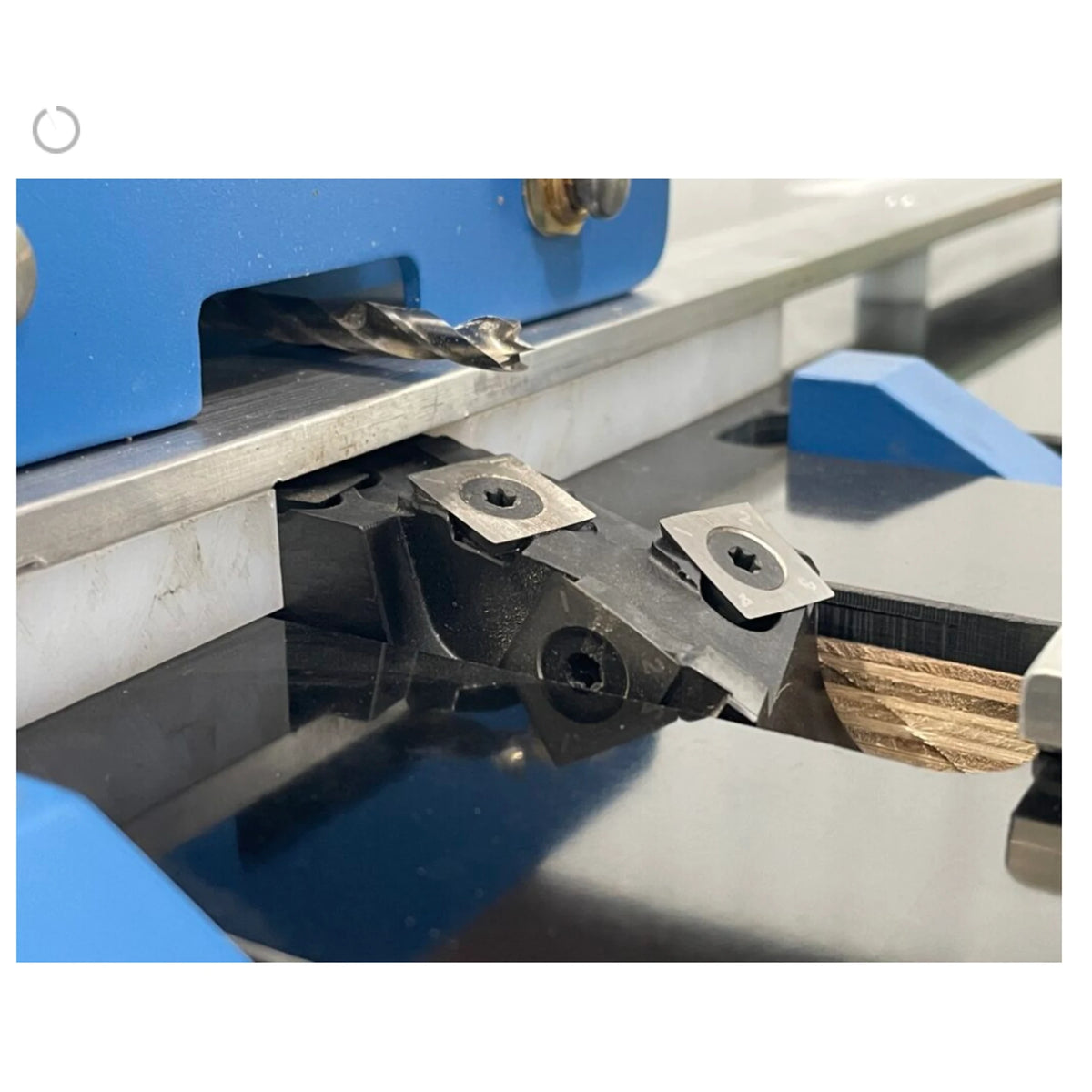

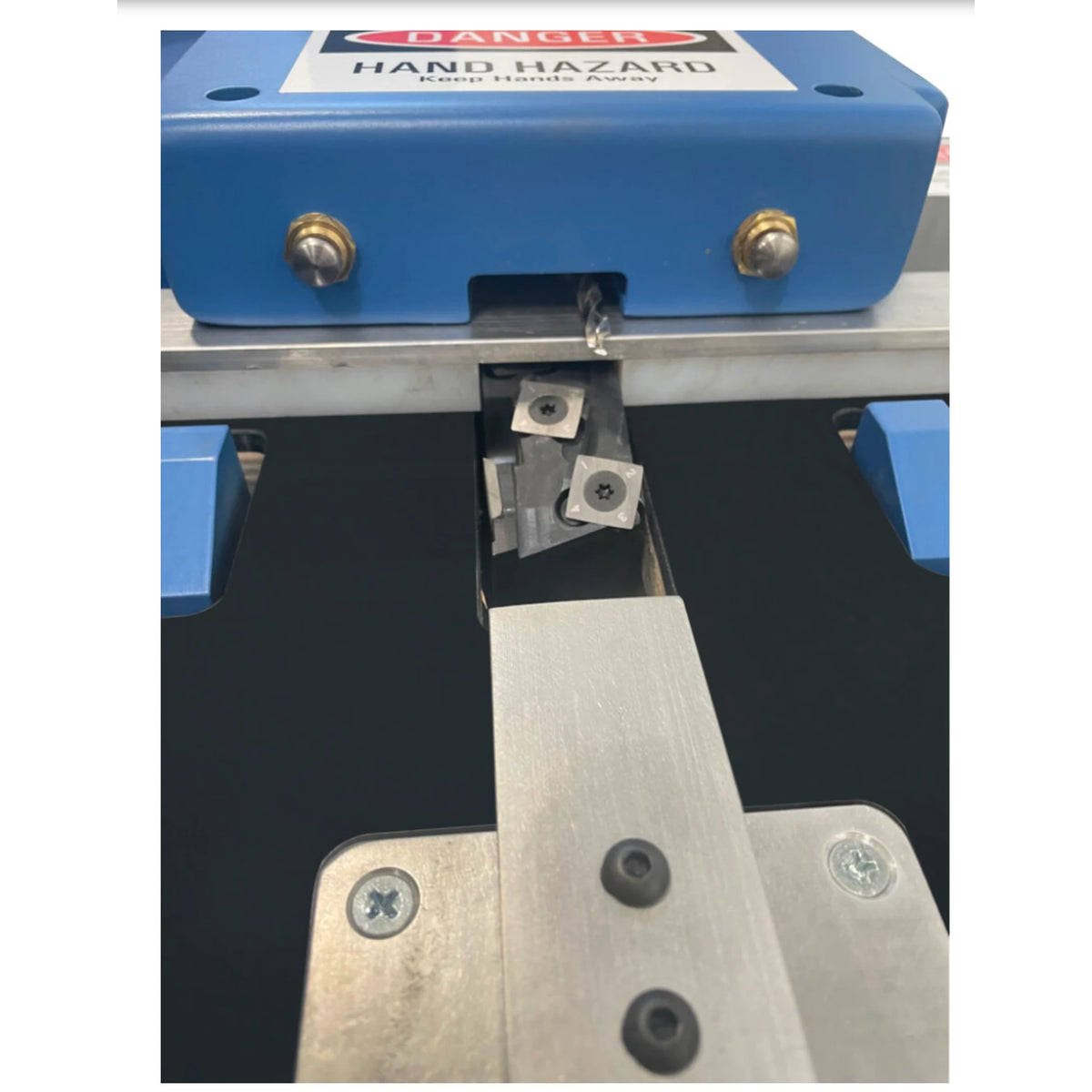

• Insert Cutterhead
• Available in 120V or 220V single-phase, or 230V / 460V three-phase configurations
• Hydraulic and pneumatic drive packages also available

Utility Requirements

• Dust Collection: 670 CFM with 4″ outlet
• Pneumatic Requirement: 90–100 PSI for drill and control system

Machine Dimensions

• Table Size: 22″ × 48″
• Table Height: 36″
• Machine Footprint: 52″ W × 42″ D × 42″ H
