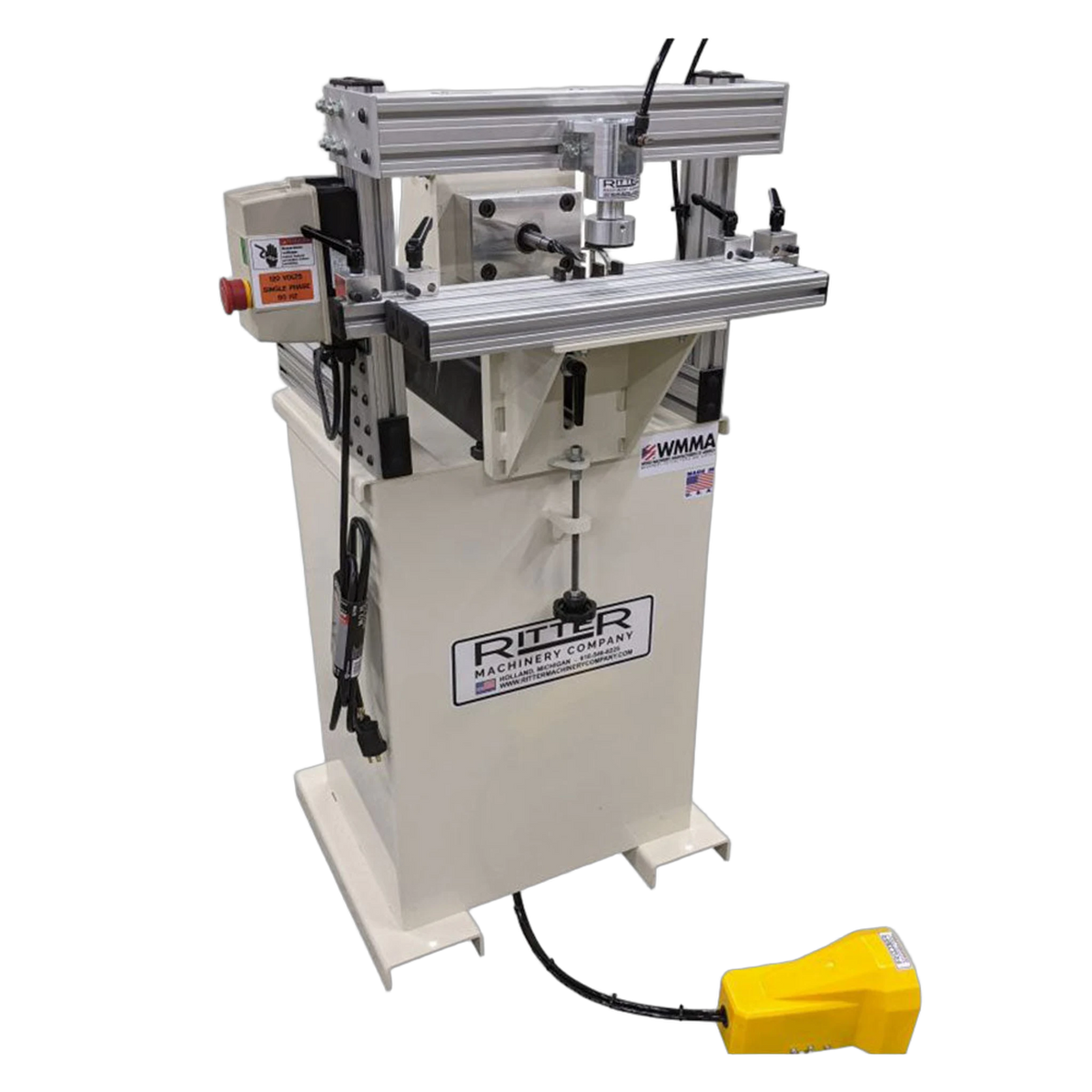

Ritter R130 Single Spindle Horizontal Borer – front

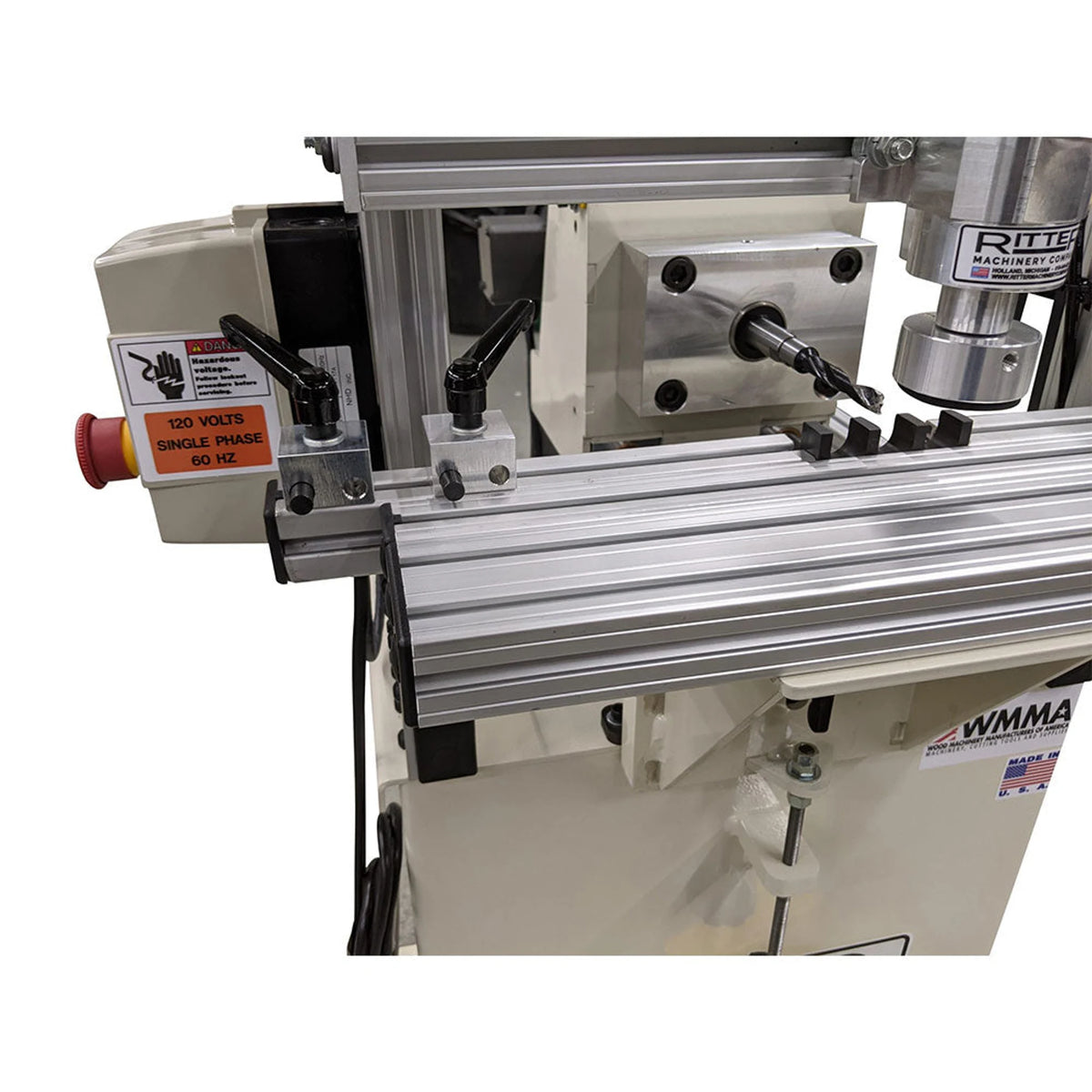

Ritter R130 Single Spindle Horizontal Borer – alternate view 2
Ritter R130 Single Spindle Horizontal Borer – front
Ritter R130 Single Spindle Horizontal Borer – alternate view 2

Ritter R130 Single Spindle Horizontal Borer

by Ritter Machinery
SKU R130
Save $300.00 Save $300.00
$6,590.00
$6,590.00 - $7,199.00
$6,590.00
$6,290.00
$6,290.00 - $6,980.00
$6,290.00
Shipping: $499
  • ✔ Fast & Safe Shipping Right To Your Workshop
  • ✔ Questions? Speak with a Team Member Today: (973) 319-8415
Shipping information

Orders are processed in 2–3 business days. Ground orders typically arrive in 7–10 business days. Orders over 100 lbs ship LTL freight and are scheduled with the carrier. Shipping is quoted at checkout or before fulfillment, and we ship within the United States only. See our Shipping Policy.

Returns & warranty

Every machine is sourced directly from the manufacturer and covered by the full manufacturer warranty. Report shipping damage immediately so we can help. Return terms vary by manufacturer — see our Return and Refund Policy.

The Ritter R130 is a robust, single spindle horizontal borer built to be a true workhorse in any woodworking shop. Designed and manufactured in the USA, this machine delivers clean, accurate drilling for a wide range of applications including stile and rail drilling, furniture doweling, line boring, and table pin locating. A pneumatic clamp holds the workpiece firmly against the table, while full adjustability of index stops, bed height, and depth of cut ensures precise results every time.

Key Features

  • Single Spindle Head
  • 7/16-14 Female Threaded Collet
  • 1 H.P. Spindle Drive Motor, TEFC
  • 0–2″ Adjustable Boring Depth
  • 8″ x 20″ Work Table Area
  • 4 Material Positioning Stops
  • Wired 1-Phase, 110 Volt, 60 Hz
  • Foot Actuated Boring Cycle
  • Designed and Manufactured in the USA

 Common Uses

  • Stile and rail drilling
  • Furniture doweling
  • Line boring
  • Table pin locating
  • General wood component drilling

 Specifications

  • Motor: 1 H.P., TEFC, 1-Phase, 110V, 60 Hz
  • Collet: 7/16-14 Female Threaded
  • Boring Depth: 0–2″ Adjustable
  • Work Table: 8″ x 20″
  • Positioning Stops: 4
  • Crated Dimensions: 38″ x 38″ x 55″
  • Crated Weight: 381 lbs
  • Tooling: Not Included
