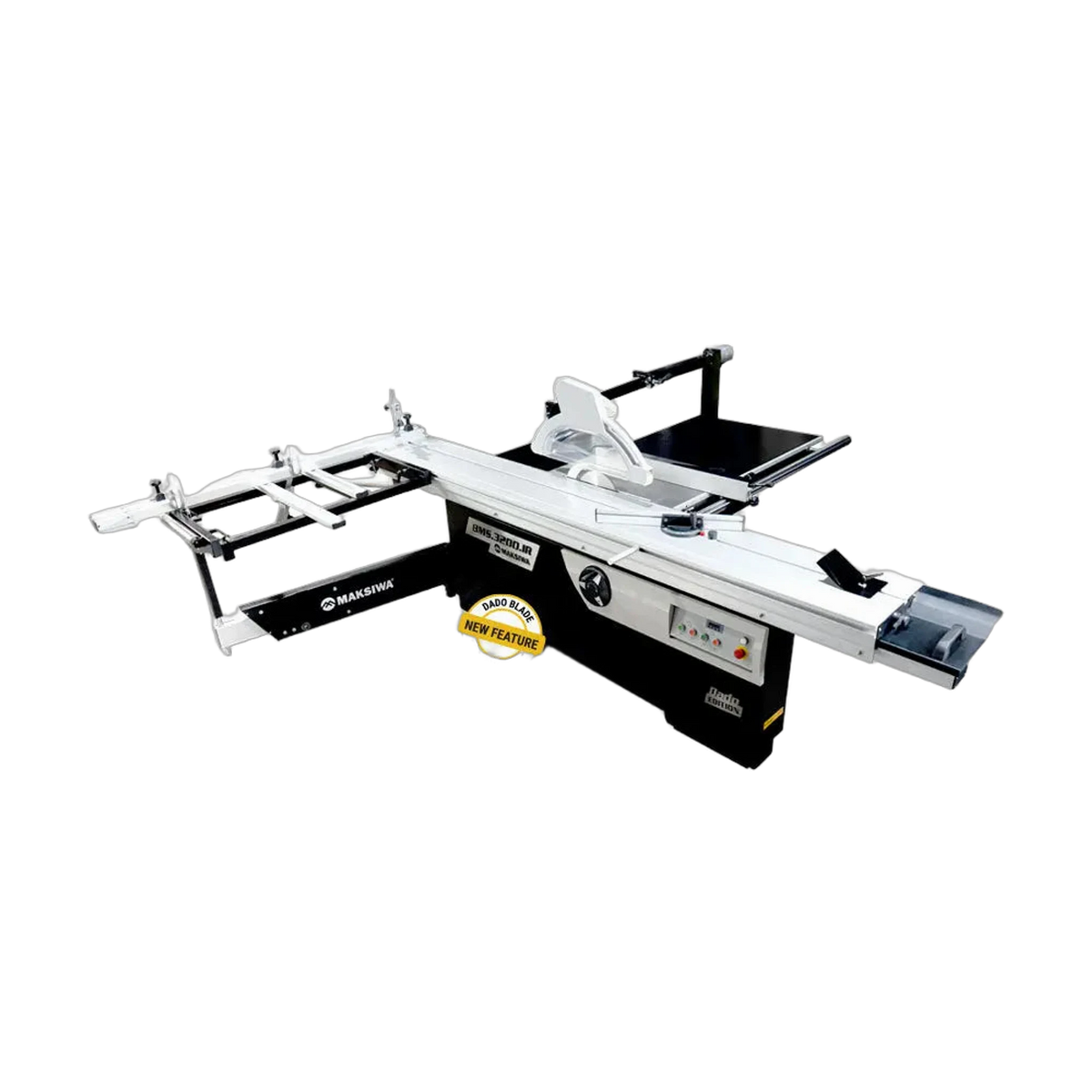

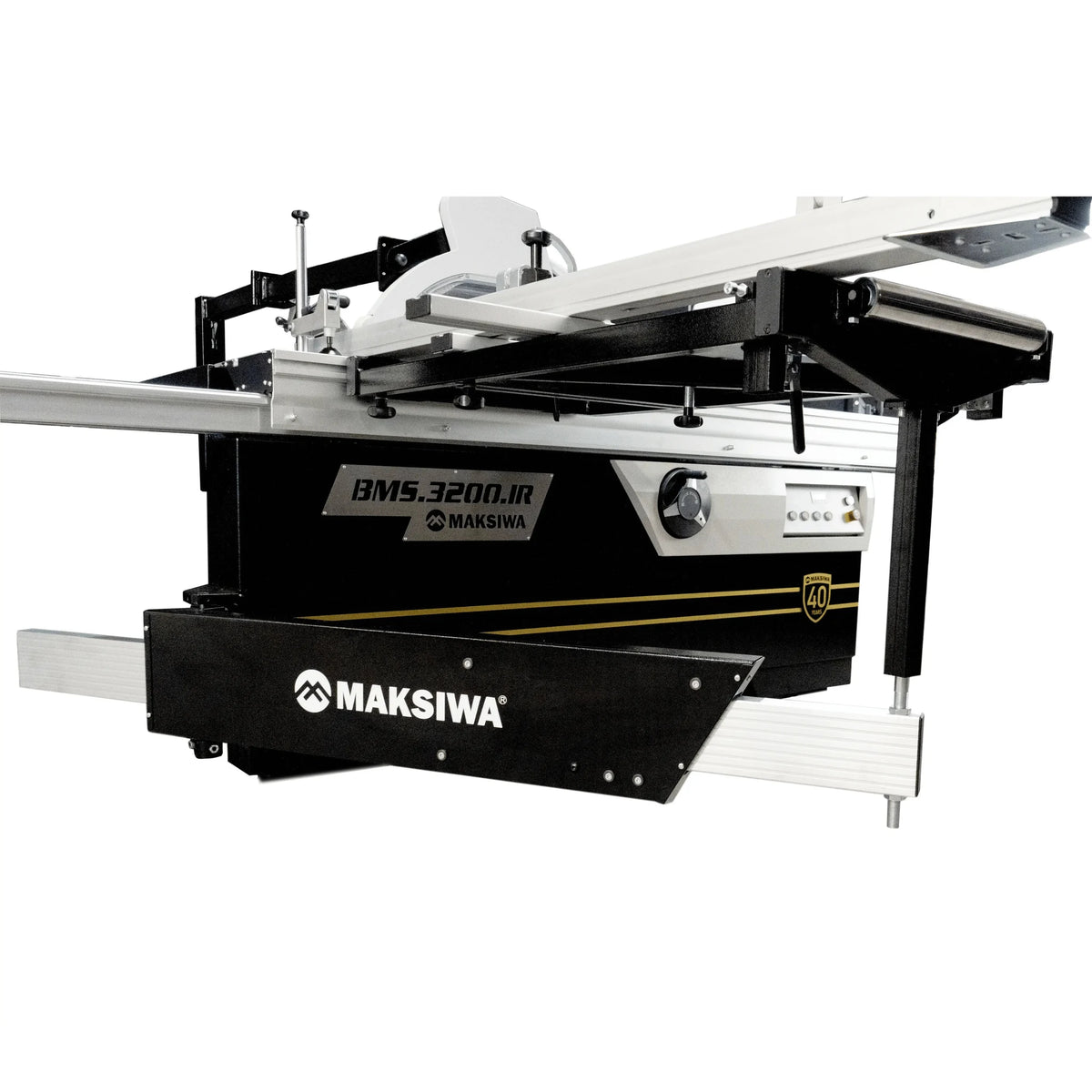

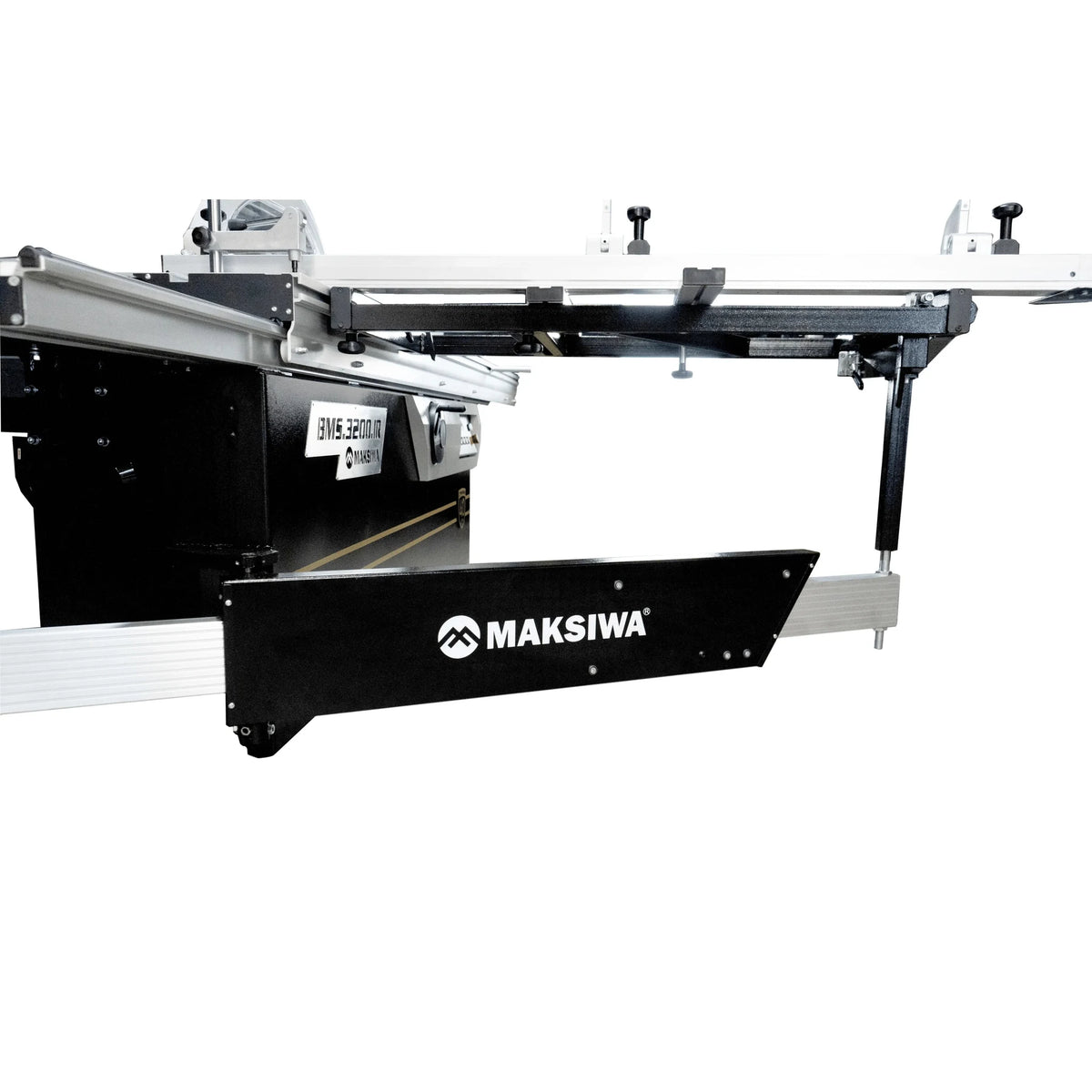

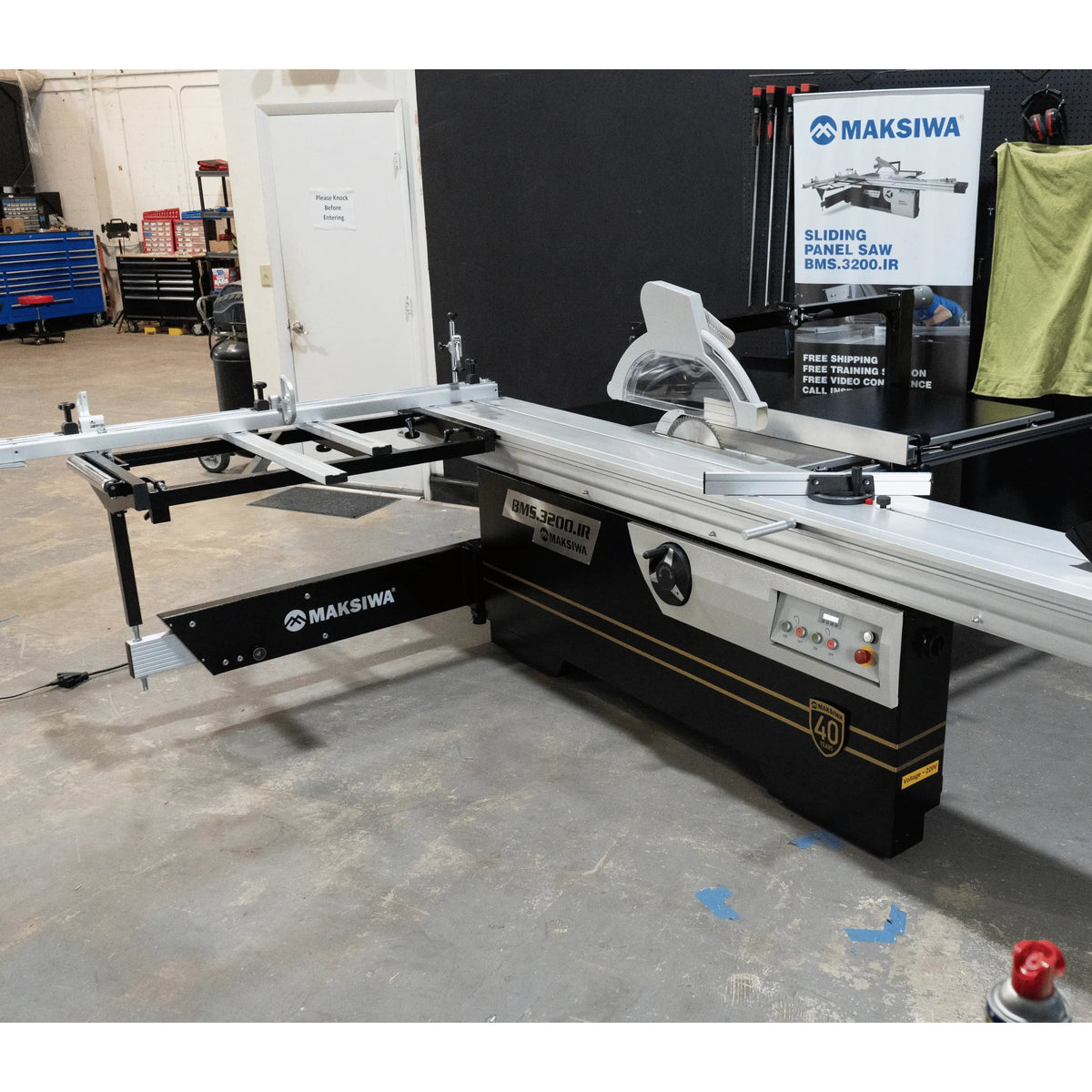

Maksiwa BMS.3200.IR Dado Edition - Sliding Panel Table Saw

The Maksiwa BMS.3200.IR Dado Edition is a redesigned version of the best-selling sliding panel saw series, now with dado blade capability built in. Available in both 1 Phase and 3 Phase 220V configurations, it fits a wide range of shop electrical setups while delivering the power and precision that demanding cabinet production requires.

Dado Cutting Built In

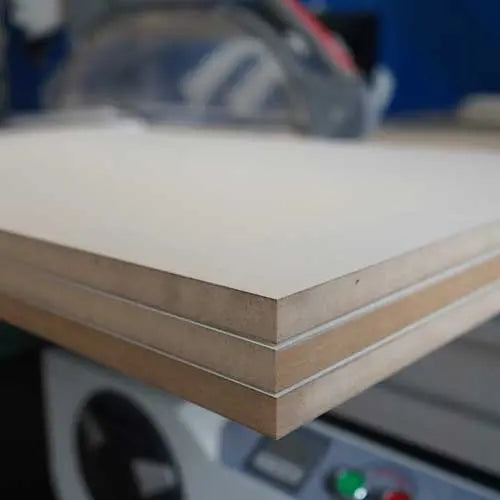

Compatible with an 8" dado blade and a maximum stack capacity of 1-1/4", the BMS.3200.IR cuts clean, chip-free dadoes for joinery and cabinetmaking without needing a separate machine. Easy blade access lets you switch between dado and standard blades quickly, keeping production moving between operations.

Large Panel Capacity

The 14-3/4" x 132" sliding table travels up to 280", handling panels up to 120" in cutting length with ease. The fixed table extends to a maximum width of 52", and the guide adjusts from 71" closed to 128" fully open. At a maximum working footprint of 192" x 280", the BMS.3200.IR is built for shops running full-size sheet goods through a high-production workflow.

Power Across All Configurations

The 5HP main motor and 3/4HP scoring motor work in tandem to deliver precise, tear-free cuts across veneered, melamine, and solid wood panels. The scoring blade runs at a conical profile to prevent chipping on the underside of the panel before the main blade completes the cut. Both single and three phase options are available to match existing shop electrical infrastructure. Backed by a 2-year warranty.

General Specifications

• Weight: 1,470 lbs
• Machine Dimensions (closed): 133" x 135" x 65"
• Machine Dimensions (max): 192" x 280" x 65"

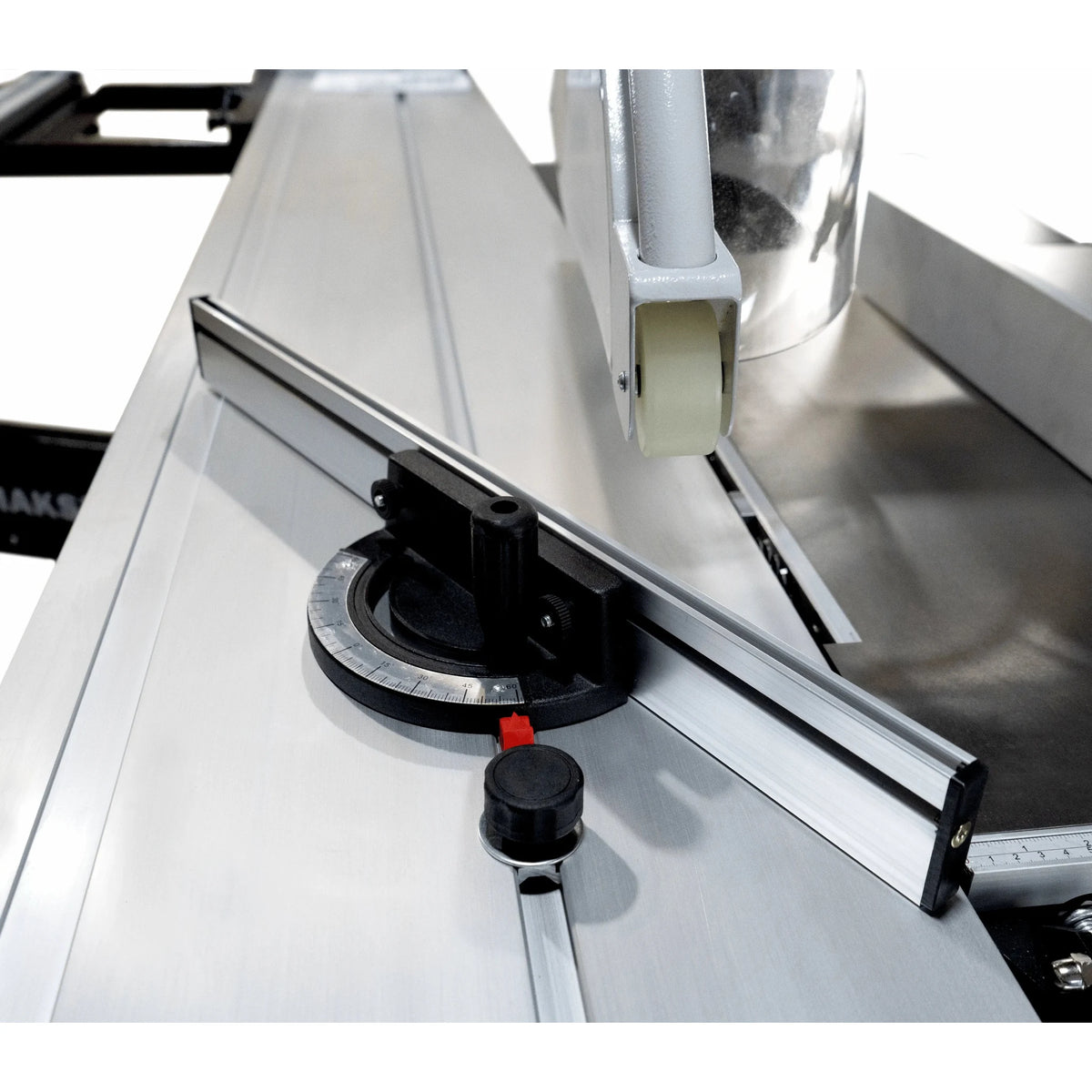

• Sliding Table Dimensions: 14-3/4" x 132"
• Sliding Table Max Travel: 280"
• Fixed Table Max Width: 52"

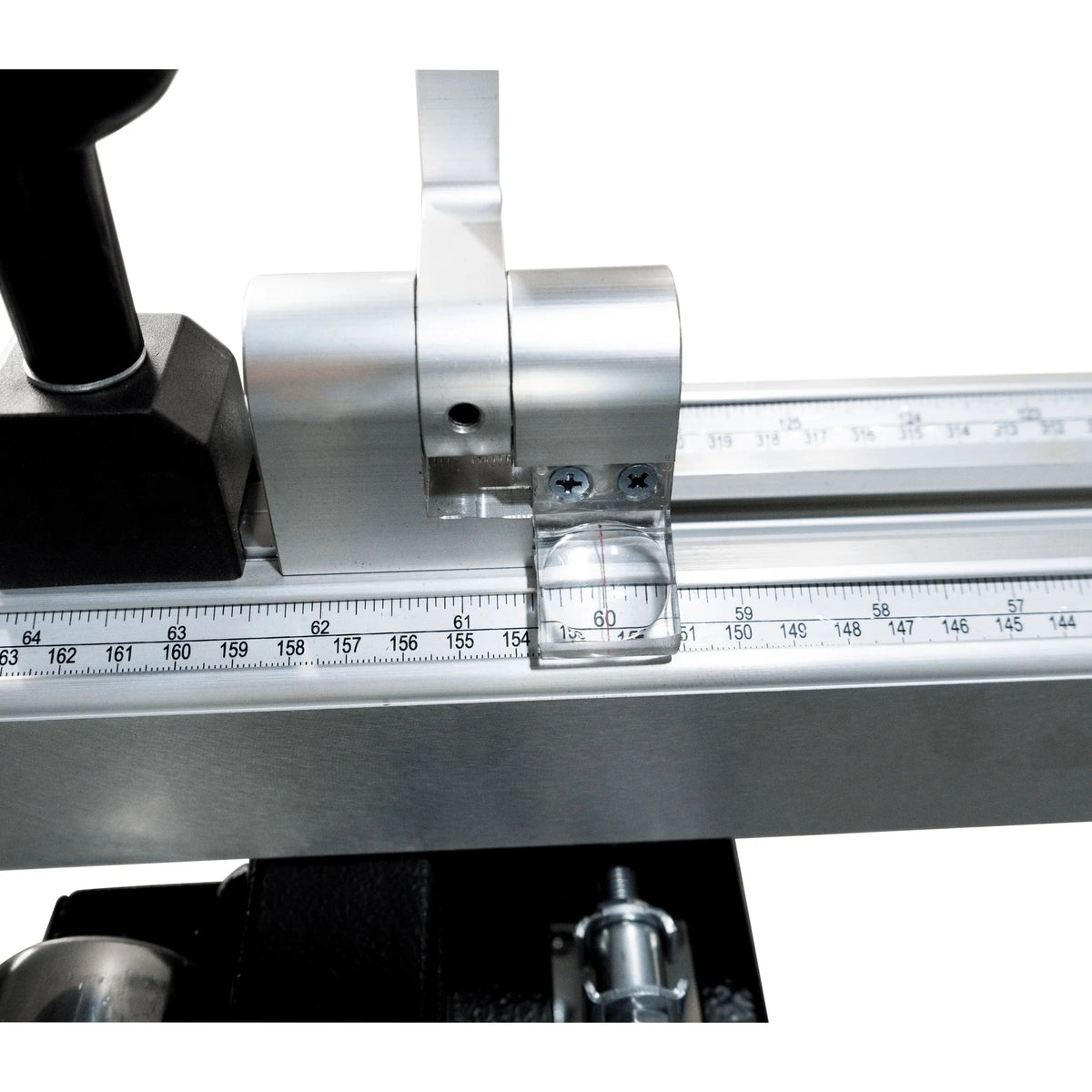

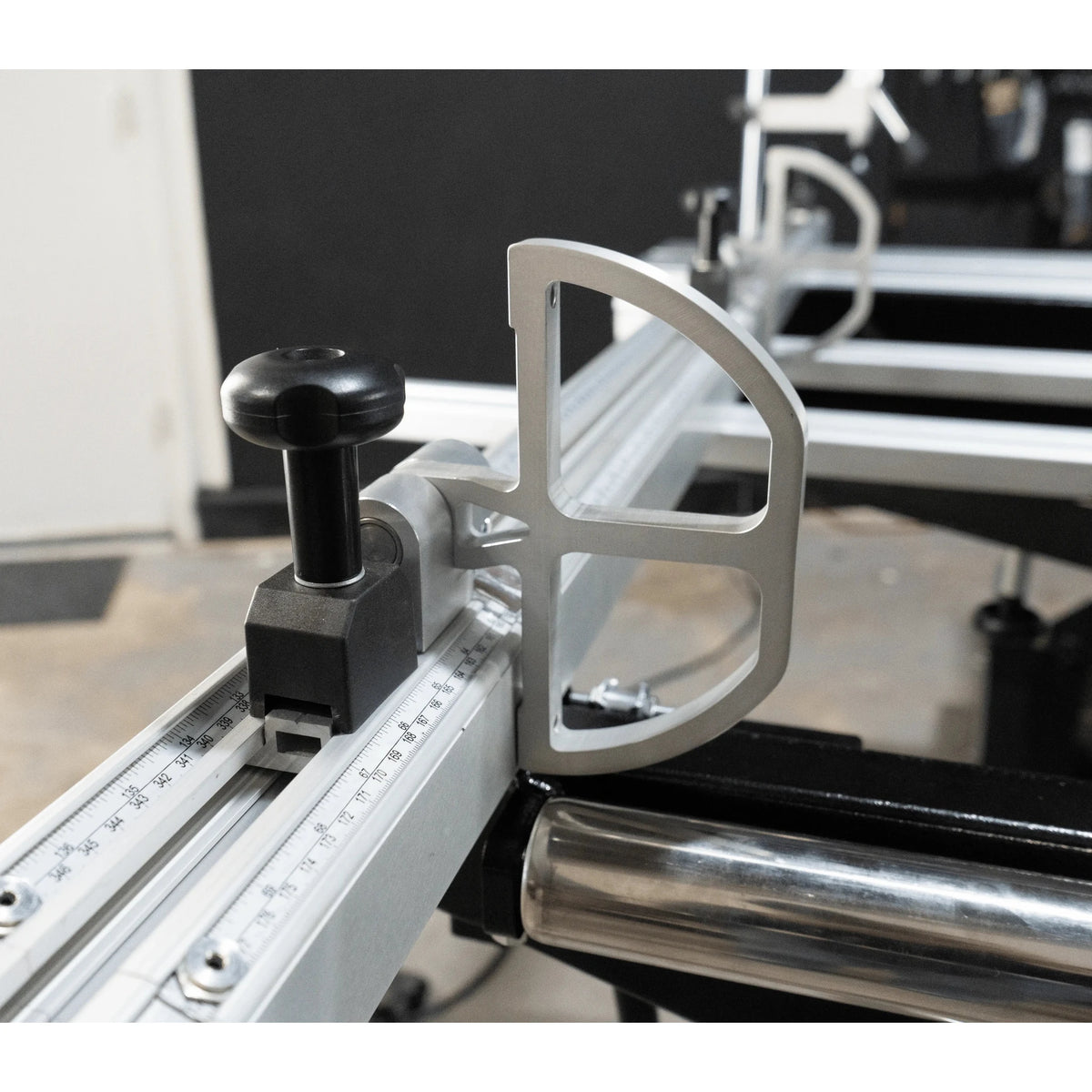

• Guide Size (closed): 71"
• Guide Size (max): 128"

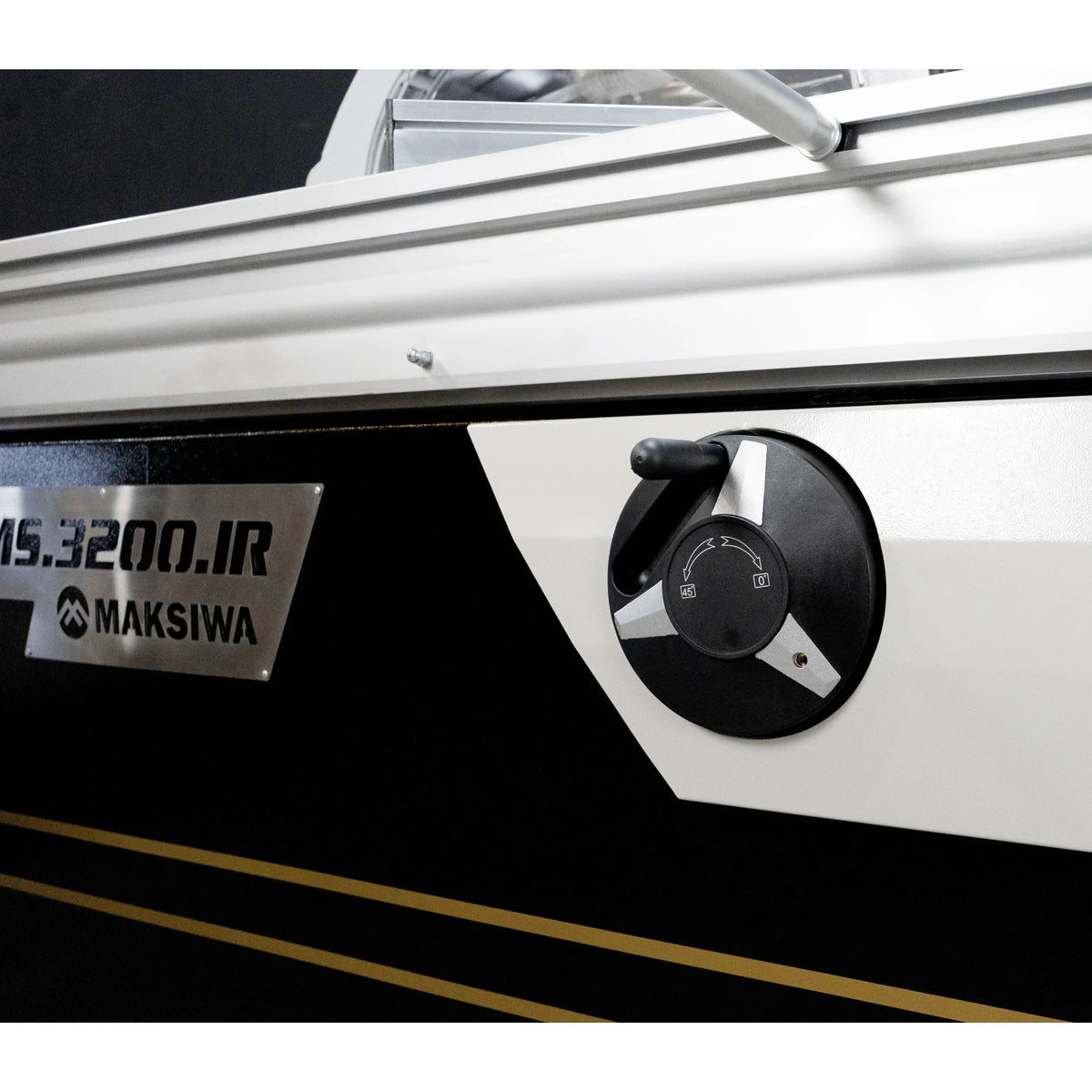

• Max Tilt: 45°
• Max Depth of Cut: 3"
• Max Cutting Length: 120"

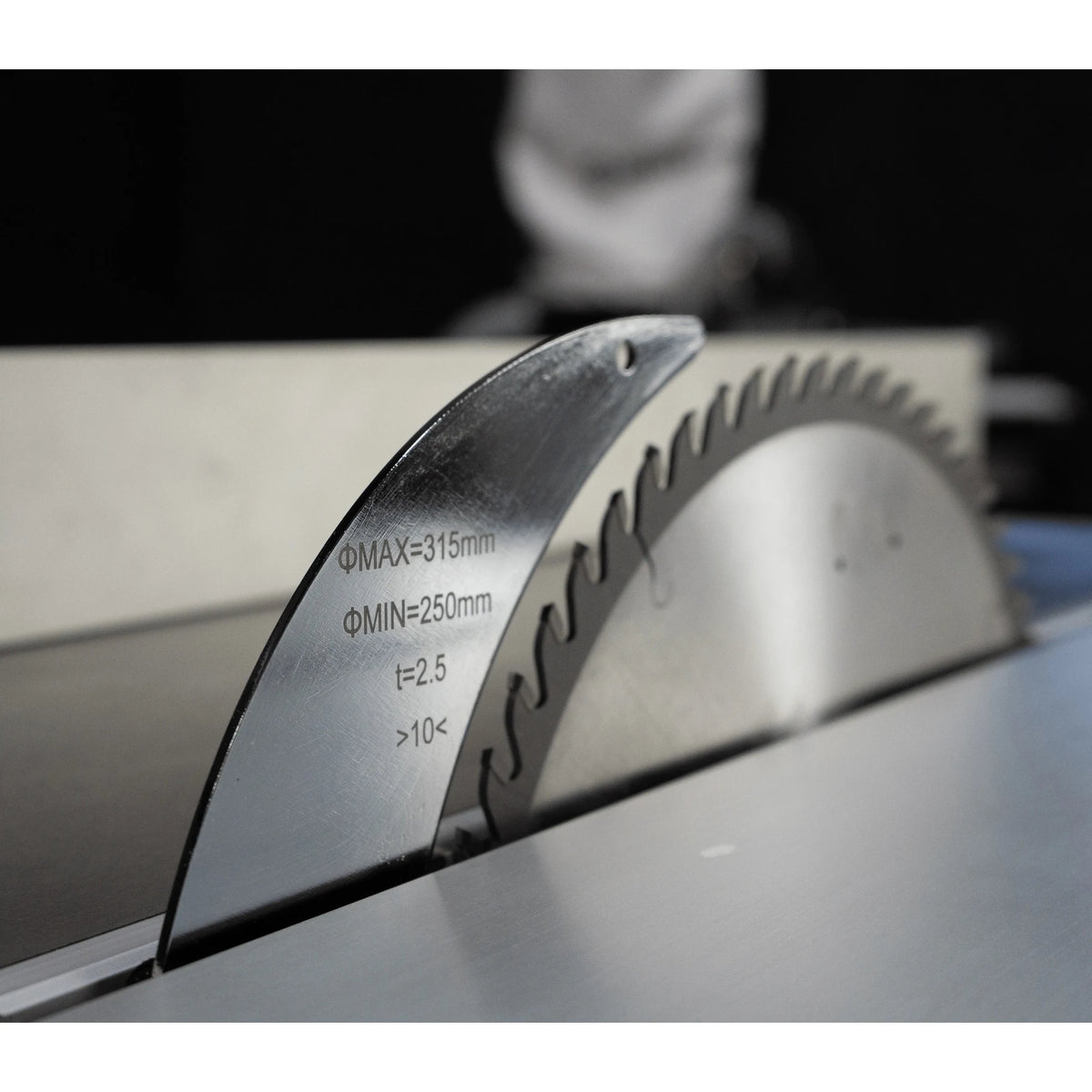

• Main Blade Diameter: 12"
• Main Blade Arbor Size: 1-3/16"
• Scoring Blade Diameter: 4-3/4"
• Scoring Blade Arbor Size: 25/32"
• Warranty: 2 years

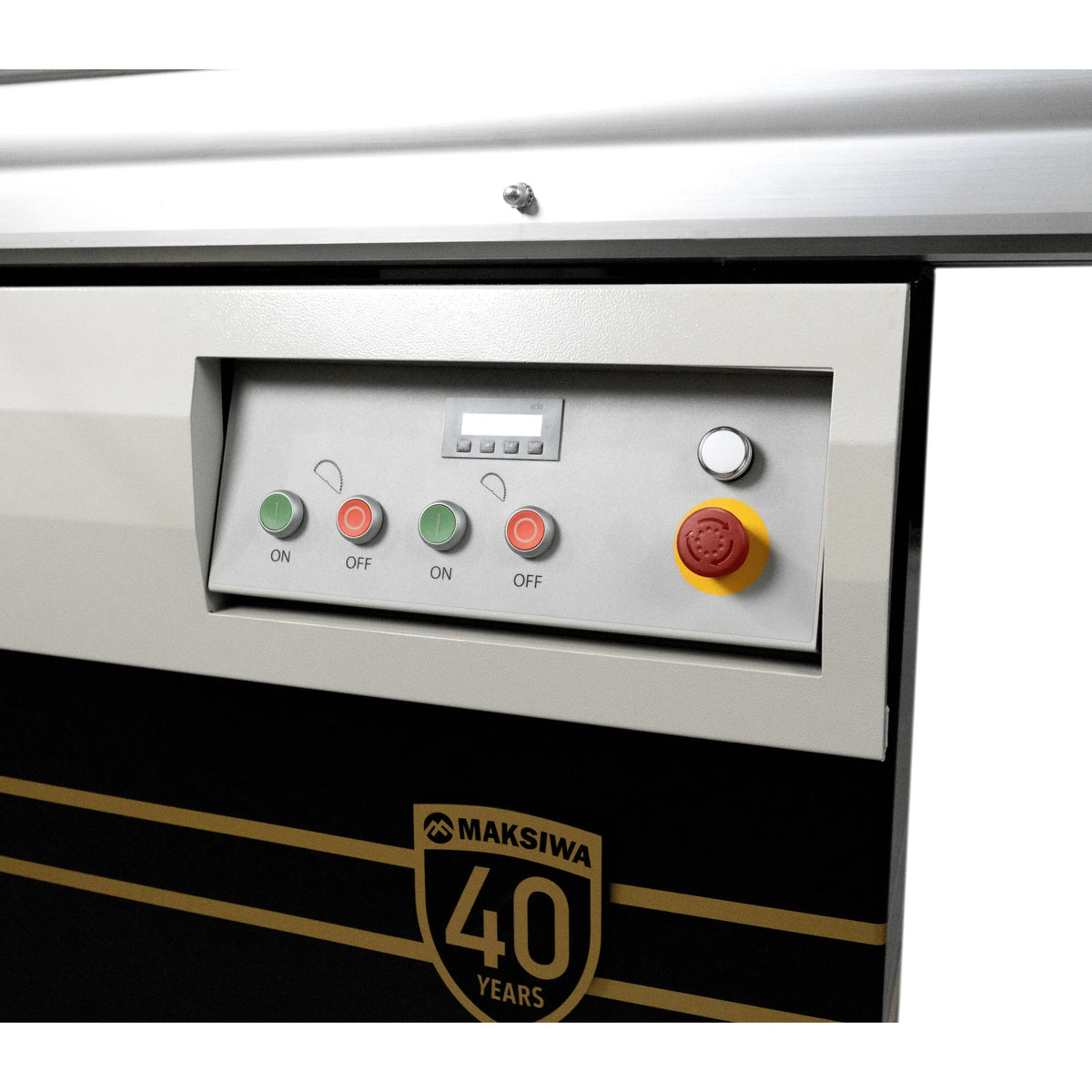

Electrical Specifications

• 3 Phase 380V, Main Motor: 3HP, 8A, 3,500 RPM
• 3 Phase 380V, Scoring Motor: 3/4HP, 1.8A, 3,500 RPM
• 3 Phase 220V, Main Motor: 5HP, 15A, 3,500 RPM
• 3 Phase 220V, Scoring Motor: 3/4HP, 3A, 3,500 RPM
• 1 Phase 220V, Main Motor: 5HP, 20A, 3,400 RPM
• 1 Phase 220V, Scoring Motor: 3/4HP, 5.5A, 3,400 RPM
