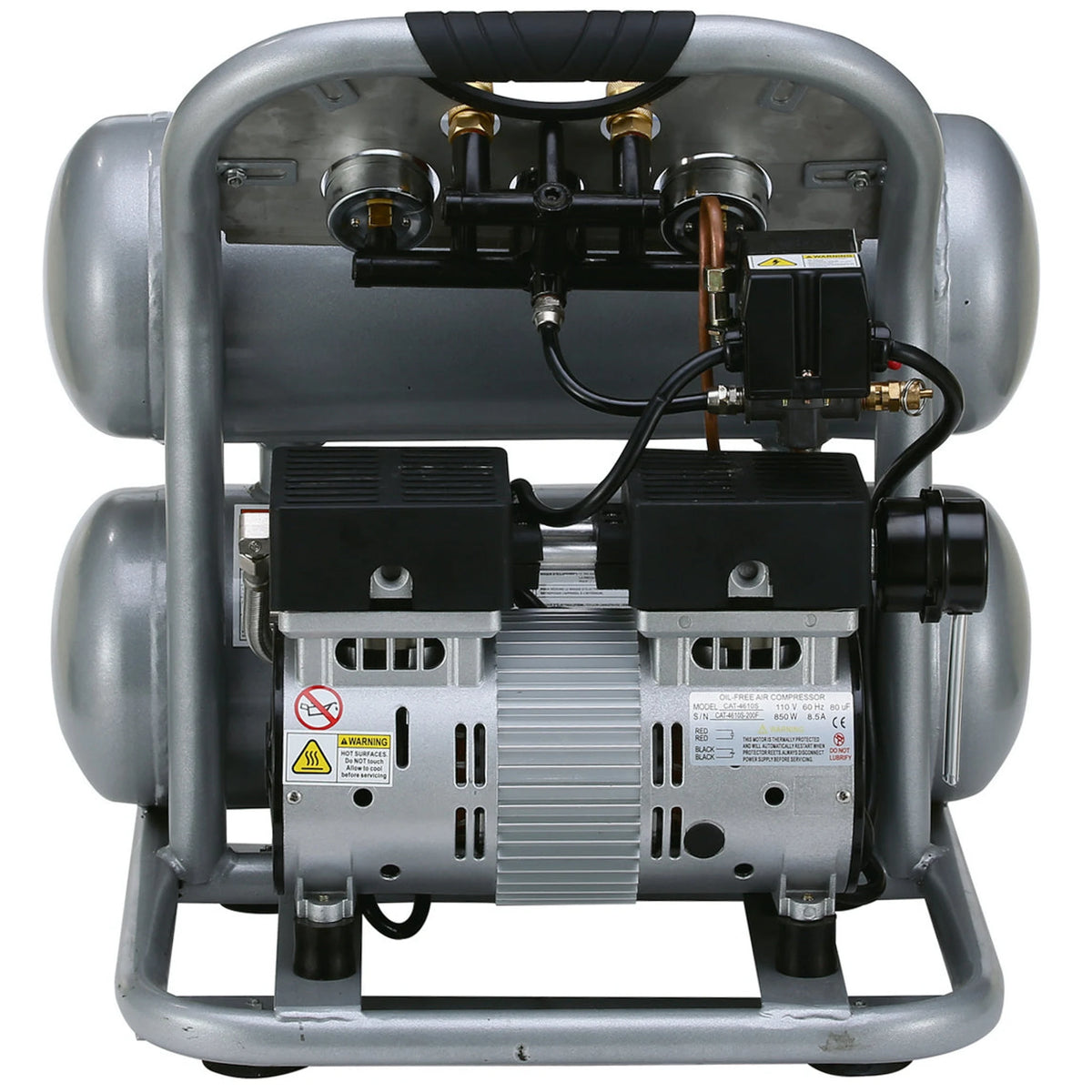

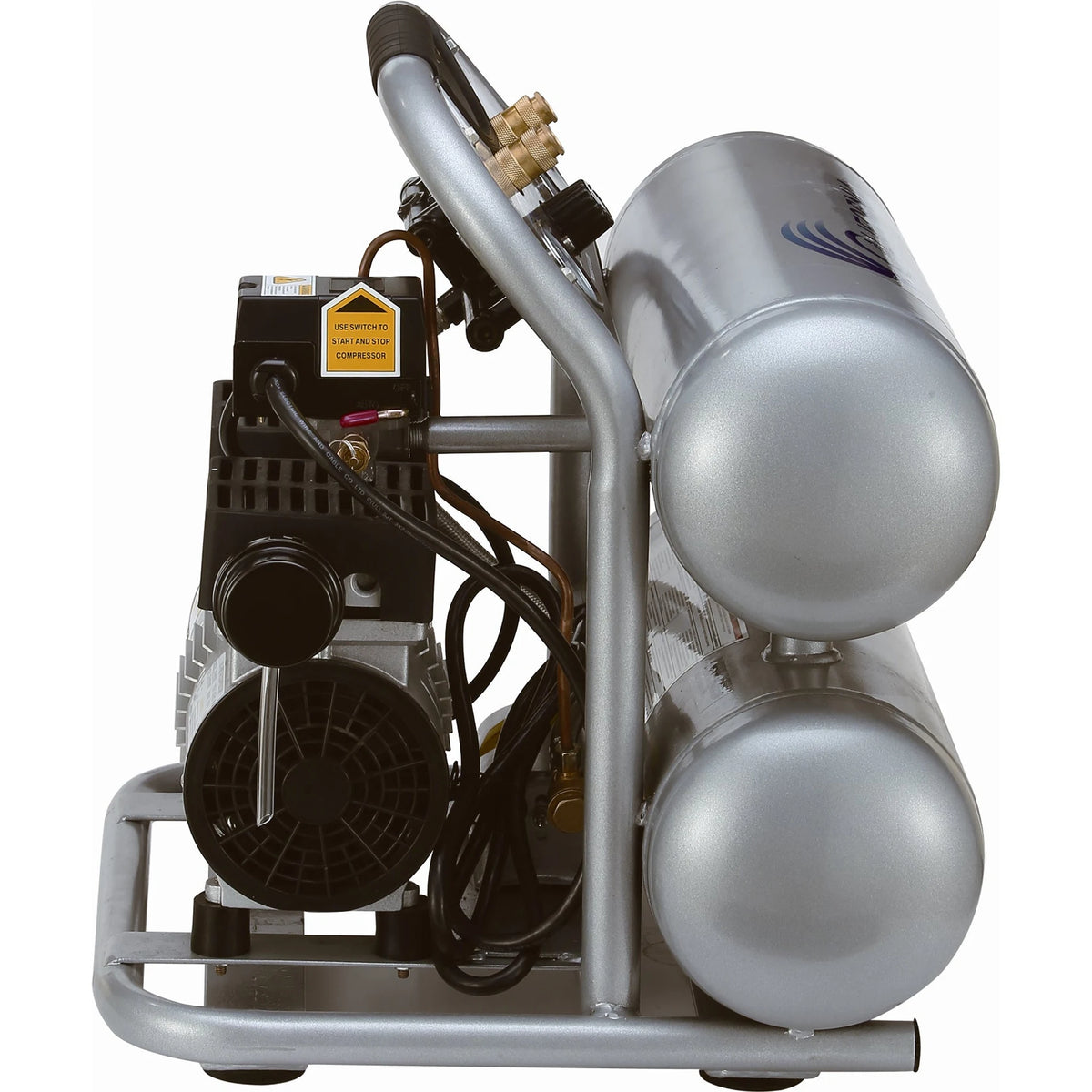

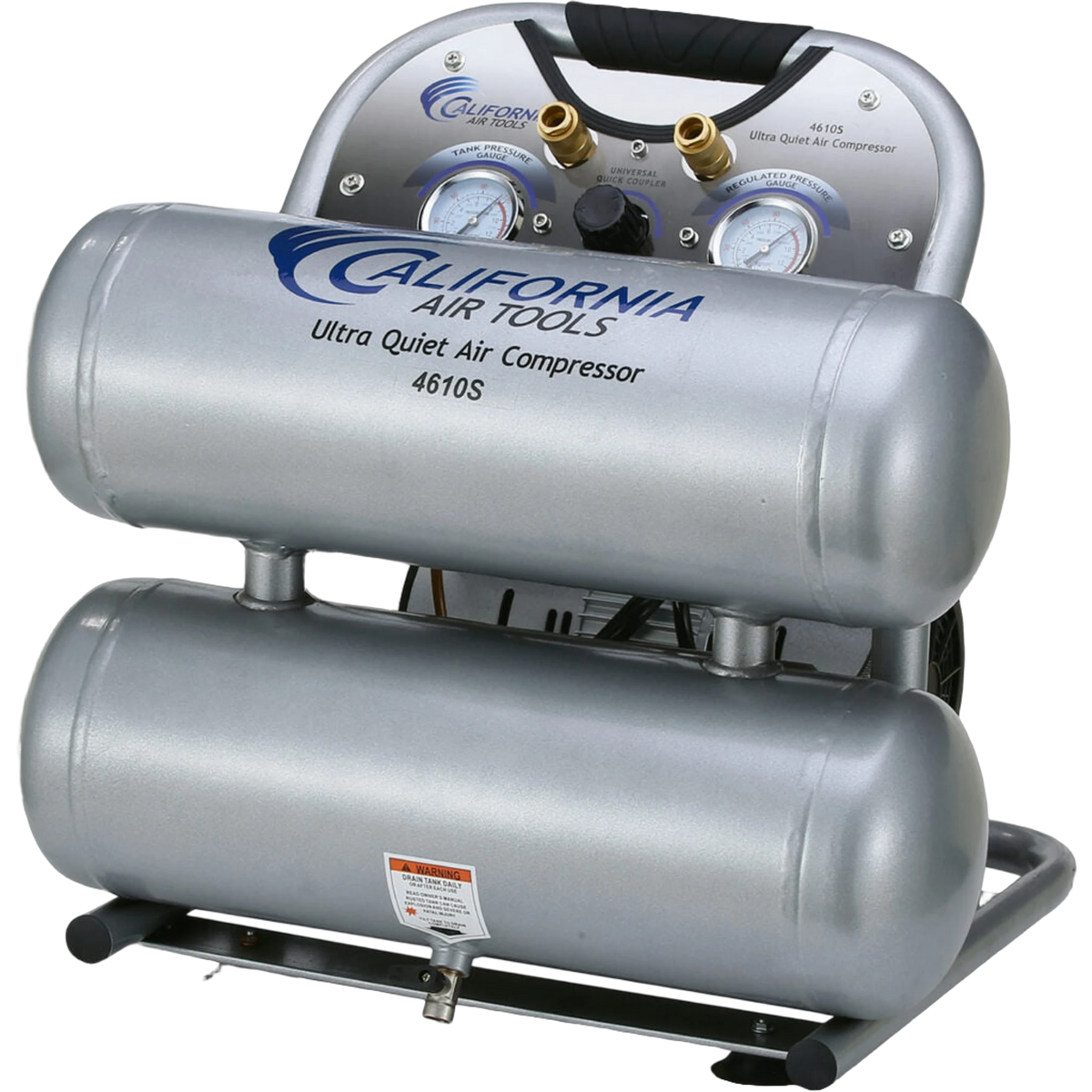

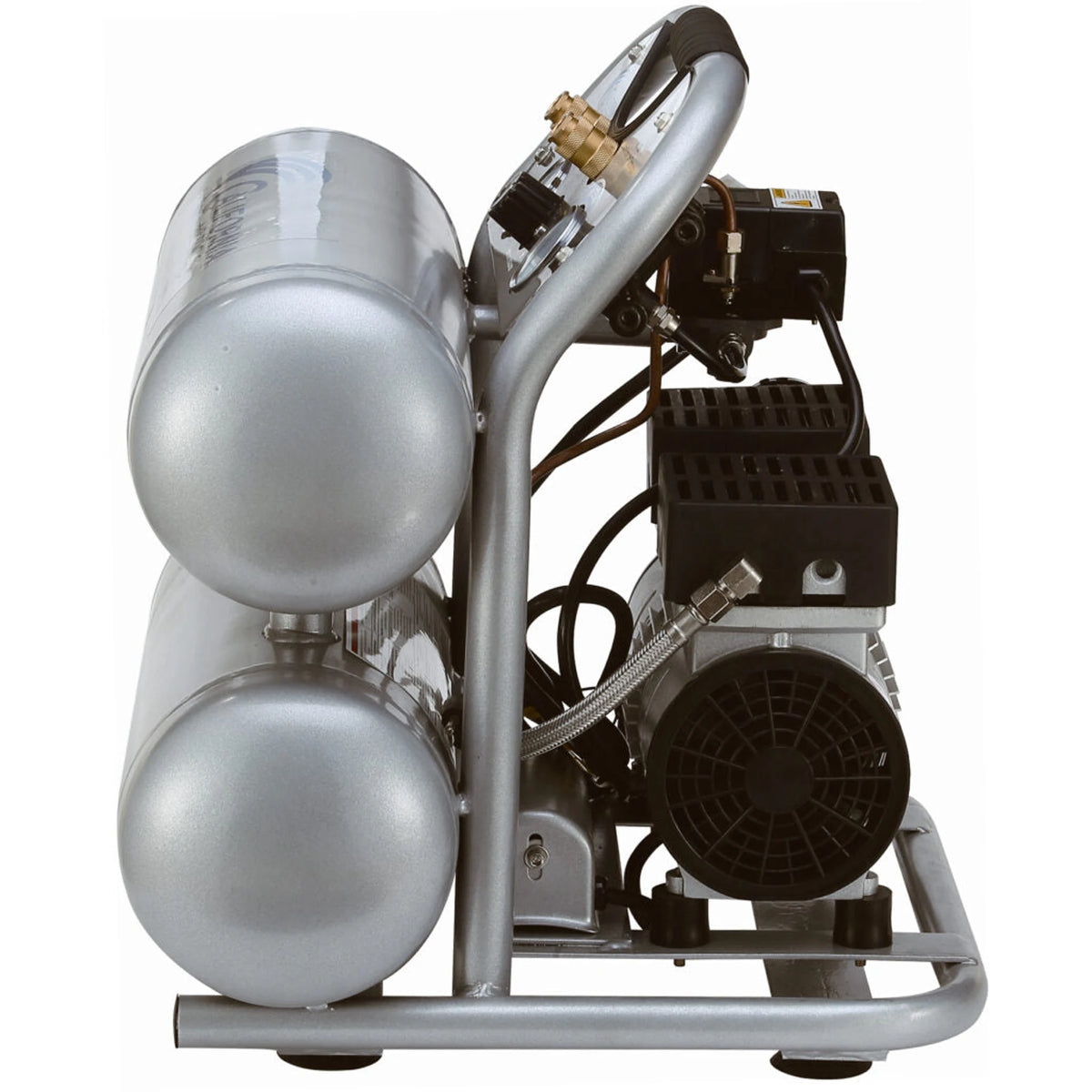

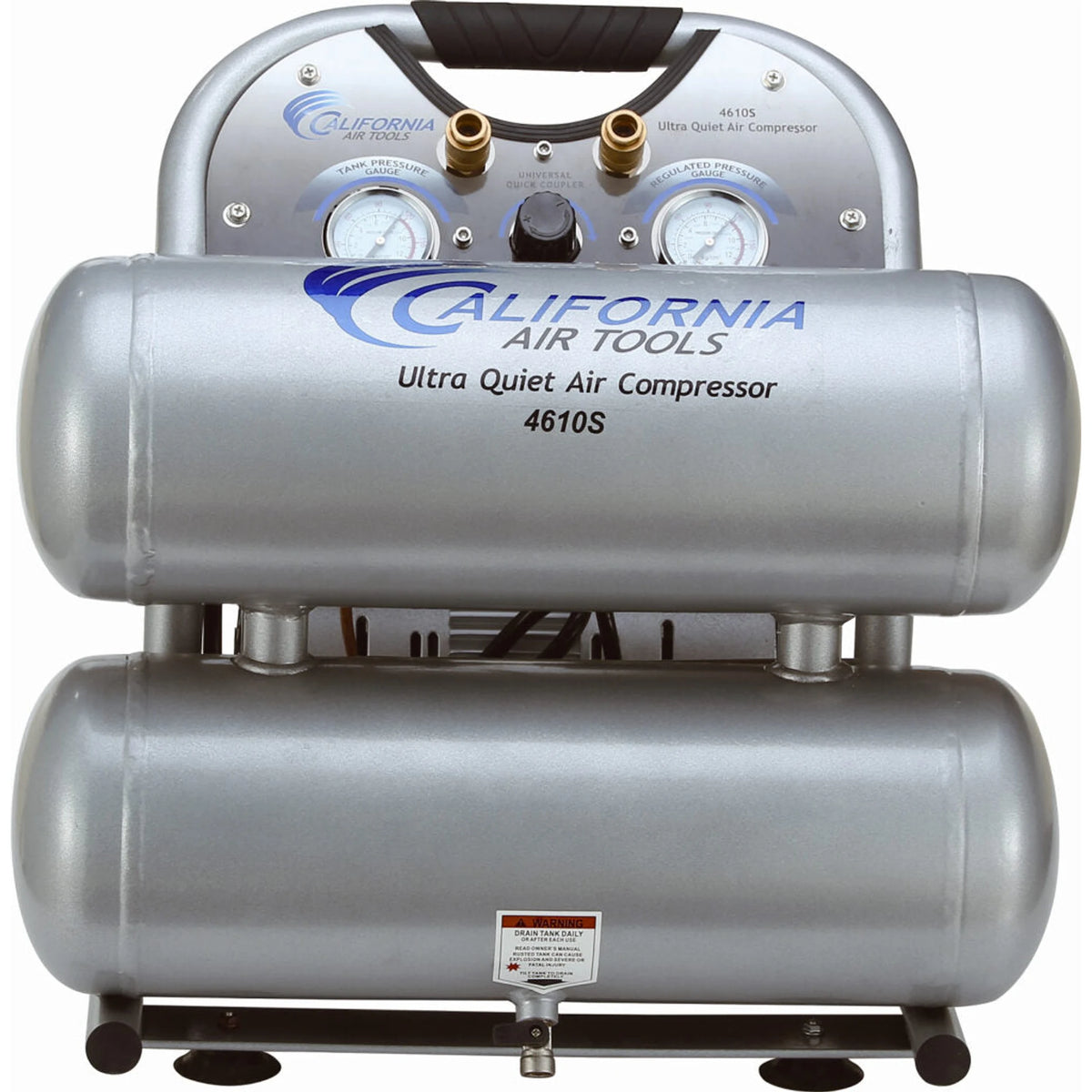

California Air Tools 4610S 1 HP 4.6 Gallon Oil-Free Air Compressor

The California Air Tools 4610S Air Compressor is designed for portable compressed air use in workshops, garages, and indoor work environments. The compressor uses an oil-free dual piston pump designed to reduce maintenance while providing consistent compressed air output.

A 1.0 HP motor operating at approximately 1680 RPM helps reduce operating noise and mechanical wear. The compressor includes a 4.6 gallon steel air tank designed to provide increased air storage while maintaining portability.

The unit is suitable for inflation tasks and light pneumatic tool applications where a compact and portable air compressor is required.

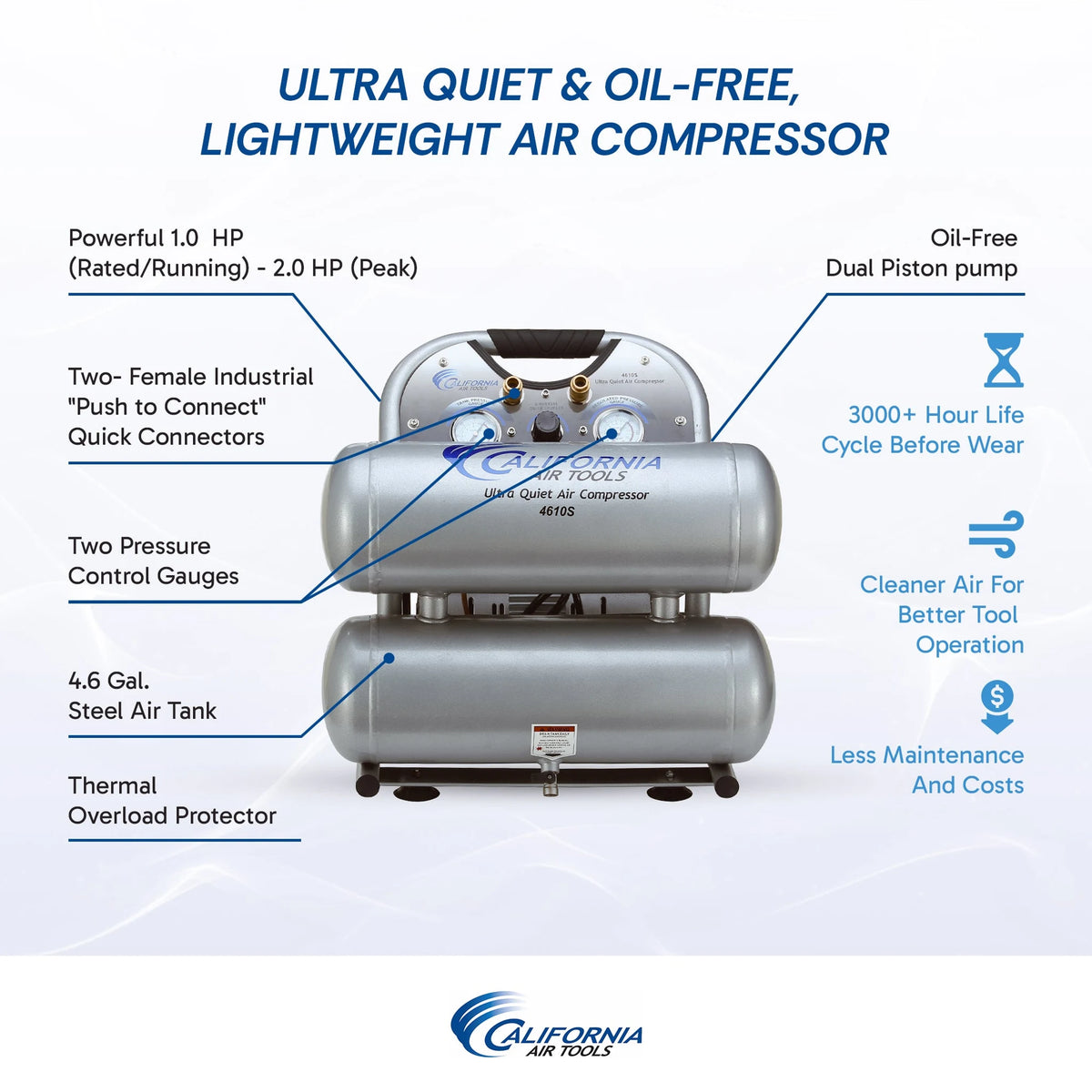

Standard Equipment

• Oil-free dual piston compressor pump
• 4.6 gallon steel air tank
• Dual pressure control gauges
• Two industrial push-to-connect quick connectors
• Thermal overload protector
• Air filter
• 1 year limited manufacturer warranty

Technical Data + Specifications

• Motor Power: 1.0 HP (Rated / Running)
• Peak Motor Power: 2.0 HP
• Motor Speed: ~1680 RPM
• Air Flow: 3.10 CFM @ 40 PSI
• Air Flow: 2.20 CFM @ 90 PSI
• Maximum Pressure: 120 PSI
• Noise Level: 60 dB
• Voltage: 110V / 60 Hz
• Minimum Generator Requirement: 2500 Running Watts
• Amperage: 8.5 Amps
• Duty Cycle: 70/30
• Tank Capacity: 4.6 Gallon
• Tank Material: Steel
• Tank Fill Time (Empty to Full): ~130 seconds
• Recovery Time (90 PSI to 120 PSI): ~30 seconds

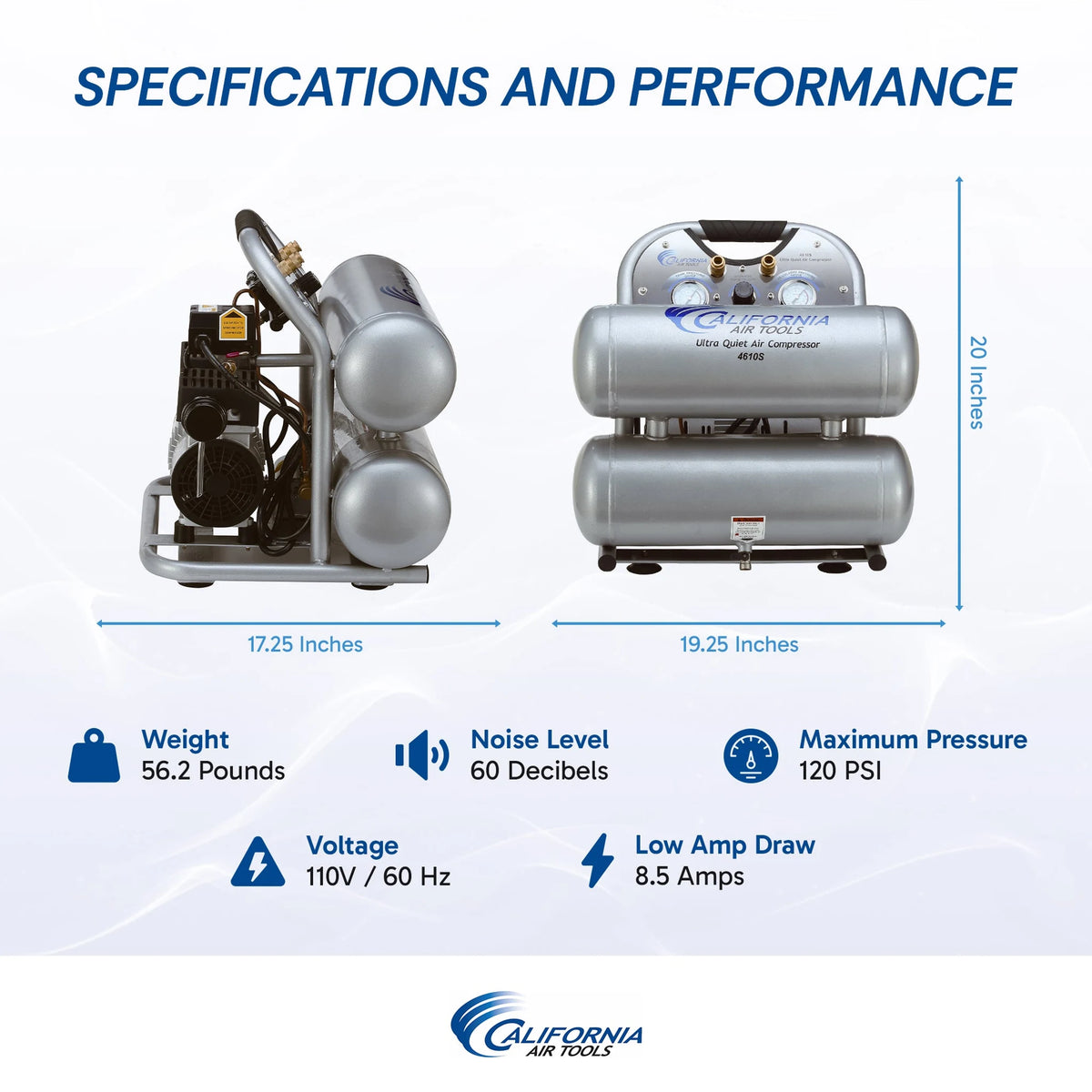

• Dimensions: 19.2" L x 17.25" W x 20" H
• Weight: 56.2 lbs
