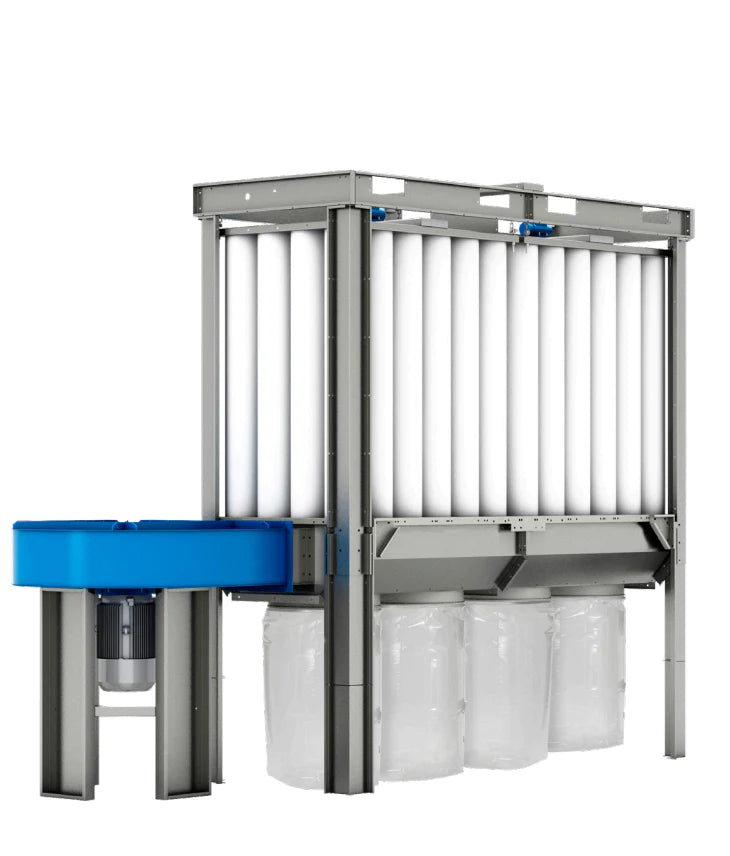

COIMA USA SHK-4 15 HP / 6400 CFM Enclosureless Dust Collector with Shaker – front

COIMA USA SHK-4 15 HP / 6400 CFM Enclosureless Dust Collector with Shaker – alternate view 2

COIMA USA SHK-4 15 HP / 6400 CFM Enclosureless Dust Collector with Shaker – alternate view 3

COIMA USA SHK-4 15 HP / 6400 CFM Enclosureless Dust Collector with Shaker

Name: COIMA USA SHK-4 15 HP / 6400 CFM Enclosureless Dust Collector with Shaker
Brand: Coima USA
SKU: SHK-4
Price: 23995.0 USD
Availability: InStock

by Coima USA

SKU SHK-4

Save $2,804.00

$25,999.00

$25,999.00 - $26,999.00

$25,999.00

$23,995.00

$23,995.00 - $24,195.00

$23,995.00

Shipping: $1300

✔ Fast & Safe Shipping Right To Your Workshop
✔ Questions? Speak with a Team Member Today: (973) 319-8415

Quantity

Shipping information

Orders are processed in 2–3 business days. Ground orders typically arrive in 7–10 business days. Orders over 100 lbs ship LTL freight and are scheduled with the carrier. Shipping is quoted at checkout or before fulfillment, and we ship within the United States only. See our Shipping Policy.

Returns & warranty

Every machine is sourced directly from the manufacturer and covered by the full manufacturer warranty. Report shipping damage immediately so we can help. Return terms vary by manufacturer — see our Return and Refund Policy.

Description

The COIMA SHK-4 is an enclosureless dust collector designed for industrial dust collection systems that require higher airflow capacity and mechanical filter cleaning. The unit uses polyester antistatic filter media and a shaker motor system to assist with routine filter maintenance during operation.

The system is equipped with a 15 HP fan operating at 1770 RPM and is designed to provide airflow up to 6400 CFM depending on duct configuration. Filtration is provided by cylindrical filters with a total filter area of approximately 476 square feet.

The housing is constructed from 14 gauge galvanized steel. A flanged inlet adapter is required and should be selected based on the ducting layout and system requirements.

The SHK-4 is designed in accordance with NFPA 654-2020 and NFPA 664-2020 guidelines. Additional NFPA-compliant safety equipment may be available depending on the dust type and system configuration.

SHK-4 Technical Data + Specifications

Fan HP / RPM	15 / 1770
CFM	6400
Static Pressure	11" H₂O
Inlet	Flanged inlet adapter required to suit application
Filter Cleaning	1/4 HP Shaker Motor
Standard Filter Media	Polyester Antistatic Filter Media
Filter Area	476 ft² (45 m²)
Filter Efficiency	99.9219% < 2µm
Filter Size / QTY	Ø8" x 60" / 48
Sound Level	81.71 ± 3 dB(A)
Construction	14 Ga. Galvanized Steel Construction
NFPA Compliance	NFPA 654-2020 NFPA 664-2020
Additional Safety Systems	Full NFPA-compliant equipment available for most dust types
Weight	986 lbs
Ship Weight	1,096 lbs
Shipping Dimensions	2 crates @ 90" x 46" x 46" ea.

SHK-4HS Technical Data + Specifications

Fan HP / RPM	15 / 1770
CFM	5000
Static Pressure	13.5" H₂O
Inlet	Flanged inlet adapter required to suit application
Filter Cleaning	1/4 HP Shaker Motor
Standard Filter Media	Polyester Antistatic Filter Media
Filter Area	8” x 60” / 48
Filter Efficiency	99.9219% < 2µm
Filter Size / QTY	Ø8” x 60” / 4 HS
Sound Level	83.53 ± 3 dB(A)
Construction	14 Ga. Galvanized Steel Construction
NFPA Compliance	NFPA 654-2020 NFPA 664-2020
Additional Safety Systems	Full NFPA-compliant equipment available for most dust types
Weight	1,518 lbs
Ship Weight	1,870 lbs
Shipping Dimensions	2 crates @ 90" x 46" x 46" ea.
