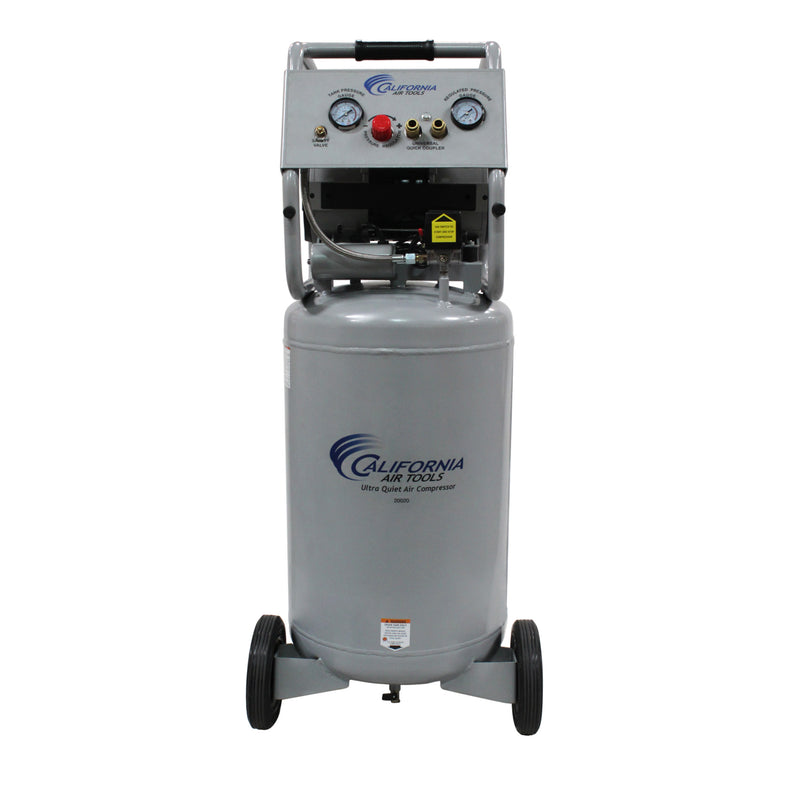

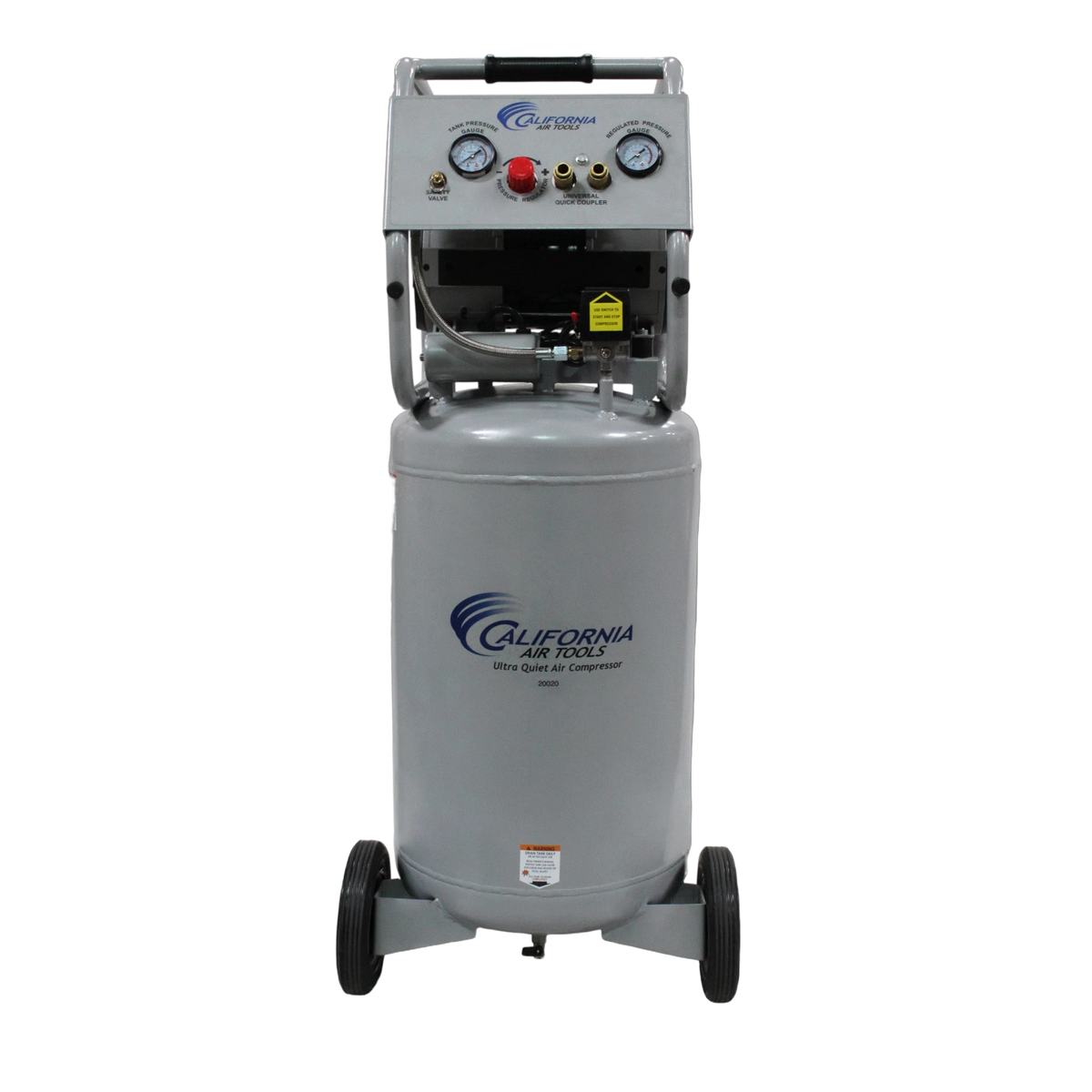

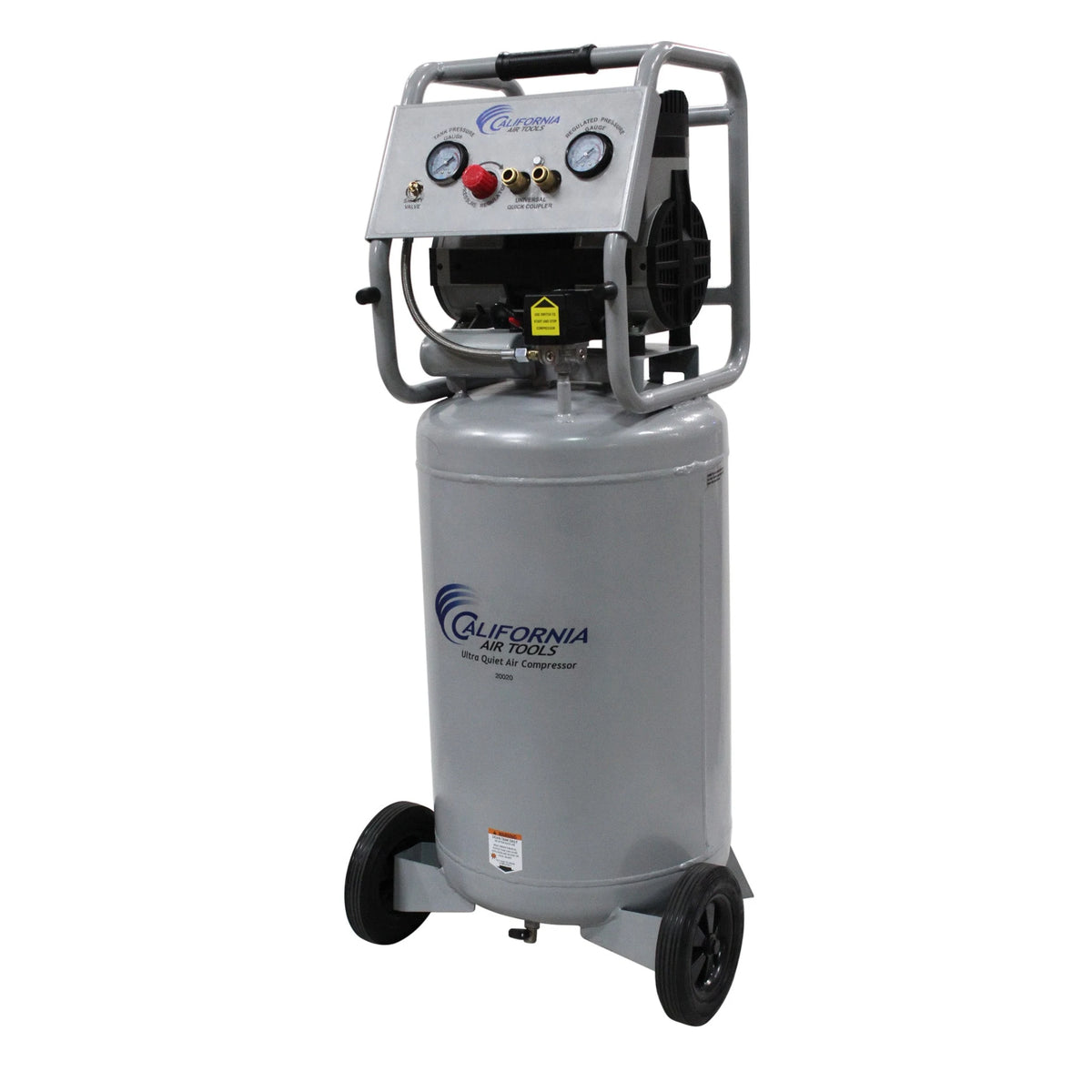

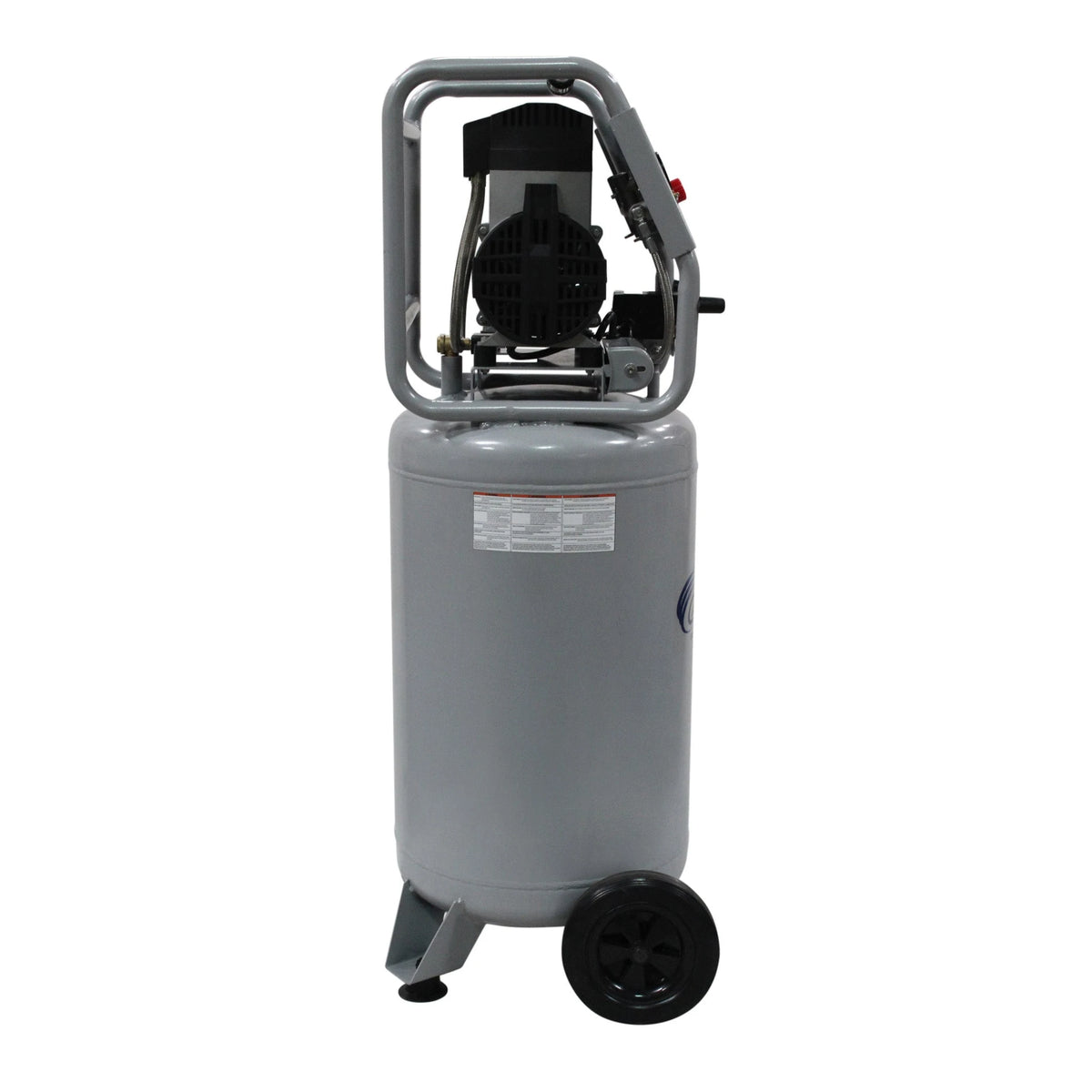

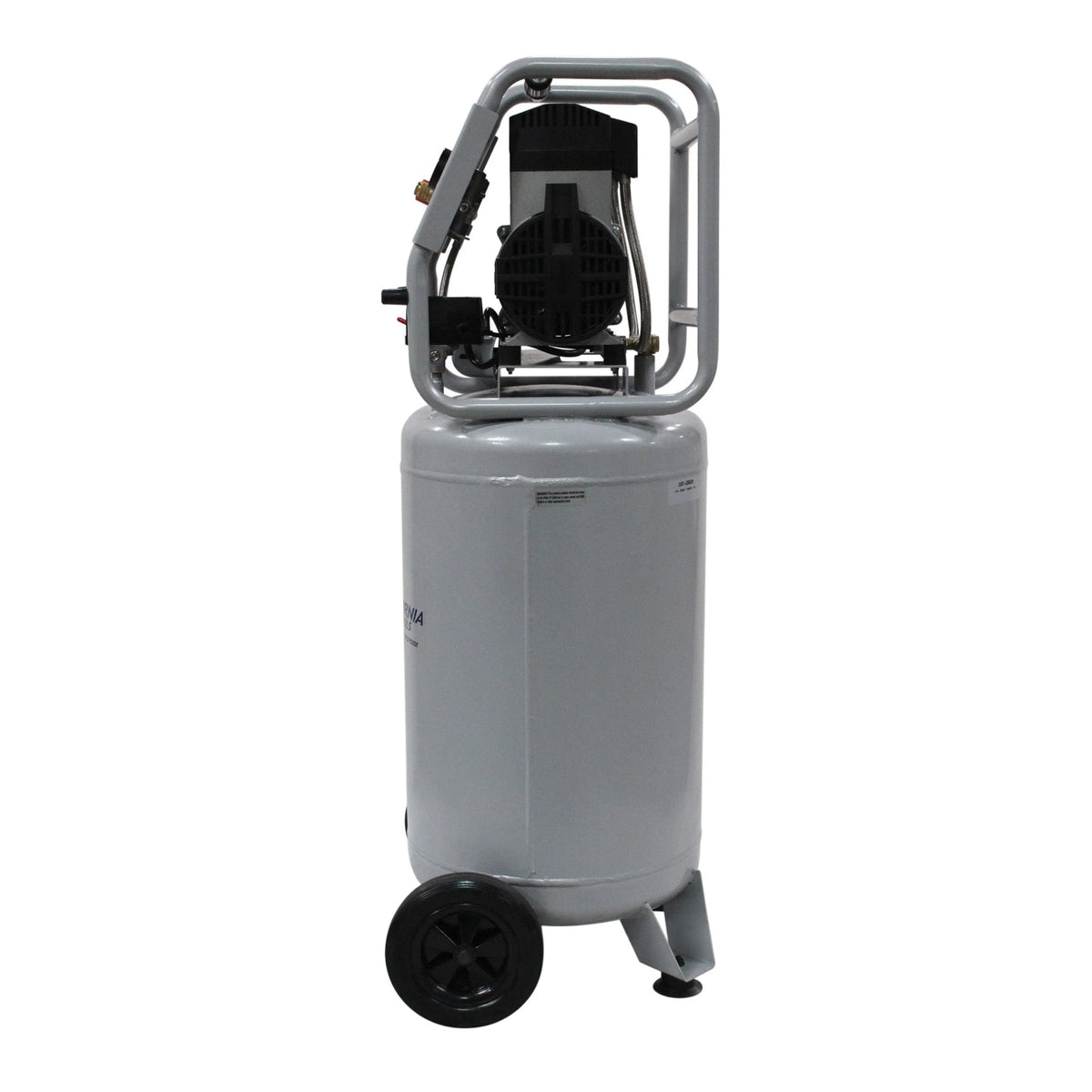

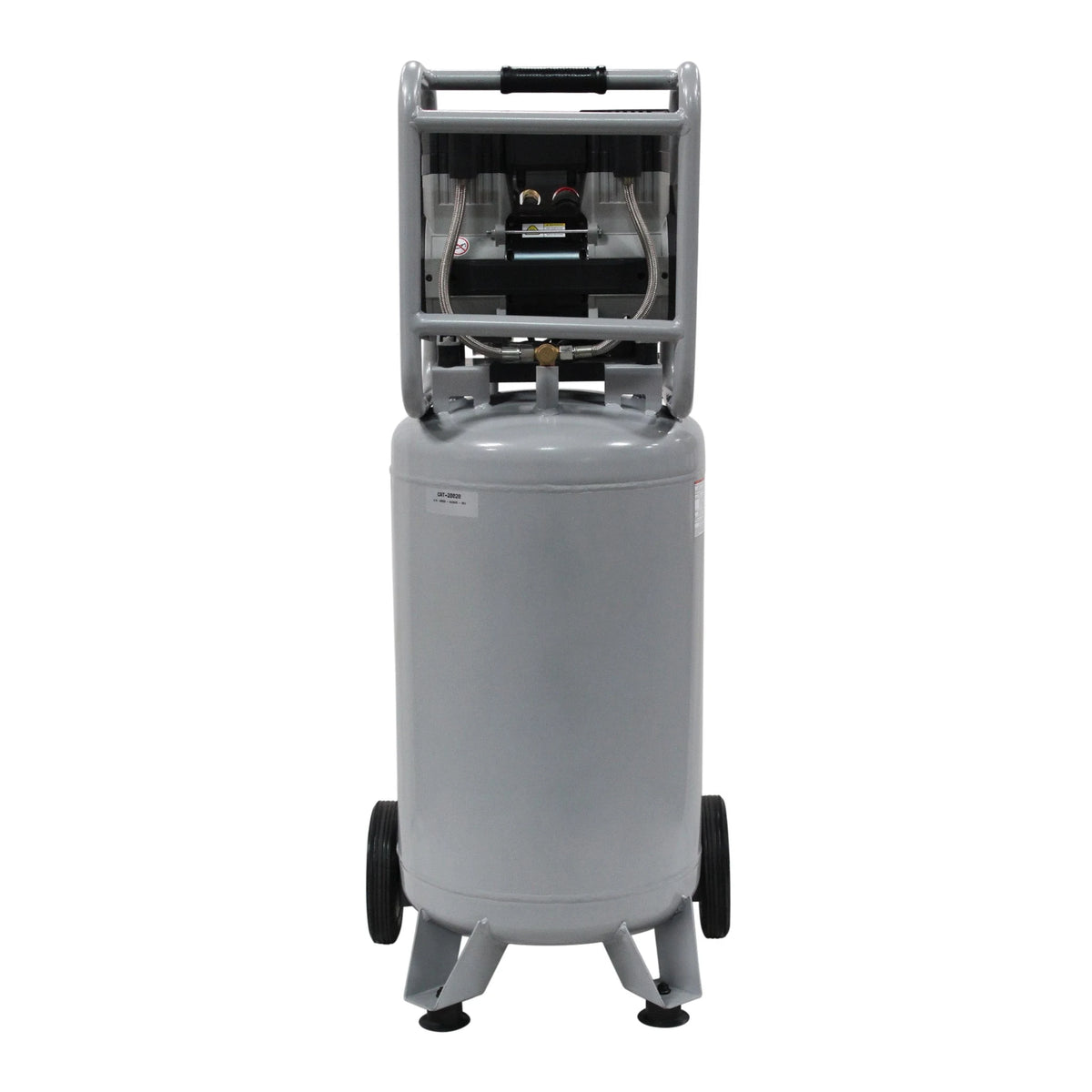

California Air Tools 20020 2.0 HP 20 Gallon Oil-Free Air Compressor

The California Air Tools 20020 is a portable 20 gallon air compressor designed for workshops, garages, and service environments that require steady compressed air with reduced operating noise. The system combines a dual piston oil-free compressor pump with a large storage tank to support a range of pneumatic tools.

California Air Tools develops compressors that operate at lower motor speeds than many conventional shop compressors. This model uses a 2 horsepower electric motor running at approximately 1680 RPM. Lower motor speeds help reduce vibration, mechanical wear, and overall sound levels while maintaining consistent airflow.

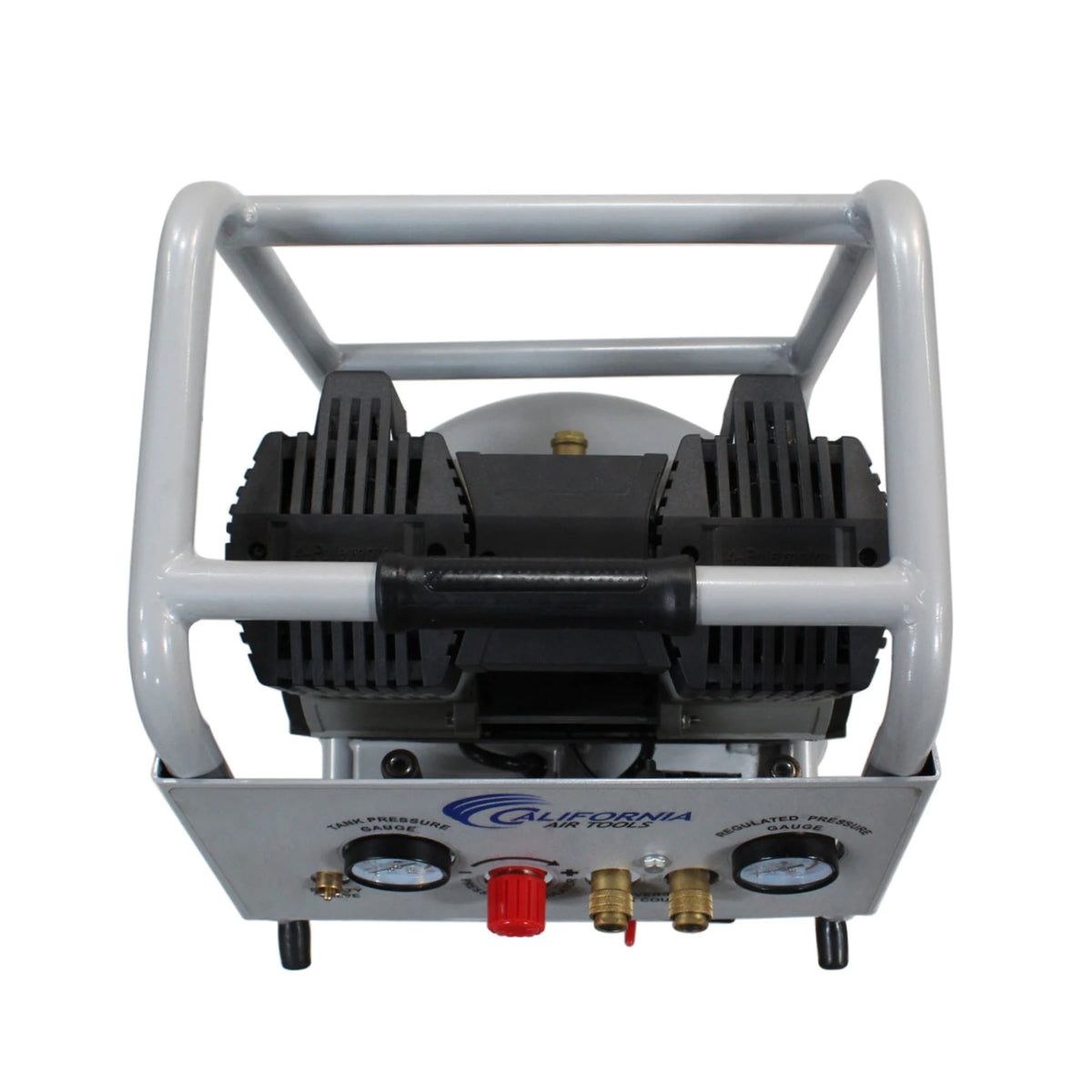

The compressor pump uses an oil-free dual piston design that eliminates the need for oil lubrication. Oil-free operation reduces routine maintenance requirements and helps prevent oil contamination from entering the compressed air supply.

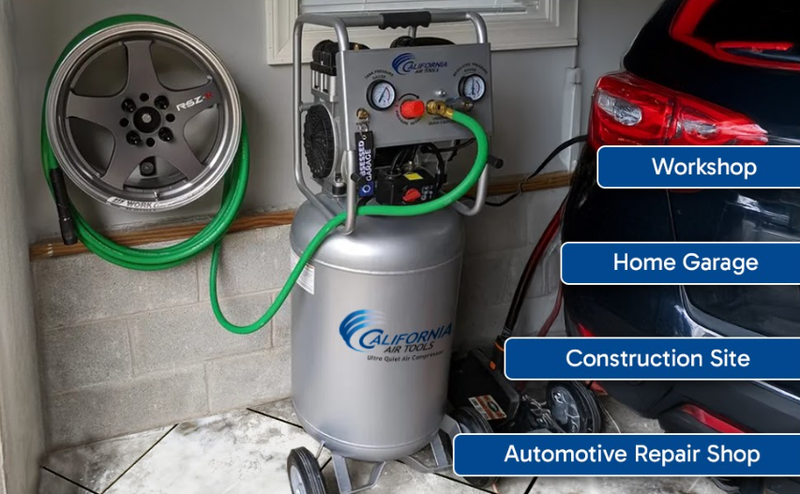

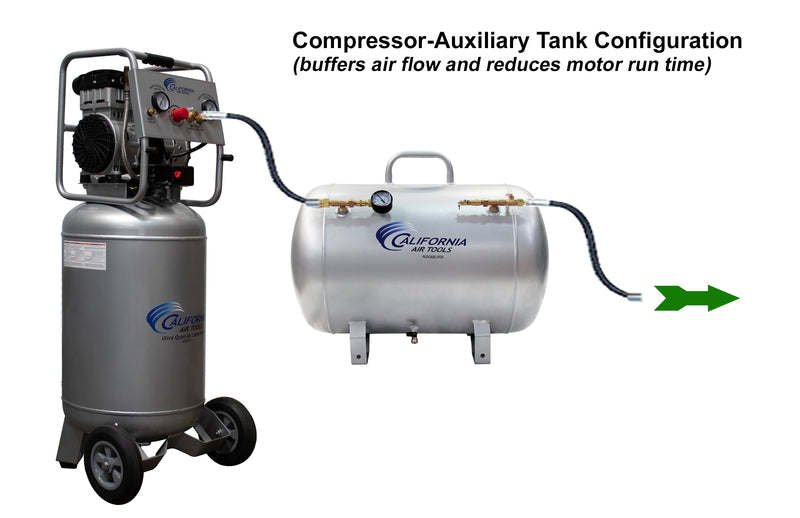

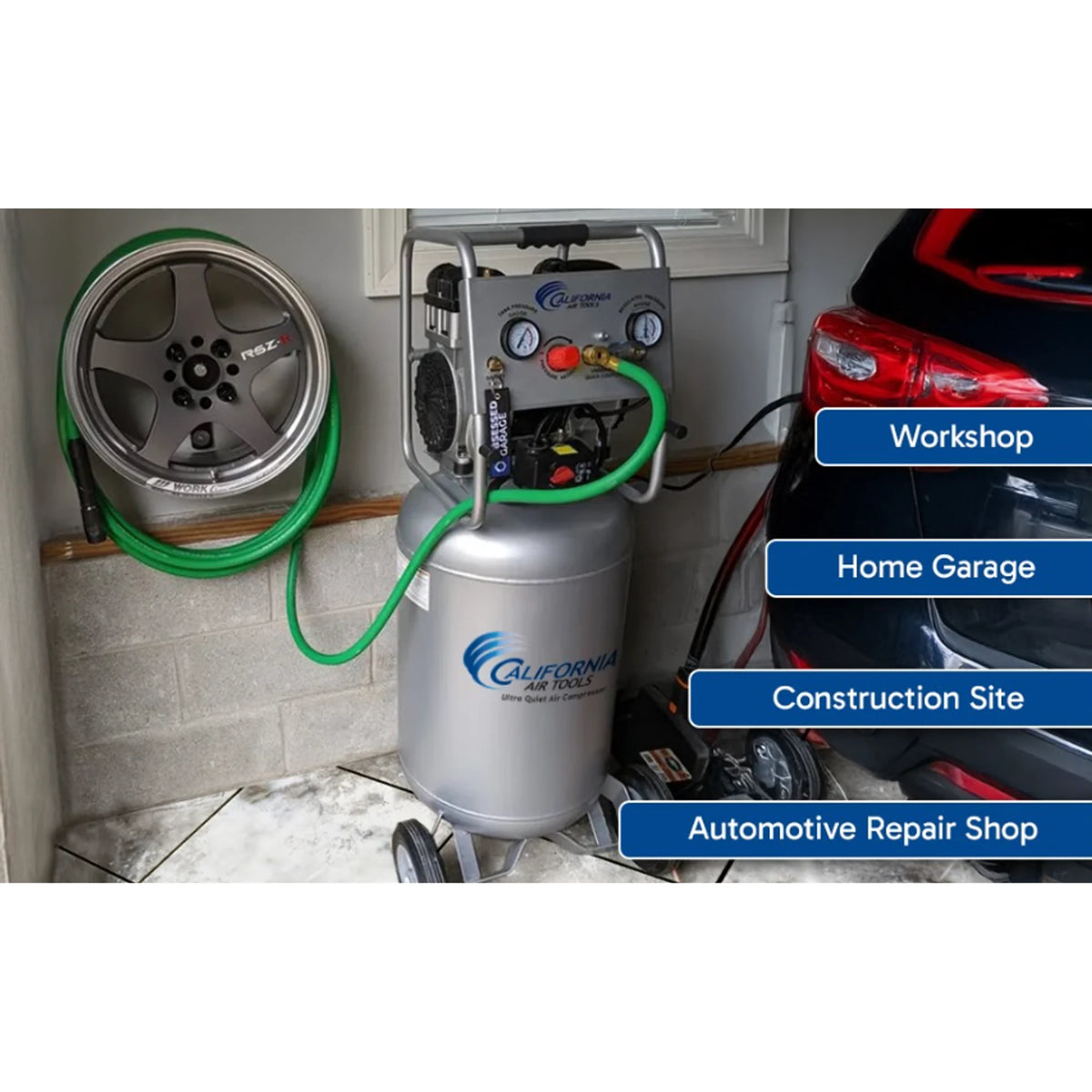

Compressed air is stored in a 20 gallon steel tank designed to provide additional reserve capacity for tools that require intermittent airflow. A wheel kit allows the compressor to be repositioned easily around a workshop, garage, or jobsite.

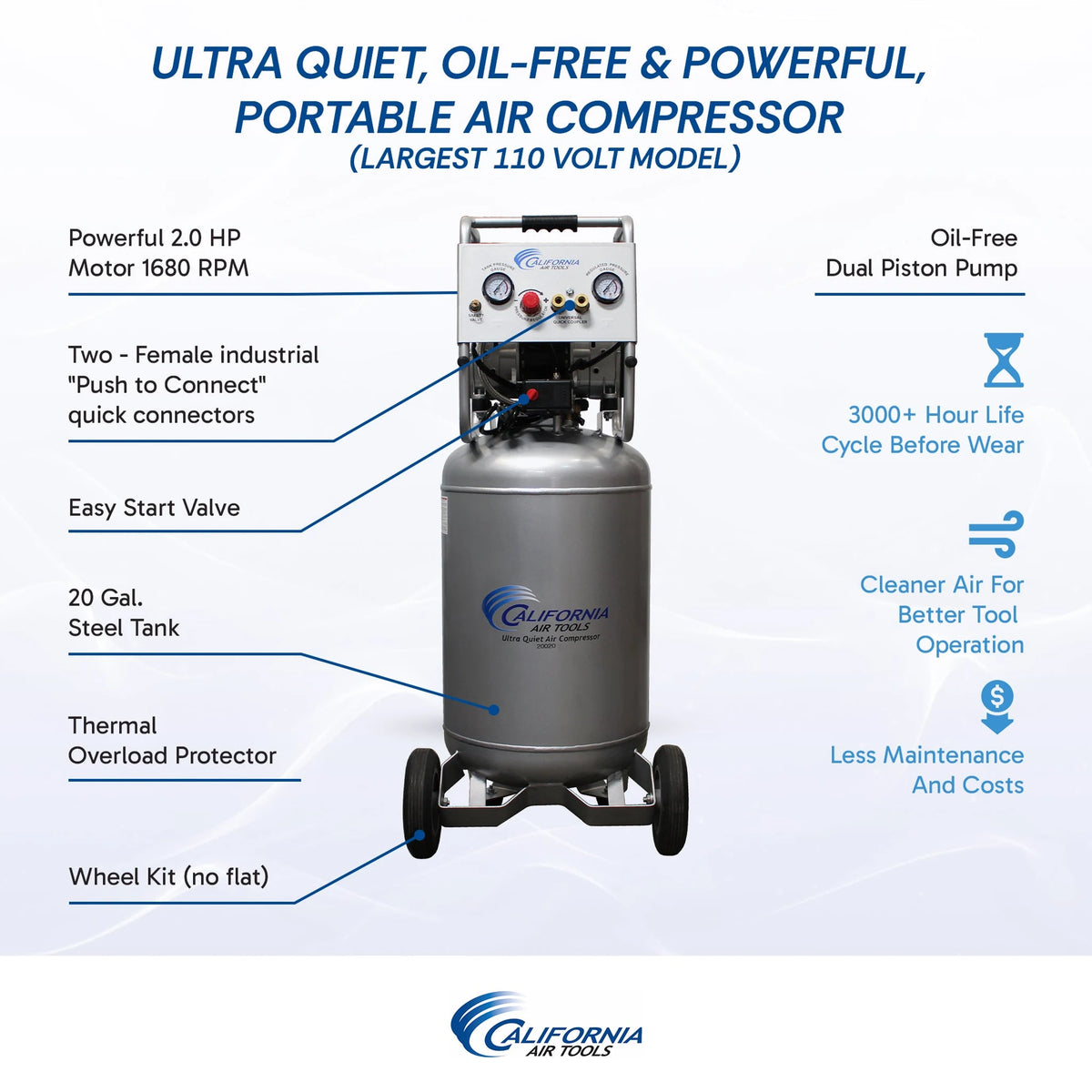

Standard Equipment

• Oil-free dual piston compressor pump
• 2.0 HP electric compressor motor
• 20 gallon steel air tank
• Dual pressure control gauges
• Adjustable pressure regulator

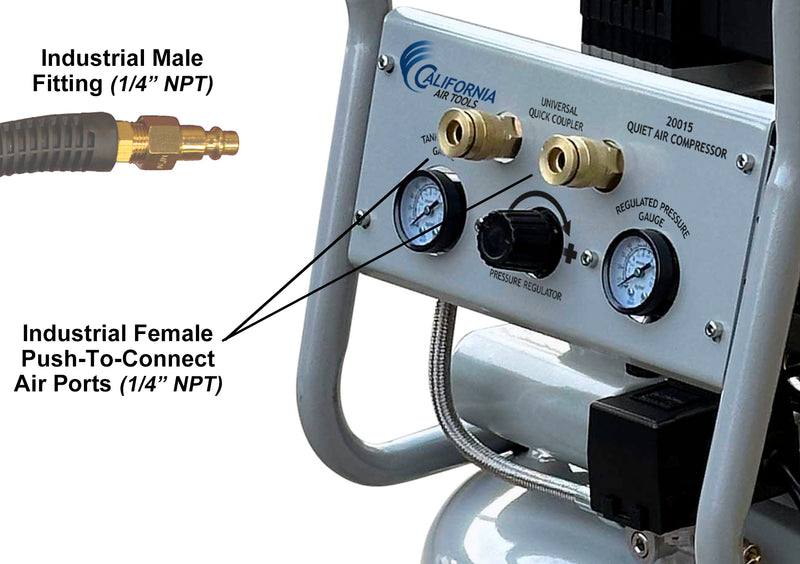

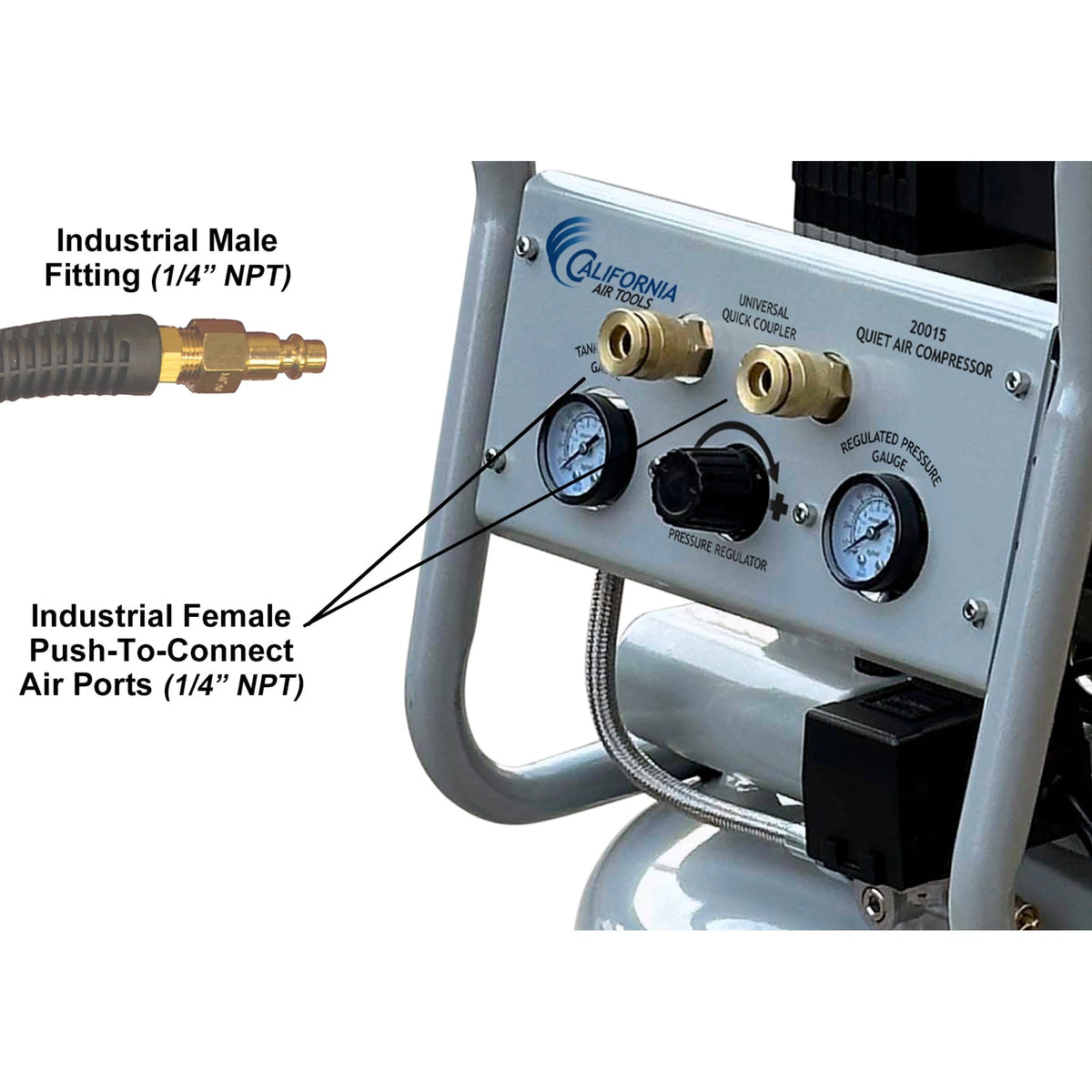

• Two industrial push-to-connect air outlets (1/4" NPT)
• Pressure switch
• Thermal overload protection
• Two intake air filters
• Wheel kit

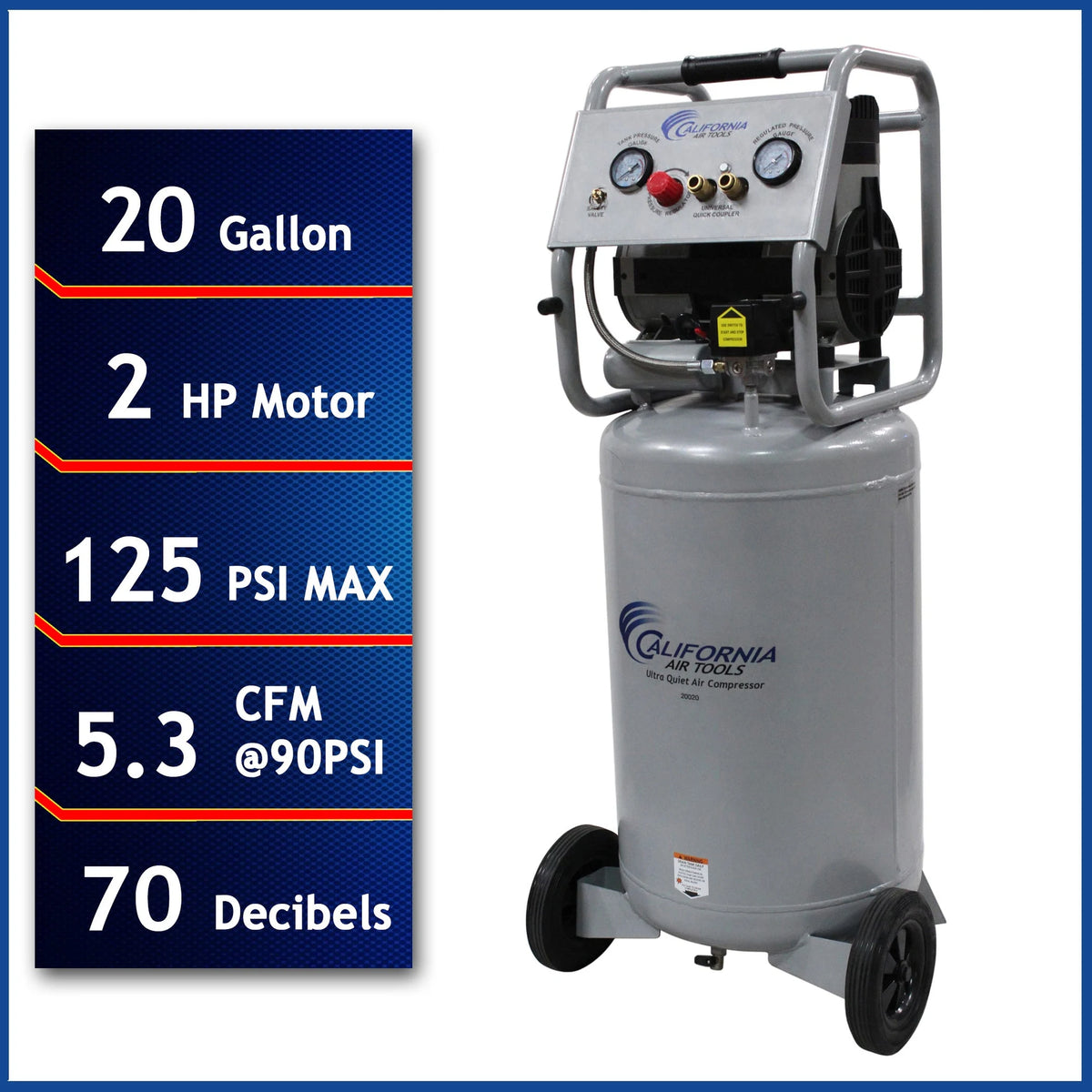

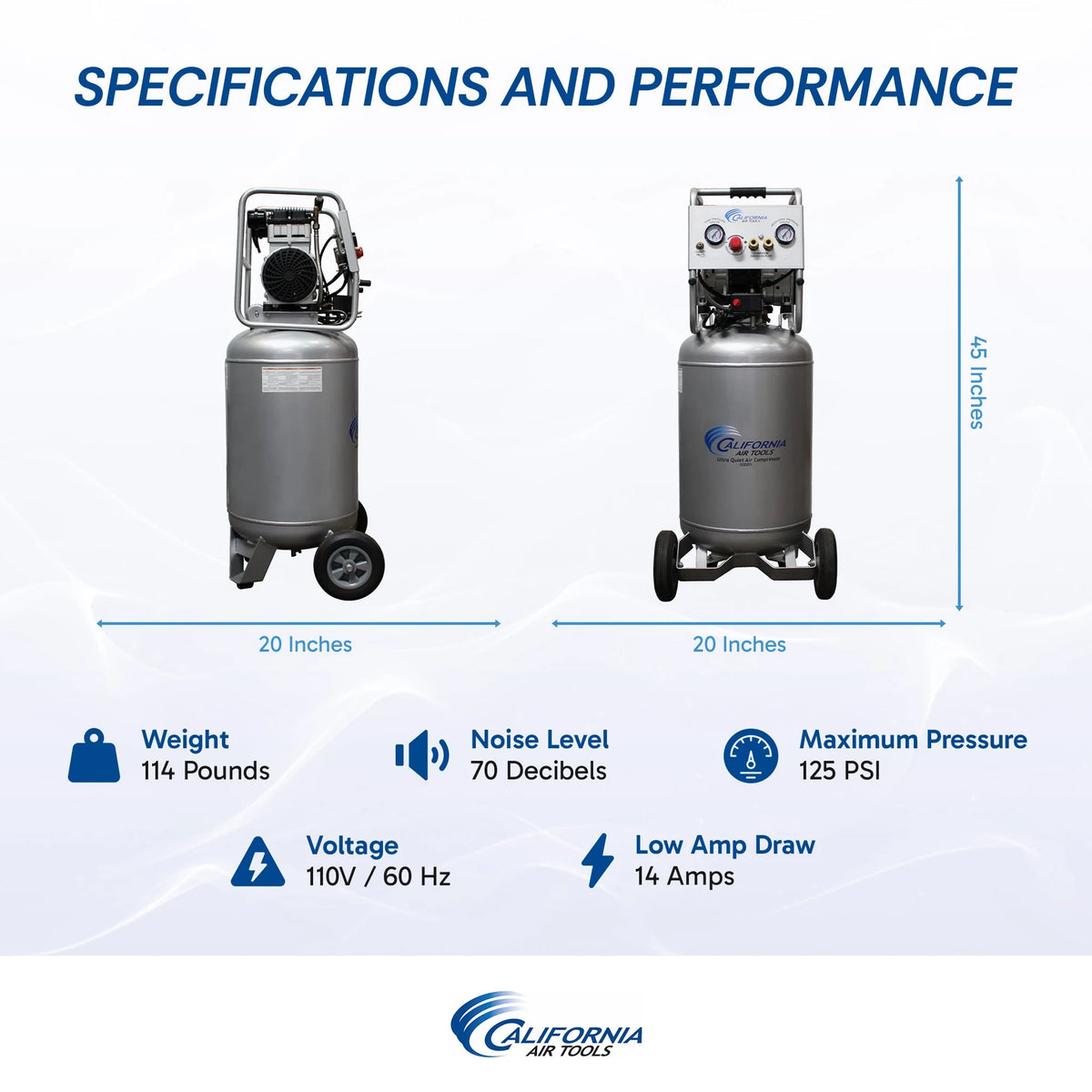

Technical Specifications

• Motor Power: 2.0 HP
• Motor Speed: ~1680 RPM
• Noise Level: 70 dB
• Maximum Pressure: 125 PSI
• Working Pressure Range: 90 – 120 PSI

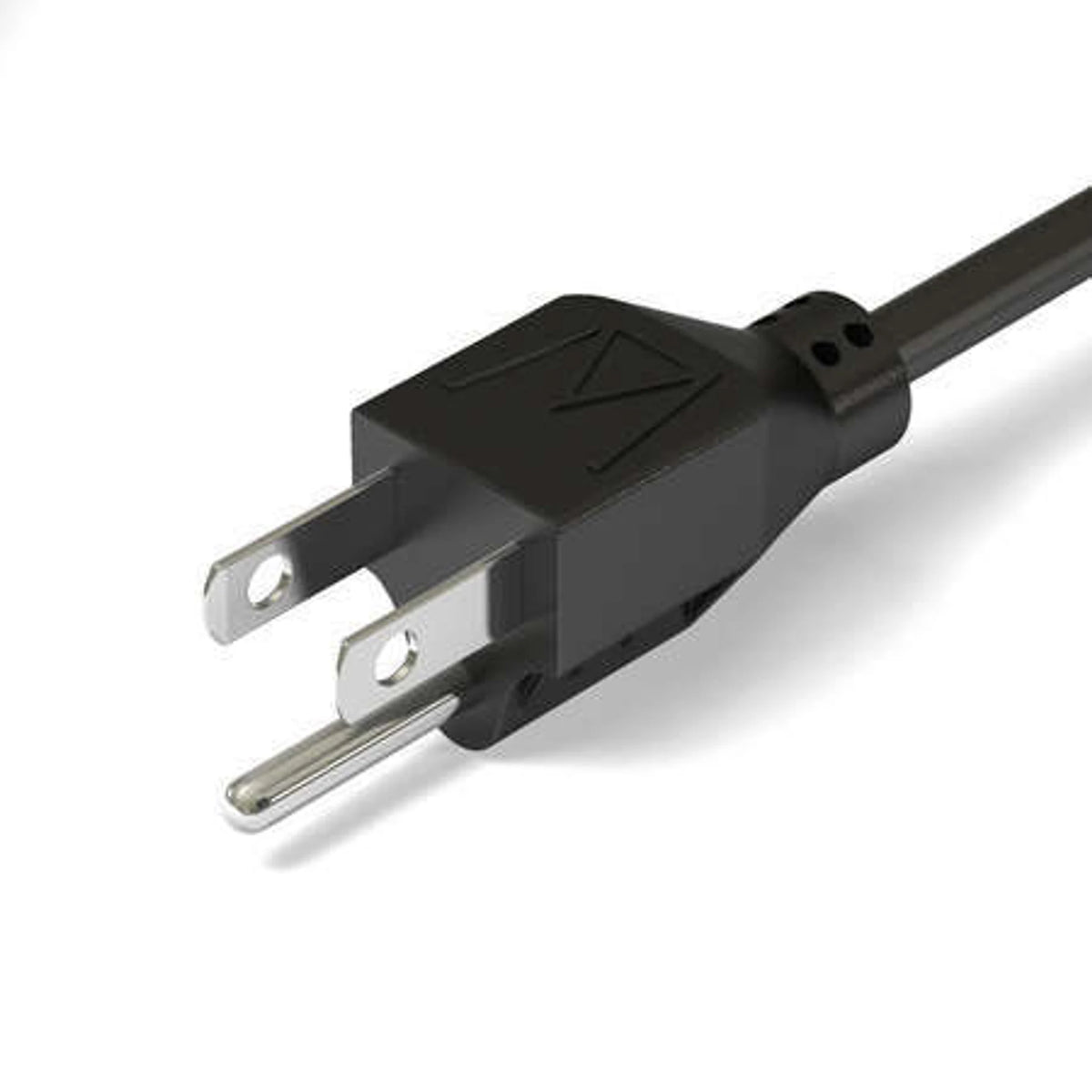

• Voltage: 110V / 60Hz
• Amperage Draw: 14 Amps
• Tank Capacity: 20 Gallons
• Tank Material: Steel
• Tank Fill Time: ~4 minutes
• Recovery Time: ~1 minute (90 PSI – 120 PSI)
• Duty Cycle: 70 / 30
• Dimensions: 20" L x 20" W x 45" H
• Weight: 114 lbs
• Pump Type: Oil-Free Dual Piston
• Tank Type: Non-ASME
• Assembly Location: China with global components
