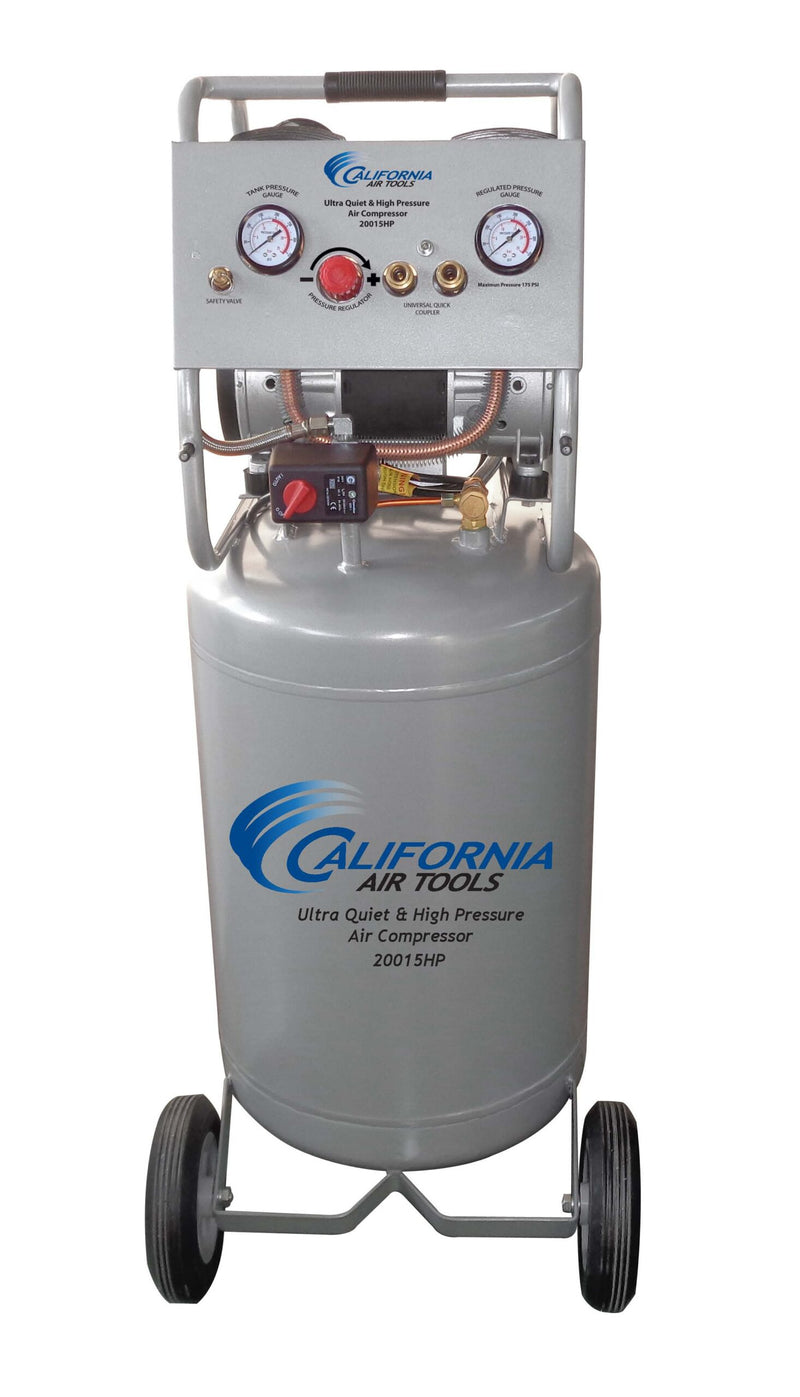

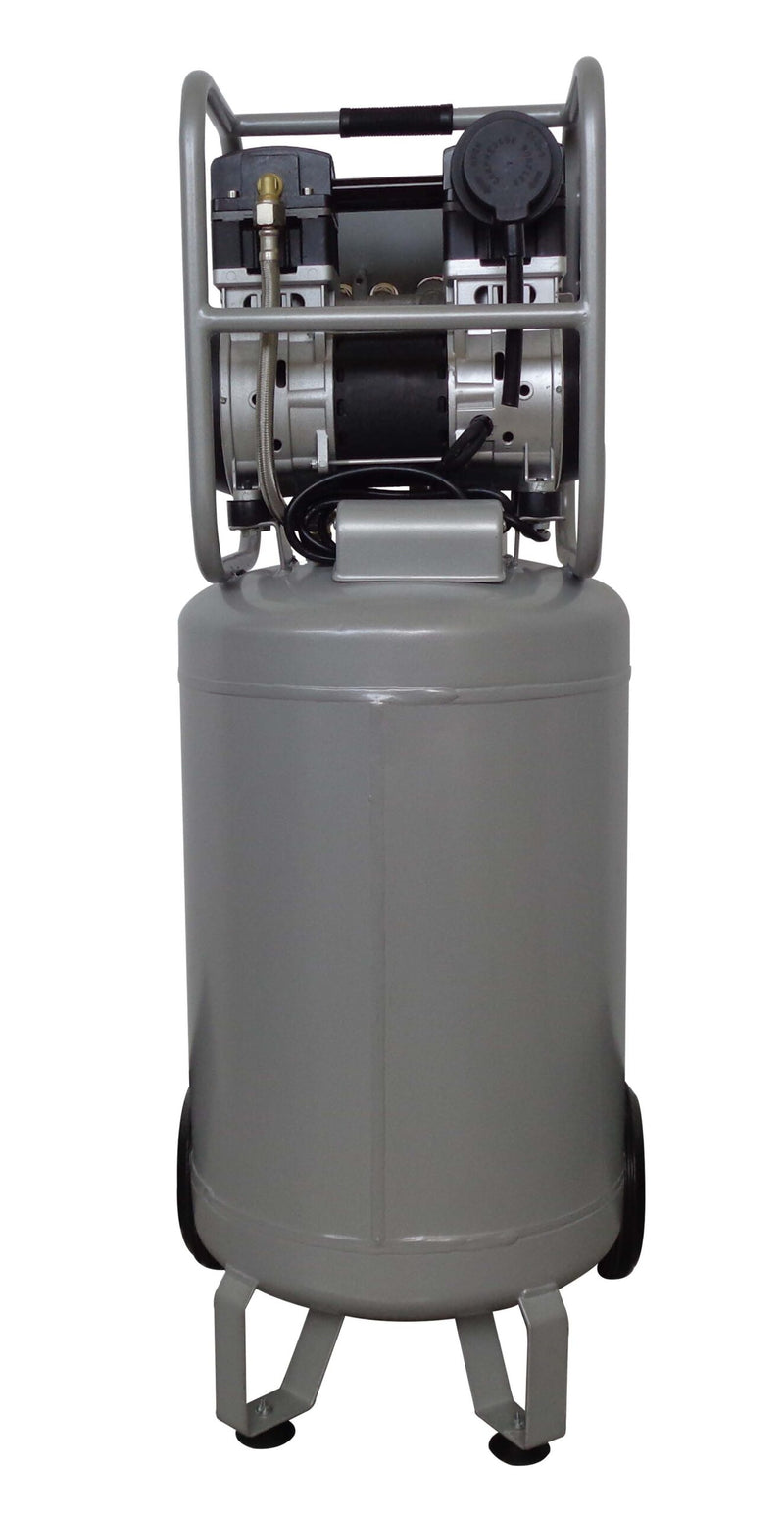

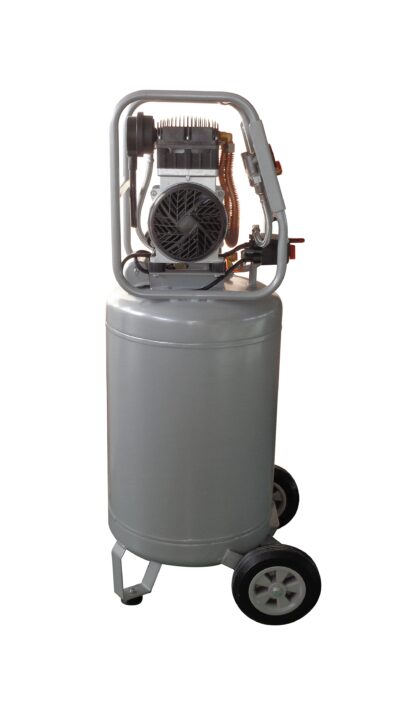

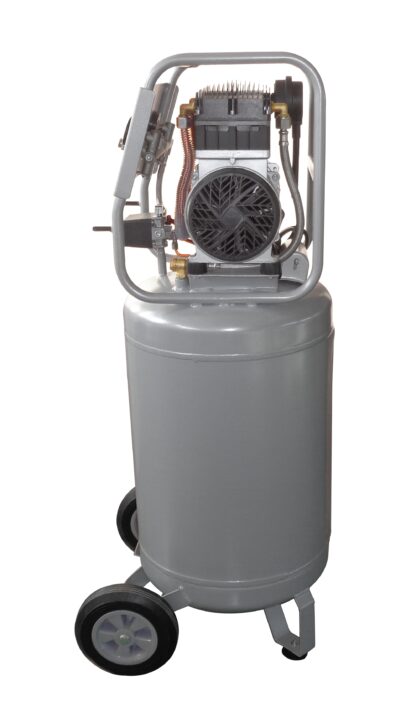

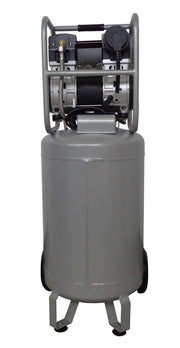

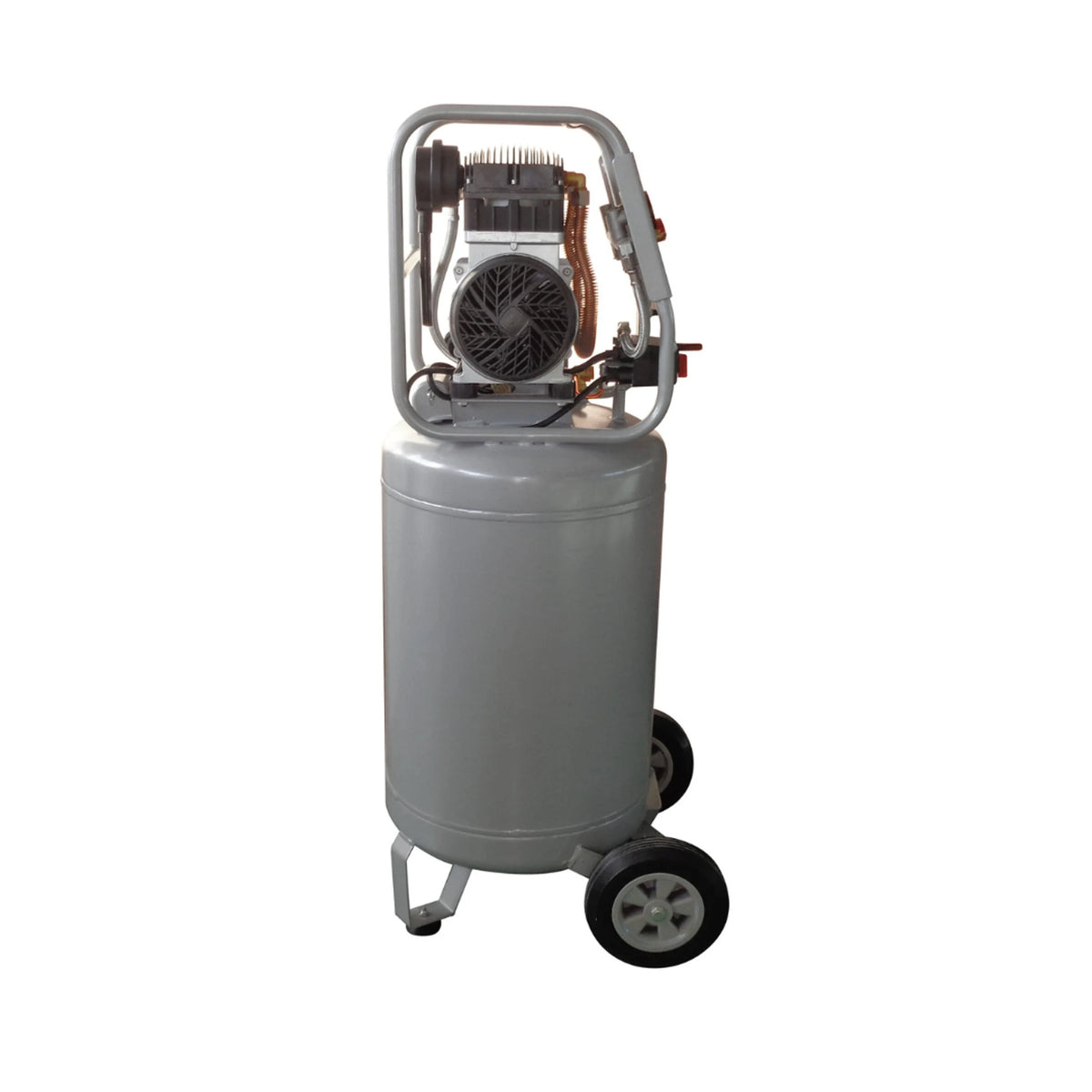

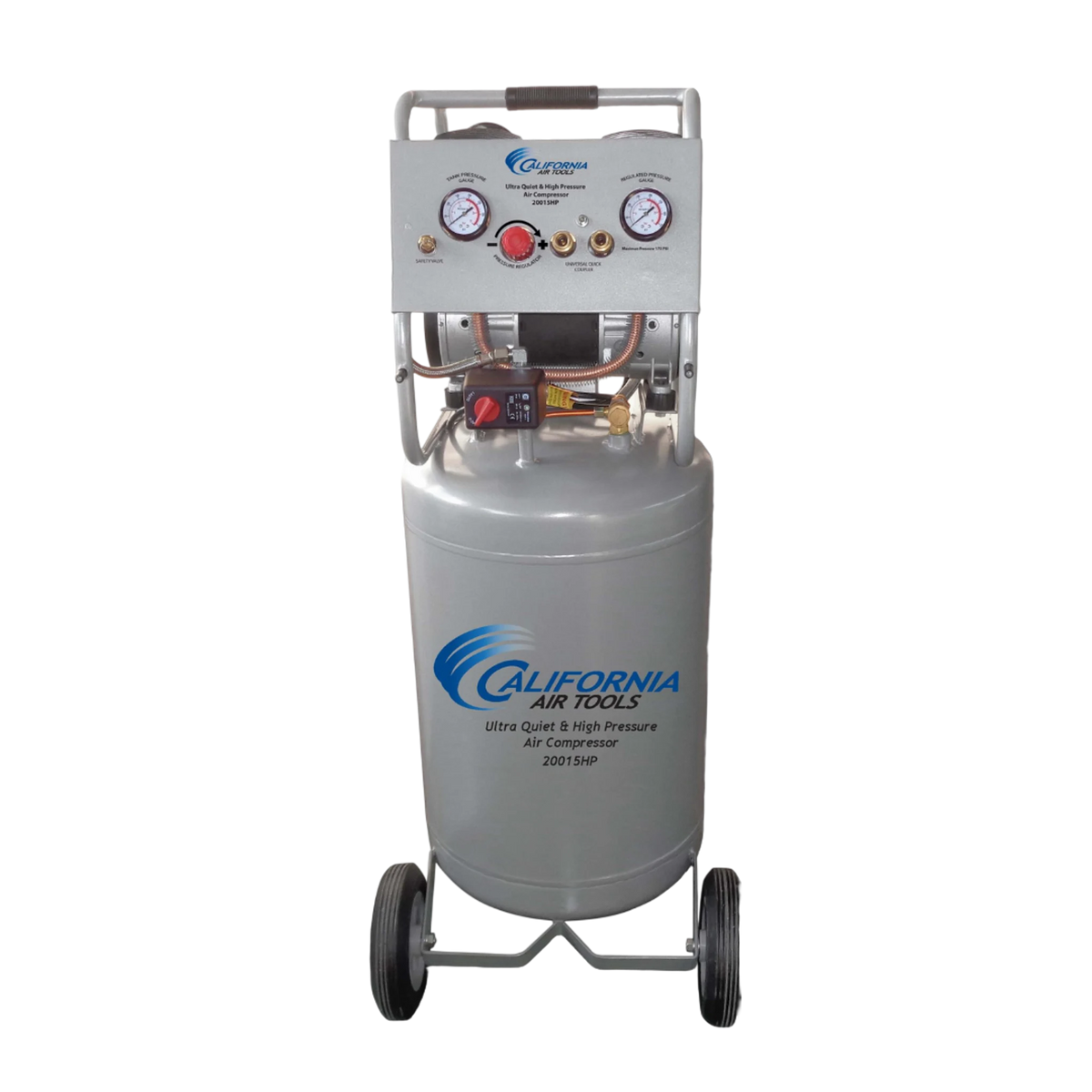

California Air Tools 20015HP 1.5 HP 20 Gallon Oil-Free Air Compressor

The California Air Tools 20015HP is a high-pressure air compressor designed for applications requiring elevated PSI levels with reduced operating noise. Manufactured by California Air Tools, a company known for low-RPM compressor systems, this unit combines a two-stage oil-free pump with a 20 gallon storage tank to support pneumatic equipment that requires higher pressure output.

The compressor uses a 1.5 horsepower motor operating at approximately 1750 RPM. Lower operating speeds help reduce vibration, mechanical wear, and sound output compared with many conventional compressors while maintaining consistent airflow for shop tools and finishing equipment.

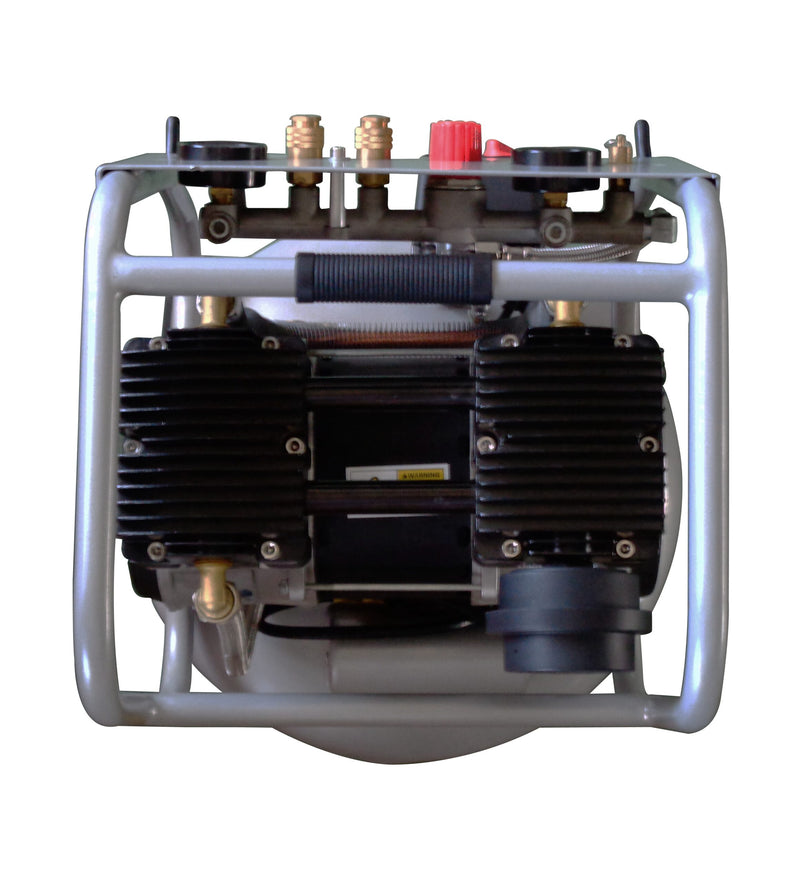

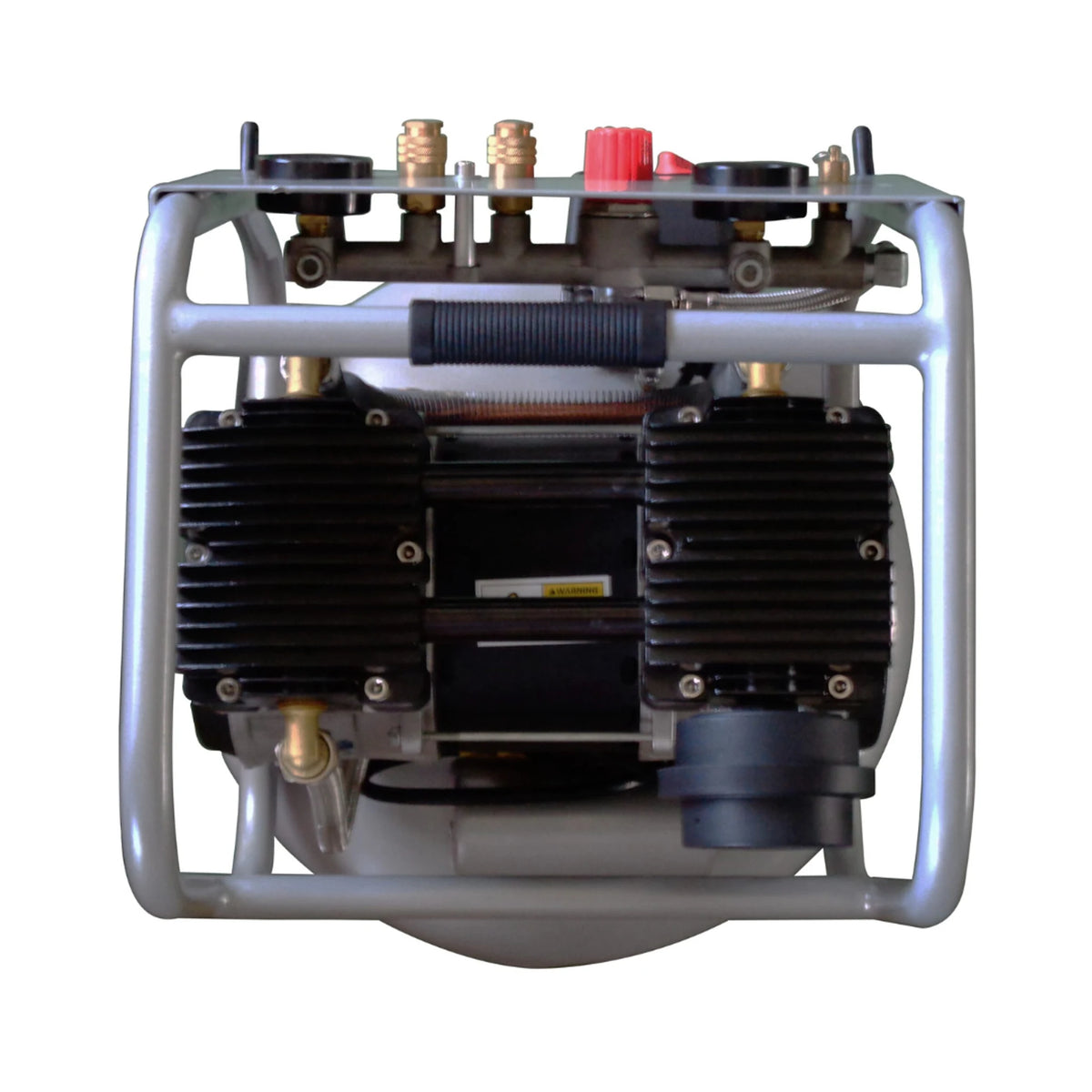

An oil-free two-stage dual piston pump assembly compresses air in two steps, allowing the system to achieve higher pressures while maintaining pump efficiency. Because the pump does not require oil lubrication, routine maintenance is reduced and the compressed air stream remains free of oil contamination.

The compressor is capable of producing pressures up to 175 PSI, supporting applications such as spray finishing, pneumatic fastening, inflation, and other tools that require higher operating pressure.

Compressed air is stored in a 20 gallon steel tank designed to provide additional reserve capacity for intermittent tool use. A wheel kit allows the compressor to be repositioned easily around a workshop, garage, or service area.

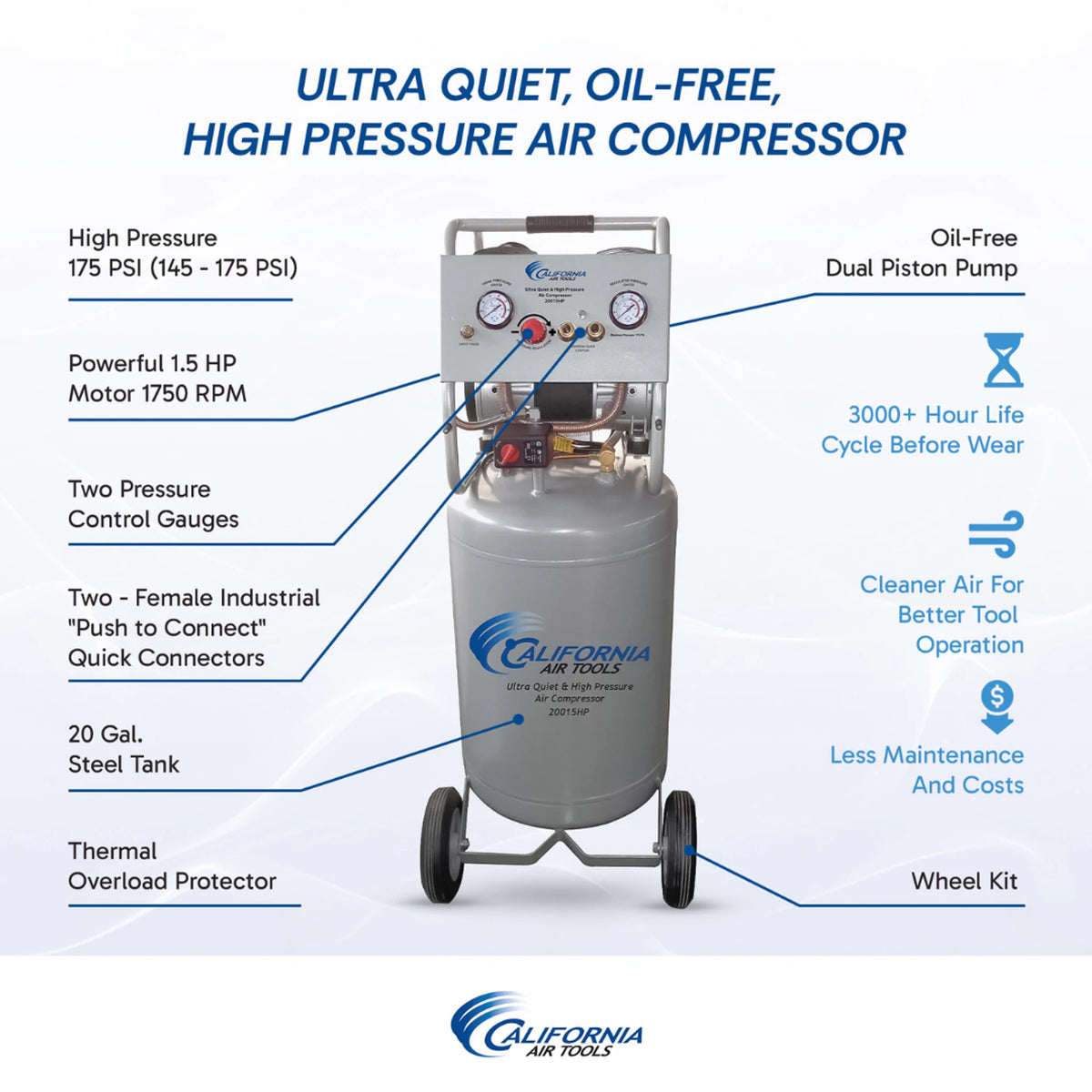

Standard Equipment

• Oil-free two-stage dual piston compressor pump
• 1.5 HP electric compressor motor
• 20 gallon steel air tank
• Dual pressure control gauges
• Adjustable pressure regulator
• Two industrial push-to-connect air outlets
• Start / stop power switch
• Condor pressure switch
• Thermal overload protection
• Two intake air filters
• Wheel kit

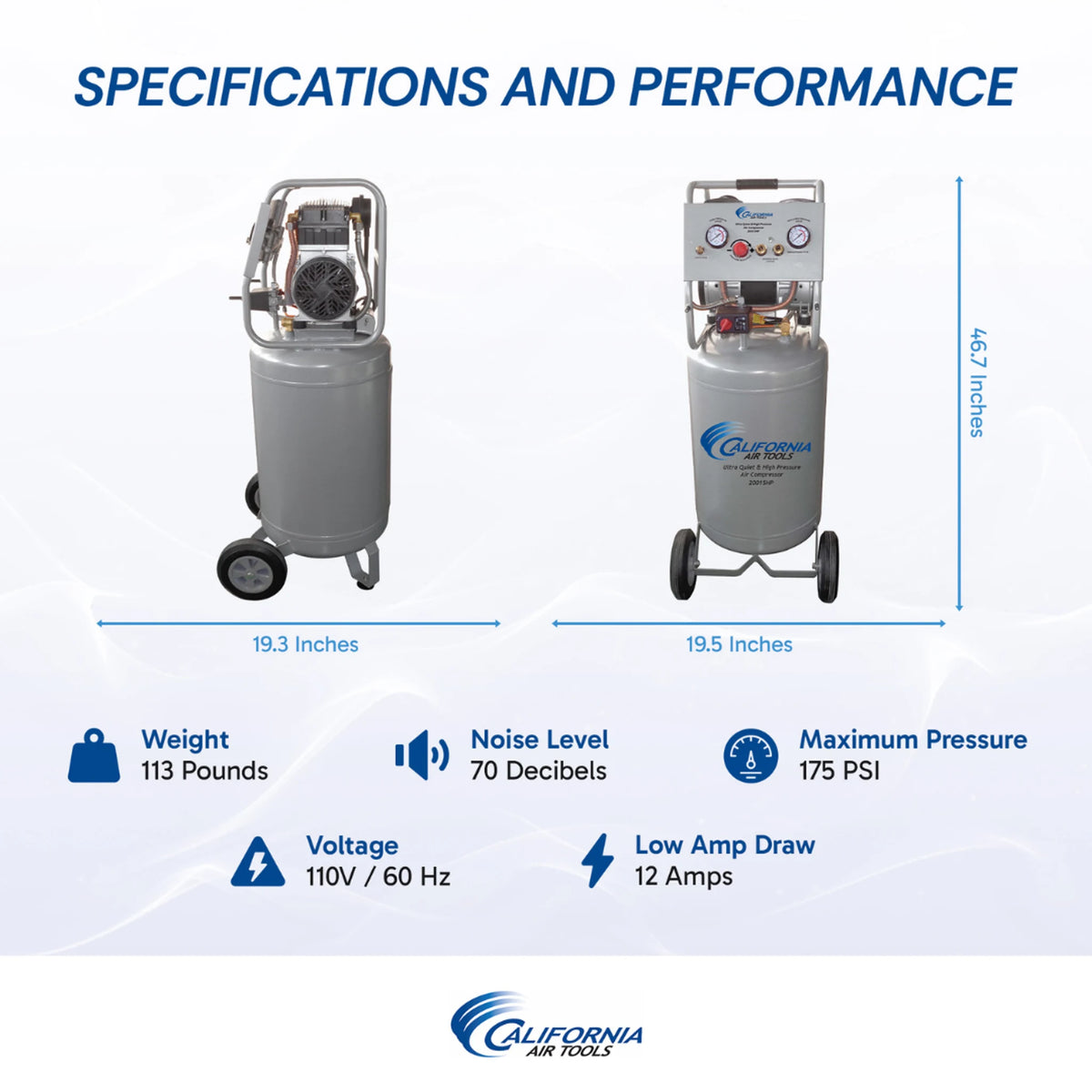

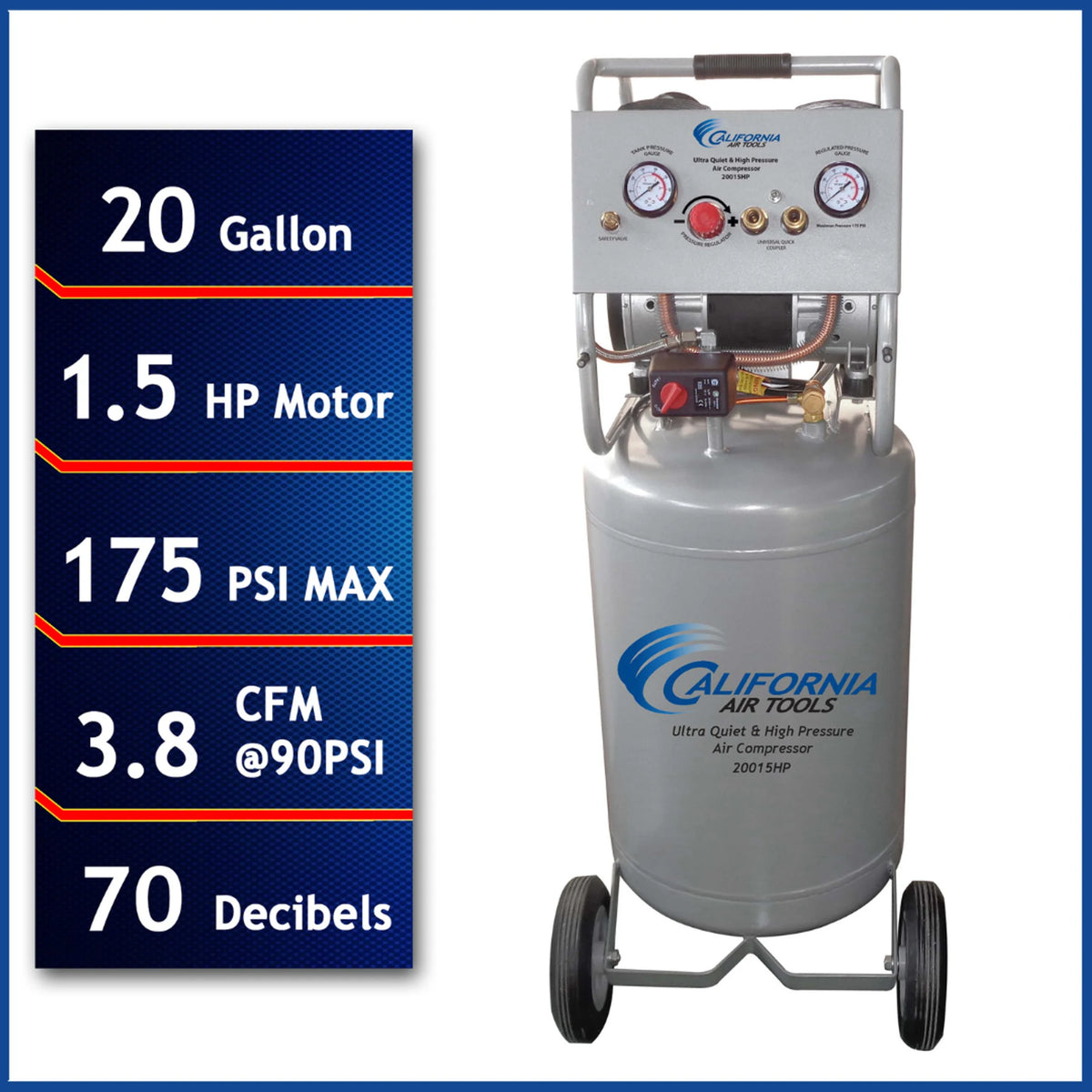

Technical Specifications

• Motor Power: 1.5 HP
• Motor Speed: ~1750 RPM
• Noise Level: 70 dB
• Maximum Pressure: 175 PSI
• Working Pressure Range: 145 – 175 PSI
• Voltage: 110V / 60Hz
• Amperage Draw: 12 Amps
• Tank Capacity: 20 Gallons
• Tank Material: Steel
• Tank Fill Time: ~230 seconds
• Recovery Time: ~120 seconds (145 PSI – 175 PSI)
• Duty Cycle: 70 / 30
• Dimensions: 19.7" L x 18" W x 47.4" H
• Weight: 113 lbs
• Pump Type: Oil-Free Two-Stage Dual Piston
• Tank Type: Non-ASME
• Assembly Location: China with global components
