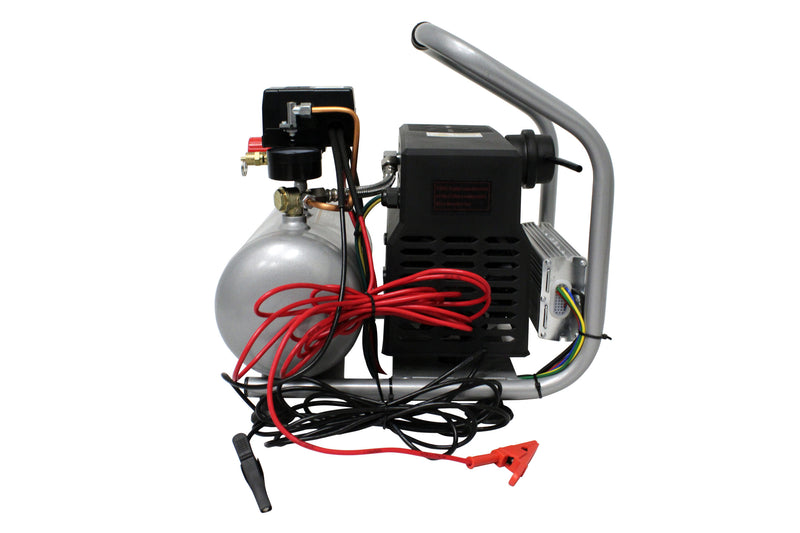

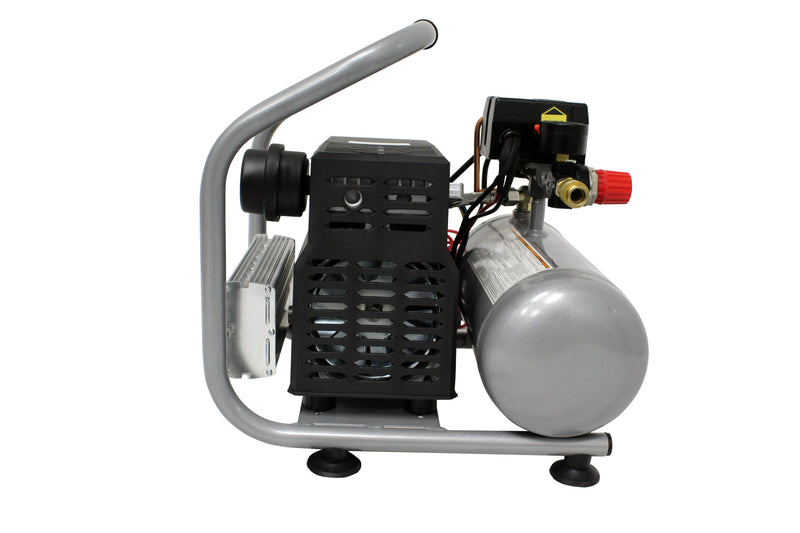

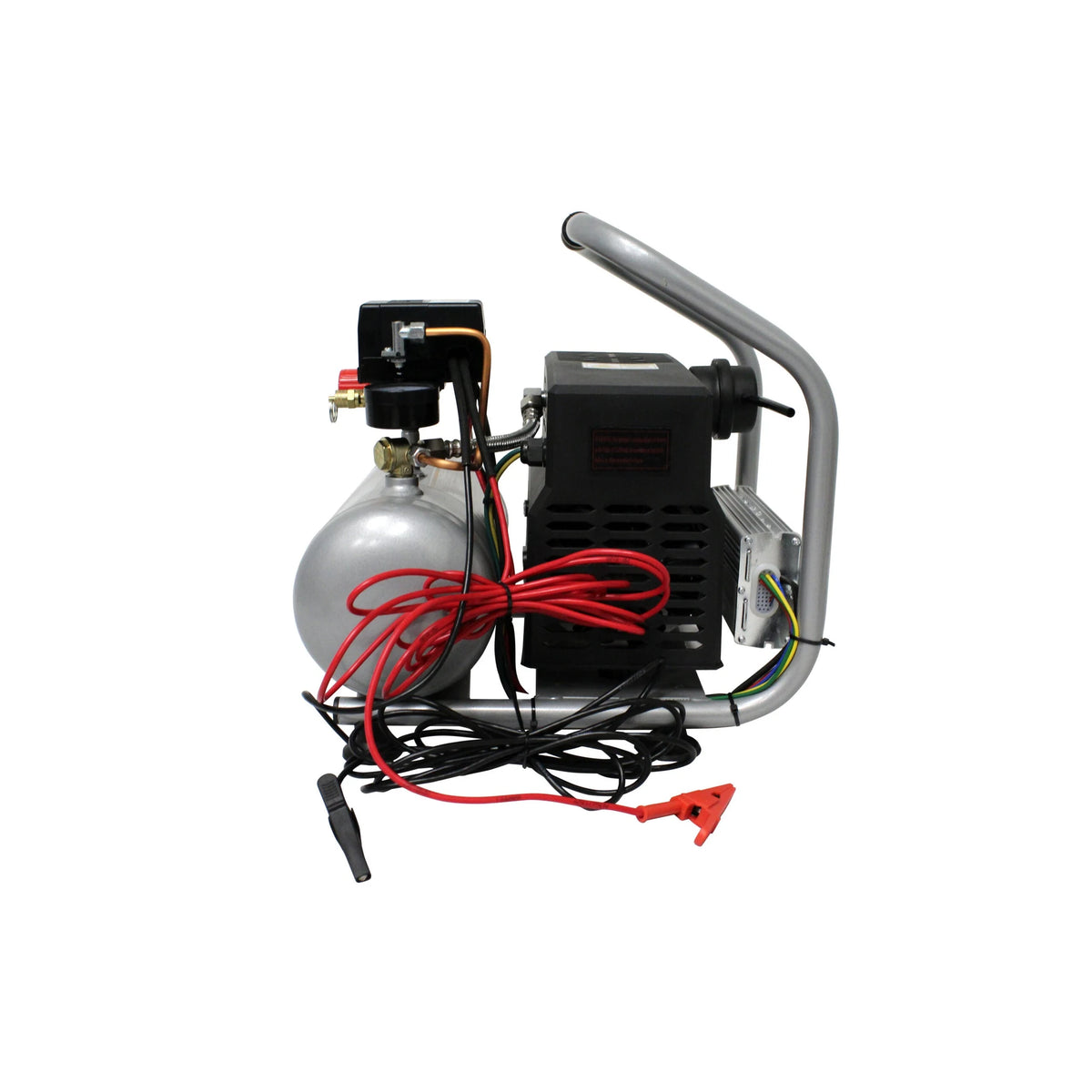

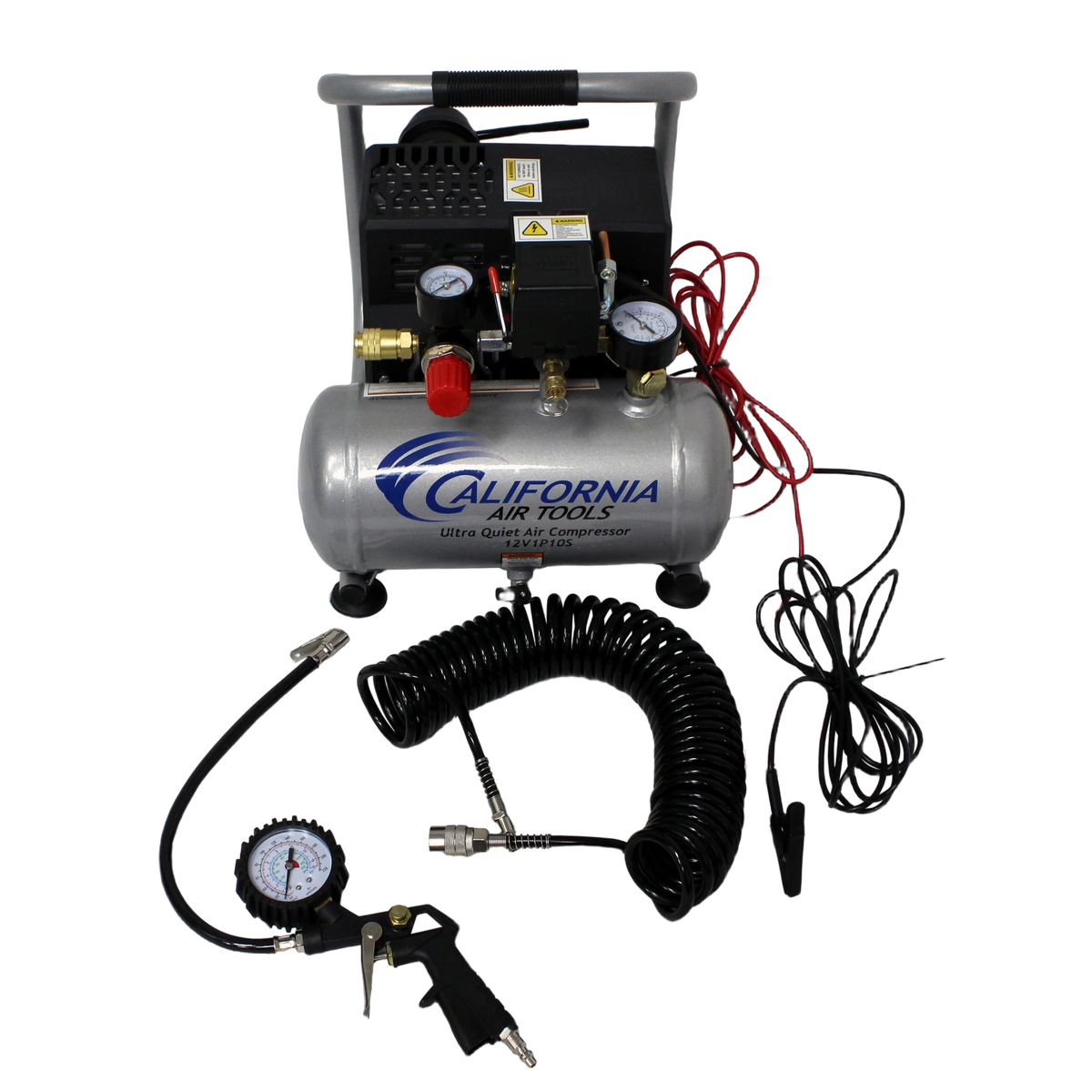

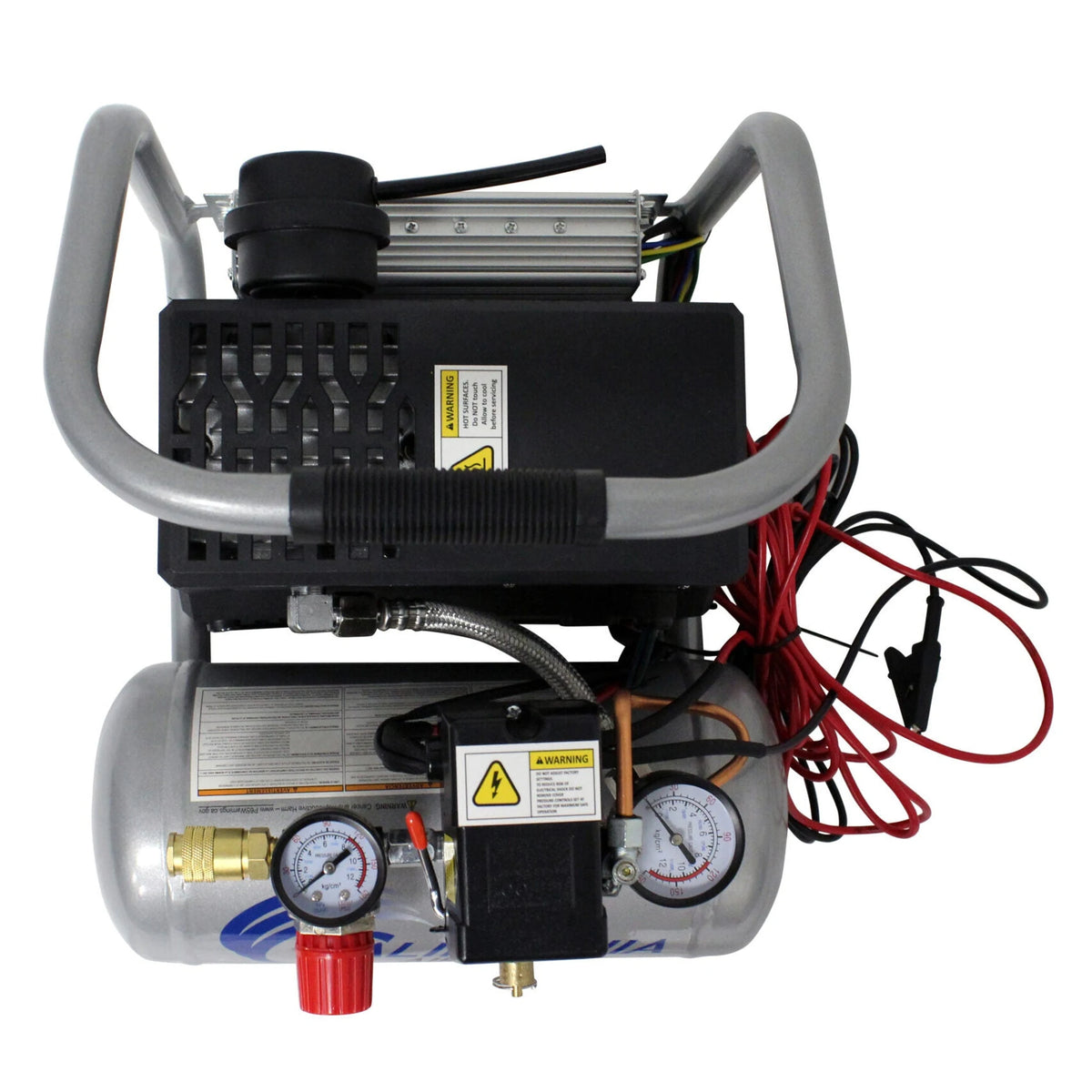

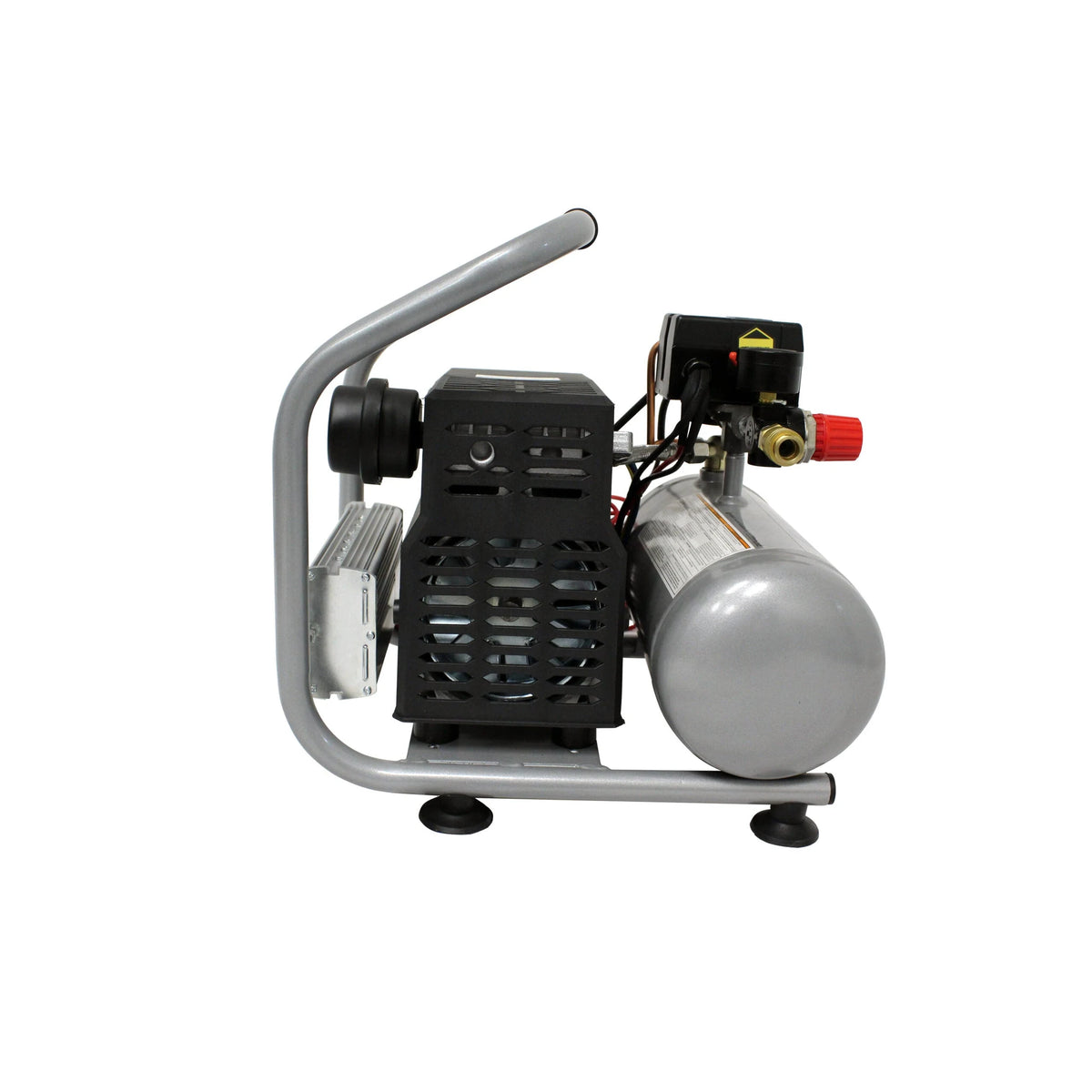

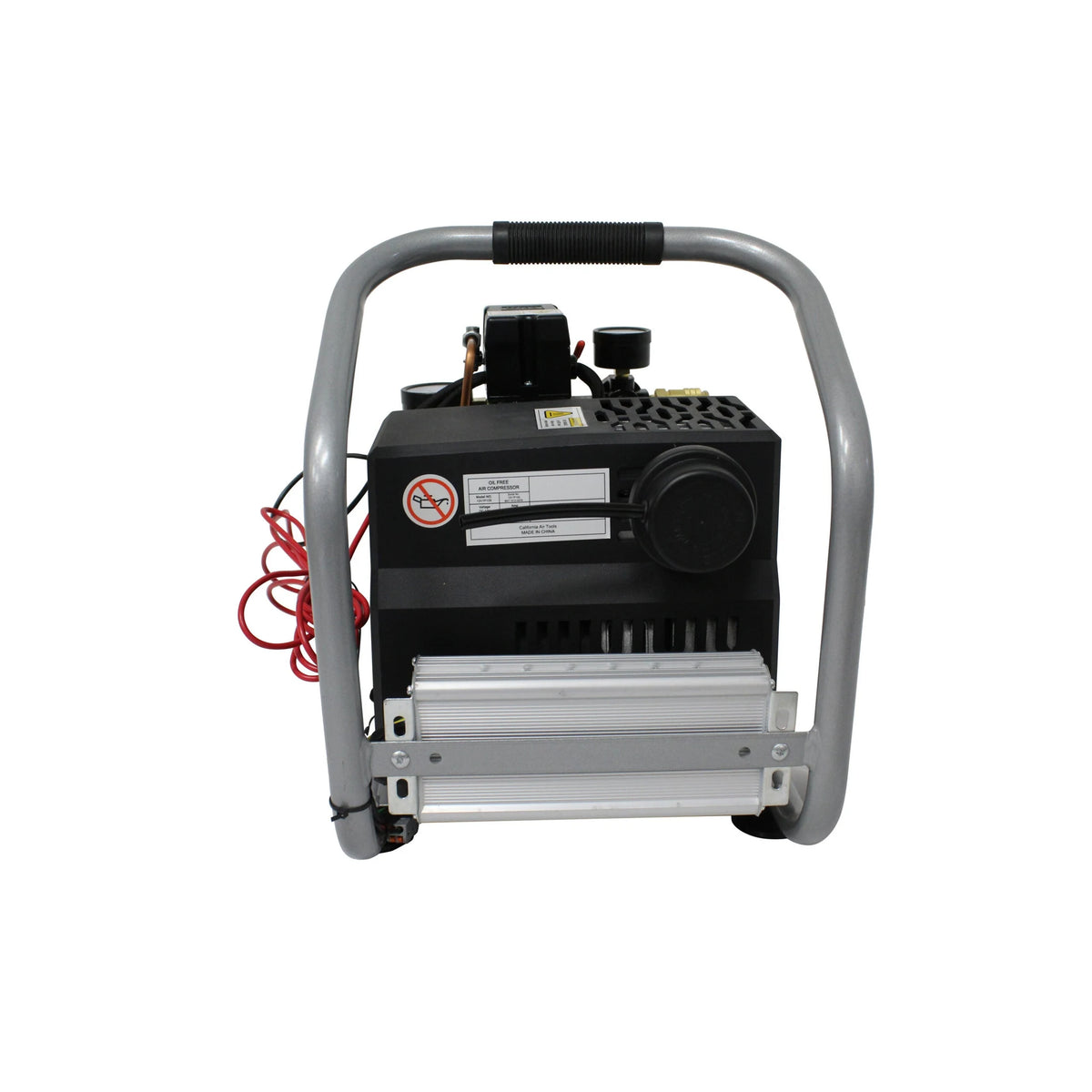

California Air Tools 12V1P10S 12-Volt Portable Air Compressor – 1 Gallon

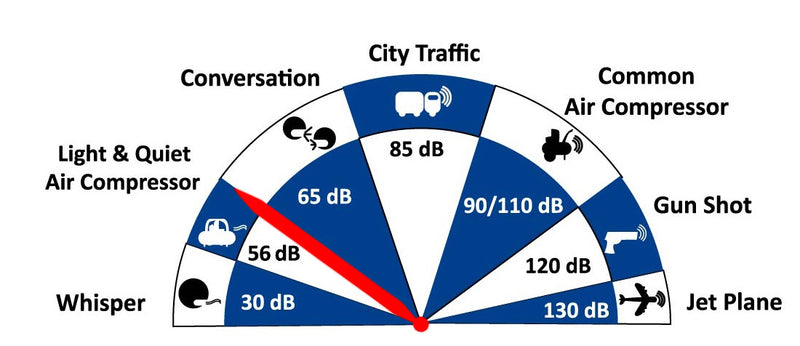

The California Air Tools 12V1P10S Portable 12 Volt Air Compressor is designed for low-noise operation and portable air supply when powered from a standard vehicle battery. The compressor operates at approximately 56 decibels and uses an oil-free single piston pump designed for reduced maintenance.

The 12-volt motor operates at 1680 RPM to help reduce noise and mechanical wear during operation. A 1.0 gallon steel air tank provides lightweight portability while maintaining sufficient air storage for inflation and light pneumatic tool use.

The compressor produces approximately 0.95 CFM at 90 PSI, supporting applications such as brad nailers, finish nailers, airbrush tools, blow guns, and tire inflation. Battery clamps and power cables are included for connection to a standard vehicle battery.

The oil-free pump design allows operation in varying temperatures and uneven terrain without the need for oil lubrication.

Standard Equipment

• Oil-free single piston compressor pump
• 1.0 gallon steel air tank
• Dual pressure control gauges
• Industrial push-to-connect quick connector
• Thermal overload protector
• External current protector
• Air filter
• Battery clamps with 12 gauge, 10 ft power cables

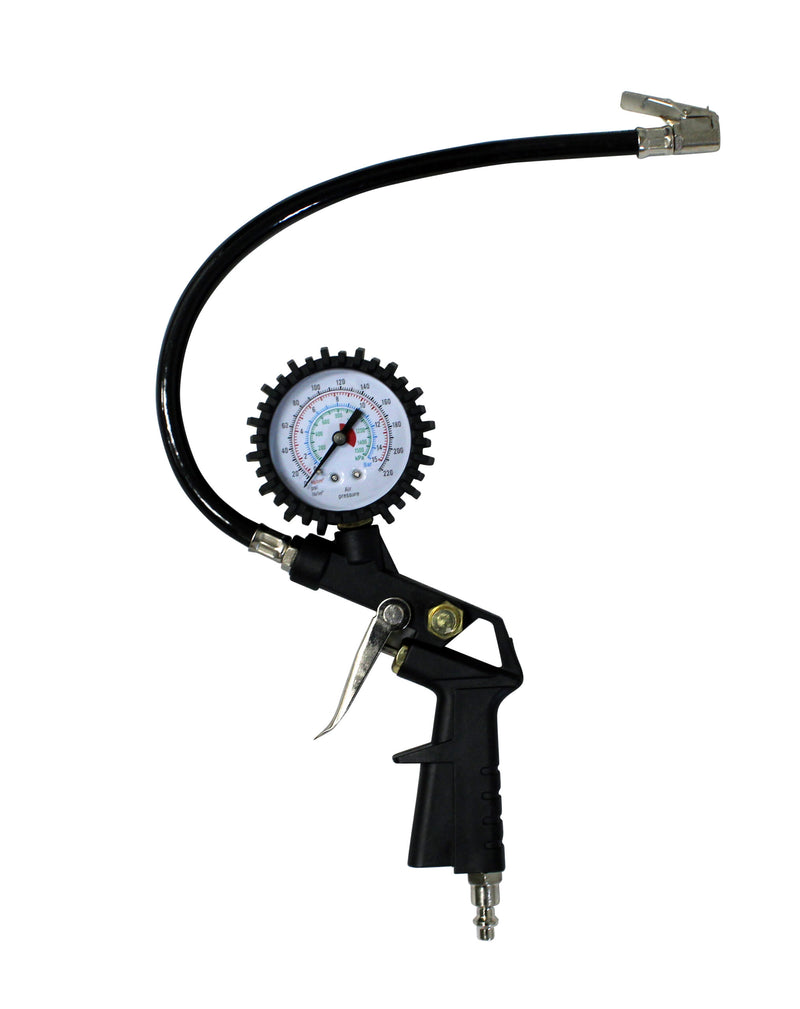

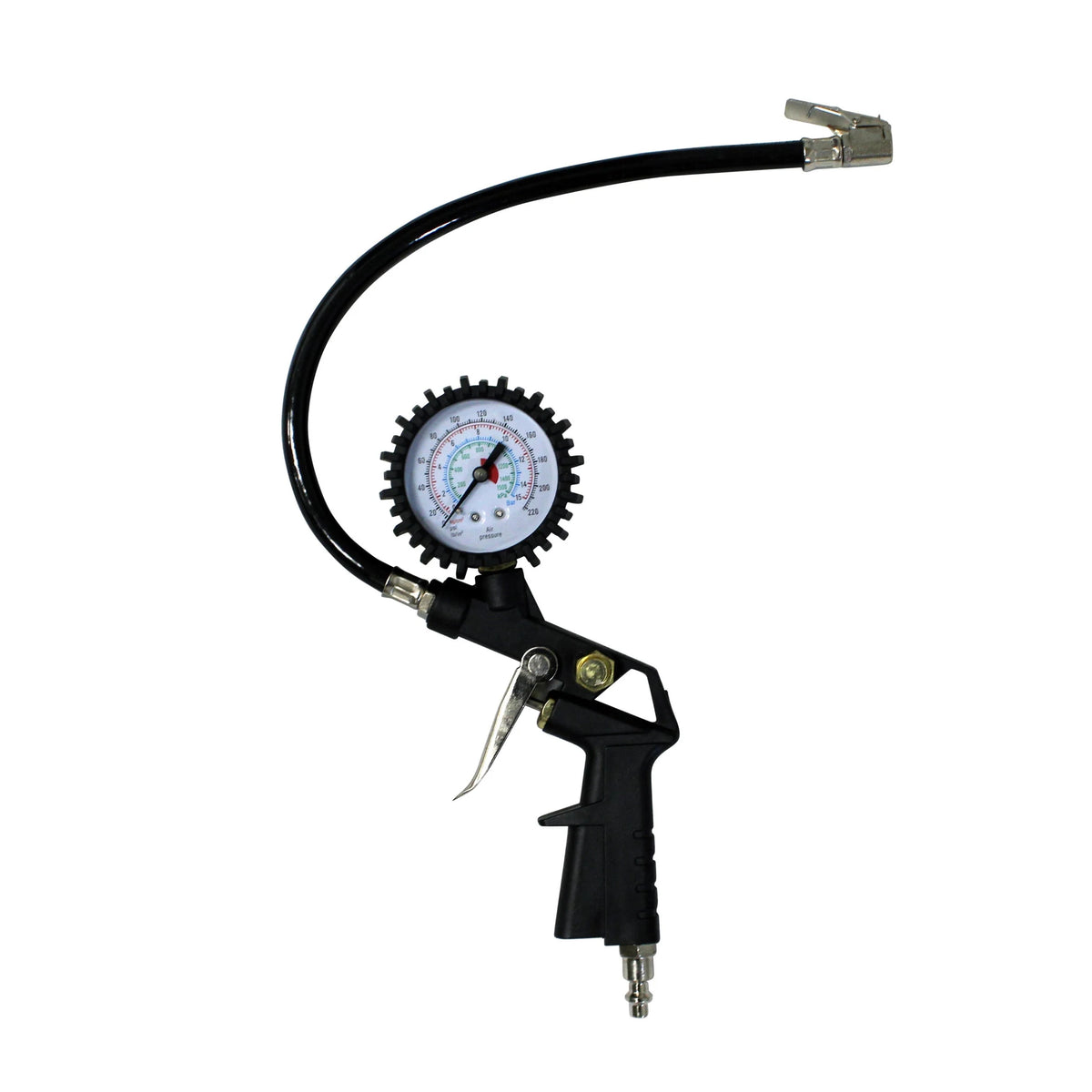

• Tire pressure gauge gun
• Tire chuck
• 1 year limited manufacturer warranty

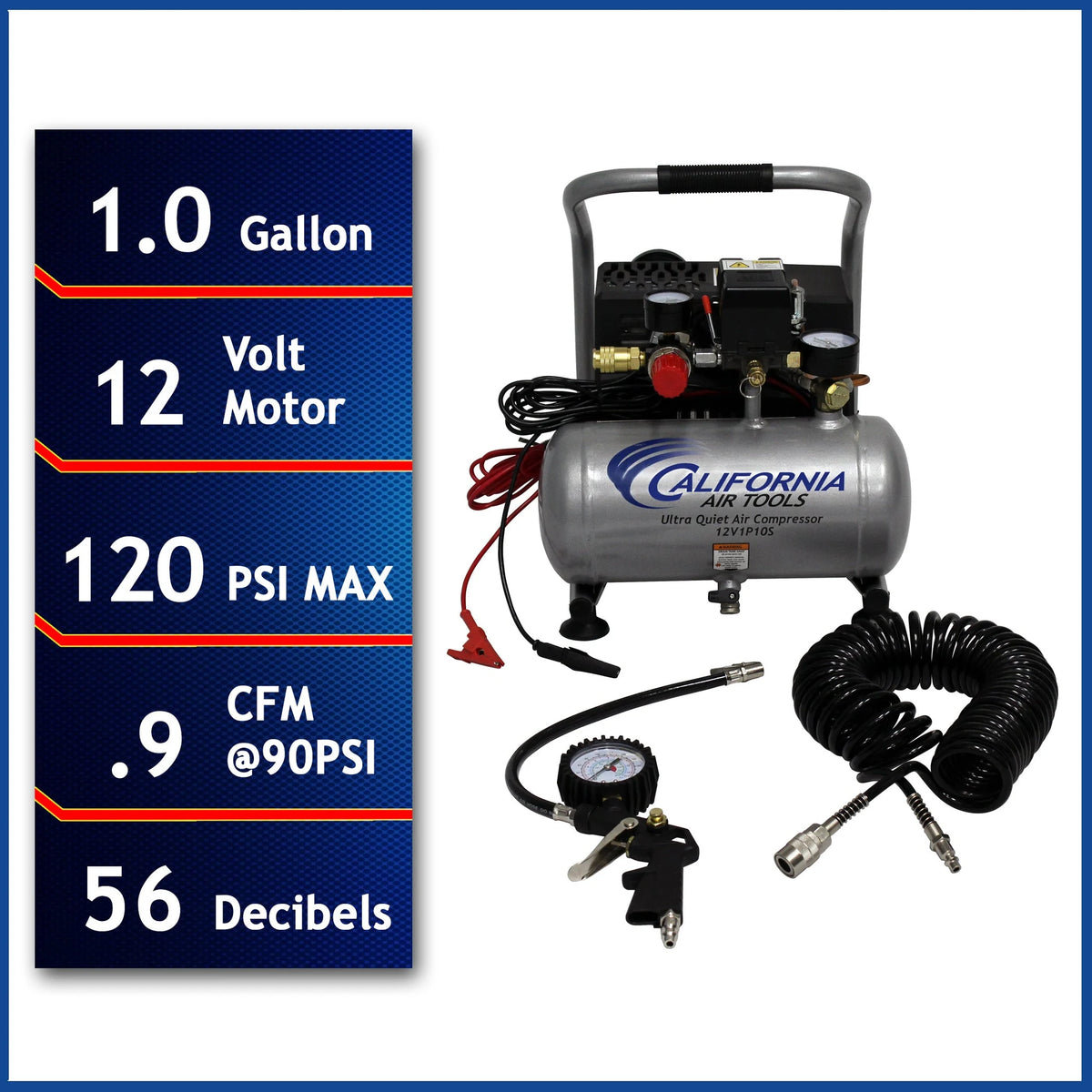

Technical Data + Specifications

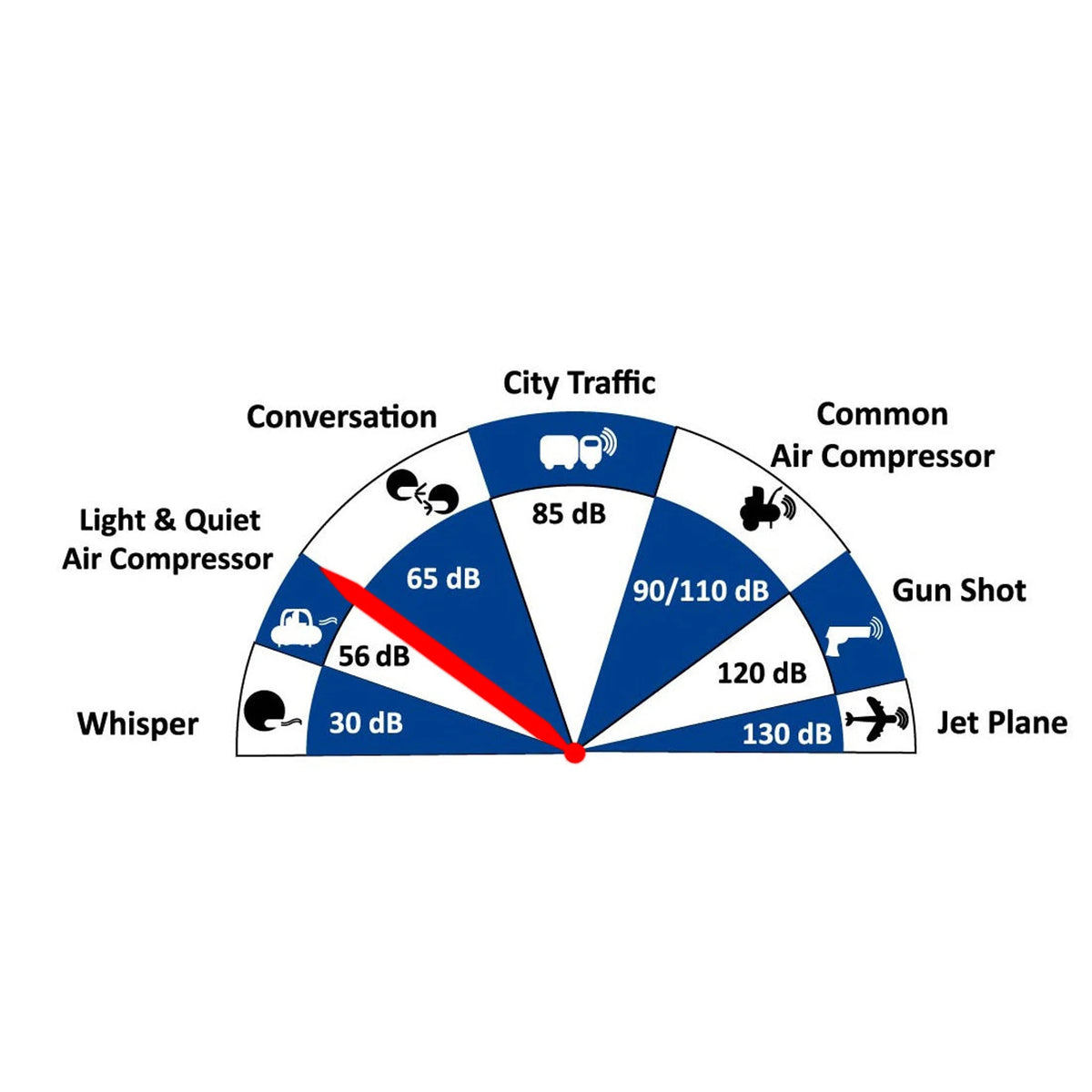

• Noise Level: 56 dB
• Motor Speed: 1680 RPM
• Air Flow: 0.95 CFM @ 90 PSI
• Maximum Pressure: 120 PSI
• Power Source: 12 Volt battery
• Current Draw: 38 Amps
• Tank Capacity: 1.0 Gallon
• Tank Material: Steel
• Weight: 30 lbs
• Dimensions: 12.5" L x 14.7" W x 14.75" H
• Tank Fill Time: ~60 seconds
• Recovery Time (90 PSI to 120 PSI): ~20 seconds
