California Air Tools 10020SPCAD 2.0 HP 10 Gallon Oil-Free Air Compressor with Auto Drain and Soundproof Cabinet

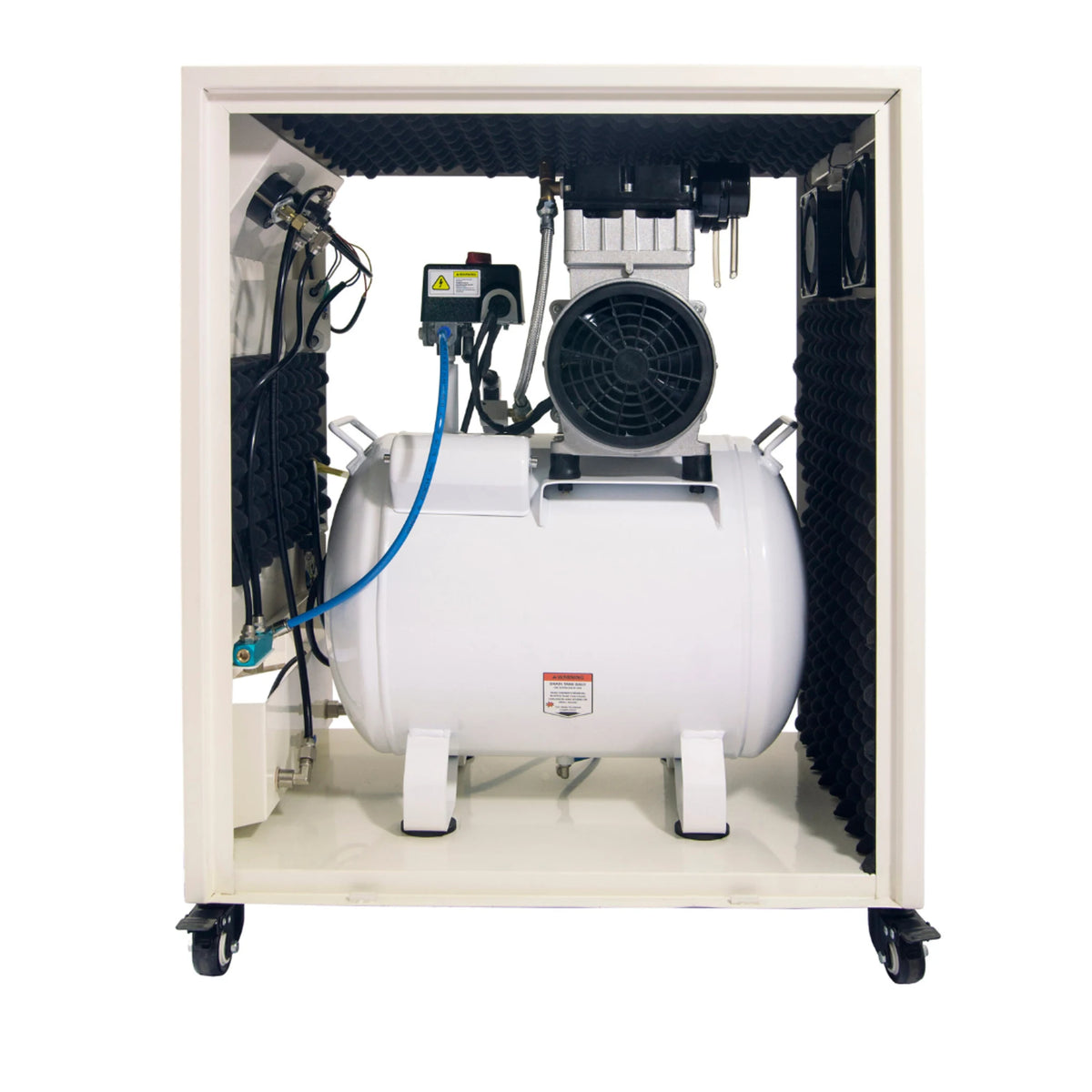

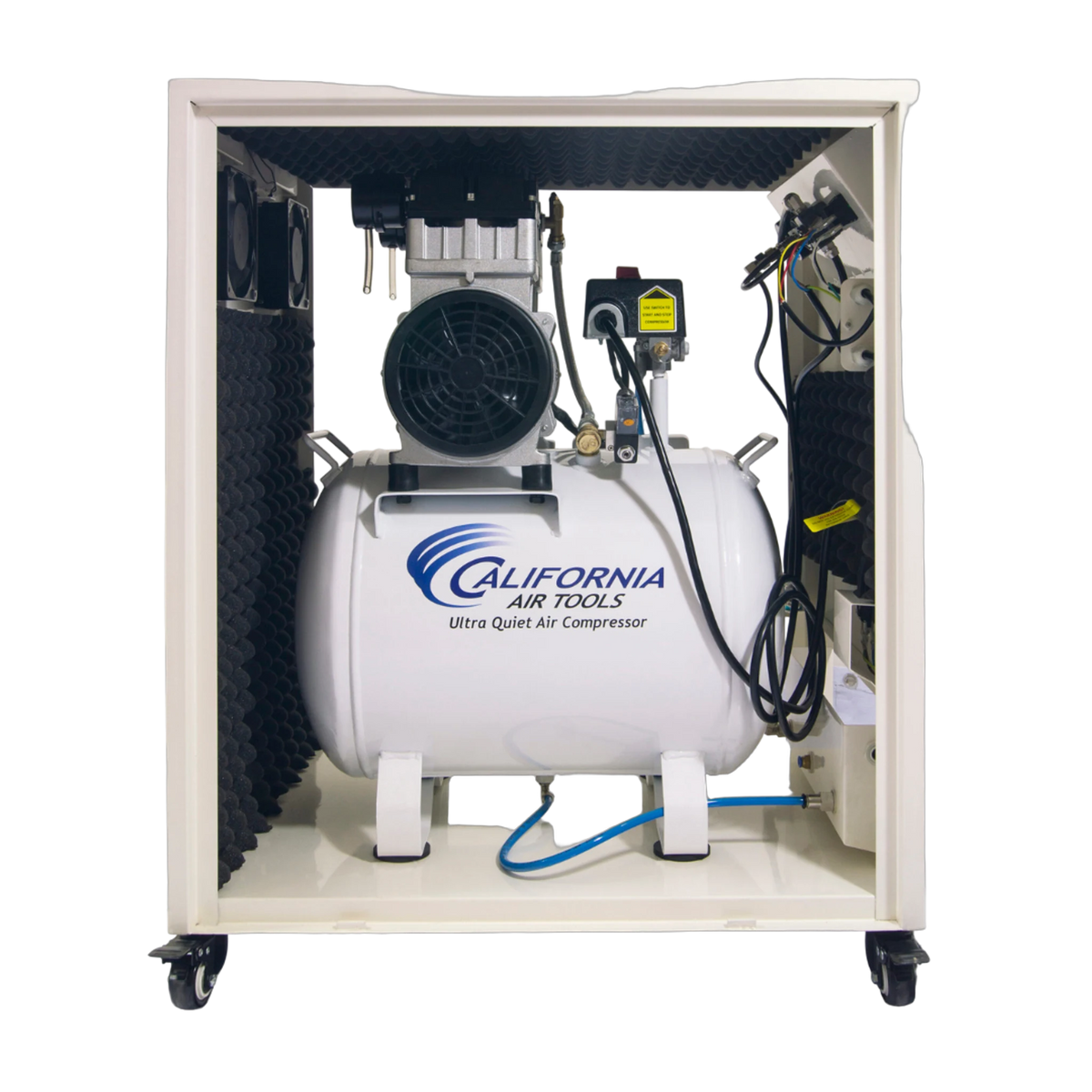

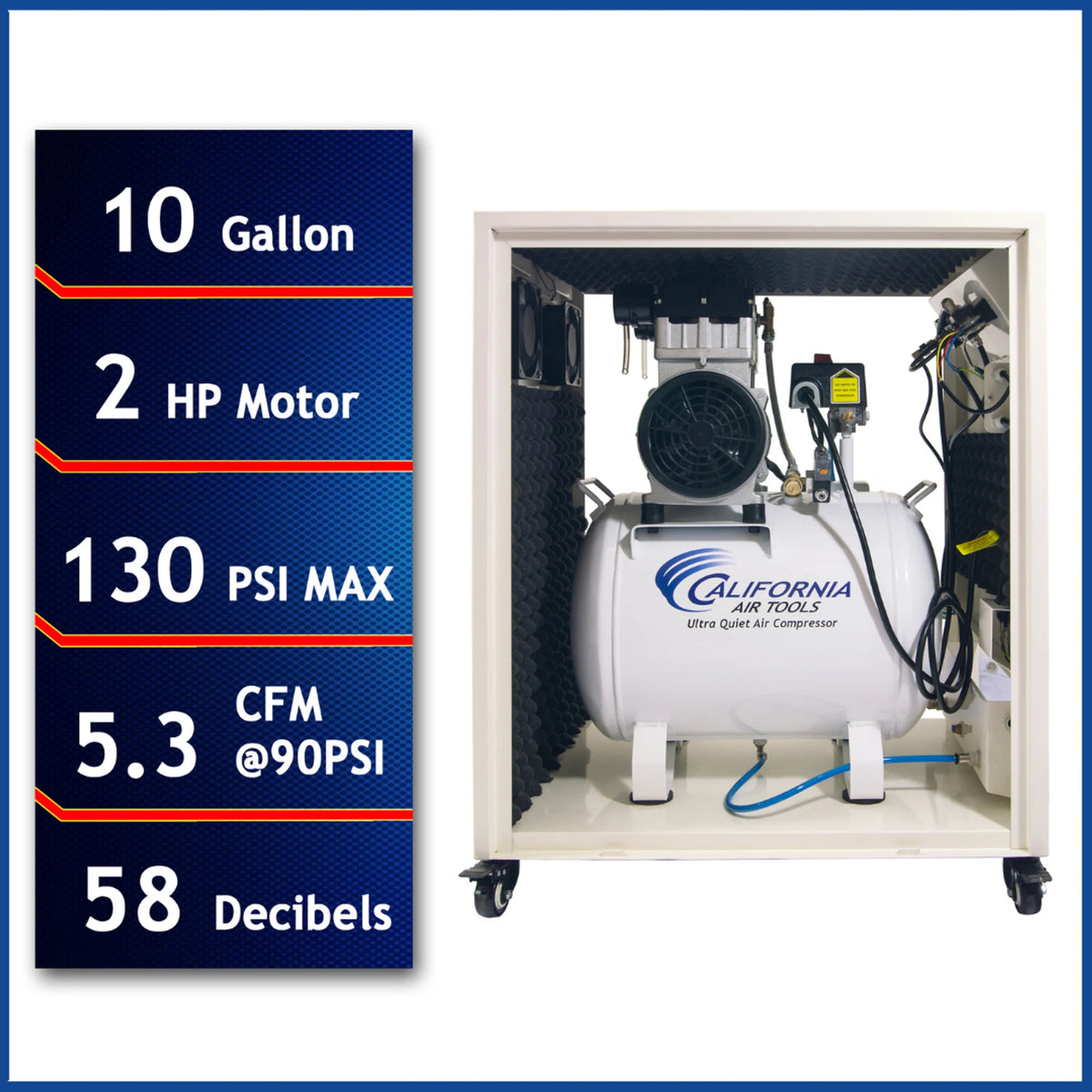

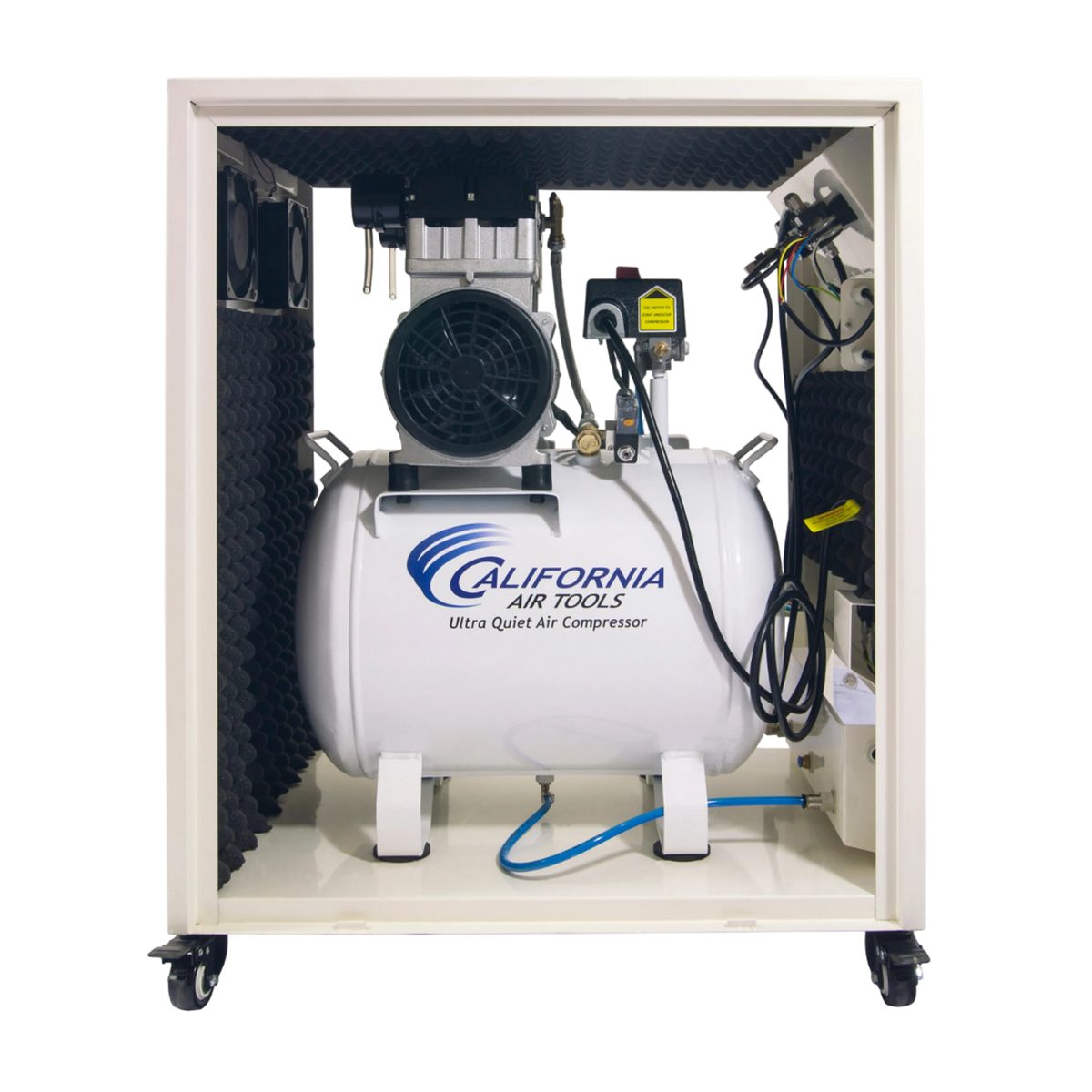

Designed as an enclosed air system, the California Air Tools 10020SPCAD integrates a 10-gallon compressor, sound-reducing cabinet, and automatic drain setup for controlled indoor operation. The cabinet construction includes internal insulation and ventilation fans to help manage both sound output and internal temperature.

The compressor is driven by a 2.0 HP motor operating at 1680 RPM, supporting steady air production while limiting mechanical stress during extended use. Its oil-free dual piston pump system removes the need for lubrication and helps maintain clean compressed air.

An integrated Easy Start Valve reduces startup load by briefly releasing air from the pump, allowing the motor to reach operating speed more efficiently. The system cycles between pressure thresholds automatically to maintain tank pressure during use.

The internal steel tank stores compressed air for intermittent applications, while a factory-installed automatic drain valve removes collected moisture at timed intervals. This helps reduce manual maintenance and limits water accumulation inside the tank.

Access to internal components is provided through dual cabinet doors, and the unit is mounted on swivel casters for repositioning within workspaces such as shops, storage areas, or enclosed work environments.

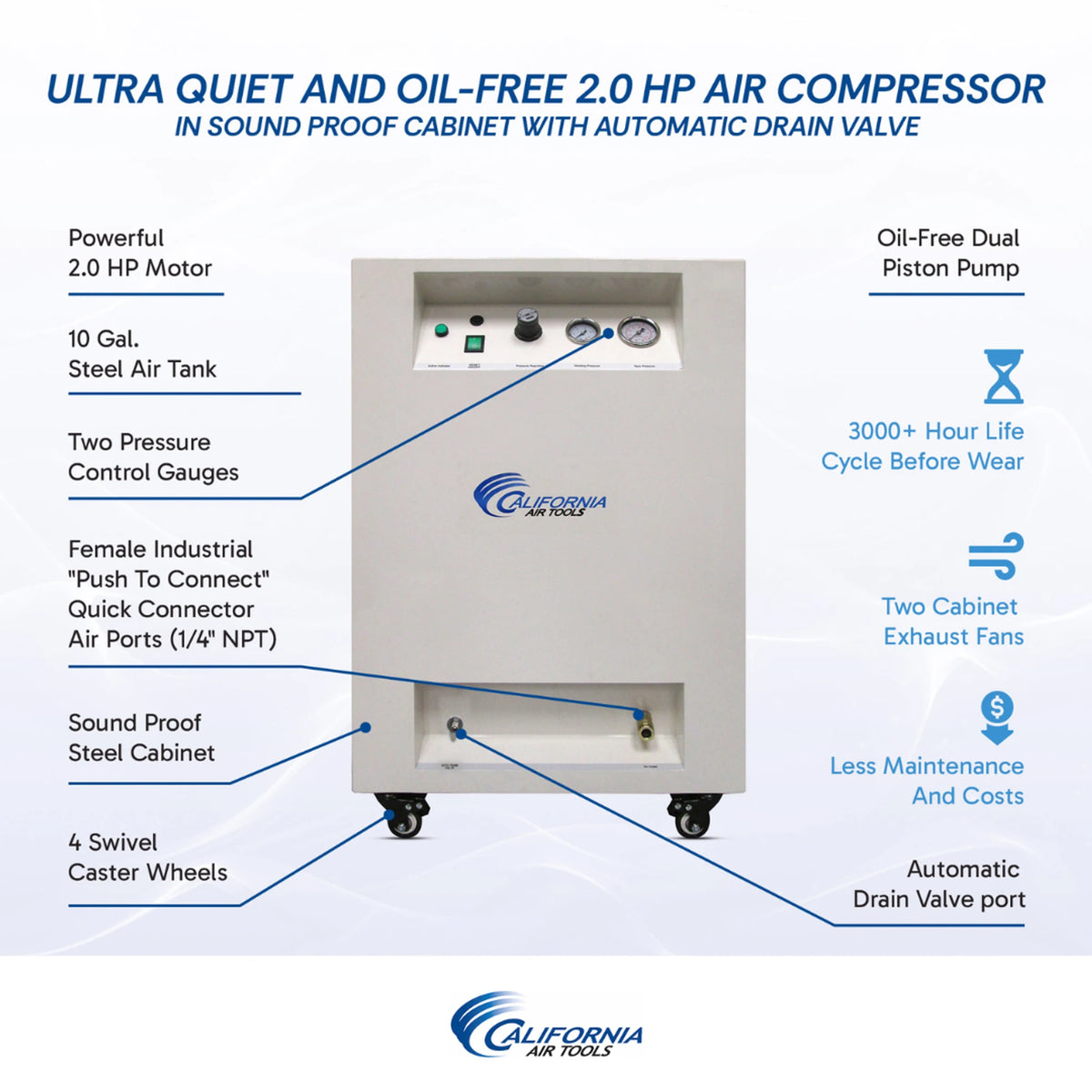

Standard Equipment

• 2.0 HP motor (1680 RPM)
• Oil-free dual piston pump
• 10-gallon steel air tank
• Sound-reducing cabinet with insulation

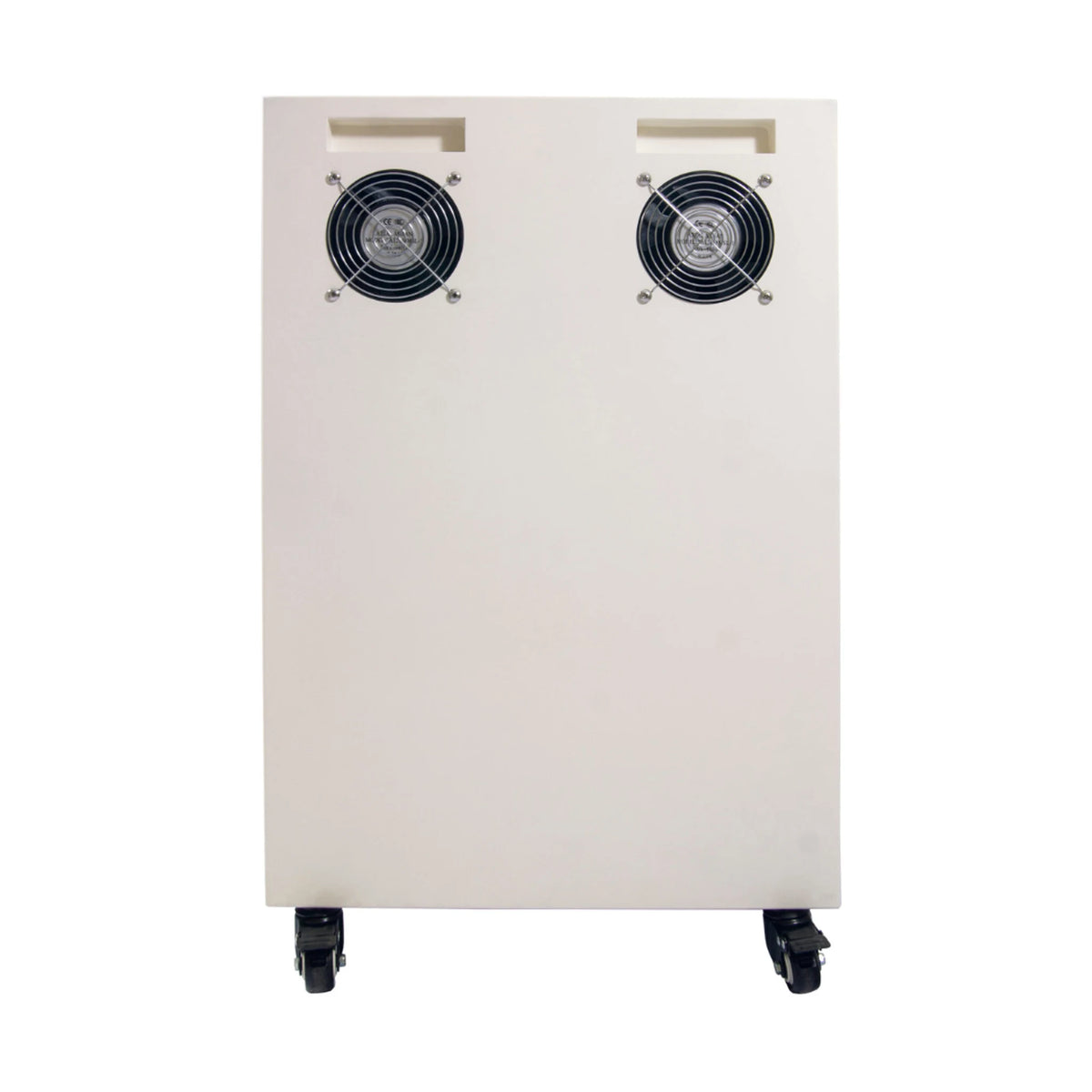

• Dual cooling/ventilation fans
• Automatic drain valve (timer controlled)
• Easy Start Valve
• Dual pressure gauges
• Two 1/4" push-to-connect air outlets
• Manual drain valve with strainer
• Four swivel caster wheels
• Eight intake air filters
• NEMA 6-15P plug

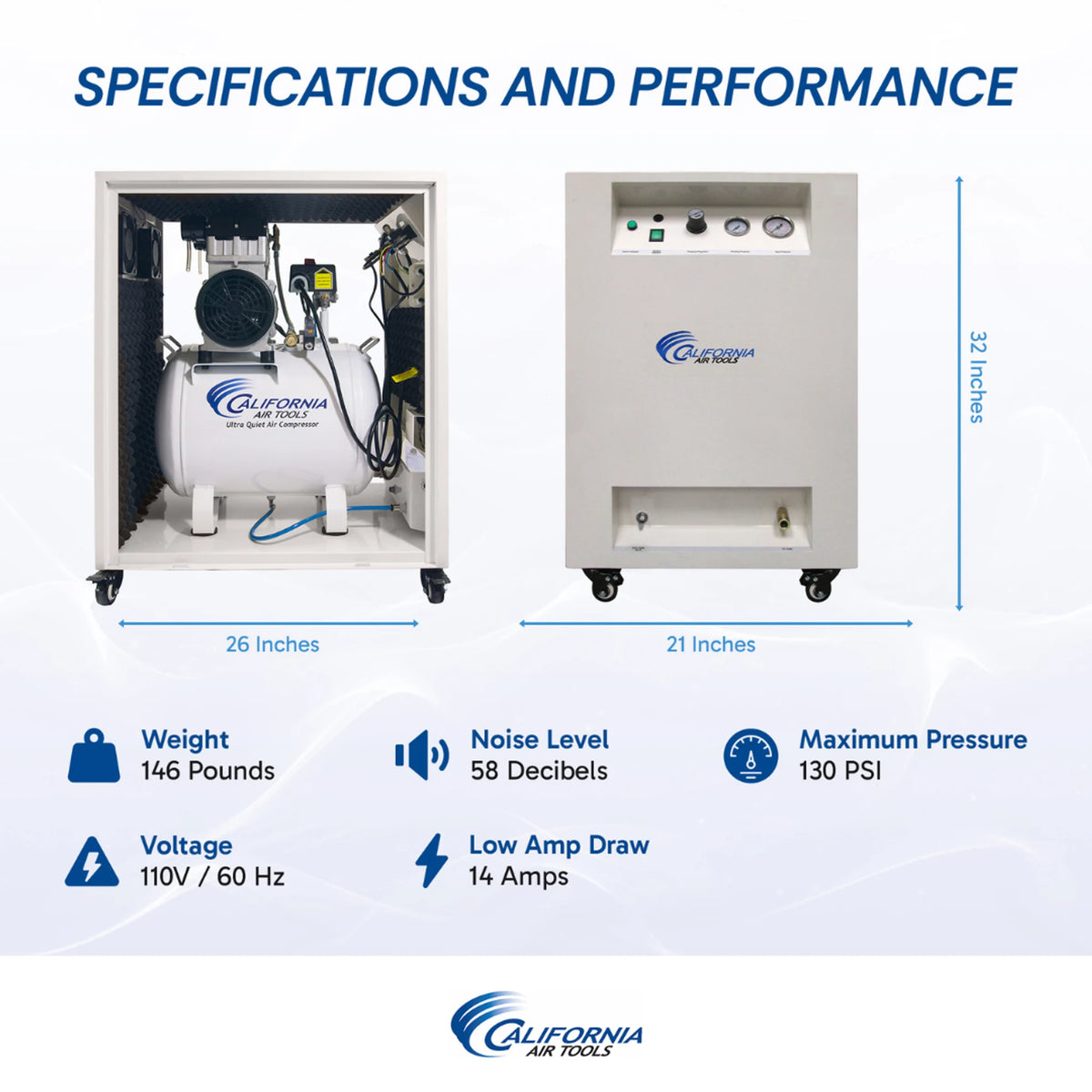

Technical Data + Specifications
