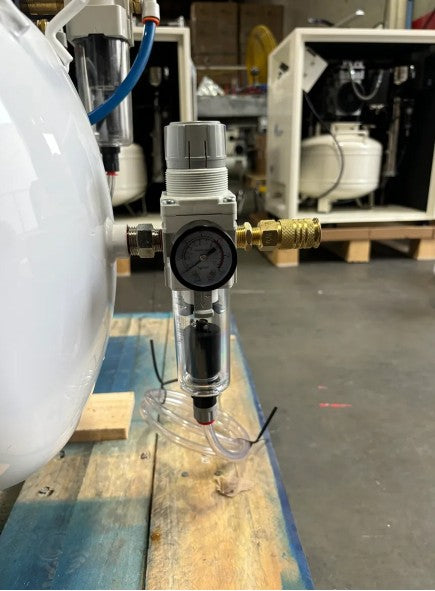

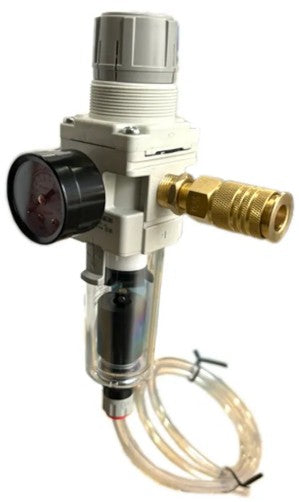

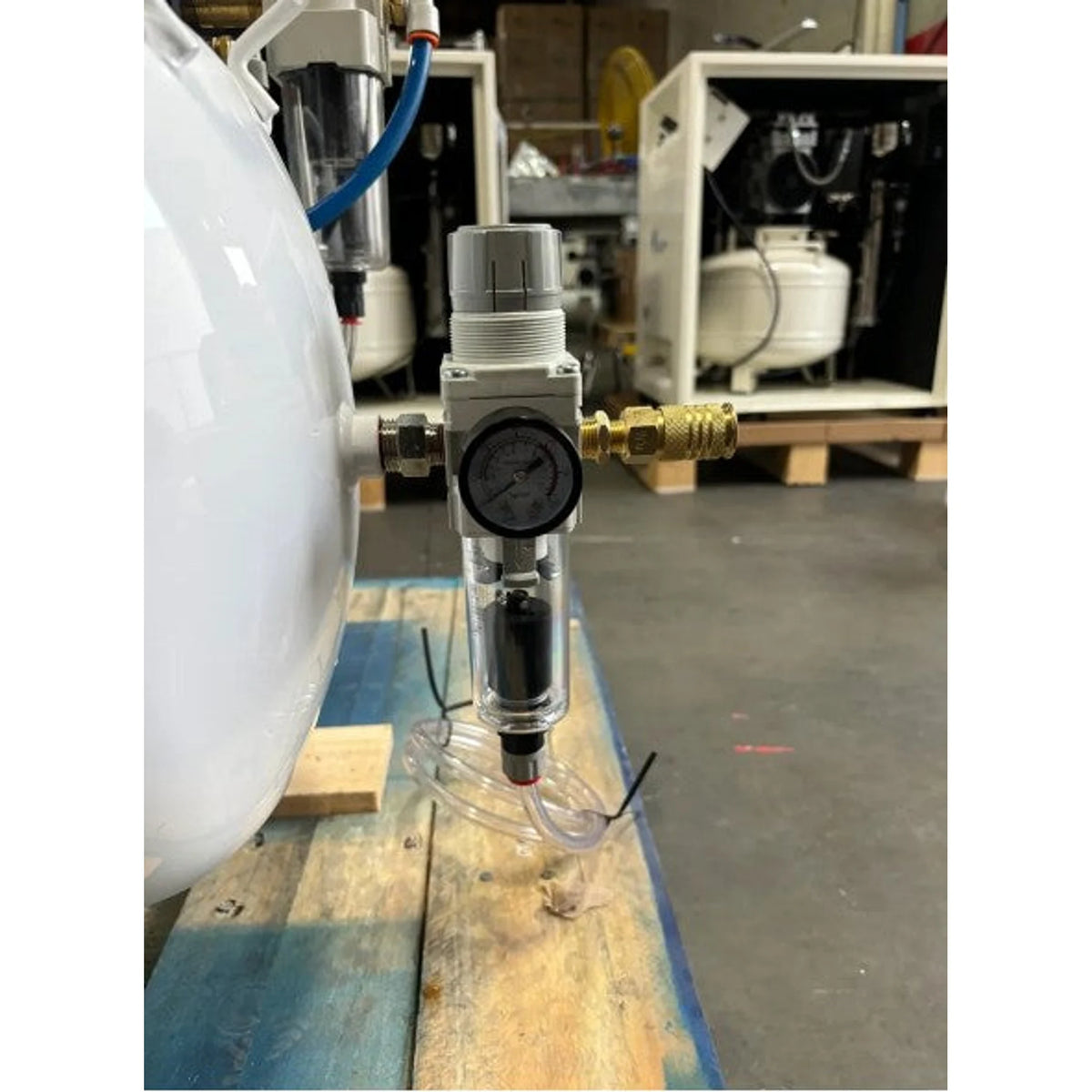

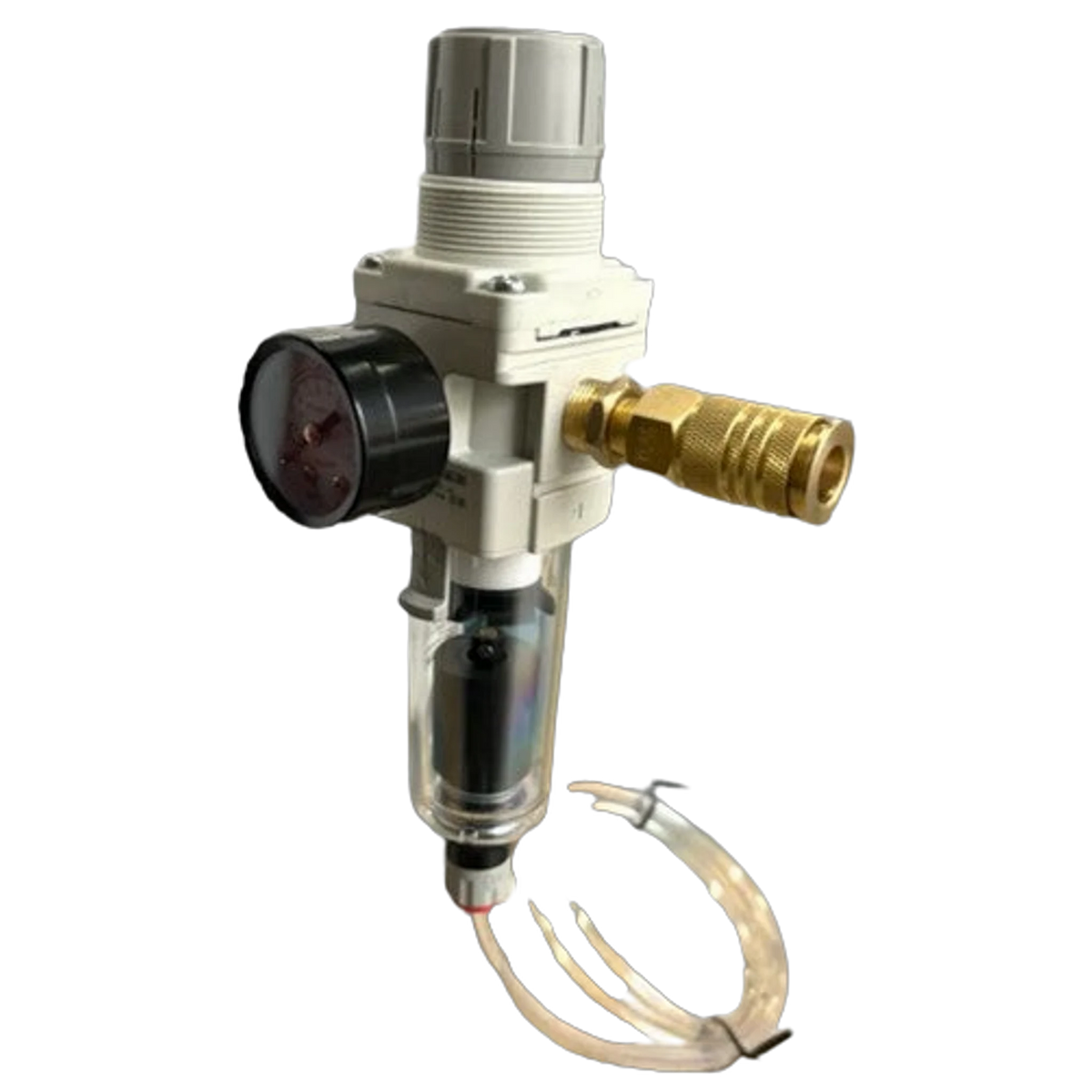

120 PSI Output Pressure Regulator Assembly w/Gauge (1/4″ NPT Output), 90998-1-Kit

California Air Tools 120 PSI Output Pressure Regulator Assembly features a 5 micron (uM) particulate filter with 1.5” Dial Gauge.

(provides connection from 1/2” NPT fitting, to Regulator, then 3/8” NPT Adapter to 1/4” NPT Air Output Fitting)

Filtration: 5 micron

Part Number: 90998-1-Kit

PURPOSE: Allows replacement of the 1/2” Ball Valve with 1/4” NPT Output 120 PSI Pressure Regulator w/Gauge Assembly Kit.*

CONNECTIVITY: Enables easy connection of a standard Industrial Air Hose to compressor via 1/4” Industrial Female Push-To-Connect Hose Connector.

COMPATIBILITY: Supports the following California Air Tools compressor models:

• CAT-20060CAD
• CAT-20060DCC
• CAT-60050SCR
• CAT-60065C
• CALAIR 60037BD
• CAT-80060C
• CALAIR 80050BD

Output Pressure Regulator Assembly (90998-1-Kit), includes the following parts:

• 91062: NIPPLE REDUCING 1/2” NPT X 3/8” NPT
• 90998-1: Air filter regulator MIDI
• 96005: Horizontal Pressure Gauge Small Size 1.5” (0-120 PSI), Thread 1/8”, Color Black
• 90394: Universal 1/4” Industrial Male (w/Female Push-To-Connect) Hose Connector (L-A3)
• 91270: 3/8” X 1/4” MIP X FIP BRASS BUSHING
• 181281-1: PVC Tubing 1/4” ID X 3/8” OD Flexible Clear Vinyl Hose, 1 Ft

*If a 1/2” NPT Air Pressure Filter Regulator with 5uM micro mist separator is preferred, you may purchase this item via the following link. [NOTE: 1/2″ fittings/adapters and Pressure Gauge (1/8″ thread) are not included and would need to be purchased separately].

Compatible Pressure Gauges:

Pressure Gauge 2” Diameter Center Back Mount 1/4” NPT 0-180 PSI
