Virutex SVN250 Vacuum Pad For Secure Fastening 5046371

Applications

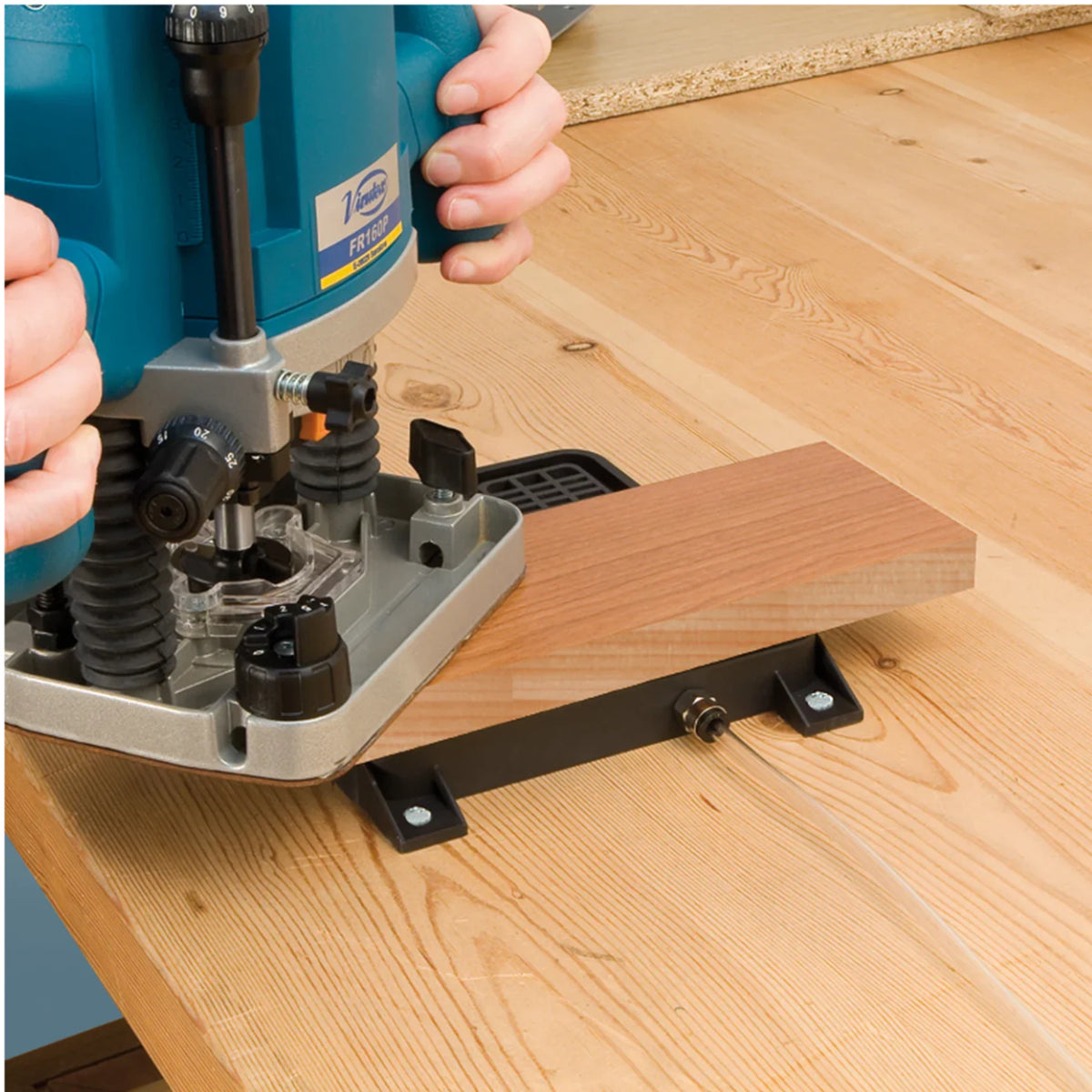

• Non-marking fixation for trimming, routing, drilling, and edge banding
• Holding smooth panels and boards in vertical or horizontal position
• Small component clamping via divided suction zones
• Large panel support using multiple linked SVN250 units
• Bench-mounted or portable job site clamping

Specifications

Construction & Performance

• 800 g/cm² holding force at 6 bar secures workpieces firmly through routing, trimming, and drilling operations without mechanical clamps.

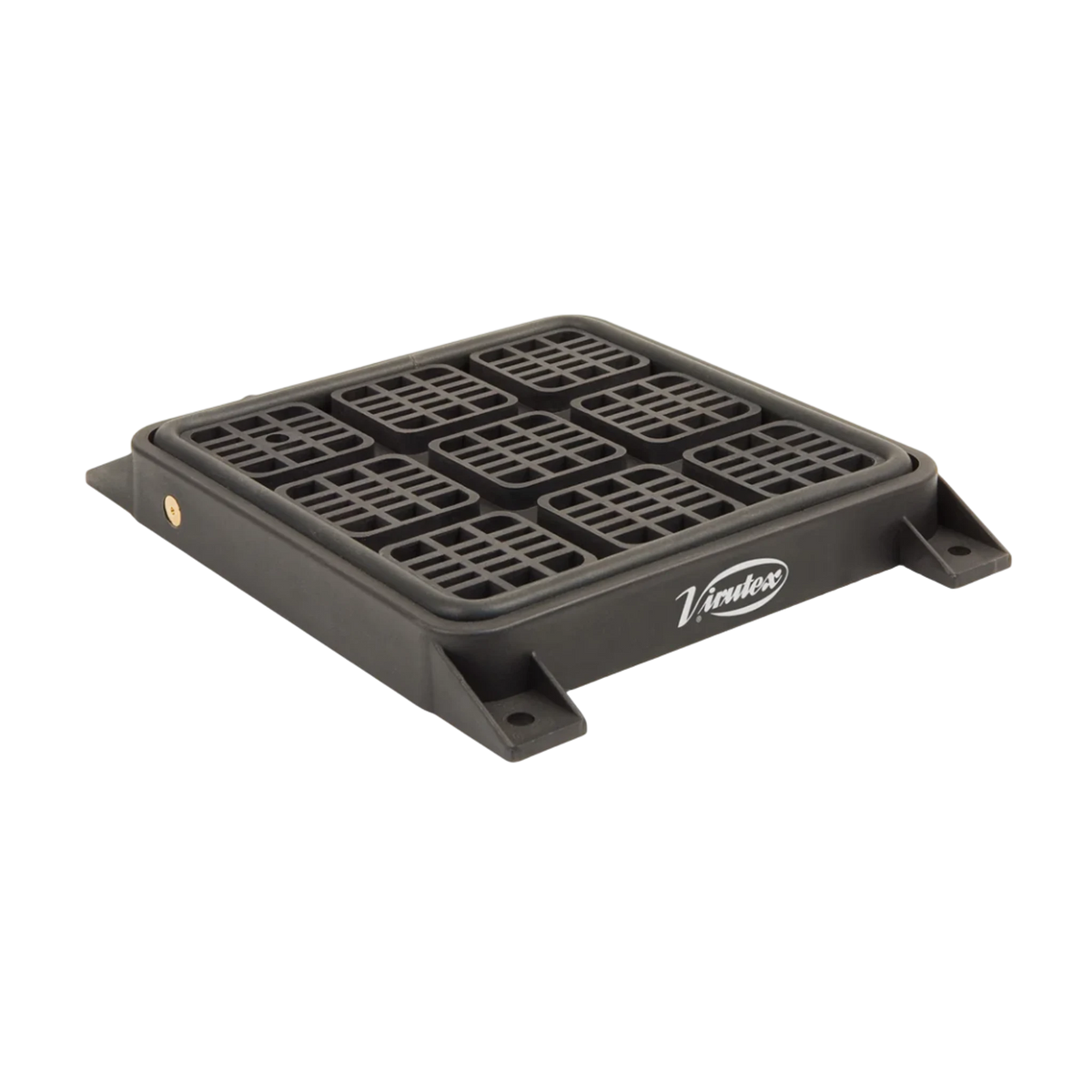

• Modular rubber joints divide the 150 x 150mm pad into smaller suction zones for workpieces that don't cover the full pad area.
• Expandable system links multiple SVN250 units together to cover large panels or extended surfaces with consistent holding force across the full area.
• Bench-mount screw holes allow permanent attachment to a workbench surface for a fixed, stable clamping station.

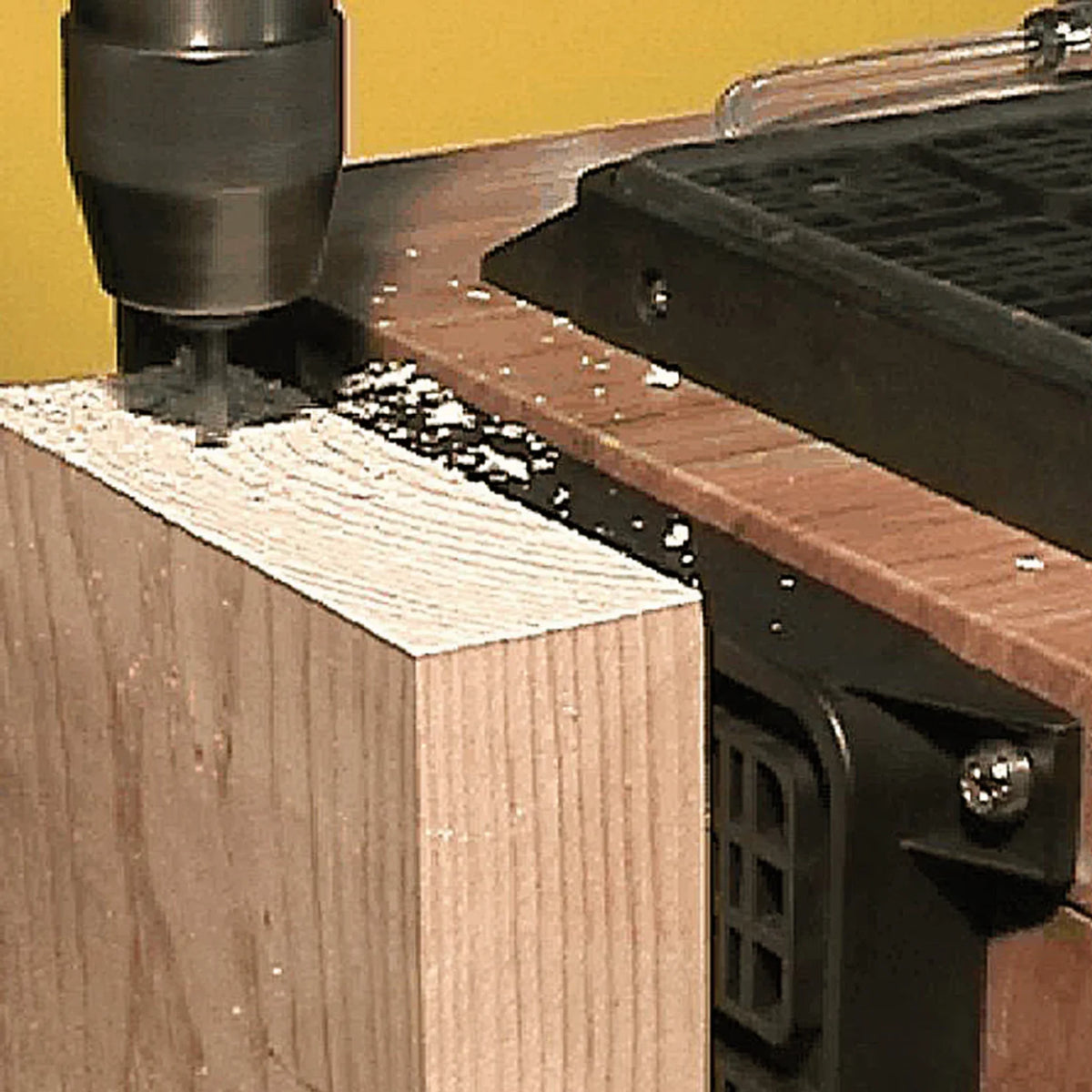

• Horizontal and vertical capability holds workpieces in either orientation without repositioning or additional fixtures.

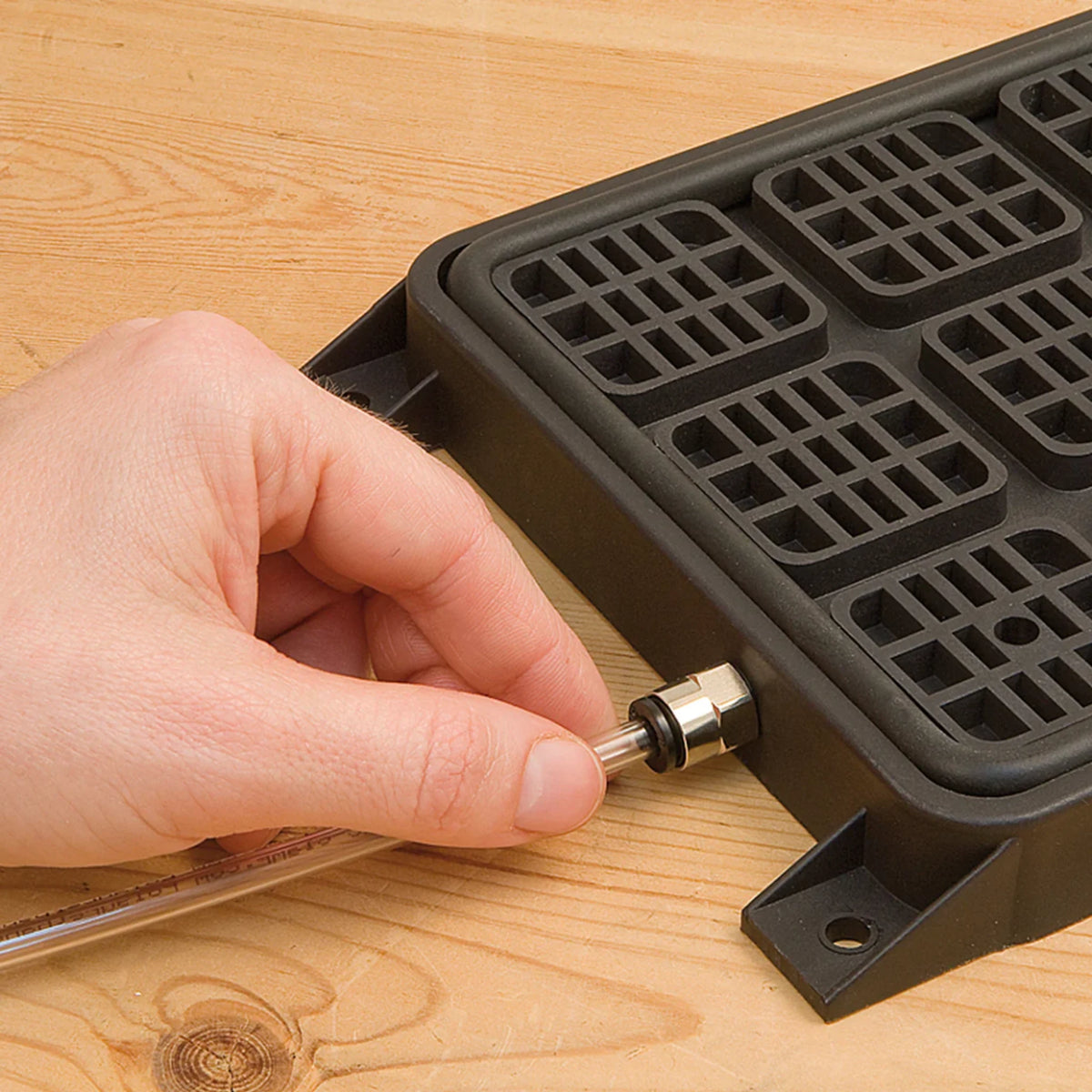

• 1/4" fast connector with transparent pipe integrates quickly with standard shop compressed air systems.
• 325g compact build keeps the pad portable for job site use without a fixed bench setup.

Why the SVN250

• Modular suction zones make it useful for small components where full-pad contact isn't possible, avoiding the need for a separate smaller pad.
• Expandable multi-pad linking scales the system to large panel work without purchasing a dedicated large-format vacuum fixture.
• Bench-mount holes give it a permanent station option that most portable vacuum pads don't offer.
• 325g weight keeps it genuinely portable for shops that split work between a bench and job sites.
